Item Part# Description 1 7263050 PHOTO PROX SENSOR 2 7262812 CONVEYOR DRIVE PINION 3 7252233 BEL T,TOOTH,6X245,T2 4 7263045 ENCODE R,INCR,360PTS,UV - 9 5 7263044 GEAR B OX,1/75 (CNVR ),UV -9 6 7252242 MOTOR,TR I,25W,7.84…
Item Part# Description
1 7263050 PHOTO PROX SENSOR
2 7263052 SPROCKET,CNVR,UV-9
3 7263042 COUPLING,TORQUE LIMITING,UV-9
4 7252277 GEAR BOX 1/6
5 7252242 MOTOR,TRI,25W,7.84NM,12.5RPM
6 7252315 STAINLESS CHAIN / 5 MM PIN / PITCH 9.525
7 7262755 STAINLESS CHAIN MASTER LINK
8 7252232 BELT,TOOTH,10X3000,T5
9 7263044 GEAR BOX,1/75 (CNVR),UV-9
10 7263045 ENCODER,INCR,360PTS,UV-9
11 7252233 BELT,TOOTH,6X245,T2
12 7262812 CONVEYOR DRIVE PINION

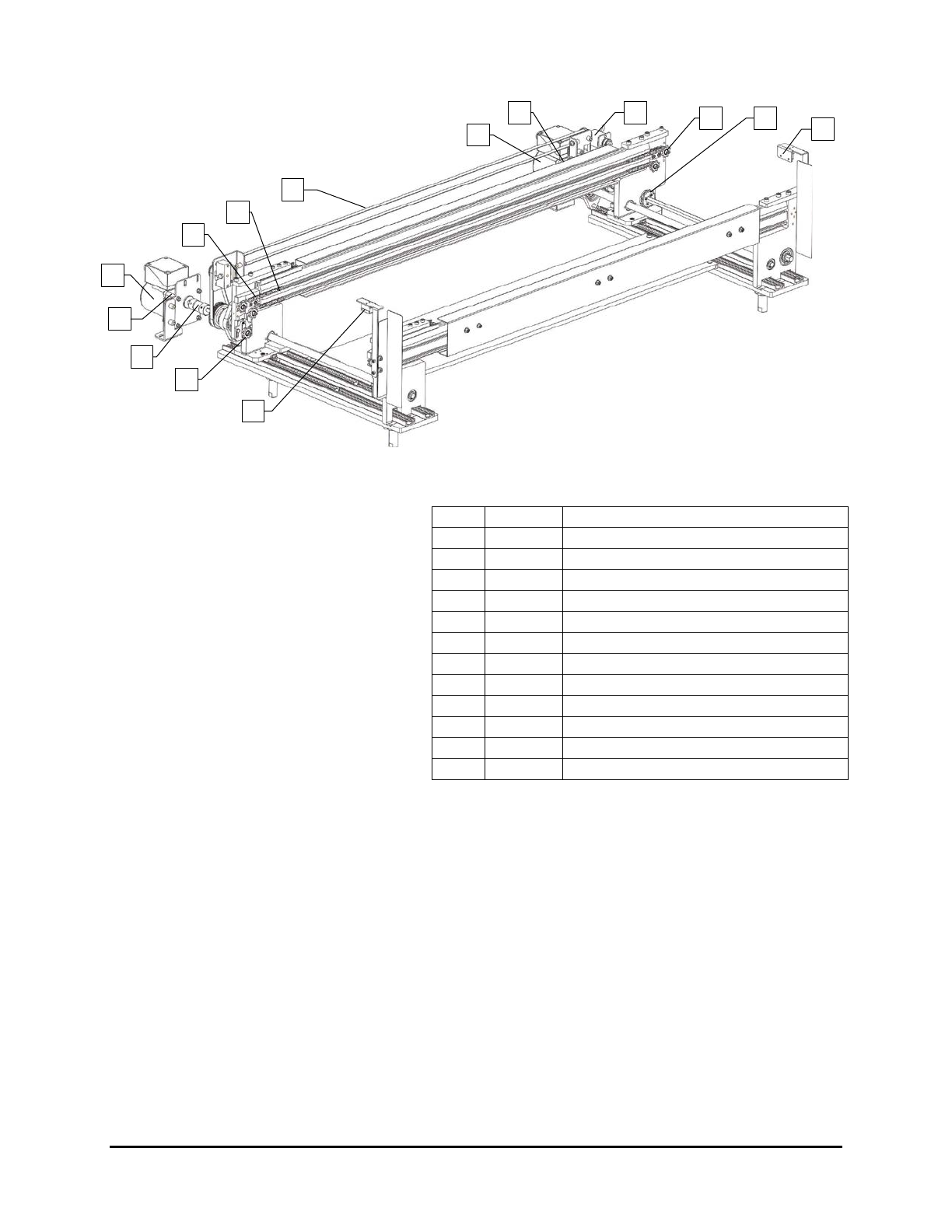

Figure 10-4 Standard Conveyor
1
2
3
4
5
6
7
8
5
12
9
10
11
1
10-6 Parts List
Item Part# Description
1 7263050 PHOTO PROX SENSOR
2 7262812 CONVEYOR DRIVE PINION
3 7252233 BELT,TOOTH,6X245,T2
4 7263045 ENCODER,INCR,360PTS,UV-9
5 7263044 GEAR BOX,1/75 (CNVR),UV-9
6 7252242 MOTOR,TRI,25W,7.84NM,12.5RPM
7 7252232 BELT,TOOTH,10X3000,T5
8 7262755 STAINLESS CHAIN MASTER LINK
9 7252315 STAINLESS CHAIN / 5 MM PIN / PITCH 9.525
10 7252277 GEAR BOX 1/6
11 7263042 COUPLING,TORQUE LIMITING,UV-9
12 7263052 SPROCKET,CNVR,UV-9

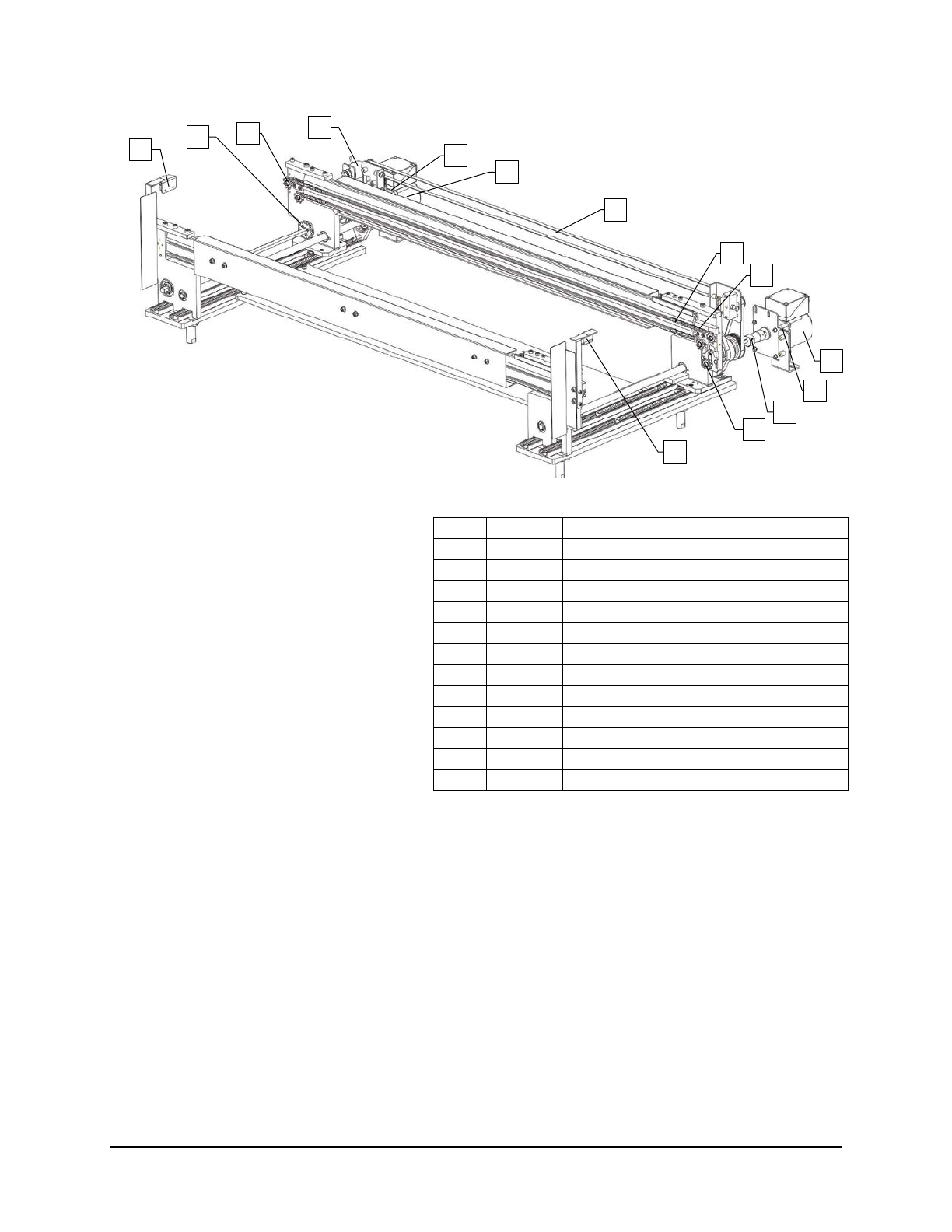

Figure 10-5 Right to Left Conveyor - Optional
1
2
3
4
5
6
7
8
9
6
10
11
12
1
Parts List 10-7
Item Part# Description
1 7263050 PHOTO PROX SENSOR
2 7263052 SPROCKET,CNVR,UV-9
3 7263042 COUPLING,TORQUE LIMITING,UV-9
4 7252277 GEAR BOX 1/6
5 7252242 MOTOR,TRI,25W,7.84NM,12.5RPM
6 7252315 STAINLESS CHAIN / 5 MM PIN / PITCH 9.525
7 7262755 STAINLESS CHAIN MASTER LINK
8 7252232 BELT,TOOTH,10X3000,T5
9 7263044 GEAR BOX,1/75 (CNVR),UV-9
10 7263045 ENCODER,INCR,360PTS,UV-9
11 7252233 BELT,TOOTH,6X245,T2
12 7262812 CONVEYOR DRIVE PINION
Figure 10-6 Dual Track Same Way 4 Rail Conveyor - Optional
1
2
3
4
5
6
7
8
5
12
9
10
11
1
10-8 Parts List
