2.9 Residual Safety Risks
Safety Hazard Risk Area
A high risk crushing hazard is created
by the movement of the conveyor. DO
NOT reach into the conveyor while the
system is operating. Keep hands away
from this area unless the system power
is off.
Serious eye injury may occur by staring
directly at the UV light. DO NOT bypass
the safety interlock. DO NOT open the
hood while the UV light is on. Wear
protective goggles when using the UV
light. See 2.4.3 Ultraviolet Radiation.
A high risk burn hazard is created by
the UV light. Keep hands away from
this area unless the system power is off
and UV lights have cooled.
Item
Description
1
Conveyor
2
UV Radiation
3 UV Light

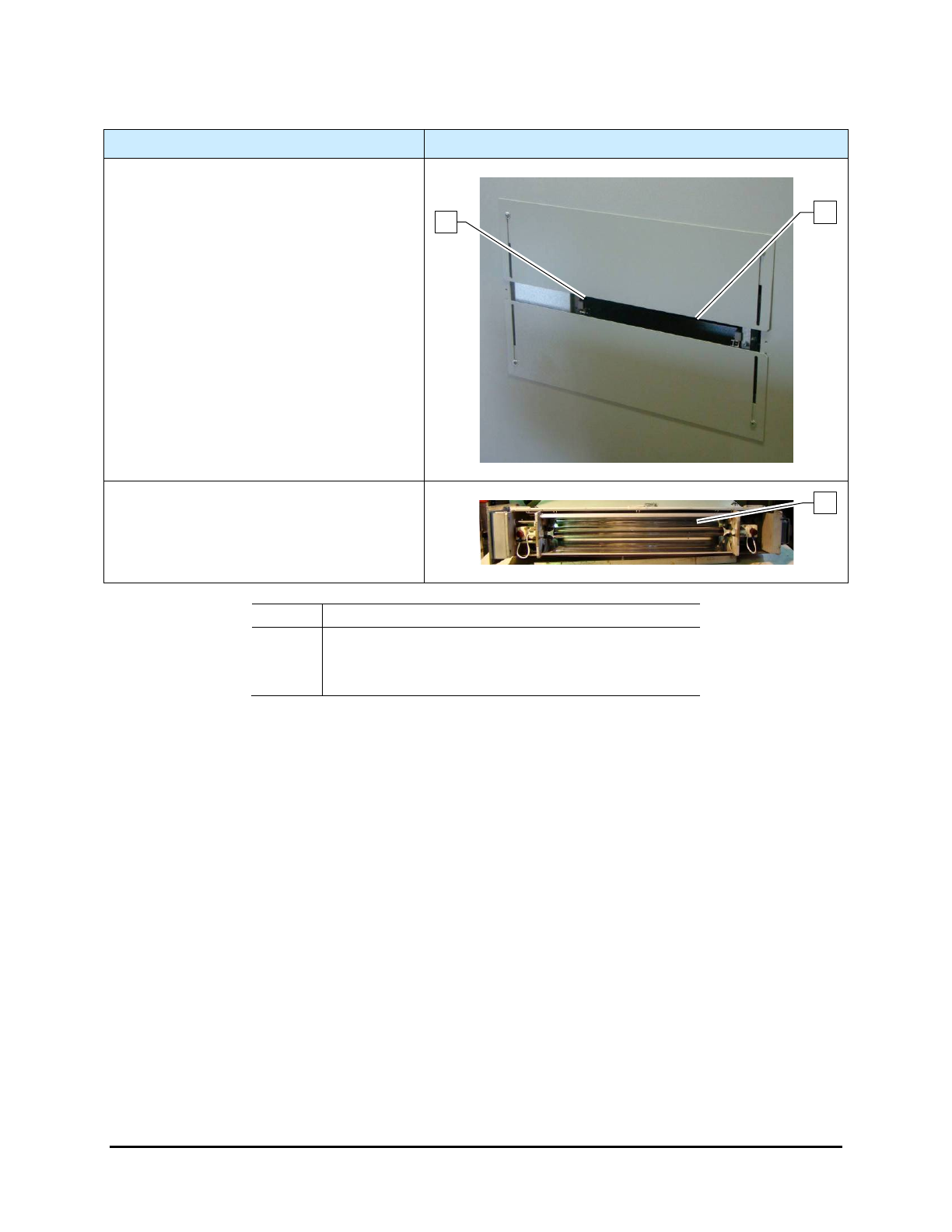

Figure 2-4 S2-900 Safety Hazard Areas
3
1
2
Safety 2-11
2.10 Emergency Shutdown
In the event of an emergency or malfunction, press the E-Stop button. The UV-9 Cure Module has two E-
Stop buttons. The E-Stop buttons are the large red buttons located on the operator’s front control panel
and one at the rear of the oven (Figure 2-5). Activating the E-Stop immediately halts conveyor movement
and turns off the UV lamp.
WARNING! CAUTION!
The E-Stop buttons do not cut power to the equipment. Do not restart the
equipment until the condition that caused the emergency shutdown has been
corrected. Failure to comply could cause serious injury to the user and/or serious
damage to the oven.
TIP If the operator or technician is unable to reach the E-Stop button, the Main Circuit
Breaker (Figure 2-5), which is located on the back of the system, can be used for
emergency shutdown.
Front Panel
Rear View
Item
Description
1 Front E-Stop Button
2 Main Power Switch
3 Rear E-Stop Button

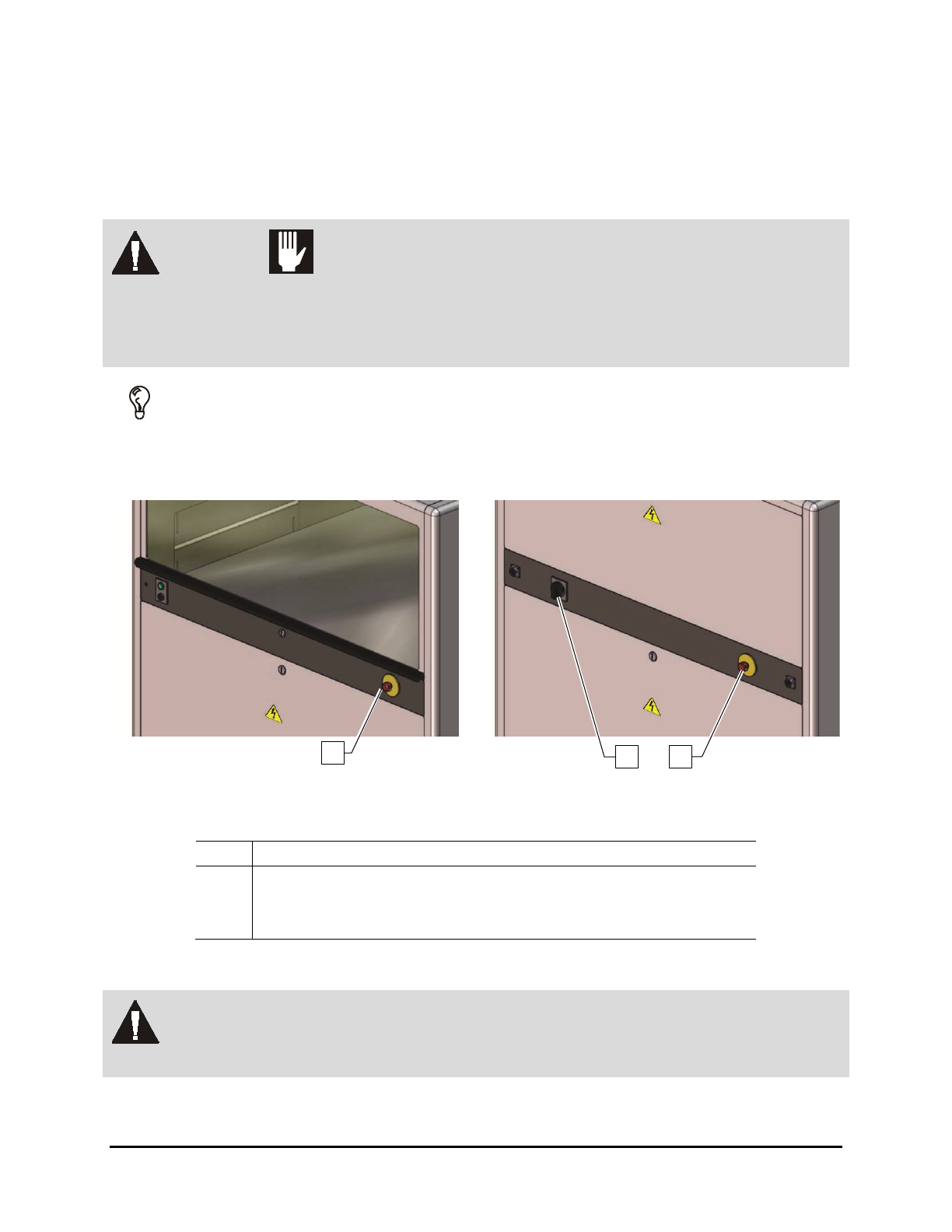

Figure 2-5 EMO/Main Circuit Breaker Locations
WARNING! In an emergency, failure to completely shut down power to the cure module with
the E-Stop can cause serious injury to the user and/or damage to the cure module.
2
3
1
2-12 Safety
2.10.1 Emergency Shutdown Situations
As a minimum, activate the E-Stop in the following situations:
• If anyone is in immediate danger of being injured by moving parts, UV radiation, or electrical
shock.
• If valuable UV-9 Cure Module components or the workpieces are in danger of
being damaged.
2.10.2 Emergency Shutdown Recovery
WARNING! CAUTION!
Do not restart the curing operation until the condition causing the emergency
shutdown has been corrected. Failure to comply could cause serious injury to the
user and damage to the cure module.
NOTE If the Main Circuit Breaker has been tripped, you will need to restart the dispensing
system. Refer to 5.4 System Startup for instructions.
To recover after an emergency shutdown:
1. Clear the conveyor of all workpieces.
2. Lock out/tag out all system power. See 2.12 Lockout/Tagout of Electrical Energy for
specific details.
3. Locate and remedy the cause of the emergency shutdown. See Section 7 – Troubleshooting
for more details.
4. Reset the Main Circuit Breaker inside the electronics enclosure if it has been tripped.
5. Turn the red E-Stop button clockwise until it pops back into position.
6. Remove all warning tags and locking devices.
7. Restart the UV-9 Cure Module. Refer to 5.4 System Startup for instructions.
2.11 Service Shutdown
Before performing any service or parts replacement, the cure module should be shut down as follows:
1. Shutdown the cure module as described in 5.6 System Shutdown.
2. Perform a “Lockout/Tagout of Electrical Energy” as described below.
Safety 2-13
