Item Name Description

1 ON Button (Green)

The

button powers on the UV-9 Cure Module.

Start/Stop Button

(Black)

The Start/Stop button (Black) turns the oven on and off. To start the

over, press the black button for one (1) second. To stop the oven,

press the black button for five (5) seconds.

EMO Button

(Emergency Stop)

In the event of an emergency or malfunction, press the E-Stop

button. Activating the E-Stop immediately halts conveyor movement

and turns off the UV oven. See 2.10 Emergency Shutdown.

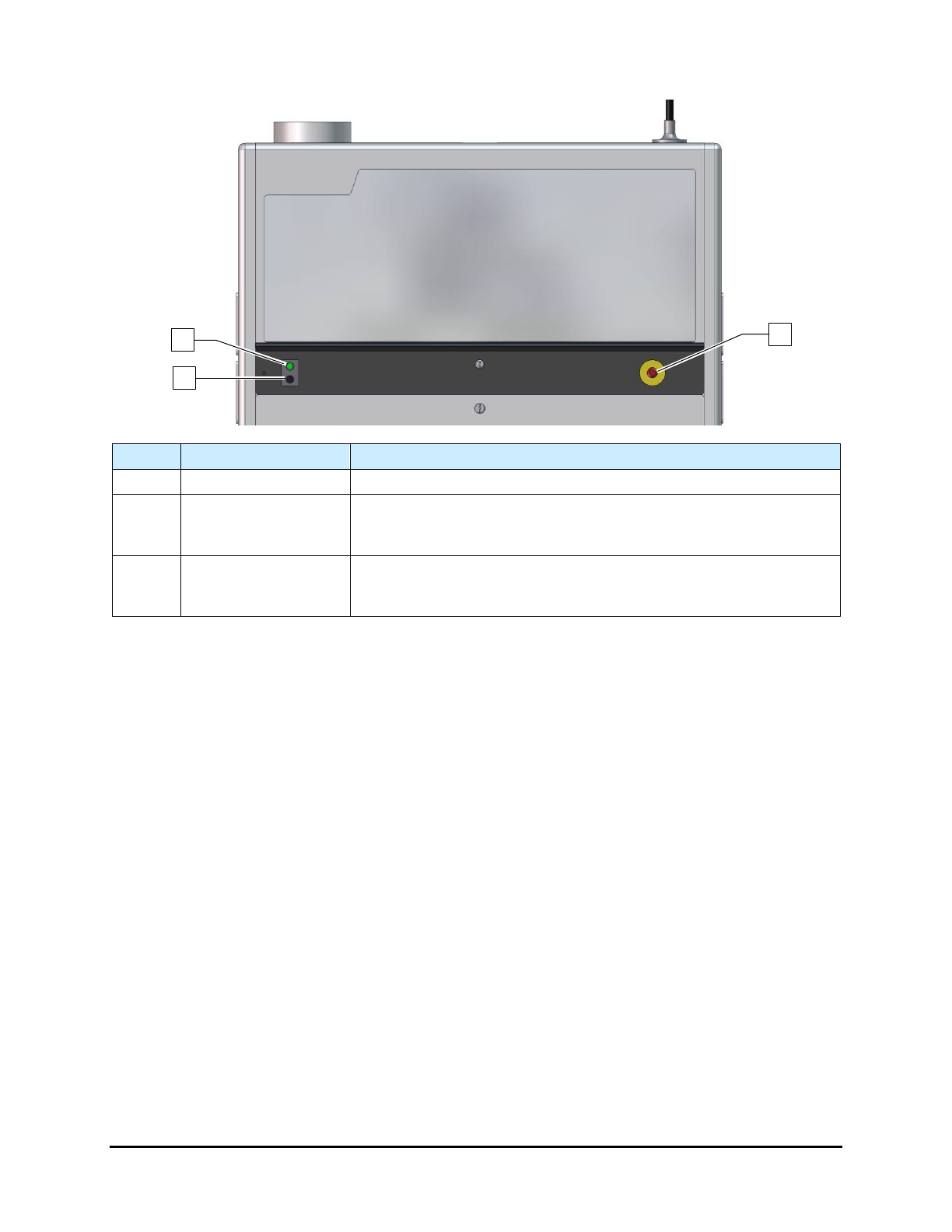

Figure 3-13 Control Panel

3.16 Shut Down

1. Press the Start/Stop button for five (5) seconds.

2. To isolate the oven from the main power source, turn the Main Power Switch located on the

rear of the equipment to the

OFF position (0).

 NOTE Perform a lock out/tag out procedure during maintenance. See 2.12 Lockout/Tagout of

Electrical Energy for more details.

3.17 Emergency Shut Down

In the event of an emergency or malfunction, press the E-Stop button. The UV-9 Cure Module has two E-

Stop buttons. The E-Stop buttons are the large red buttons located on the operator’s front control panel

(Figure 3-13) and one at the rear of the oven (Figure 2-5). Activating the E-Stop immediately halts

conveyor movement and turns off the UV oven. See 2.10 Emergency Shutdown.

Installation 3-13

4 Adjustments

4.1 Overview

During installation, the UV-9 Cure Module is configured to fulfill your curing requirements by trained

service technicians. However, if any components have been replaced or moved (or if the application

changes), it may be necessary to readjust them. This section contains the following adjustment

procedures:

• Conveyor Width Adjustment

• UV Module Height Adjustment

• Internal UV Radiation Trap Flap Height Adjustment

• Internal UV Radiation Shutters Height Adjustment

• Internal UV Radiation Traps Adjustment

• External UV Shutters Adjustment

• UV Lamp Power Adjustment

4.2 Safety First

Before performing any calibration or adjustment procedure on the UV-9 Cure Module components, please

review the information provided in Section 2 – Safety.

CAUTION! The procedures in this section should only be performed by a trained service

technician.

4.3 Record Keeping

At a minimum, the following information should be recorded in the UV-9 Cure Module maintenance

records:

• Procedure Type

• Date

• Technician Name(s)

• Post-procedure Functional Test Results

Adjustments 4-1
