5.7.4.2 Language Screen
To select a new display language:
1. Login with your ID.
2. Select
My Oven and then Language.
The Main Menu opens (Figure 5-19).
Figure 5-19 Main Menu – Language Change
3. Select the appropriate language (French, English, or German) by clicking on the flag
corresponding to the language.
Operation 5-19
5.7.4.3 UV Lamp Counter Screen
Click on Counter in the "My Oven" menu to open the Counter screen.
Top Lamp Only
Top and Bottom Lamps
Name
Description
Reset top
Resets the top UV lamp counter to zero.
Reset bottom
Resets the bottom UV lamp counter to zero.
Top Lamp – Standby (mn)
Displays the Top Lamp running time in standby mode.
Top Lamp – Run (mn)
Displays the Top Lamp running time in run (production) mode.
Top Lamp - Start
Displays the number of starts for the Top Lamp.
Bottom Lamp – Standby (mn)
Displays the Bottom Lamp running time in standby mode.
Bottom Lamp – Run (mn)
Displays the Bottom Lamp running time in run (production) mode.
Bottom Lamp - Start
Displays the number of lamp starts for the Bottom Lamp.
Figure 5-20 UV Lamp Counter
NOTE It is recommended that you reset the counters when the lamps are changed.
5-20 Operation
5.7.4.4 PLC Message Screen
The PLC Messages screen displays the messages of the lane controller that are generated during oven
operation. Select the
Message button the "My Oven" menu to open this screen.

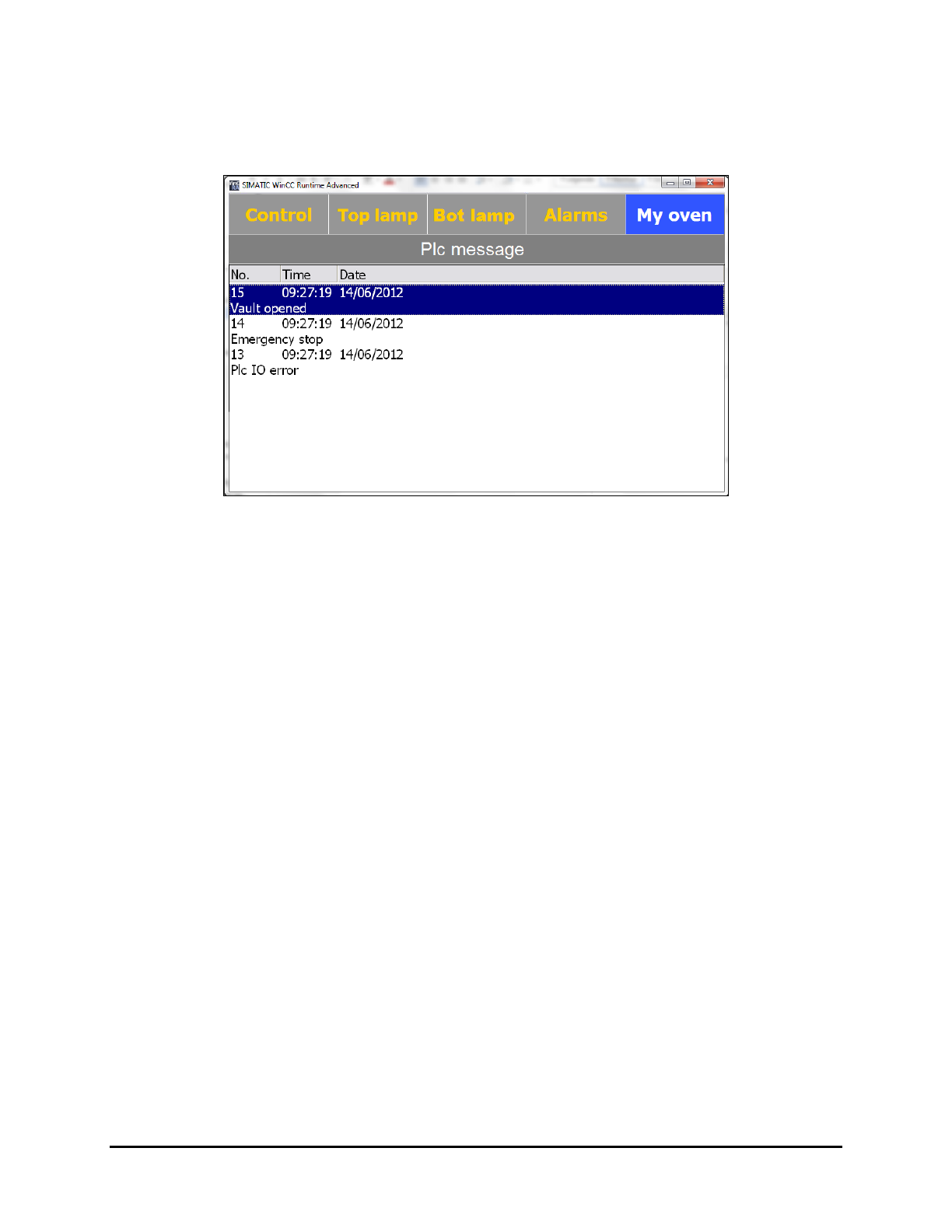

Figure 5-21 PLC Message Screen
Operation 5-21
