Item Part# Description 1 7263050 PHOTO PROX SENSOR 2 7263052 SPROCKET,CNVR,UV - 9 3 7263042 COUPLING, TORQUE LIMIT ING, UV -9 4 7252277 GEAR BOX 1/6 5 7252242 MOTOR,TRI,25W,7.84N M,12.5RPM 6 7262769 CHAIN,CONV,DB L 7 726…
Item Part# Description
1 7263050 PHOTO PROX SENSOR
2 7263052 SPROCKET,CNVR,UV-9
3 7263042 COUPLING,TORQUE LIMITING,UV-9
4 7252277 GEAR BOX 1/6
5 7252242 MOTOR,TRI,25W,7.84NM,12.5RPM
6 7252315 STAINLESS CHAIN / 5 MM PIN / PITCH 9.525
7 7262755 STAINLESS CHAIN MASTER LINK
8 7252232 BELT,TOOTH,10X3000,T5
9 7263044 GEAR BOX,1/75 (CNVR),UV-9
10 7263045 ENCODER,INCR,360PTS,UV-9
11 7252233 BELT,TOOTH,6X245,T2
12 7262812 CONVEYOR DRIVE PINION

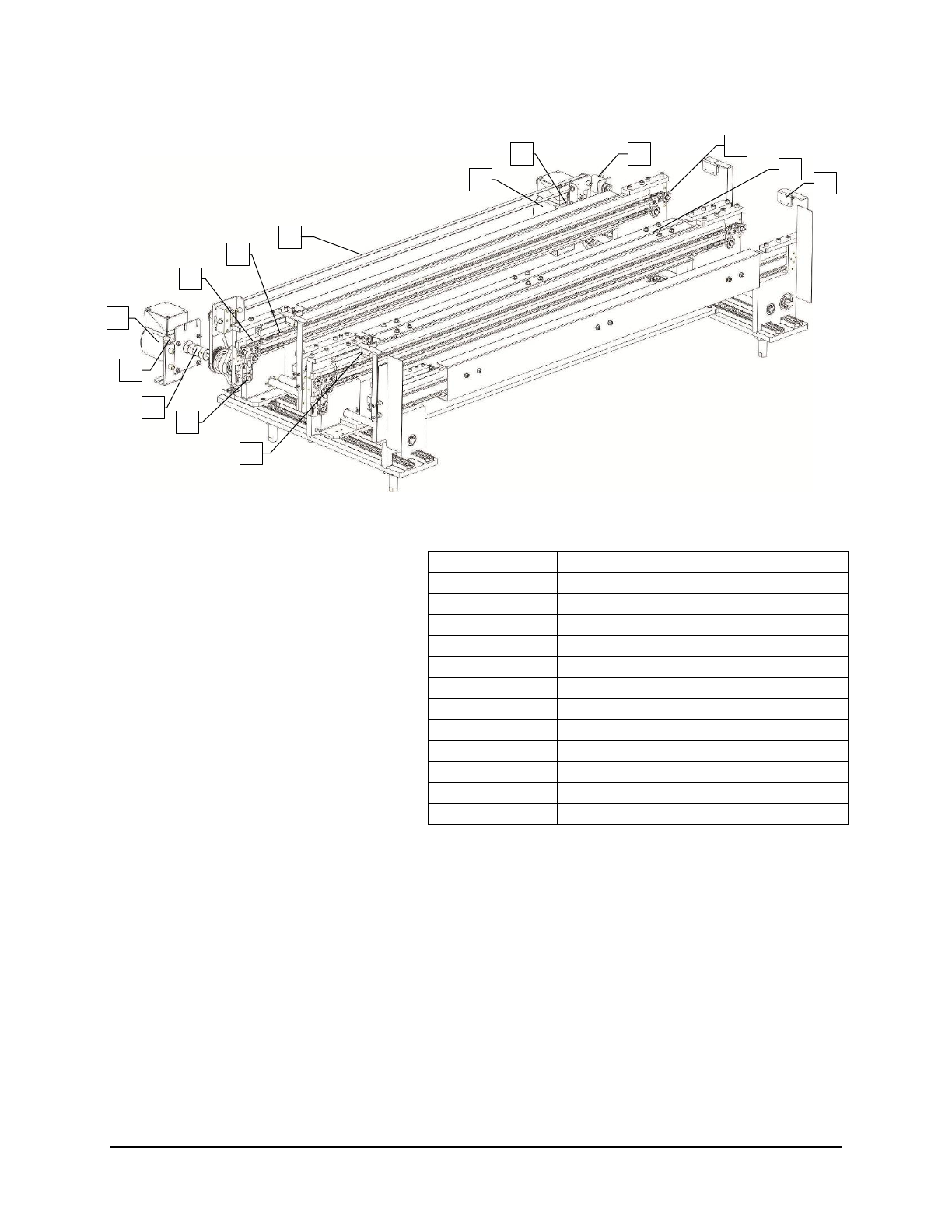

Figure 10-6 Dual Track Same Way 4 Rail Conveyor - Optional
1
2
3
4
5
6
7
8
5
12
9
10
11
1
10-8 Parts List
Item Part# Description
1 7263050 PHOTO PROX SENSOR
2 7263052 SPROCKET,CNVR,UV-9
3 7263042 COUPLING,TORQUE LIMITING,UV-9
4 7252277 GEAR BOX 1/6
5 7252242 MOTOR,TRI,25W,7.84NM,12.5RPM
6 7262769 CHAIN,CONV,DBL
7 7262770 LINK,DOUBLE,CHAIN
8 7252232 BELT,TOOTH,10X3000,T5
9 7263044 GEAR BOX,1/75 (CNVR),UV-9
10 7263045 ENCODER,INCR,360PTS,UV-9
11 7252233 BELT,TOOTH,6X245,T2
12 7262813 CONVEYOR DRIVE PINION,DBL

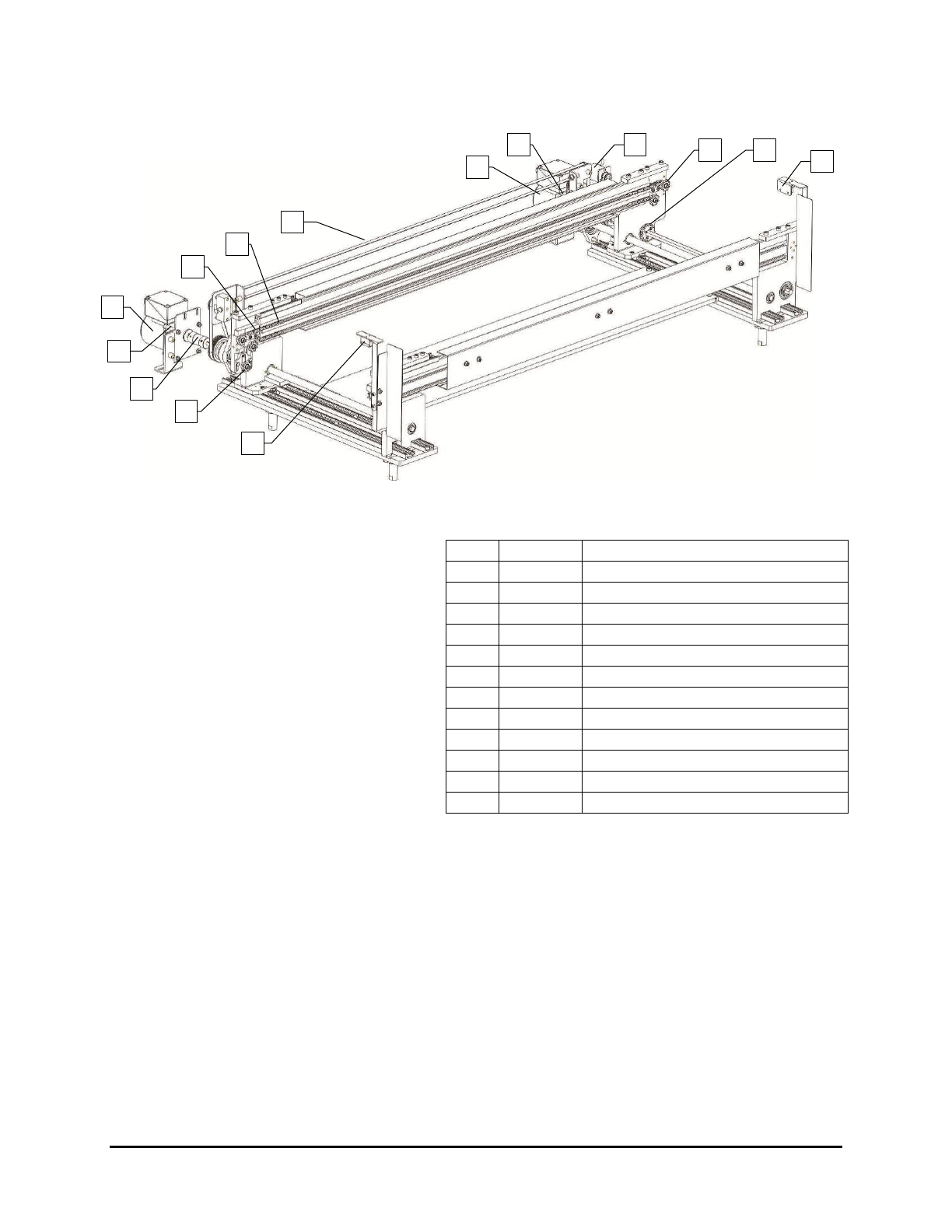

Figure 10-7 Heavy Duty Conveyor - Optional
1
2
3
4
5
6
7
8
5
12
9
10
11
1
Parts List 10-9
Item Part# Description
1 7263045 ENCODER,INCR,360PTS,UV-9
2 7252304 OPTICAL FORK BASE
3 7252236 FORK,OPTICAL

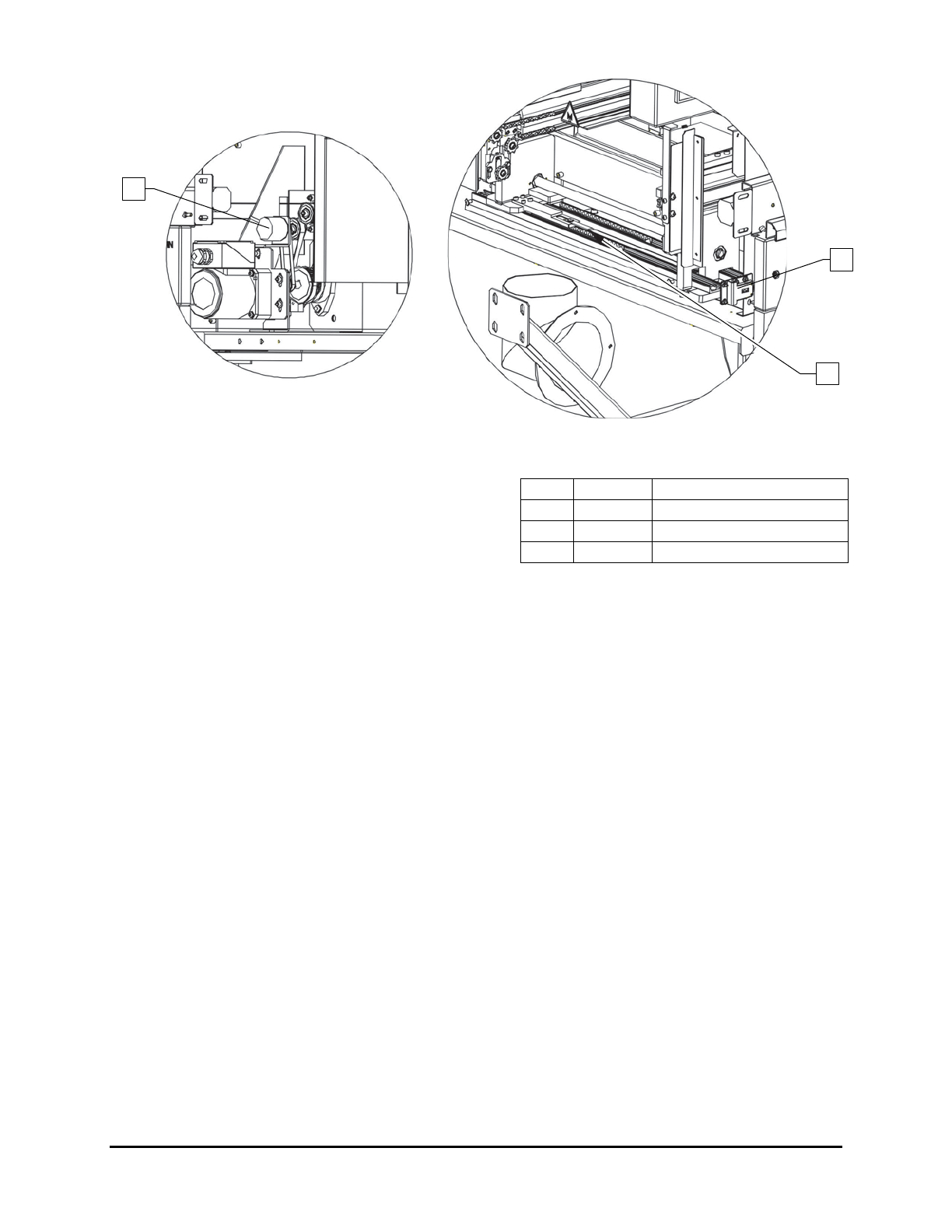

Figure 10-8 Automatic Width Adjustment
2
3
1
