10.4 Illustrated P arts List NOTE Parts listed in Figure 10 -1 to Figure 10 - 10 are those in ef fect at the time of manual publication. Item Part# Descrip tio n 1 7252248 FAN ,HELI,160 - 19 2 7252273 QUARTZ GLASS 3 72…
Table 10-2 Level 2 Spares
PART NUMBER
DESCRIPTION
Conveyor
7263044 GEAR BOX 1/75 (CONVEYOR)
7252231 ENCODER,INCREMENTAL,100PTS
7263045 ENCODER,INCREMENTAL,360PTS
7252242
MOTOR,TRI,25W,7.84NM,12.5RPM
7252236 FORK,OPTICAL
Electronics
7262773 HARNESS, LAMP UV-9 REV2
7262756
CONN, LAMPBOX UV-9 REV2
7252230
UNIT,MAGNETIC CYLINDRICAL
7252226 POWER SUPPLY,100W,24VDC
7252246 CONTROLLER,SPEED,240V,6-90W
Exhaust
7252314
FAN 1000M3/H 750W Ø125mm
Table 10-3 Level 2 Spares
PART NUMBER DESCRIPTION
Conveyor
7252241 MOTOR,MONO,25W,0.46NM,400RPM
Electronics
7252305 SWITCH, EMO
7252251 POWER SUPPLY,UV,EB60,6000W
7252229 SENSOR,MAGNETIC,M18
7252304 BASE, OPTICAL FORK
7252309 INVERTER, FREQUENCY 0.75 KW
7252245 INVERTER,FREQUENCY,0.2KW
7252297 MODULE, 8D. I/O. REV2
7252298
MODULE, 4A-IN 2A-OUT REV2
7252299 MODULE, PLC 2A-OUT REV2
10-2 Parts List
10.4 Illustrated Parts List
NOTE Parts listed in Figure 10-1 to Figure 10-10 are those in effect at the time of manual
publication.
Item Part# Description
1 7252248 FAN,HELI,160-19
2 7252273 QUARTZ GLASS
3 7252251 ELECTRIC REGULATOR – EB-60
4 7252314 FAN 1000 M
3
/H – 750W
5 7262782 RED PIPE Ø125MM
6 7252228 SENSOR,PRESSURE
7 7262775 RED PIPE Ø100MM

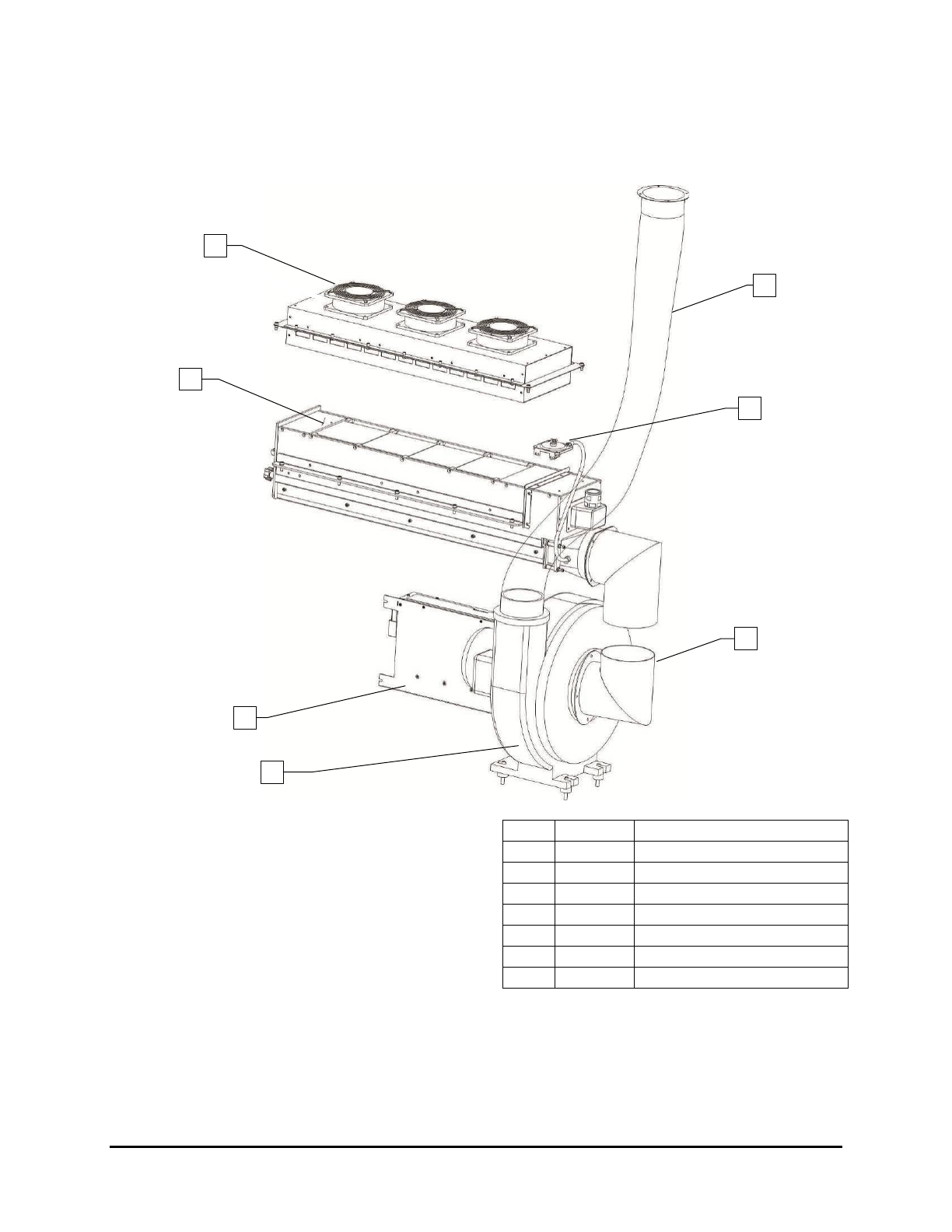

Figure 10-1 Bottom UV Lamp Module (Optional Equipment)
1
2
3
4
5
6
7
Parts List 10-3
10-4 Parts List
Item Part# Description
1 7252237 LAMP,UV,505MM,400V,MERCURY
2 7252238 LAMP,UV,505MM,GALLIUM
3 7252239 LAMP,UV,505MM,IRON
4 7285018 LAMP,UV,305MM,MERCURY
5 7285019 LAMP,UV,305MM,IRON
6 7285020 LAMP,UV,305MM,GALLIUM
7 7285016 LAMP,UV,505MM,IRON+
8 7285017 LAMP,UV,505MM,MERCURY+
9 7252253 KIT,REFLECTOR,FOCUS,95MM
10 7252256 REF. SHEET UV-9 FOCUS, 95MM
11 7252263 HEAT DEFLECTOR PLATE, 544MM
12 7252756 CONN, LAMPBOX UV-9 REV2

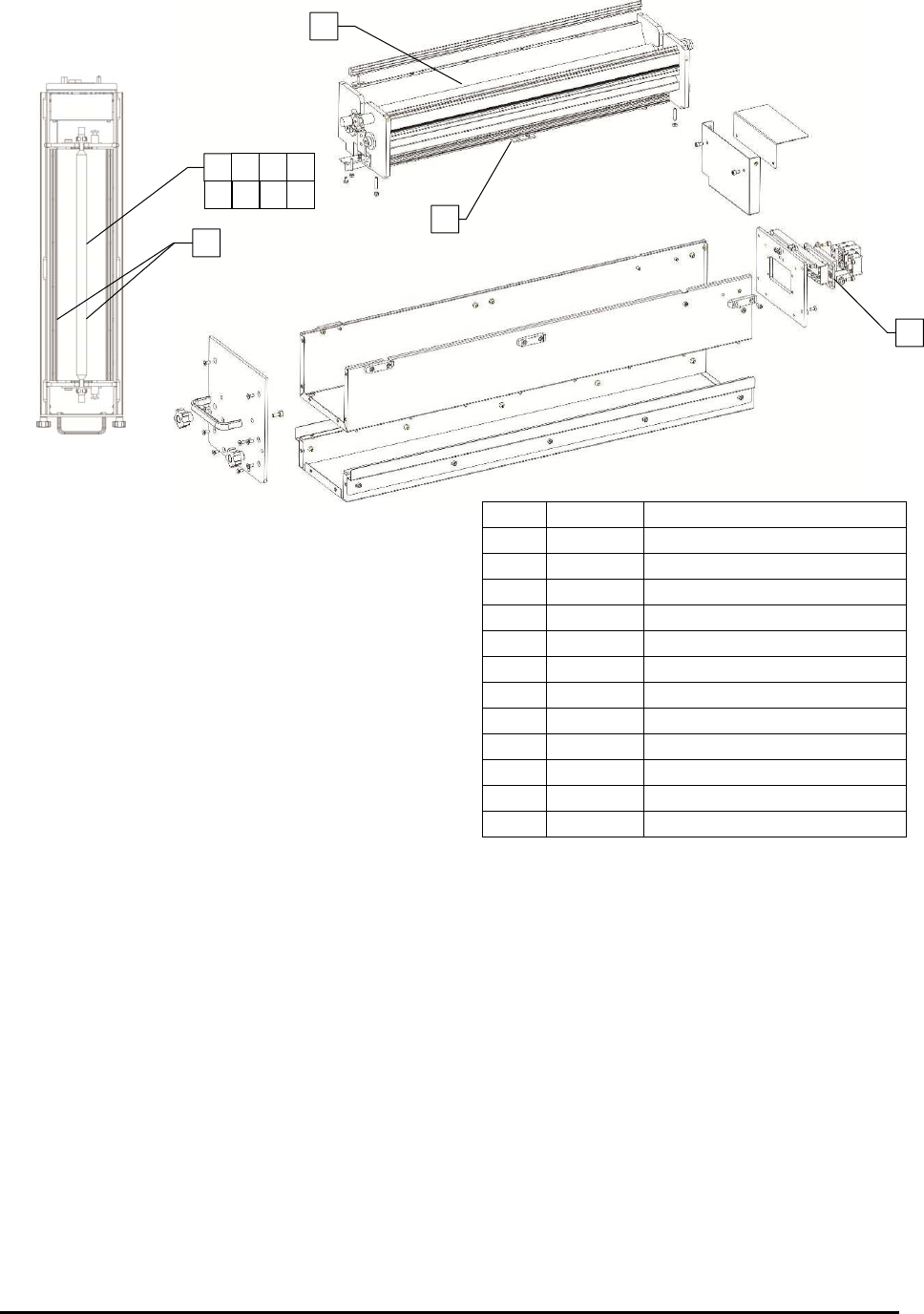

Figure 10-2 UV Module
10
11
12
9
1 2 3 4
5 6 7
8
