Item Par t# Description 1 7263050 PH OTO PROX SENSOR 2 7263052 SPR OCKET,CNVR , UV -9 3 7263042 COUPLING,TORQUE LIMIT ING, UV -9 4 7252277 G EAR BOX 1/6 5 7252242 MO TOR,TRI,25W,7.84N M,12.5RPM 6 7252315 ST AINLESS CHAI …
Item Part# Description
1 7252296 PLC CPU REV2 - SIMATIC
2 7252297 MODULE, 8D. I/O. REV2
3 7252298 MODULE, 4A-IN 2A-OUT REV2
4 7252309 INVERTER, FREQUENCY 0.75 KW
5 7252245 INVERTER,FREQUENCY,0.2KW
6 7252251
POWER SUPPLY,UV,EB60,6000W
(Not Shown)
7 7252226 POWER SUPPLY,220VAC/24VDC
8 7263048 RELAY,2P,5A,UV-9
9 7262814 AMPLIFIER,4-20mA,UV9
10 7252294 MODULE, SAFETY GATE
11 7252295 MODULE, EMERGENCY STOP
12 7252299 MODULE, PLC 2A-OUT REV2

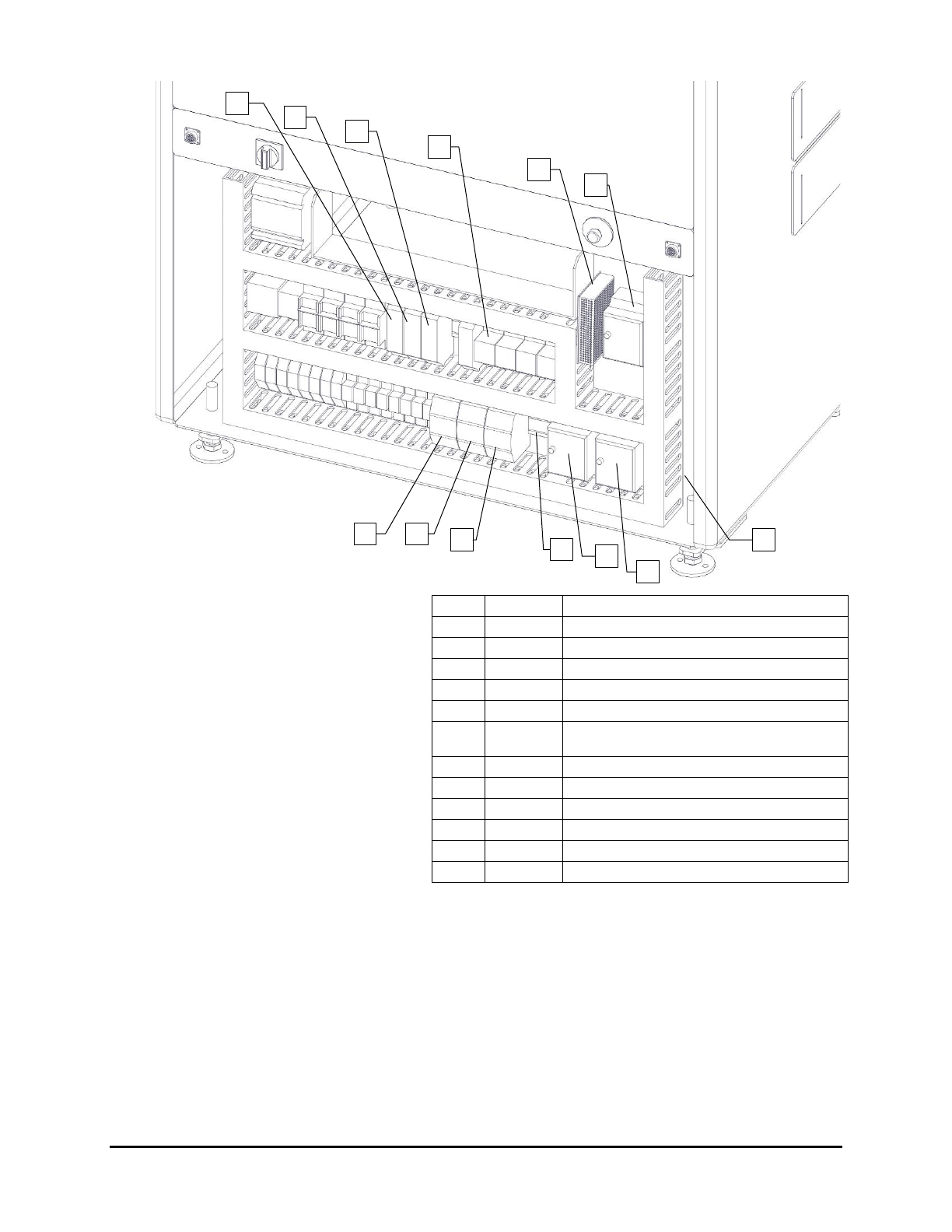

Figure 10-3 Electrical Cabinet
1
2
3
12
4
5
6
5
7
8
11
10
9
Parts List 10-5
Item Part# Description
1 7263050 PHOTO PROX SENSOR
2 7263052 SPROCKET,CNVR,UV-9
3 7263042 COUPLING,TORQUE LIMITING,UV-9
4 7252277 GEAR BOX 1/6
5 7252242 MOTOR,TRI,25W,7.84NM,12.5RPM
6 7252315 STAINLESS CHAIN / 5 MM PIN / PITCH 9.525
7 7262755 STAINLESS CHAIN MASTER LINK
8 7252232 BELT,TOOTH,10X3000,T5
9 7263044 GEAR BOX,1/75 (CNVR),UV-9
10 7263045 ENCODER,INCR,360PTS,UV-9
11 7252233 BELT,TOOTH,6X245,T2
12 7262812 CONVEYOR DRIVE PINION
Figure 10-4 Standard Conveyor
1
2
3
4
5
6
7
8
5
12
9
10
11
1
10-6 Parts List
Item Part# Description
1 7263050 PHOTO PROX SENSOR
2 7262812 CONVEYOR DRIVE PINION
3 7252233 BELT,TOOTH,6X245,T2
4 7263045 ENCODER,INCR,360PTS,UV-9
5 7263044 GEAR BOX,1/75 (CNVR),UV-9
6 7252242 MOTOR,TRI,25W,7.84NM,12.5RPM
7 7252232 BELT,TOOTH,10X3000,T5
8 7262755 STAINLESS CHAIN MASTER LINK
9 7252315 STAINLESS CHAIN / 5 MM PIN / PITCH 9.525
10 7252277 GEAR BOX 1/6
11 7263042 COUPLING,TORQUE LIMITING,UV-9
12 7263052 SPROCKET,CNVR,UV-9
Figure 10-5 Right to Left Conveyor - Optional
1
2
3
4
5
6
7
8
9
6
10
11
12
1
Parts List 10-7
