6. Remove the magnetic target ( Figu re 6-9 ) from the t op cover and place it in front of the magnetic sensor ( Figure 6- 10 ). Figure 6-9 Remove the Magnetic Target Figure 6- 10 Place the Magnetic T arget in Front of M…
Maintenance 6-7
6.5.3 Conveyor Chain Lubrication
Tools and Materials Needed:
Stabigrease
®
BD2 (P/N 7277988, GREASE, CNVR, UV-9)
To lubricate the conveyor chains:
1. Press the
Start/Stop button on the Control Panel for 5 seconds to turn off the oven.
2. Disable the UV lamp (
Top Lamp > Parameters > Disable).
3. Open the electrical cabinet and turn off the top lamp’s circuit breaker (Figure 6-7).
Figure 6-7 Top Lamp Circuit Breaker
4. If the unit has a bottom lamp, turn off that circuit breaker also.
5. Remove the tunnel cover to access the conveyor (Figure 6-8).
Figure 6-8 Remove the Tunnel Cover
6. Remove the magnetic target (Figure 6-9) from the top cover and place it in front of the
magnetic sensor (Figure 6-10).
Figure 6-9 Remove the Magnetic Target
Figure 6-10 Place the Magnetic Target in Front of Magnetic Sensor
7. Set the conveyor speed to 100 cm/min and press Start on the Control Menu to start the
UV-9 Cure Module.
6-8 Maintenance
8. Once the conveyor is running, use a brush to apply the lubricant on the chain as shown in
Figure 6-11.
The lubricant should cover the entire length of the chain.

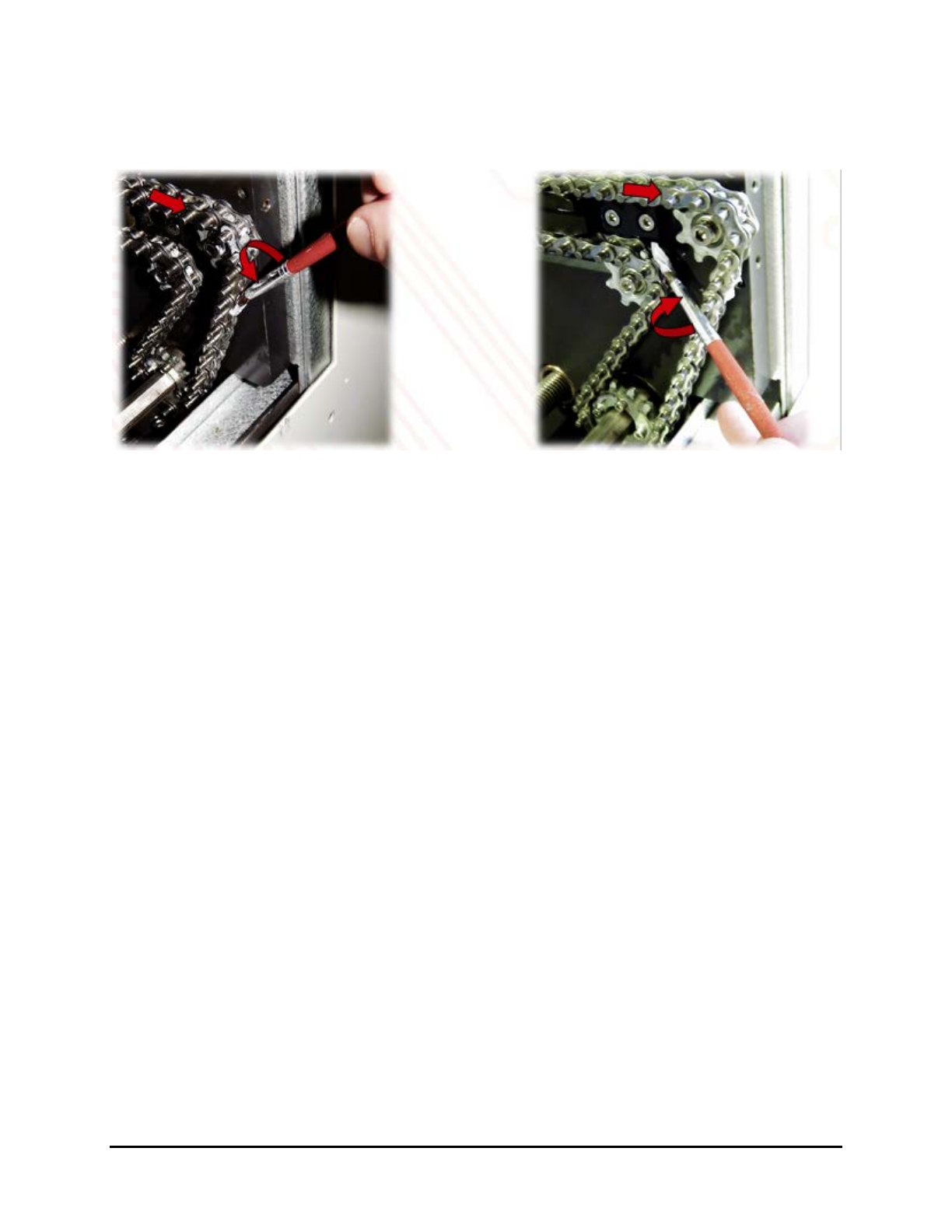

Figure 6-11 Apply the Lubricant
NOTE The Stabigrease lubricant does not migrate. DO NOT apply lubricant to the pins. If
lubricant gets on the pins, remove it immediately with a cloth.
9. After the lubricant is applied, turn the UV-9 Cure Module off to stop the conveyor.
10. Mount the magnetic target on the front top cover.
11. Replace the tunnel cover.
Maintenance 6-9
