98 DeviceNet-compliant Digital Indicators K3HB-@-DRT
● K3HB-R/P/C
*1. DC power supply models require a control power supply capacity of approximately 1 A per Unit when power is turned ON. Particular attention is required when using two or
more DC power supply models. The OMRON S8VS-series DC Power Supply Unit is recommended.
*2. PNP input types are also available.
*3. For K3HB-series DeviceNet models, use only the DeviceNet Connector included with the product. The crimp terminals provided are for Thin Cables.
*4. Depends on the model.
DeviceNet Communications Specifications
Power supply voltage
100 to 240 VAC Models
24 VAC/VDC Models
DeviceNet power supply: 24 VDC
Allowable power supply voltage range 85% to 110% of the rated power supply voltage, DeviceNet power supply: 11 to 25 VDC
Power consumption (under maximum load) *1 100 to 240 VAC: 18 VA max., 24 VAC/VDC: 11 VA/7 W max.
Current consumption DeviceNet power supply: 50 mA max. (24 VDC)
Inputs No-voltage contact, voltage pulse, and open collector
External power supply
12 VDC ±10%, 80 mA (only for models with external power supplies)
10 VDC ±5%, 100 mA (only for models with external power supplies)
Event inputs
*2, *4
Startup compensation timer
input
NPN open collector or no-voltage contact signal
ON residual voltage: 2 V max.
ON current at 0 : 4 mA max.
Max. applied voltage: 30 VDC max.
OFF leakage current: 0.15 mA max.
Hold input
Reset input
Compensation input
Bank input
Outputs *4
Relay output
250 VAC, 30 VDC, 5 A (resistive load)
Mechanical life expectancy: 5,000,000 operations, Electrical life expectancy: 100,000 operations
Transistor output Maximum load voltage: 24 VDC, Maximum load current: 50 mA, Leakage current: 100 µA max.
Linear output
Linear output 0 to 20 mA DC, 4 to 20 mA:
Load: 500 max, Resolution: Approx. 10,000, Output error: ±0.5% FS
Linear output 0 to 5 VDC, 1 to 5 VDC, 0 to 10 VDC:
Load: 5 k max, Resolution: Approx. 10,000, Output error: ±0.5% FS
(1 V or less: ±0.15 V; not output for 0 V or less)
Display method
Negative LCD (backlit LED) display, 7-segment digital display (character heights: PV: 14.2 mm (switches between green
and red), SV: 4.9 mm (green))
Main functions *4
Scaling, measurement operation selection, averaging, previous average value comparison, output hysteresis, output ON
delay, output test, teaching, display selection, display color switching, key protection, bank selection, display refresh period,
maximum/minimum hold, and reset
Ambient operating temperature -10°C to 55°C (with no icing or condensation)
Ambient operating humidity 25% to 85%
Storage temperature -25°C to 65°C (with no icing or condensation)
Altitude 2,000 m max.
Accessories
Watertight packing, 2 fixtures, terminal cover, unit stickers, instruction manual. DeviceNet models also include a
DeviceNet connector (Hirose HR31-5.08P-5SC(01)) and crimp terminals (Hirose HR31-SC-121) *3
Communications protocol Conforms to DeviceNet
Supported
communications
Remote I/O
communications
• Master-Slave connection (polling, bit-strobe, COS, cyclic)
• Conforms to DeviceNet communications standards.
I/O allocations
• Allocate any I/O data using the Configurator.
• Allocate any data, such as DeviceNet-specific parameters and variable area for Digital Indicators.
• Input area: 2 blocks, 100 words max.
• Output area: 1 block, 100 words max. (The first word in the area is always allocated for the Output Execution Enabled
Flags.)
Message
communications
• Explicit message communications
• CompoWay/F communications commands can be executed (using explicit message communications)
Connection form Combination of multi-drop method and T-branch connections (for trunk and drop lines)
Baud rate DeviceNet: 500, 250, or 125 kbps (automatic follow-up)
Communications media Special 5-wire cable (2 signal lines, 2 power supply lines, 1 shield line)
Communications distance
The values in parentheses are for Thin Cable.
Power supply voltage 24-VDC DeviceNet power supply
Allowable power supply voltage range 11 to 25-VDC DeviceNet power supply
Current consumption 50 mA max. (24 VDC)
Maximum number of nodes 64 (DeviceNet Configurator is counted as one node when connected)
Maximum number of slaves 63
Error control checks CRC errors
DeviceNet power supply Supplied from DeviceNet communications connector
Current consumption 50 mA max. (24 VDC)
Maximum I/O points Maximum number of slaves: 63
Baud rate Network length (max.) Branch line length Total branch line length
500 kbps 100 m max. (100 m max.) 6 m max. 39 m max.
250 kbps 250 m max. (100 m max.) 6 m max. 78 m max.
125 kbps 500 m max. (100 m max.) 6 m max. 156 m max.
DeviceNet-compliant Digital Indicators K3HB-@-DRT 99

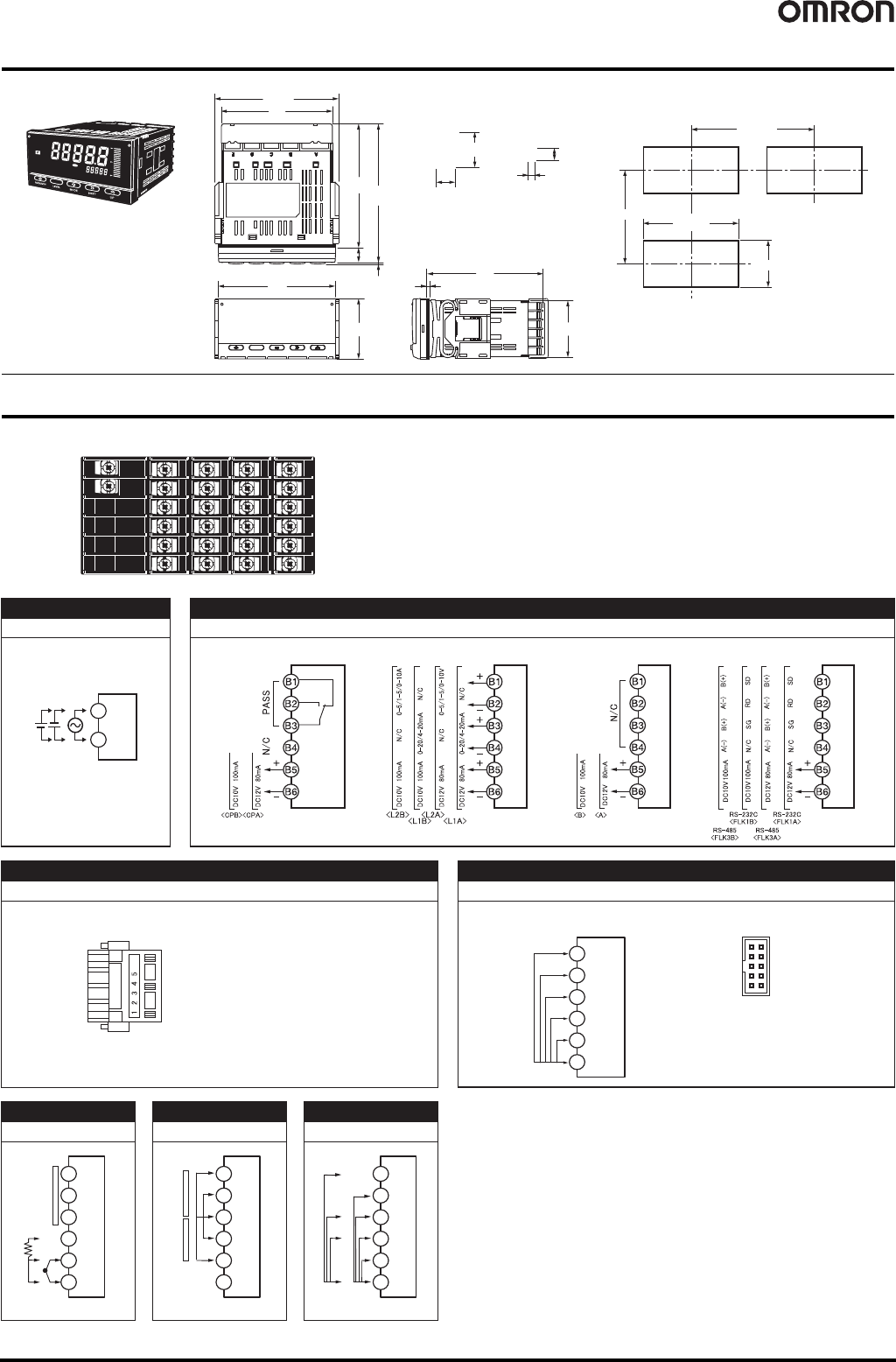

Dimensions (Unit: mm)
Terminal Arrangement
8
8
Panel Cutout Dimensions
120 min.
45
+0.6
0
92
+0.8
0
75 min.
Character Size for Main Display
PV display SV display
4.9
3.5
101.2
91
96
48
12
1.3
100
(112)
44.8
97
2
7.6
14.2
K3HB
ATerminals B C D E
1
2
3
4
5
6
Operating Power Supply
A
Sensor Power Supply/Outputs
B
Relay, Transistor, BCD, and DeviceNet
C
Event Inputs
D
Analog Inputs
E
Analog Inputs
E
Analog Inputs
E
100 to 240 VAC
24 VAC/DC
A1
A2
* Check the required power supply type.
Note: Refer to the measurement ranges
on the front.
Inputs
B
Inputs
A
COM
Inputs
A
Inputs
B
N/C
A
B
C
D
COM
Current
input
Voltage
input
AC voltage only
A
Pt
B
B'
N/C
N/C
COM
COM
AB
D
C
N/C
N/C
(K3HB-X, V)(K3HB-S)(K3HB-H)
TC
E1
E2
E3
E4
E5
E6
E1
E2
E3
E4
E5
E6
E1
E2
E3
E4
E5
E6
TIMING
S-TMR
HOLD
RESET
ZERO
COM
Models with Terminal Blocks
<1><3>
D1
D2
D3
D4
D5
D6
Applicable connector (order separately):
XG4M-1030 (OMRON)
Special cable (order separately):
K32-DICN (OMRON)
(XG4M-1030 with 3-m Cable)
2:S-TMR
4:RESET
6:COM
8:BANK2
10:COM
1:TIMING
3:HOLD
5:ZERO
7:BANK4
9:BANK1
Models with Connectors
<2><4>
10
2
9
1
1: V – (power supply wire: black)
2: CAN L (communications wire: blue)
3: Shield
4: CAN H (communications wire: white)
5: V+ (power supply wire: red)
Applicable connector:
HR31-5.08P-5SC (01) (Hirose Electric)
Note: Attach the enclosed crimp terminals.
Sensor Power Supply
and PASS Output
Sensor Power Supply
and Linear Output
Sensor Power Supply
Sensor Power Supply
and Communications
Sensor Power
Supply
Sensor Power
Supply
Sensor Power
Supply
Sensor Power
Supply
100 DeviceNet-compliant Digital Controllers E5AR-DRT/E5ER-DRT
DeviceNet-compliant Digital Controllers Final order entry date: The end of March, 2021
E5AR-DRT/E5ER-DRT
General-purpose Digital
Controllers with High Speed and
High Accuracy. Three, 5-digit
Easy-to-read Tall LCD Displays.
• High-speed sampling cycle (50 ms) for applications requiring
high-speed response.
• Three backlit, negative LCD displays for simultaneous display of PV,
SV, and MV.
• Multipoint control, cascade control, and proportional control all
possible with a single Controller.
• Data processing functions provided as standard features: Square
root extraction, linear approximation, and more.
• DeviceNet communications for data setting and monitoring without
special programming.
Ordering Information
■ Digital Controllers
● E5AR DeviceNet-compliant Models
Note: When ordering, specify the power supply. Different models are used for 100 to 240 VAC and 24 VDC/AC.
* Control can be switched between closed control and floating control.
Size Type Control modes
No. of outputs
(control/transfer)
Optional features
Model
No. of
auxiliary
outputs
(SUB)
No. of event
inputs
Communications
96 x 96 mm
Basic Type
(1 input)
Standard control
Heating/cooling control
2
(pulse voltage + pulse voltage/
current outputs)
4 2 DeviceNet
E5AR-Q4B-DRT
2 (2 current outputs) E5AR-C4B-DRT
4
(1 pulse voltage + 1 pulse
voltage/current + 2 current
outputs)
E5AR-QC4B-DRT
2-input Type
2-channel standard control
2-channel heating/cooling control
1-channel cascade control
1-channel control with remote SP
1-channel ratio control
4
(2 pulse voltage + 2 pulse
voltage/current)
4 None DeviceNet E5AR-QQ4W-DRT
4-input Type
4-channel standard control
2-channel heating/cooling control
4 (4 current outputs) 4 None DeviceNet E5AR-CC4WW-DRT
Control Valve
Control Type
(1 input)
1-channel position proportional
control *
Relay outputs
(1 open and 1 closed)
4 None DeviceNet
E5AR-PR4F-DRT
Relay outputs (1 open and 1
closed) + 1 current (transfer)
E5AR-PRQ4F-DRT
