164 List of Models
● MULTIPLE I/O TERMINALS
● Intelligent Slaves (PLC Units)
Product Appearance I/O points Specifications Model Standards
Communications Unit
-- Slave I/O points 1,024 max. (inputs and outputs) DRT1-COM U, C, CE
Digital
I/O Units
Terminal block
models
16 inputs NPN (+ common) GT1-ID16
U, C, CE
16 inputs PNP (- common) GT1-ID16-1
16 outputs NPN (- common) GT1-OD16
16 outputs PNP (+ common) GT1-OD16-1
Molex connector
models
16 inputs NPN (+ common) GT1-ID16MX
16 inputs PNP (- common) GT1-ID16MX-1
16 outputs NPN (- common) GT1-OD16MX
16 outputs PNP (+ common) GT1-OD16MX-1
Fujitsu
connector
models
16 inputs NPN (+ common) GT1-ID16ML
16 inputs PNP (- common) GT1-ID16ML-1
16 outputs NPN (- common) GT1-OD16ML
16 outputs PNP (+ common) GT1-OD16ML-1
D-sub, 25-pin
connector
models
16 inputs NPN (+ common) GT1-ID16DS
16 inputs PNP (- common) GT1-ID16DS-1
16 outputs NPN (- common) GT1-OD16DS
16 outputs PNP (+ common) GT1-OD16DS-1
Fujitsu
high-density
connector
models
32 inputs NPN (+ common) GT1-ID32ML
32 inputs PNP (- common) GT1-ID32ML-1
32 outputs NPN (- common) GT1-OD32ML
32 outputs PNP (+ common) GT1-OD32ML-1
Relay Output Unit
16 outputs
Relay Output Unit with 16 points, 2 A,
SPST-NO terminal block
GT1-ROS16
U, C, CE
8 outputs
Relay Output Unit with 8 points, 5 A,
SPST-NO terminal block
GT1-ROP08
8 outputs
SSR Output Unit with 8 points, 1.5 A,
SPSTNO terminal block
GT1-FOP08 --
Analog Input Units
8 inputs Molex connector GT1-AD08MX
U, C, CE
4 inputs Terminal block GT1-AD04
Analog Output Units
4 outputs Molex connector GT1-DA04MX
U, C, CE
4 outputs Terminal block GT1-DA04
Temperature Input Units
4 inputs Thermocouple input GT1-TS04T
U, C, CE
4 inputs Platinum-resistance thermometer input GT1-TS04P
I/O Unit Connecting Cable
--
1 m GCN1-100
--30 cm GCN1-030
60 cm GCN1-060
Product Appearance Specifications Model Standards
Programmable Slaves
Slave equipped with CPM2C CPU Unit functions
1,024 points max. for Remote I/O Links
Includes CompoBus/s Master.
4 transistor outputs
(sinking)
CPM2C-S100C-DRT
U, C, CE
4 transistor CPM2C-S110C-DRT

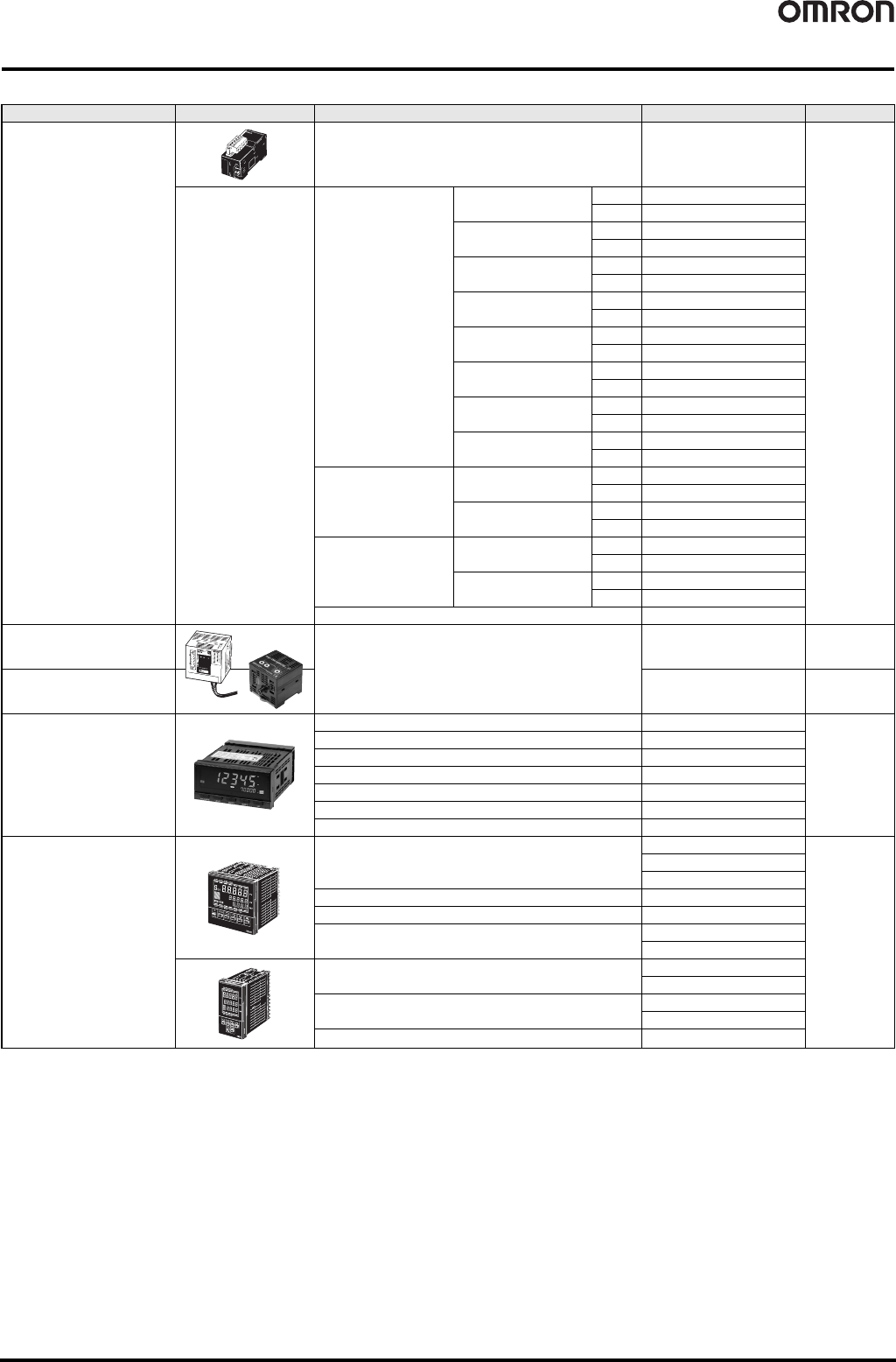

List of Models 165
● Intelligent Slaves
*1. Product no longer available to order.
*2. Order as many Connectors as the number of Sensors.
Product Appearance Specifications Model Standards
Digital Sensor Communications
Unit
Up to 16 E3X-DA-S, E3X-MDA, E3X-LDA, and E2C-EDA Fiber
Amplifiers can be connected.
E3X-DRT21-S VER.3
CE
--
Fiber Amplifier Unit
Advanced models
NPN E3X-DA7-S *1
PNP E3X-DA9-S *1
Standard models
NPN E3X-DA6-S *1
PNP E3X-DA8-S *1
Mark-detecting models
(Blue LED)
NPN E3X-DAB6-S *1
PNP E3X-DAB8-S *1
Mark-detecting models
(Green LED)
NPN E3X-DAG6-S *1
PNP E3X-DAG8-S *1
Mark-detecting models
(Infrared LED)
NPN E3X-DAH6-S *1
PNP E3X-DAH8-S *1
Advanced Twin-output
models
NPN E3X-DA6TW-S *1
PNP E3X-DA8TW-S *1
Advanced External input
models
NPN E3X-DA6RM-S *1
PNP E3X-DA8RM-S *1
2-channel models
NPN E3X-MDA6 *1
PNP E3X-MDA8 *1
Laser Photoelectric
Sensor with Separate
Amplifier
Twin-output models
NPN E3C-LDA6
PNP E3C-LDA8
External input models
NPN E3C-LDA7
PNP E3C-LDA9
Proximity Sensor with
Separate Amplifier
Twin-output models
NPN E2C-ED
A6
PNP E2C-EDA8
External input models
NPN E2C-EDA7
PNP E2C-ED
A9
Wire-Saving Connector E3X-CN02 *2
Intelligent Flag III
ID system for DeviceNet
For the information on the status of certification for radio wave
regulations in various countries, visit the OMRON website at
www.ia.omron.com.
V600-HAM42-DRT CE
DeviceNet ID Slave V680-HAM42-DRT UC, CE, RCM
DeviceNet-compliant Indicators
DeviceNet-compliant Process Indicator K3HB-XVD-A-DRT1
UC, CE
DeviceNet-compliant Weighing Indicator K3HB-VLC-B-DRT1
DeviceNet-compliant Temperature Indicator K3HB-HTA-DRT1
DeviceNet-compliant Linear Sensor Indicators K3HB-SSD-A-DRT1
DeviceNet-compliant Rotary Pulse Indicator K3HB-RNB-A-DRT1
DeviceNet-compliant Time Interval Indicator K3HB-PNB-A-DRT1
DeviceNet-compliant Up/Down Counting Pulse Indicator K3HB-CNB-A-DRT1
DeviceNet-compliant Digital
Controllers
Basic Type (1 input)
E5AR-Q4B-DRT *1
UC, CE
E5AR-C4B-DRT *1
E5AR-QC4B-DRT *1
2-input Type E5AR-QQ4W-DRT *1
4-input Type E5AR-CC4WW-DRT *1
Control Valve Control Type (1 input)
E5AR-PR4F-DRT *1
E5AR-PRQ4F-DRT *1
Basic Type (1 input)
E5ER-QTB-DRT *1
E5ER-CTB-DRT *1
2-input Type
E5ER-QTW-DRT *1
E5ER-CTW-DRT *1
Control Valve Control Type (1 input) E5ER-PRTF-DRT *1

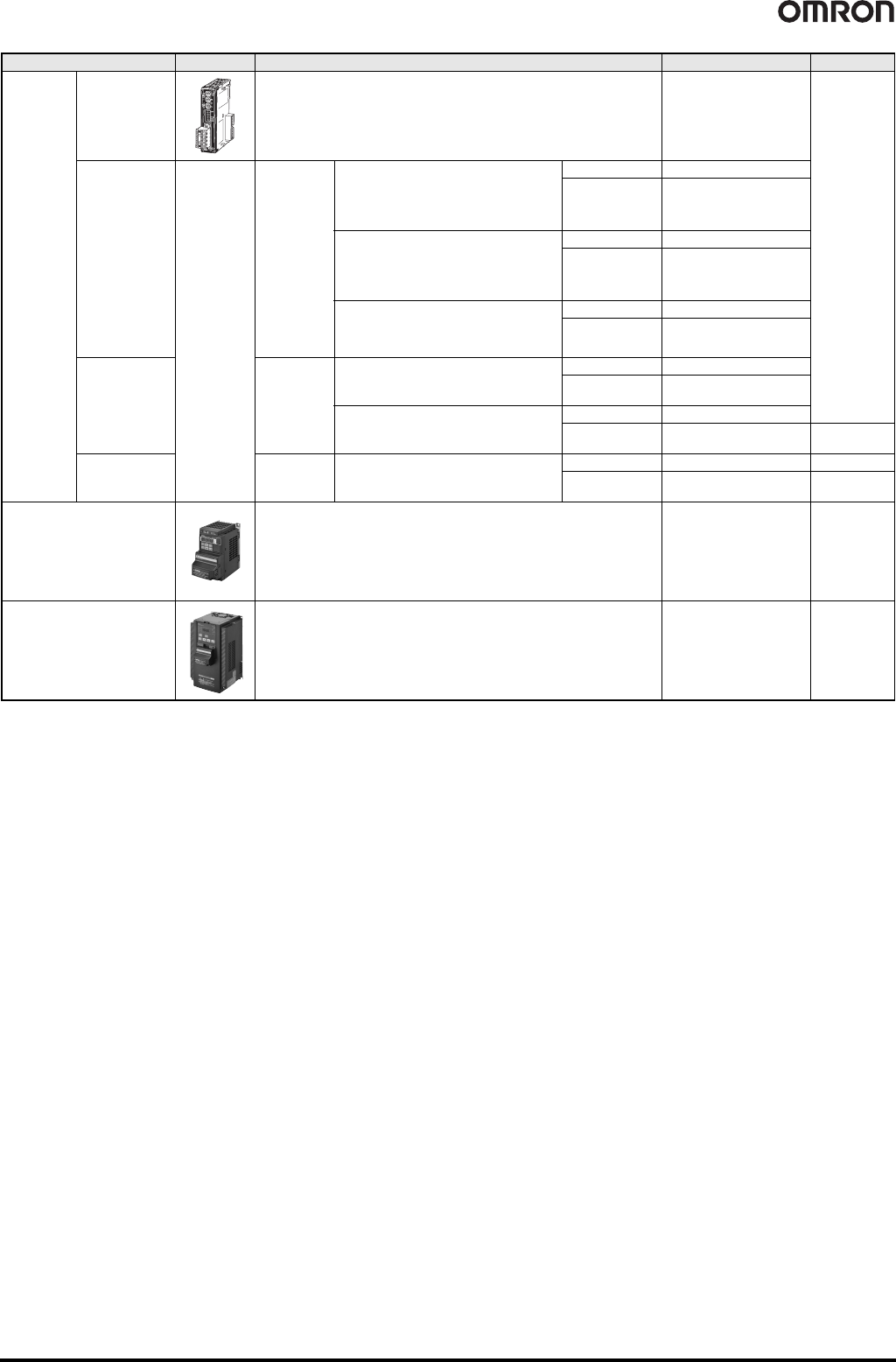

166 List of Models
Product Appearanc e Specifications Model Standards
Modular
Temperatur
e Controller
CPU Bus Unit
with DeviceNet
Communications
External input power supply voltage: 24 VDC
Applicable model: EJ1
EJ1N-HFUB-DRT
UC, CE
Basic Units for
Temperature
Control
--
24 VDC
supplied from
the End Unit.
No. of control outputs: 2
Control outputs 1 and 2: 2 voltage outputs (for
SSR drive)
Control outputs 3 and 4: 2 transistor outputs
(sinking)
M3 terminals EJ1N-TC2A-QNHB
Screw-less clamp
terminals
EJ1N-TC2B-QNHB
No. of control outputs: 4
Control outputs 1 and 2: 2 voltage outputs (for
SSR drive)
Control outputs 3 and 4: 2 voltage outputs (for
SSR drive)
M3 terminals EJ1N-TC4A-QQ
Screw-less clamp
terminals
EJ1N-TC4B-QQ
No. of control outputs: 2
Control outputs 1 and 2: 2 current outputs
Control outputs 3 and 4: 2 transistor outputs
(sinking)
M3 terminals EJ1N-TC2A-CNB
Screw-less clamp
terminals
EJ1N-TC2B-CNB
CPU Bus Units
with Programless
Connection
24 VDC
supplied from
the End Unit.
Auxiliary outputs: 4 transistor outputs
(sinking)
M3 terminals EJ1N-HFUA-NFLK
Screw-less clamp
terminals
EJ1N-HFUB-NFLK
Auxiliary outputs: 4 transistor outputs
(sinking)
M3 terminals EJ1N-HFUA-NFL2
Screw-less clamp
terminals
EJ1N-HFUB-NFL2 UC, CE, KC
End Units 24 VDC
Auxiliary outputs: 2 transistor outputs
(sinking)
M3 terminals EJ1C-EDUA-NFLK UC, CE
Connector
terminals
EJ1C-EDUC-NFLK UC, CE, KC
Multi-function Compact Inverter MX2-Series V1 type DeviceNet Communication Unit 3G3AX-MX2-DRT-E CU, CE
High-function General-purpose
Inverter
RX-Series V1 type DeviceNet Communication Unit 3G3AX-RX-DRT-E CU, CE
