1 Master Unit CJ-series DeviceNet Unit................. ........... .............. .................... ..................... 2 CJ1W -DRM21 CS-series DeviceNet Unit ............. .......................... ..............…

100%1 / 199
MEMO
1
Master Unit
CJ-series DeviceNet Unit................................................................................... 2
CJ1W-DRM21
CS-series DeviceNet Unit.................................................................................. 3
CS1W-DRM21-V1
Programmable Controllers NSJ Series.............................................................. 4
NSJ@-T@@1(B)-G5D
DeviceNet Board (PCI Board)............................................................................ 7
3G8F7-DRM21-E

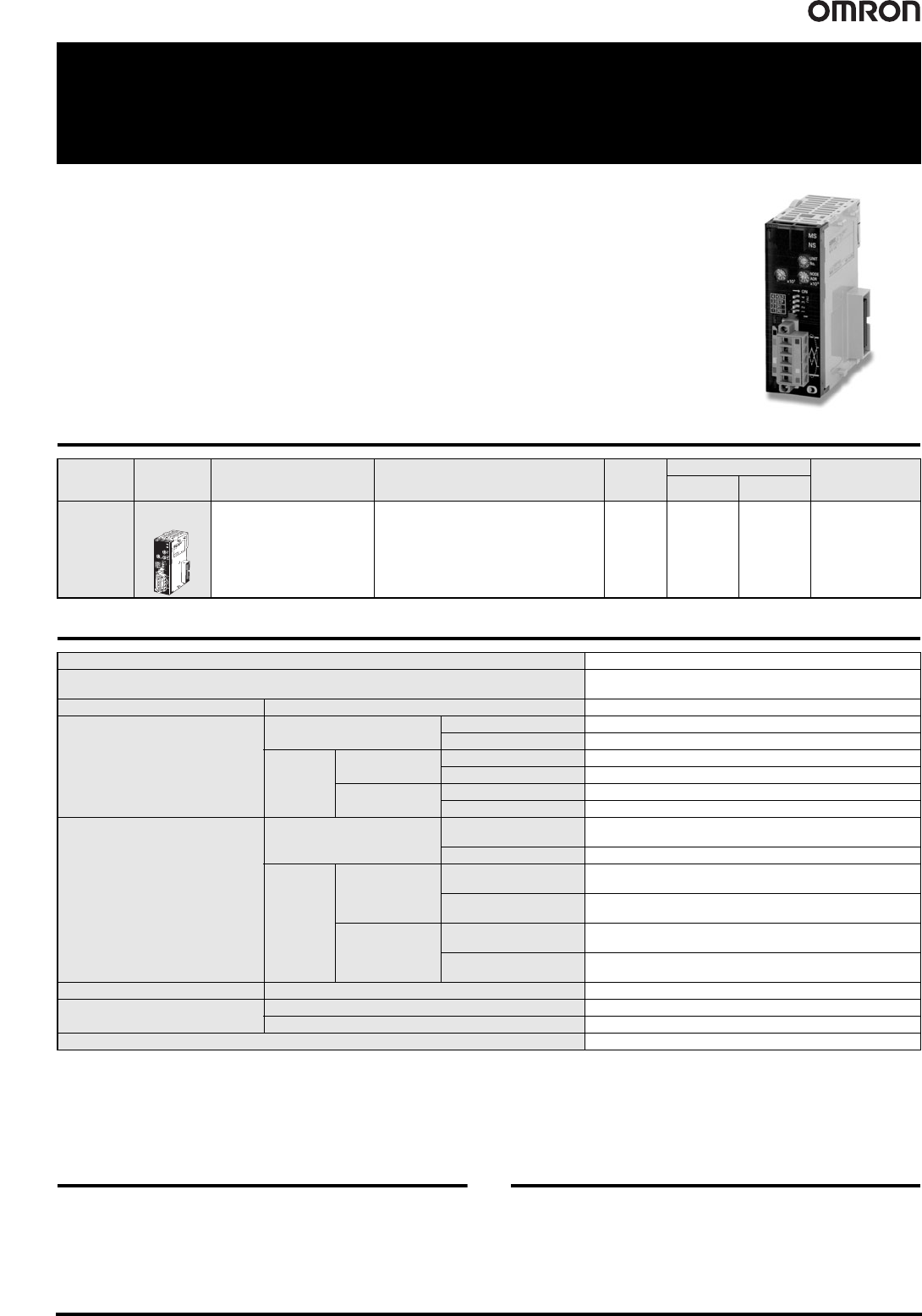

2 CJ-series DeviceNet Unit CJ1W-DRM21
CJ-series DeviceNet Unit
CJ1W-DRM21
A DeviceNet Unit for the NJ/CJ Series
• Allows control of up to 32,000 points (2,000 words) per master, and ensures a high degree of
simultaneity between data.
• Can be used as both a master and a slave at the same time.
• Equipped with settings and monitor functions aimed at improving both design and startup efficiency.
Achieve maximum performance by using in combination with a Configurator.
• Files of master and slave settings can be uploaded and downloaded using memory cards, allowing
effective debugging and easier setup.
Ordering Information
Master/Slave Specifications
*1. Refer to the DeviceNet Operation Manual (W267) for the communications power supply specifications.
*2. The Device Unit uses a node, and so connection is possible to 63 slaves only.
*3. When the DeviceNet is used as a slave, “input” and “output” respectively refer to input from the slave to the master and output from the master to the slave.
*4. The maximum message length includes the command code when using the CMND instruction. (SendCmd instruction with NJ-series controller)
Note: When using with the Machine Automation Controller NJ Series, note the following points:
• Simple backup function cannot be used.
• DeviceNet configurator cannot be used. Use CX-Integrator.
General Specifications
The specifications conform to the CJ Series. Refer to the CJ Series
Catalog (P052) for details on CJ-series specifications.
CJ2 Series Catalog (P059) for details on CJ2-series specifications.
Dimensions
31 x 90 x 65 mm (W x H x D)
Unit
classification
Product name Specifications Communications
No. of unit
numbers
allocated
Current consumption (A)
Model
5 V 24V
CJ1 CPU
Bus Unit
DeviceNet
Unit
Equipped with Master and
Slave functionality. Controls for
up to 32,000 points per Master.
• Remote I/O Communications Master (fixed
allocations or user-set allocations)
• Remote I/O Communications Slave (fixed
allocations or user-set allocations)
• Message communications
10.29 -CJ1W-DRM21
Communications power supply voltage 11 to 25 VDC *1
Current consumption
Communications: 18 mA max.
Internal circuit: 290 mA max.
Max. number of connectable slaves Remote I/O, explicit message service 63 *2
Max. number of I/O points
Fixed allocations
When used as a master 2,048 points
When used as a slave 32 points
User-set
allocations
Using allocated
DM Area words
When used as a master 16,000 points
When used as a slave 3,200 points
Using
Configurator
When used as a master 32,000 points
When used as a slave 4,800 points
Number of allocated words
Fixed allocations
When used as a master
64 input and 64 output words
Software switch/status area: 25 words
When used as a slave 1 input word, 1 output word *3
User-set
allocations
Using allocated
DM Area words
When used as a master
500 input and 500 output words
Software switch/status area: 25 words
When used as a slave
100 input and 100 output words *3
Software switch/status area: 25 words
Using
Configurator
When used as a master
500 input words x 2 blocks, 500 output words x 2 blocks
Software switch/Status area: 25 words
When used as a slave
100 input words x 1 blocks, 100 output words x 2 blocks *3
Software switch/Status area: 25 words
Message communications Max. message length 542 bytes *4
Max. number of Units mountable to
PLC
Fixed allocations 3
User-set allocations 16
Weight 118 g
