108 High-function General-purpose In verters RX-Series V1 type DeviceNet Communication Unit 3G3AX-RX-DRT-E High-function General-purpose In verters RX-Series V1 type DeviceNet Communication Unit 3G3AX-RX-DRT-E Support fo…
Multi-function Compact Inverter MX2-Series V1 type DeviceNet Communication Unit
3G3AX-MX2-DRT-E 107
Multi-function Compact Inverter MX2-Series V1 type DeviceNet Communication Unit
3G3AX-MX2-DRT-E
Support for open network with
DeviceNet Communications Unit
• Reduced wiring of Multi-function compact inverter MX2 series *1
• 8 types of remote I/O functions
The Explicit Message functions in addition to remote I/O functions
• Parameter edit via DeviceNet by using support tool CX-Drive *2
*1 DeviceNet communication unit can be used with the inverter 3G3MX2 of unit version 1.1 or higher.
*2 CX-Drive can be used with version 2.6 or higher.
Ordering Information
Performance Specifications
Note. For detail,refer to the MX2-series V1 type Catalog (Cat. No.I920).
Dimensions (Unit: mm)
3G3AX-MX2-DRT-E
* After the DeviceNet Communication Unit is installed, dimension D of the inverter increases by 26.4 mm.
(Dimension D of the inverter varies depending on the capacity. Refer to the MX2-series USER'S MANUAL (Cat.No.I585))
Name Mountable Inverter Model
DeviceNet communication unit MX2-series V1 type 3G3AX-MX2-DRT-E
Power supply Supplied from the inverter
Protective structure IP20
Ambient Operating Temperature -10 to 55ºC (with no condensation)
Ambient Storage Temperature -20 to 65ºC (with no condensation)
Ambient Operating Humidity 20 to 90%RH
Vibration Resistance 5.9m/s
2
(0.6G) , 10 to 55Hz
Application Environment At a maximum altitude of 1,000 m; indoors (without corrosive gases or dust)
Insulation Resistance 500VAC (between isolated circuits)
Weight Approx.170g
Number of Words allocated Initial setting IN:2CH/OUT:2CH (At maximum setting IN:10CH/OUT:10CH)
18.7
67.6
28.4
D＊
26.4mm＊
60.0
44.8
31.3
Bottom
Option board connector
Status Indicator
(MS, NS)
Communications
connector
FG cable
FG cable
108
High-function General-purpose Inverters RX-Series V1 type DeviceNet Communication Unit
3G3AX-RX-DRT-E
High-function General-purpose Inverters RX-Series V1 type DeviceNet Communication Unit
3G3AX-RX-DRT-E
Support for open network with
DeviceNet Communications Unit
• Reduced wiring of Multi-function compact inverter RX series *1
• 8 types of remote I/O functions
The Explicit Message functions in addition to remote I/O functions
• Parameter edit via DeviceNet by using support tool CX-Drive *2
*1 DeviceNet communication unit can be used with the inverter 3G3MX2 of unit version 1.1 or higher.
*2 CX-Drive can be used with version 2.6 or higher.
Ordering Information
Performance Specifications
Note. For detail,refer to the RX-Series V1 type Catalog (Cat. No.I919).
Dimensions (Unit: mm)
3G3AX-RX-DRT-E
Name Mountable Inverter Model
DeviceNet communication unit RX-series V1 type 3G3AX-RX-DRT-E
Power supply Supplied from the inverter
Protective structure IP20
Ambient Operating Temperature -10 to 55ºC (with no condensation)
Ambient Storage Temperature -20 to 65ºC (with no condensation)
Ambient Operating Humidity 20 to 90%RH
Vibration Resistance 5.9m/s
2
(0.6G) , 10 to 55Hz
Application Environment At a maximum altitude of 1,000 m; indoors (without corrosive gases or dust)
Insulation Resistance 500VAC (between isolated circuits)
Weight Approx.170g
Number of Words allocated Initial setting IN:2CH/OUT:2CH (At maximum setting IN:10CH/OUT:10CH)
66.1
43.9
31.7
79.8
66.5
32.7
48.1
35.1 D
LED indicators (MS, NS)
Fieldbus connector
FG Cable
Note: After the DeviceNet
TM
Communication
Unit is installed, dimension D of the
inverter increases by 35.1 mm.
(Dimension D of the inverter varies
depending on the capacity. Refer to the
RX-series V1 type USER'S MANUAL
(Cat.No.I578))
109

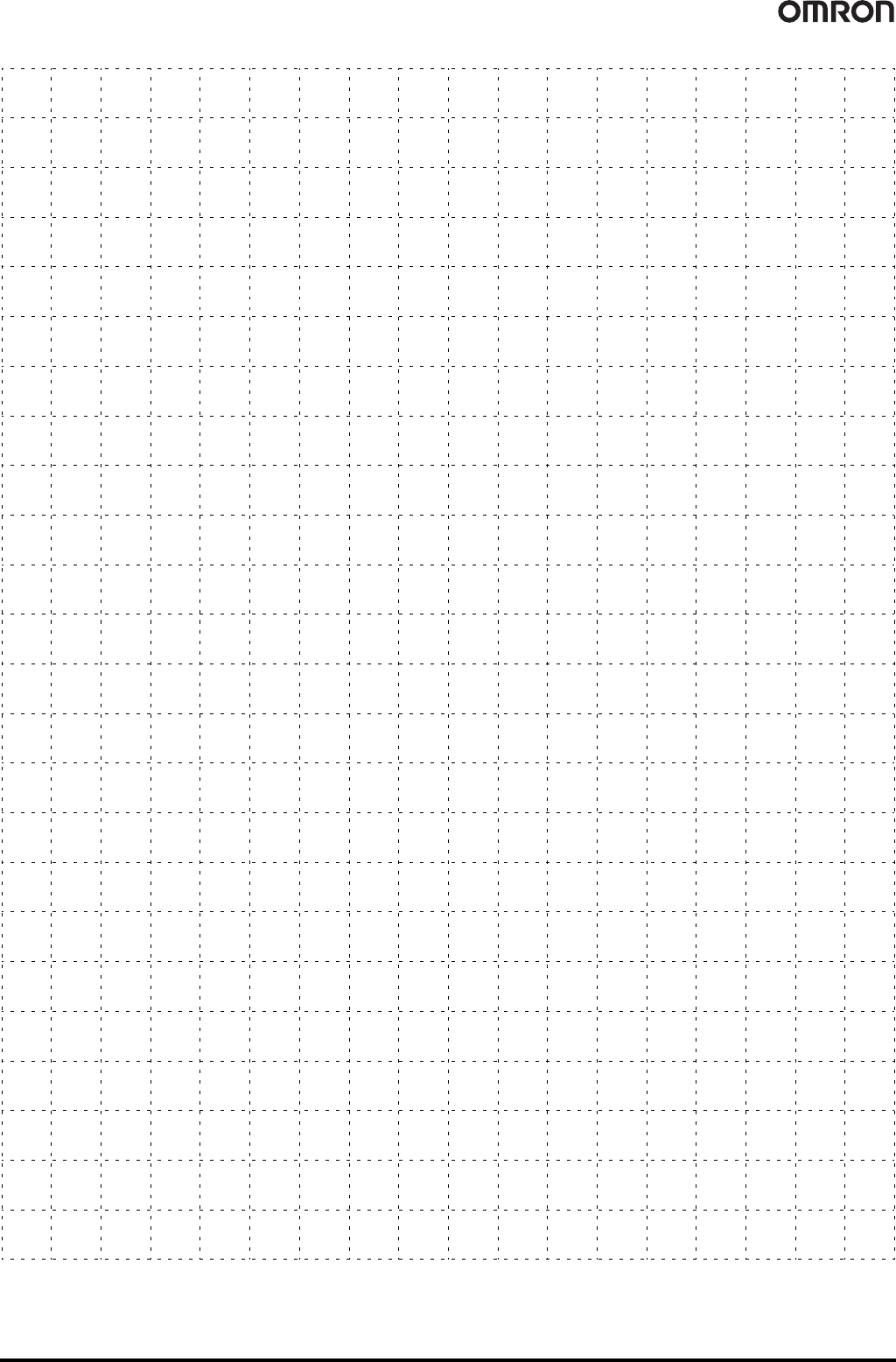

MEMO
