170 List of Models ● Models for Flat Cables * Delivered in units of ten. Order in a multiple of ten. Product Appearance Specifications Model Standards Conversion Connector for Standard Thin Cable and Flat Cable Used as a…
List of Models 169
Peripheral Devices
● Models for Standard Cables
Product Appearance Specifications Model
T-branch Tap for
1 branch line
Cable wiring direction: Toward top
Cable lock direction: From top
Connector screw direction: From top
Provided with 3 parallel clamp
connectors with screws
(XW4G-05C1-H1-D), standard
terminating resistor
DCN1-1NC
Cable wiring direction: Toward side
Cable screw direction: From top
Connector screw direction: From side
3 parallel connectors with screws
(XW4B-05C1-H1-D), standard
terminating resistor
DCN1-1C
Cable wiring direction: Toward top
Cable screw direction: From side
Connector screw direction: From top
DCN1-2C
Cable wiring direction: From side
Cable screw direction: From top
Connector screw direction: From top
3 vertical-type connectors with
screws (XW4B-05C1-V1R-D),
standard terminating resistor
DCN1-2R
T-branch Tap for
3 branch lines
Cable wiring direction: Toward top
Cable lock direction: From top
Connector screw direction: From top
Provided with 5 parallel clamp
connectors with screws
(XW4G-05C1-H1-D), standard
terminating resistor
DCN1-3NC
Cable wiring direction: Toward side
Cable screw direction: From top
Connector screw direction: From side
5 parallel connectors with screws
(XW4B-05C1-H1-D), standard
terminating resistor
DCN1-3C
Cable wiring direction: Toward top
Cable screw direction: From side
Connector screw direction: From top
DCN1-4C
Cable wiring direction: Toward side
Cable screw direction: From top
Connector screw direction: From top
5 vertical-type connectors with
screws (XW4B-05C1-V1R-D),
standard terminating resistor
DCN1-4R
Power Supply Tap 2 connectors, standard terminating resistor, fuse DCN1-1P
Connector
Parallel clamp connector with screws
(Connector insertion and wiring performed in the same direction)
XW4G-05C1-H1-D
Parallel multi-branching clamp connector with screws
(Connector insertion and wiring performed in same direction)
XW4G-05C4-TF-D
Parallel connector with screws
(Connector insertion and wiring performed in the same direction)
XW4B-05C1-H1-D
Parallel connector with screws
(Connector insertion and wiring performed in the same direction)
XW4B-05C4-T-D
Parallel, multi-branching connector with screws
(Connector insertion and wiring performed in the same direction)
XW4B-05C4-TF-D
Orthogonal connector with screws
(Connector insertion and wiring performed at a right angle)
XW4B-05C1-V1R-D
Special Cables
Thin cable
Length: 100 m
DCA1-5C10-B: Cable color: Blue
DCA1-5C10: Cable color: Grey
DCA1-5C10(-B)
Thick cable
Length: 100 m
DCA2-5C10-B: Cable color: Blue
DCA2-5C10: Cable color: Grey
DCA2-5C10(-B)
Terminal-block Terminator Resistance of 121 Ω DRS1-T
170 List of Models
● Models for Flat Cables
* Delivered in units of ten. Order in a multiple of ten.
Product Appearance Specifications Model Standards
Conversion Connector for Standard
Thin Cable and Flat Cable
Used as a set with the DCN4-TR4 when Thin Cable is
branched on a branch line.
DCN4-BR4D UC pending
Power Supply Terminal Block with
Terminating Resistor for Flat Cable
Can be used to supply communications power from terminals
when flat cable is used.
DCN4-TP4D UC pending
Flat Connector Socket
Used as a set with a DCN4-BR4 Flat Connector Plug in the
following applications.
• Extending the trunk line
• T-branching the trunk line into branch lines
DCN4-TR4 UC pending
Used alone in the following applications.
• Connecting a DCN4-TM4 Terminating Resistor to the trunk
line
Flat Connector Plug
Used as a set with a DCN4-TR4 Flat Connector Socket in the
following applications.
• Extending the trunk line
• T-branching the trunk line into branch lines
DCN4-BR4 UC
Used alone in the following applications.
• Connecting the communications cable to the Unit
• Connecting the communications cable to a DCN4-MD4
Multi-drop Connector
Terminating Resistor
Connector terminating resistor for flat cable.
Attached to the DCN4-TR4 Flat Connector Socket at the ends
of the trunk line.
DCN4-TM4 UC
Flat Cable
Four-core flat cable (UL 2555)
Length: 100 m
Conductor diameters: 0.75 mm
2
x 2, 0.5 mm
2
x 2
DCA4-4F10 UC
Special Crimping Tool
This is the crimping tool for the following connectors:
• DCN4-TR4(-1) Flat Connector Socket
• DCN4-BR4 Flat Connector Plug
• DCN4-BR4D Conversion Connector for Standard Thin Cable
and Flat Cable
DWT-A01 --
List of Models 171

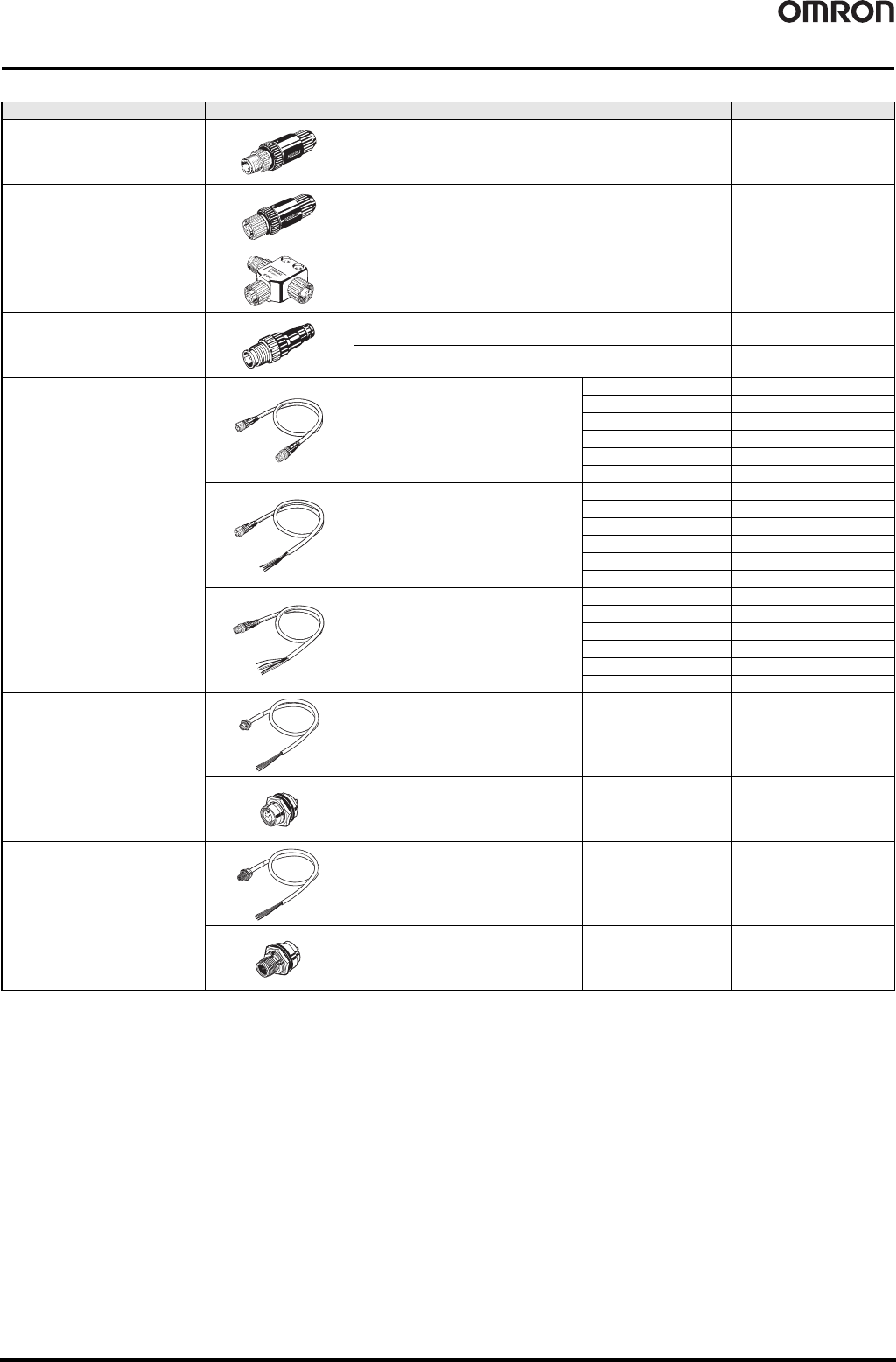

● Environment-resistive Models for Thin Wires with M12 Microconnectors
* Robot cable type connectors with shielded cables (DCA1-5CN@@@1-R) are also available. Contact your OMRON sales representative for details.
Product Appearance Specifications Model
Sealed Assembling-type Connector
(male)
For communications (plug) XS2G-D5S7
Sealed Assembling-type Connector
(female)
For communications (socket) XS2C-D5S7
Sealed T-branch Connector For 1 branch line DCN2-1
Sealed Connector with Terminating
Resistor
Plug DRS2-1
Socket DRS2-2
Cables with Sealed Connectors *
Cable with connectors on both ends
Length: 0.5 m DCA1-5CNC5W1
Length: 1 m DCA1-5CN01W1
Length: 2 m DCA1-5CN02W1
Length: 3 m DCA1-5CN03W1
Length: 5 m DCA1-5CN05W1
Length: 10 m DCA1-5CN10W1
Cable with connector on one end (socket)
Length: 0.5 m DCA1-5CNC5F1
Length: 1 m DCA1-5CN01F1
Length: 2 m DCA1-5CN02F1
Length: 3 m DCA1-5CN03F1
Length: 5 m DCA1-5CN05F1
Length: 10 m DCA1-5CN10F1
Cable with connector on one end (plug)
Length: 0.5 m DCA1-5CNC5H1
Length: 1 m DCA1-5CN01H1
Length: 2 m DCA1-5CN02H1
Length: 3 m DCA1-5CN03H1
Length: 5 m DCA1-5CN05H1
Length: 10 m DCA1-5CN10H1
Shielded Panel-mounting Connectors
(female)
Panel-mounting connector (socket) Length: 0.5 m DCA1-5CNC5P1
Panel-mounting connector (socket) Solder-cup terminals XS2P-D522-2
Shielded Panel-mounting Connectors
(male)
Panel-mounting connector (plug) Length: 0.5 m DCA1-5CNC5M1
Panel-mounting connector (plug) Solder-cup terminals XS2M-D524-4
