Peripheral Devices 135 Product Appearance Model Specifications Connectors XW4G-05C1-H1-D Par allel clamp connector with screws Connector inser tion and wiring both performed hor izontally . XW4G-05C4-TF-D Par allel multi…
134 Peripheral Devices
Peripheral Devices
General-purpose Peripheral Devices
Ordering Information
● General-purpose Models
Peripheral Devices for DeviceNet Communications
Product Appearance Model Specifications
T-branch Tap for
1 branch line
DCN1-1NC
Cable wiring direction: Toward top
Cable lock direction: From top
Connector screw direction: From top
Provided with 3 parallel
connectors with clamps
(XW4G-05C1-H1-D), standard
terminating resistor
DCN1-1C
Cable wiring direction: Toward side
Cable screw direction: From top
Connector screw direction: From side
Provided with 3 parallel
connectors with screws
(XW4B-05C1-H1-D), standard
terminating resistor
DCN1-2C
Cable wiring direction: Toward top
Cable screw direction: From side
Connector screw direction: From top
DCN1-2R
Cable wiring direction: Toward side
Cable screw direction: From top
Connector screw direction: From top
Provided with 3 orthogonal
connectors with screws
(XW4B-05C1-V1R-D), standard
terminating resistor
T-branch Tap for
3 branch lines
DCN1-3NC
Cable wiring direction: Toward top
Cable lock direction: From top
Connector screw direction: From top
Provided with 5 parallel clamp
connectors with screws
(XW4G-05C1-H1-D), standard
terminating resistor
DCN1-3C
Cable wiring direction: Toward side
Cable screw direction: From top
Connector screw direction: From side
Provided with 5 parallel
connectors with screws
(XW4B-05C1-H1-D), standard
terminating resistor
DCN1-4C
Cable wiring direction: Toward top
Cable screw direction: From side
Connector screw direction: From top
DCN1-4R
Cable wiring direction: Toward side
Cable screw direction: From top
Connector screw direction: From top
Provided with 5 orthogonal clamp
connectors with screws
(XW4B-05C1-V1R-D), standard
terminating resistor
Power Supply Tap DCN1-1P Tap provided with 2 connectors, standard terminating resistor, and fuse
Peripheral Devices 135

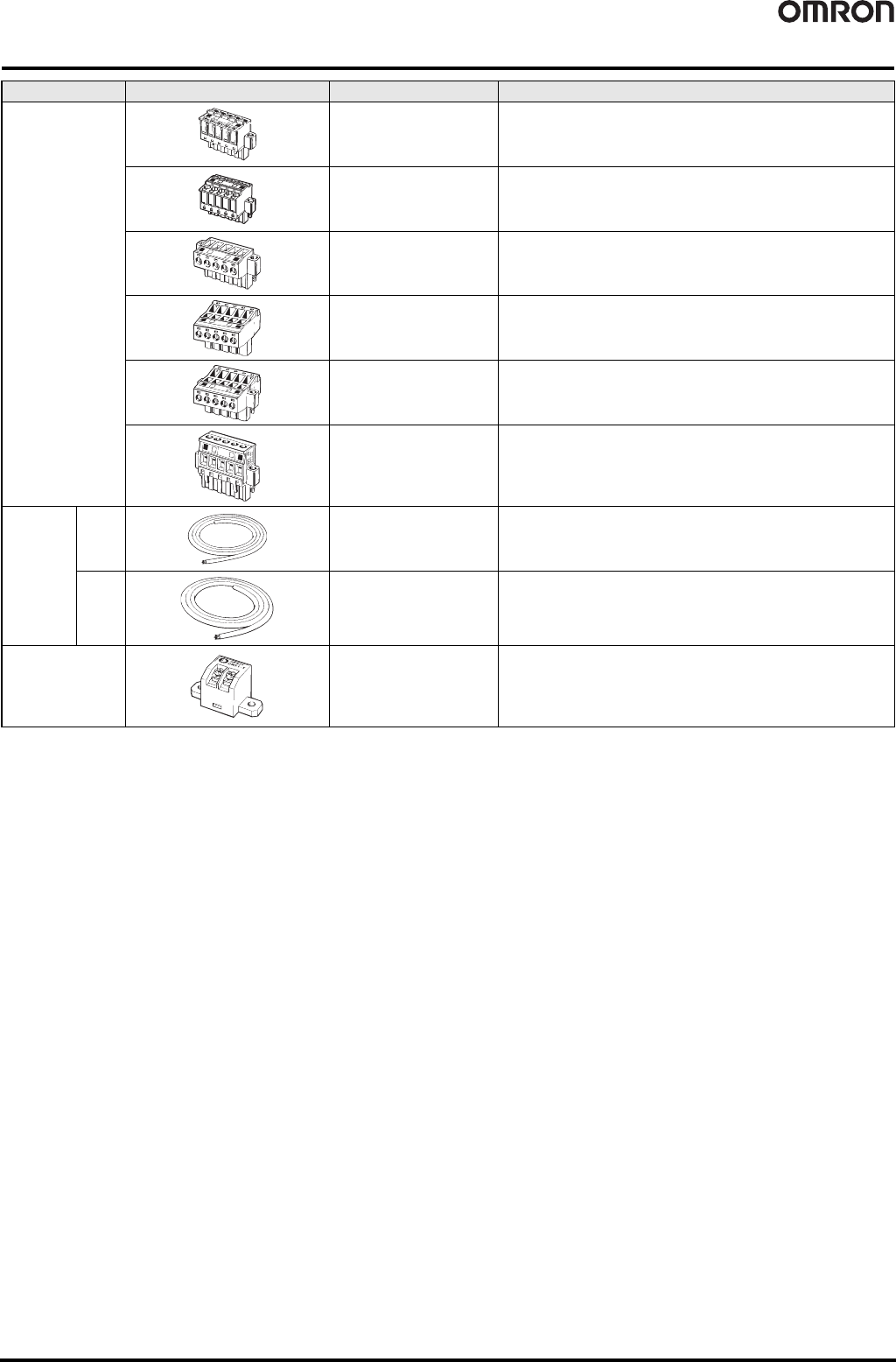

Product Appearance Model Specifications
Connectors
XW4G-05C1-H1-D
Parallel clamp connector with screws
Connector insertion and wiring both performed horizontally.
XW4G-05C4-TF-D
Parallel multi-branching clamp connector with screws
Connector insertion and wiring performed in same direction.
XW4B-05C1-H1-D
Parallel connector with screws
Connector insertion and wiring performed in same direction.
XW4B-05C4-T-D
Parallel, screw-less, multi-branching connector
Connector insertion and wiring performed in same direction.
XW4B-05C4-TF-D
Parallel, multi-branching connector with screws
Connector insertion and wiring performed in same direction.
XW4B-05C1-V1R-D
Orthogonal connector with screws
Connector insertion and wiring performed at a right angle.
DeviceNet
Standard
Cables
Thin
Cables
DCA1-5C10(-B)
Outer diameter: 7.00 mm
Length: 100 m
DCA1-5C10-B: Cable color: Blue
DCA1-5C10: Cable color: Gray
Thick
Cables
DCA2-5C10(-B)
Outer diameter: 11.6 mm
Length: 100 m
DCA2-5C10-B: Cable color: Blue
DCA2-5C10: Cable color: Gray
Terminal-block
Terminator
DRS1-T Resistance of 121
136 Peripheral Devices
● Peripheral Devices for Flat Cables
Specifications
● General-purpose Models (T-branch Taps)
Product Appearance Model Specifications
Conversion Connector
for Standard Thin
Cable and Flat Cable
DCN4-BR4D
Used as a set with a DCN4-TR4 when Thin Cable is branched on a branch
line.
Power Supply
Terminal Block with
Terminating
Resistance for Flat
Cable
DCN4-TP4D
Can be used to supply communications power from terminals when Flat
Cable is used.
Flat Connector Socket DCN4-TR4
Used as a set with a DCN4-BR4 Flat Connector Plug in the following
applications.
• Extending the trunk line
• T-branching the trunk line into branch lines
Used alone in the following applications.
• Connecting a DCN4-TM4 Terminating Resistor to the trunk line
Flat Connector Plug DCN4-BR4
Used as a set with a DCN4-TR4 Flat Connector Socket in the following
applications.
• Extending the trunk line
• T-branching the trunk line into branch lines
Terminating Resistor DCN4-TM4
Connector terminating resistor for flat cable. Attached to the DCN4-TR4 Flat
Connector Socket at the end of the trunk line.
Flat Cable DCA4-4F10
Four-core flat cable (UL 2555)
Length: 100 m
Conductor diameters: 0.75 mm
2
x 2, 0.5 mm
2
x 2
Simple Manual Crimp
Tool
DWT-A01
This is the crimping tool for the following connectors:
• DCN4-TR4(-1) Flat Connector Socket
• DCN4-BR4 Flat Connector Plug
• DCN4-BR4D Conversion Connector for Standard Thin Cable and Flat
Cable
Rated current
Between main lines: 8 A (power supply line) and 2 A
(signal line)
Between main and branch lines: 3 A (power supply line)
and 1 A (signal line)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 500 VAC for 1 min, leakage current: 1 mA max.
Ambient operating
temperature
0°C to 55°C
