6 Programmable Controllers NSJ Series NSJ@-@@@@(B)-G5D/M3D

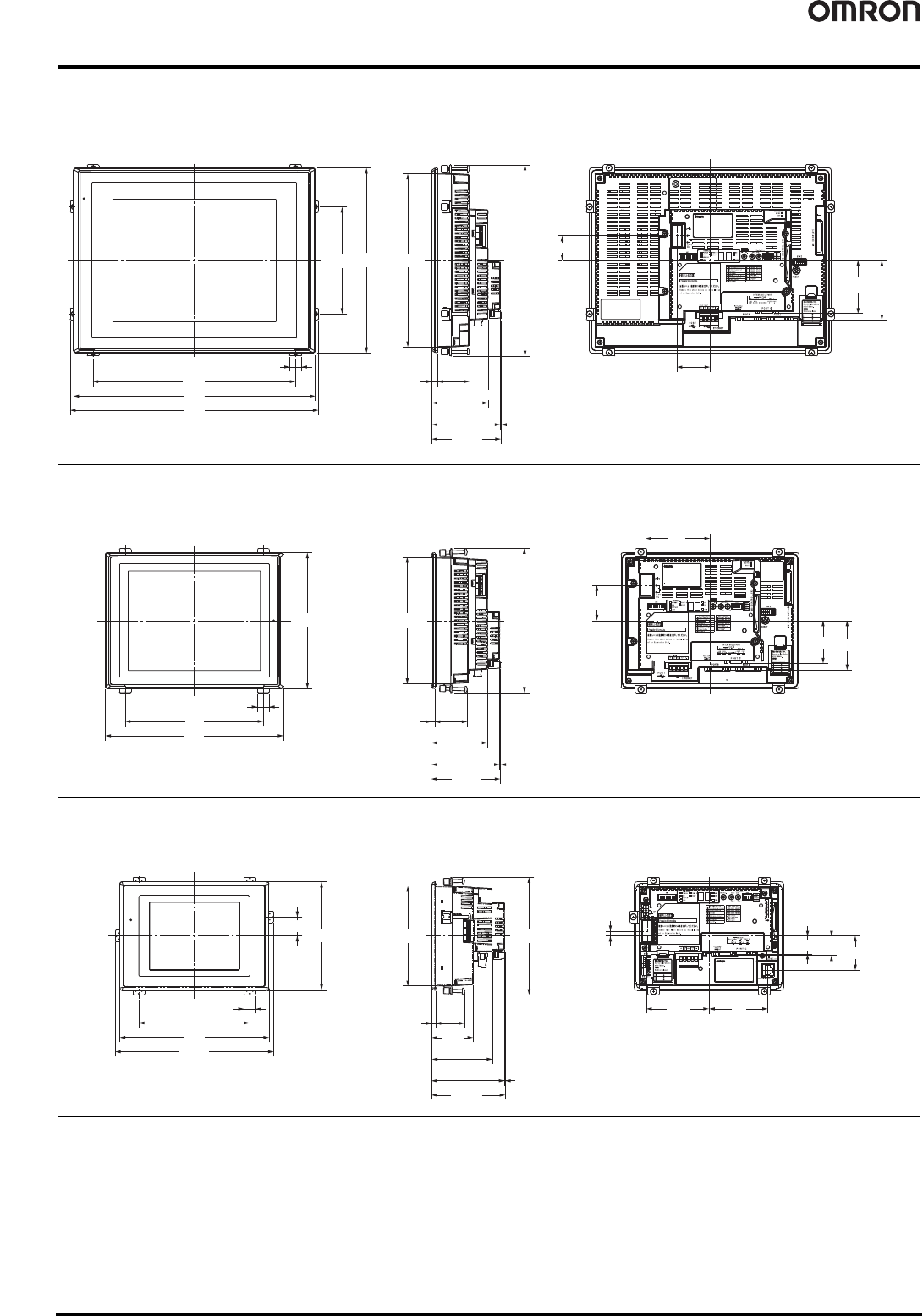

Dimensions (Unit: mm)
With NSJW-CLK21-V1 Mounted
140 241
323
264
315
15.5
39
(min.)
42
(max.)
7.5
73.3
(NSJ10, 12 max. dimension)
227
89.3
(With Expansion Unit mounted)
1.1
(90.4)
249
No Expansion Unit
43.6
32.2
78
69.1
NSJ12-TS01(B)-G5D
NSJ10-TV01(B)-G5D
No Expansion UnitWith NSJW-CLK21-V1 Mounted
177
180
15.5
232
39
(min.)
42
(max.)
45.7
8.4
64.5
55.6
165 188
73.3
(NSJ8 max. dimension)
7.5
89.3
(With Expansion Unit mounted)
1.1
(90.4)
NSJ8-TV01(B)-G5D
25
142
15.5
145
195
206.3
153.3
34
(min.)
38
(max.)
53.8
5
79
(NSJ5 max. dimension)
130.5
1.1
(96.1)
95
(With Expansion Unit mounted)
6.5
81.5 77
23.7
44.55
25.4
No Expansion UnitWith NSJW-CLK21-V1 Mounted
NSJ5-TQ11(B)-G5D

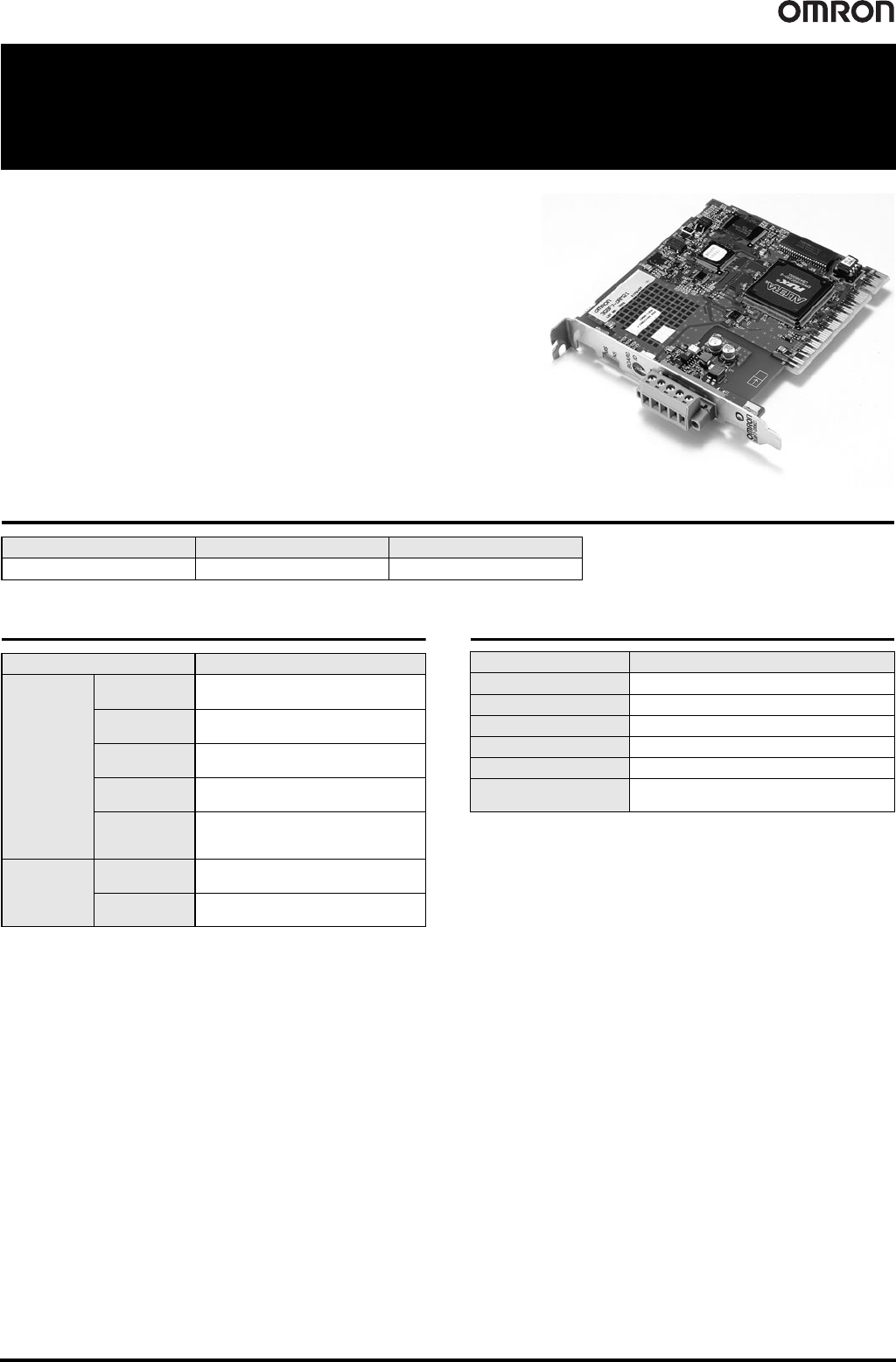

DeviceNet Board (PCI Board) 3G8F7-DRM21-E 7
DeviceNet Board (PCI Board)
3G8F7-DRM21-E
PCI Bus DeviceNet Board
• Perform control using up to 25,200 bytes per master.
Up to 400 bytes of I/O points per slave (Inputs: 200 bytes, Outputs: 200 bytes)
• Master and slave functions are included to enable simultaneous operation.
• DeviceNet Slave Data I/O
I/O can be performed with slaves simply by reading from and writing to the
corresponding memory for each slave.
• The Board can be operated in combination with DeviceNet Configurator
software and NX-Server Analyzer software.
Ordering Information
Master/Slave Specifications System Requirements
Note: At least one CD-ROM drive is required to install the drivers and software.
Unit I/O allocation Model
PCI Board 25,200 bytes
3G8F7-DRM21-E
Item Product
Master
Specifications
Max. I/O points
IN : 12,600 bytes (100,800 points)
OUT : 12,600 bytes (100,800 points)
Max. I/O points
per Slave
IN : 200 bytes (1,600 points)
OUT : 200 bytes (1,600 points)
I/O connections
Up to two Poll, Bitstrobe, or COS/Cyclic
connections can be used.
Explicit
messages
Up to 552 bytes
Max. No. of
connected
slaves
63
Slave
Specifications
Max. I/O points
IN : 200 bytes (1,600 points)
OUT : 200 bytes (1,600 points)
I/O connections
Up to two Poll, Bitstrobe, or COS/Cyclic
connections can be used.
Item Specifications
Computer IBM PC/AT or compatible with PCI bus
OS Windows 95, 98, NT4.0, 2000, XP, and 7
Available hard disk space 5 MB min.
Memory 32 MB min.
MPU Pentium 166-MHz processor or better
Language
Microsoft Visual C++ Ver.6.0
(Include Service Pack3)
