Digital I/O Units GT1- @ D16(-1)/ @ D16MX(-1)/ @ D16ML(-1)/ @ D32ML(-1)/ @ D16 75 General Specifications * The above current consumption is a value with all 16 and 32 points turned ON excluding the current consumption of…
74
Digital I/O Units
GT1-
@
D16(-1)/
@
D16MX(-1)/
@
D16ML(-1)/
@
D32ML(-1)/
@
D16
Digital I/O Units
GT1-
@
D16(-1)/
@
D16MX(-1)/
@
D16ML(-1)/
@
D32ML(-1)/
@
D16DS(-1)

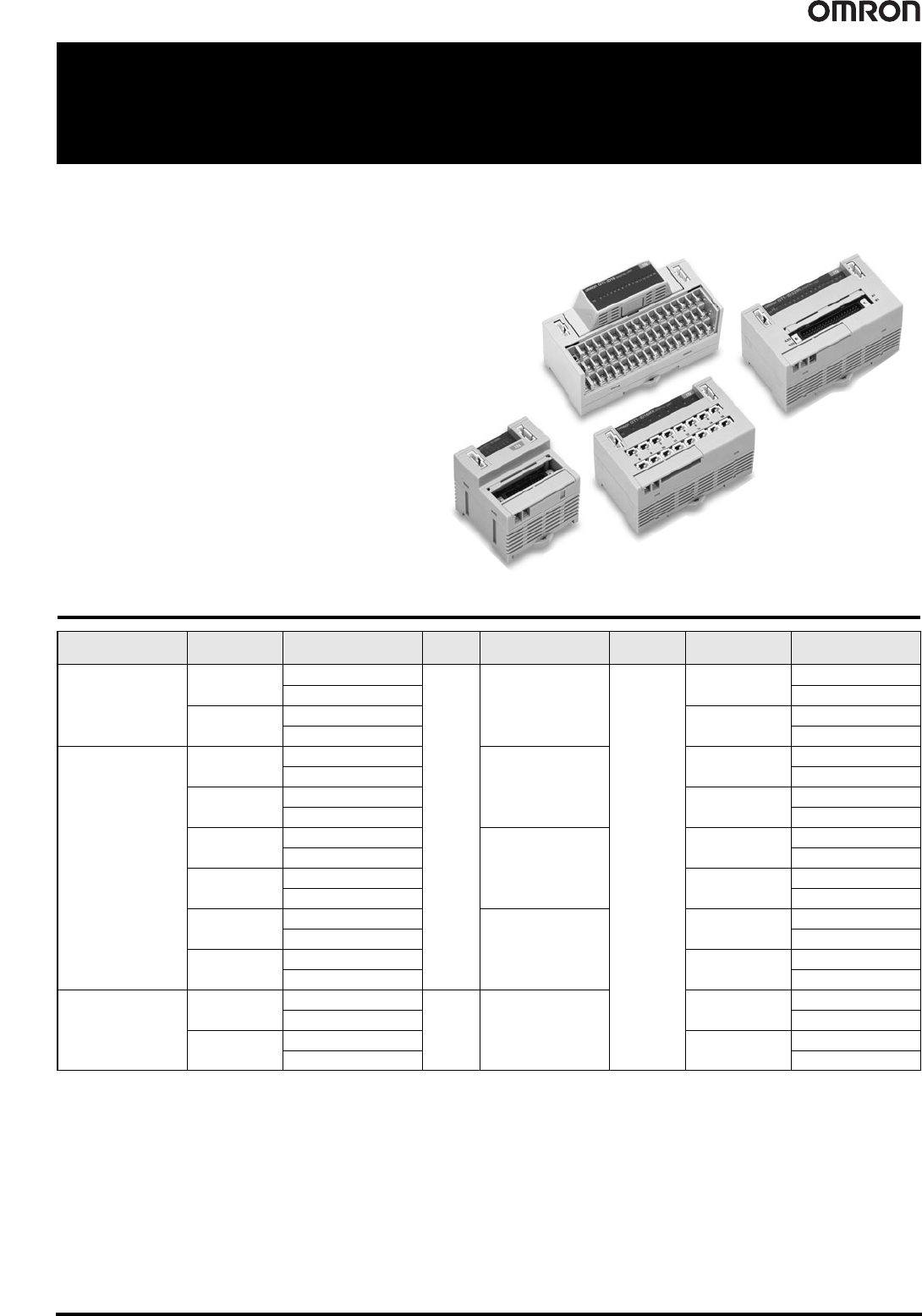

Digital I/O Units Compatible with MULTIPLE I/O TERMINAL
• Terminal block, connector, and high-density connector
models are available.
• The circuit block of the terminal block model can be
mounted or dismounted for ease of maintenance without
disconnecting the wires.
• DIN track mounting.
Ordering Information
Unit I/O classification Internal I/O common I/O points I/O connections
Power supply
voltage
I/O specification Model
Terminal block model
Digital input
NPN (+ common)
16
M3 terminal board
24 VDC
DC/transistor
GT1-ID16
PNP (- common) GT1-ID16-1
Digital output
NPN (- common)
0.5 A, DC/transistor
GT1-OD16
PNP (+ common) GT1-OD16-1
Connector model
Digital input
NPN (+ common)
Molex connector
DC/transistor
GT1-ID16MX
PNP (- common) GT1-ID16MX-1
Digital output
NPN (- common)
0.5 A, DC/transistor
GT1-OD16MX
PNP (+ common) GT1-OD16MX-1
Digital input
NPN (+ common)
Fujitsu connector
DC/transistor
GT1-ID16ML
PNP (- common) GT1-ID16ML-1
Digital output
NPN (- common)
0.5 A, DC/transistor
GT1-OD16ML
PNP (+ common) GT1-OD16ML-1
Digital input
NPN (+ common)
D-sub 25-pin connector
DC/transistor
GT1-ID16DS
PNP (- common) GT1-ID16DS-1
Digital output
NPN (- common)
0.5 A, DC/transistor
GT1-OD16DS
PNP (+ common) GT1-OD16DS-1
High-density connector
model
Digital input
NPN (+ common)
32 Fujitsu connector
DC/transistor
GT1-ID32ML
PNP (- common) GT1-ID32ML-1
Digital output
NPN (- common)
0.5 A, DC/transistor
GT1-OD32ML
PNP (+ common) GT1-OD32ML-1
Digital I/O Units
GT1-
@
D16(-1)/
@
D16MX(-1)/
@
D16ML(-1)/
@
D32ML(-1)/
@
D16
75
General Specifications
* The above current consumption is a value with all 16 and 32 points turned ON excluding the current consumption
of the external sensor connected to the Input Unit and the current consumption of the load connected to the Output
Unit.
Applicable Connectors
Note: Refer to page 144 for Peripheral Devices.
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
Current consumption *
Model I/O Interface Internal circuit
GT1-ID16(-1) 35 mA max. --
GT1-OD16(-1) 35 mA max. 9 mA max.
GT1-ID16MX(-1) 35 mA max. --
GT1-OD16MX(-1) 35 mA max. 9 mA max.
GT1-ID16ML(-1) 35 mA max. --
GT1-OD16ML(-1) 35 mA max. 9 mA max.
GT1-ID16DS(-1) 35 mA max. --
GT1-OD16DS(-1) 35 mA max. 9 mA max.
GT1-ID32ML(-1) 55 mA max. --
GT1-OD32ML(-1) 65 mA max. 11 mA max.
Dielectric strength 500 VAC
Noise immunity Conforms to IEC61000-4-4 2 kV (power line)
Vibration resistance 10 to 150 Hz, 1.0-mm double amplitude or 70 m/s
2
Shock resistance 200 m/s
2
Mounting method DIN 35 mm-track mounting
Mounting strength
No damage when 100 N pull load was applied in all directions (10 N min. in the DIN
track direction)
Terminal strength No damage when 100 N pull load was applied
Screw tightening torque 0.3 to 0.5 N·m
Ambient operating
temperature
-10°C to 55°C (with no icing or condensation)
Ambient operating
humidity
25% to 85% (with no icing or condensation)
Ambient storage
temperature
-25°C to 65°C
Accessories I/O Unit Connecting Cable (40 mm)
Input Specifications
Output Specifications
* Ensure that the total external load current does
not exceed the values given in the following table.
Item Model GT1-ID@@
ON delay 1.5 ms max.
OFF delay 1.5 ms max.
ON voltage
15 V min. (between each input
terminal and V or G)
OFF voltage
5 V max. (between each input
terminal and V or G)
OFF current 1 mA max.
Insulation
method
Photocoupler
Input indicators LED (yellow)
Item Model GT1-OD@@
Rated output
current
0.5 A/point *
ON delay 0.5 ms max.
OFF delay 1.0 ms max.
Residual
voltage
1.2 V max.
Leakage current 0.1 mA max.
Insulation
method
Photocoupler
Output
indicators
LED (yellow)
Model
Total external
load current
GT1-OD16/16MX/32ML(-1)
4 A
GT1-OD16ML/16DS(-1) 2.5 A
76
Digital I/O Units
GT1-
@
D16(-1)/
@
D16MX(-1)/
@
D16ML(-1)/
@
D32ML(-1)/
@
D16
Cables for I/O Connector
Cables for Connector Terminal Conversion Units (16 Points)
Cables for Connector Terminal Conversion Units (32 Points)
Cables for I/O Blocks (16 Points)
Cables for I/O Blocks (32 Points)
Note 1: For details of applicable cables and connectors, refer to Peripheral Devices.
*1. Product no longer available to order.
I/O classification Model Applicable cable Connectable model
Connector Products
(Connector-Terminal Block Conversion Units)
Connecting method
Digital input (16 points)
GT1-ID16ML(-1)
XW2Z-@@@A
XW2R-J20G-T Phillips screw M3
XW2R-E20G-T Slotted screw M3
XW2R-P20G-T Push-in spring
XW2E-20G5-IN16
Phillips screw Common terminal
(3-tier input type) M3.5
Digital output (16 points)
GT1-OD16ML(-1)
XW2R-J20G-T Phillips screw M3
XW2R-E20G-T Slotted screw M3
XW2R-P20G-T Push-in spring
I/O classification Model Applicable cable Connectable model
Connector Products
(Connector-Terminal Block Conversion Units)
Connecting method
Digital input (32 points)
GT1-ID32ML(-1)
XW2Z-@@@B
XW2R-J40G-T Phillips screw M3
Digital output (32 points)
GT1-OD32ML(-1)
XW2R-E40G-T Slotted screw M3
XW2R-P40G-T Push-in spring
I/O classification Model Applicable cable Connectable model Remarks
Digital input (16 points)
NPN
GT1-ID16ML
XW2Z-R@C
G7TC-ID16
G7TC-IA16
For I/O Block input
Digital input (16 points)
PNP
GT1-ID16ML-1
G7TC-ID16-1
G7TC-IA16-1
For I/O Block output
Digital output (16 points)
NPN
GT1-OD16ML
G7TC-OC16
G7TC-OC08
G70D-SOC16
G70D-FOM16
G70D-VSOC16
G70D-VFOM16
G70A-ZOC16-3
For I/O Block output
M7E Series *1 Digital Display Unit
Digital output (16 points)
PNP
GT1-OD16ML-1
G7TC-OC16-1
G70D-SOC16-1
G70A-ZOC16-4
For I/O Block output
M7E-01MB@-@@ *1 Digital Display Unit
I/O classification Model Applicable cable Connectable model Remarks
Digital input (32 points)
NPN
GT1-ID32ML
XW2Z-RI@C-@
G7TC-ID16
G7TC-IA16
For I/O Block input
Digital input (32 points)
PNP
GT1-ID32ML-1
G7TC-ID16-1
G7TC-IA16-1
For I/O Block input
Digital output (32 points)
NPN
GT1-OD32ML
XW2Z-RO@C-@
G7TC-OC16
G7TC-OC08
G70D-SOC16
G70D-FOM16
G70D-VSOC16
G70D-VFOM16
G70A-ZOC16-3
For I/O Block output
Digital output (32 points)
PNP
GT1-OD32ML-1
G7TC-OC16-1
G70D-SOC16-1
G70D-FOM16-1 *1
G70A-ZOC16-4
For I/O Block output
