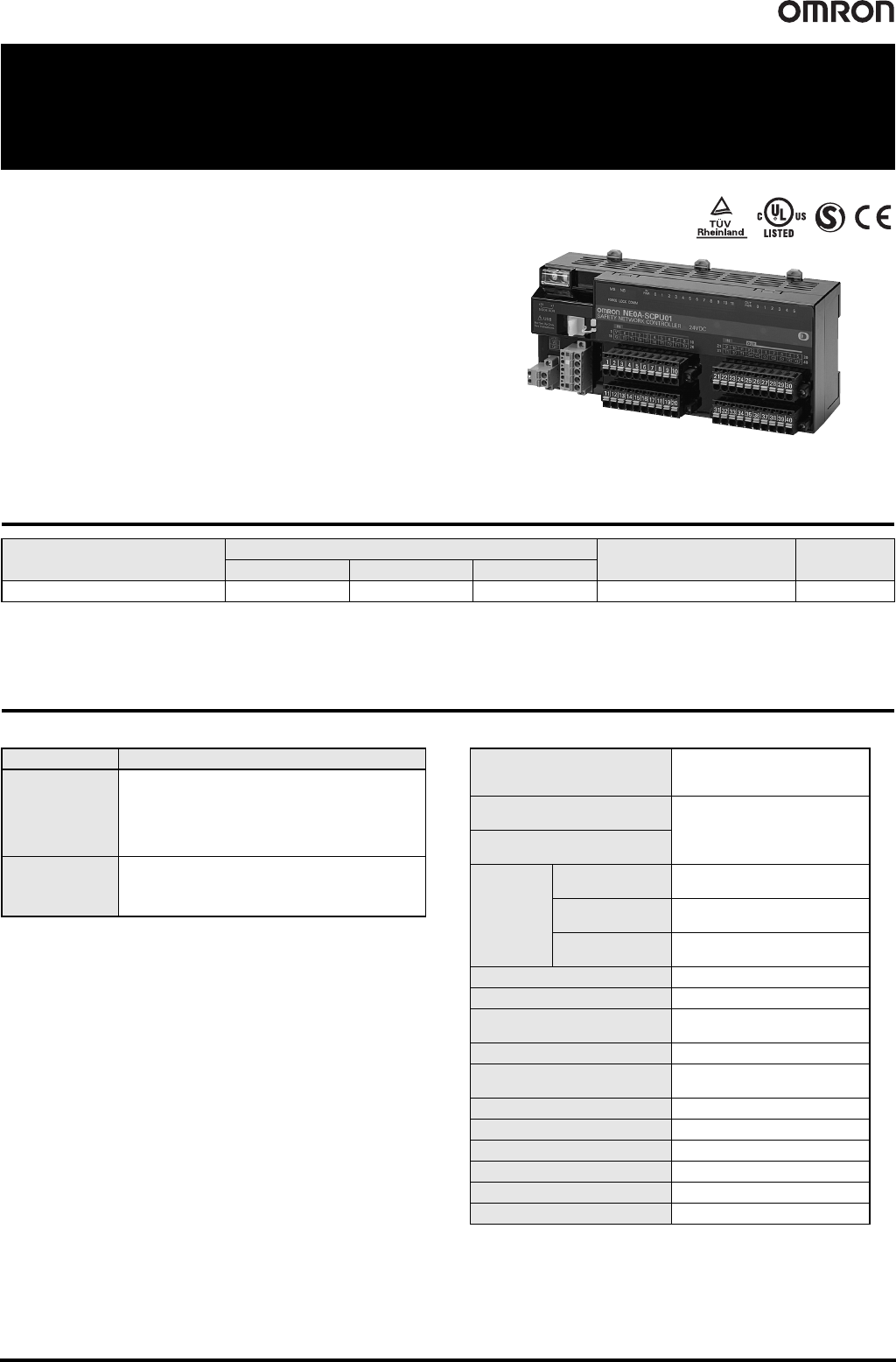

112 Safety Network Controller NE0A-SCPU01
Safety Network Controller
NE0A-SCPU01
New Lineup for Safety
Applications with Up to 12 Inputs
• Circuits for the required safety category are easy to build.
• The safety circuits you create can be registered as templates and
reused, for easy standardization.
• TÜV-certified templates is also available.
• The NE0A operating conditions can be monitored from a standard
DeviceNet Master.
• Network distribution is possible by combining with an NE1A Safety
Controller.
• ISO13849-1 (PLe) and IEC 61508 SIL3 certification.
Ordering Information
Note 1: The standard NE0A Safety Network Controller is equipped with spring-cage terminal blocks, but screw terminal blocks are available if desired, e.g., to replace previous
terminals.
Note 2: Network Configurator version 2.1@ or higher must be used when using a NE0A-SCPU01 Safety Network Controller.
* When using the NE0A-SCPU01 as a standalone Controller, one input each is required for the feedback input and manual restart.
Specifications
Certified Standards General Specifications
*1. V0-G0: Internal control circuit
V1-G1 (G): For external input device, test output
V2-G2 (G): For external output device
*2. Not including power consumption for external devices.
Name
I/O points
Model Unit version
Safety inputs Test outputs Safety outputs
Safety Network Controllers 12 * 26NE0A-SCPU01 Ver. 1.0
Certification body Standard
TÜV Rheinland
EN ISO 13849-1
EN ISO 13849-2
IEC 61508
EN 62061
EN 61131-2
IEC 61326-3-1
UL
UL508
ISA12.12.01
UL1998
IEC 61508-3
DeviceNet Communications power
supply voltage
11 to 25 VDC
(supplied from the communications
connector)
Internal circuit power supply
voltage (V0) *1
20.4 to 26.4 VDC
(24 VDC -15%/+10%)
I/O power supply voltage (V1, V2)
*1
Current
consumption
Communications
power supply
24 VDC, 15 mA
Internal circuit
power supply
24 VDC, 110 mA
I/O power supply *2
24VDC, 80mA(Input)
80mA(Output)
Overvoltage category II
Noise immunity Conforms to IEC61131-2.
Vibration resistance
10 to 57 Hz: 0.35 mm,
57 to 150 Hz: 50 m/s
2
Shock resistance 150 m/s
2
: 11 ms
Mounting method
DIN track mounting
(IEC 60715 TH35-7.5/TH35-15)
Ambient operating temperature -10°C to 55°C
Ambient operating humidity 10% to 95% (with no condensation)
Ambient storage temperature -40°C to 70°C
Degree of protection IP20
Serial interface USB version 1.1
Weight 440 g max.
Safety Network Controller NE0A-SCPU01 113
Safety Input Specifications
Safety Output Specifications
Test Output Specifications
DeviceNet Communications Specifications
Input type Sinking inputs (PNP)
ON voltage 11 VDC min. between each terminal and G1
OFF voltage 5 VDC min. between each terminal and G1
OFF current 1 mA max.
Input current 4.5 mA
Output type Sourcing outputs (PNP)
Rated output
current
0.5 A max./output
ON residual voltage 1.2 V max. between each output terminal and V2
Leakage current 0.1 mA max.
Output type Sourcing outputs (PNP)
Rated output
current
60 mA
ON residual voltage 1.2 V max. between each output terminal and V1
Leakage current 0.1 mA max.
Communications protocol Conforms to DeviceNet
Connection form Multi-drop system and T-branch system can be combined (for trunk line and branch lines)
Baud rate 500/250/125 kbps
Communications media Special cable, 5 conductors (2 for communications, 2 for power supply, 1 for shielding)
Communications distance
Communications power
supply
11 to 25 VDC
Maximum number of nodes 63
Safety I/O communications
Safety Master function
• Max. no. of connections: 2 (one each for inputs and outputs)
Multi-cast inputs can be used to enable communications with up to 15 Safety Masters.
• Connection type: Single-cast, multi-cast
Standard I/O
communications
Standard Slave function
• Max. no. of connections: 2
• Connection type: Poll, bit-strobe, COS, cyclic
Message communications Max. message length: 502 bytes
The values in parentheses are for Thin Cable.
Baud rate Network length (max.) Branch line length Total branch line length
500 kbps 100 m max. (100 m max.)
6 m max.
39 m max.
250 kbps 250 m max. (100 m max.) 78 m max.
125 kbps 500 m max. (100 m max.) 156 m max.
114 Safety Network Controller NE0A-SCPU01
Functions
The following function blocks are available for designing safety circuits with the NE0A-SCPU01.
These function blocks can be selected and assembled using the interactive wizard format to efficiently design safety applications.
Note: There is a possibility that safety cannot be maintained when an OR part or an AND/OR part is selected for input logic, or an OR/AND part is selected for output logic. Sufficiently
confirm safety prior to use.
Classification of function block
for safety circuit designs
Application
Function blocks for safety input
devices and setting input filter
times
The following six parts can be selected for use as safety input devices.
For Category 3 or 4 compliance, the filter monitoring time between signals can also be adjusted with redundant wiring for the necessary
safety devices.
Emergency Stop Switches
Safety Door Switches
Limit Switches
Safety Light Curtains
Enabling Switches
Mode Selectors
Logic function blocks for input
conditions
Select a Safety Light Curtain as the safety input device, and select a muting function when required.
No setting Uses the ON/OFF status from the safety input device exactly as it is.
OR operation
• For switching maintenance areas with a Mode Selector.
• For applications such as a Safety Light Curtain muting function.
AND/OR operations
AND operation
OR/AND operations
Function blocks for resets Selects manual or auto reset.
Logic function blocks for output
conditions
For applications such as stopping all outputs for multiple safety devices.
No setting Uses the ON/OFF status of the safety signal exactly as it is.
AND operation
Selects the interlock conditions for the safety signal.
OR/AND operations
Function blocks for setting the
welded contact check
Used to check the safety condition of an output device.
No setting No checking of the output device (used for Category 2 or lower).
EDM
Used to check for contact welding in a Relay or Contactor.
Also used to change the setting for monitoring time.
Function blocks for safety output
devices and setting output delay
times
For setting an auxiliary output (to output an error condition) and for setting the output delay.
