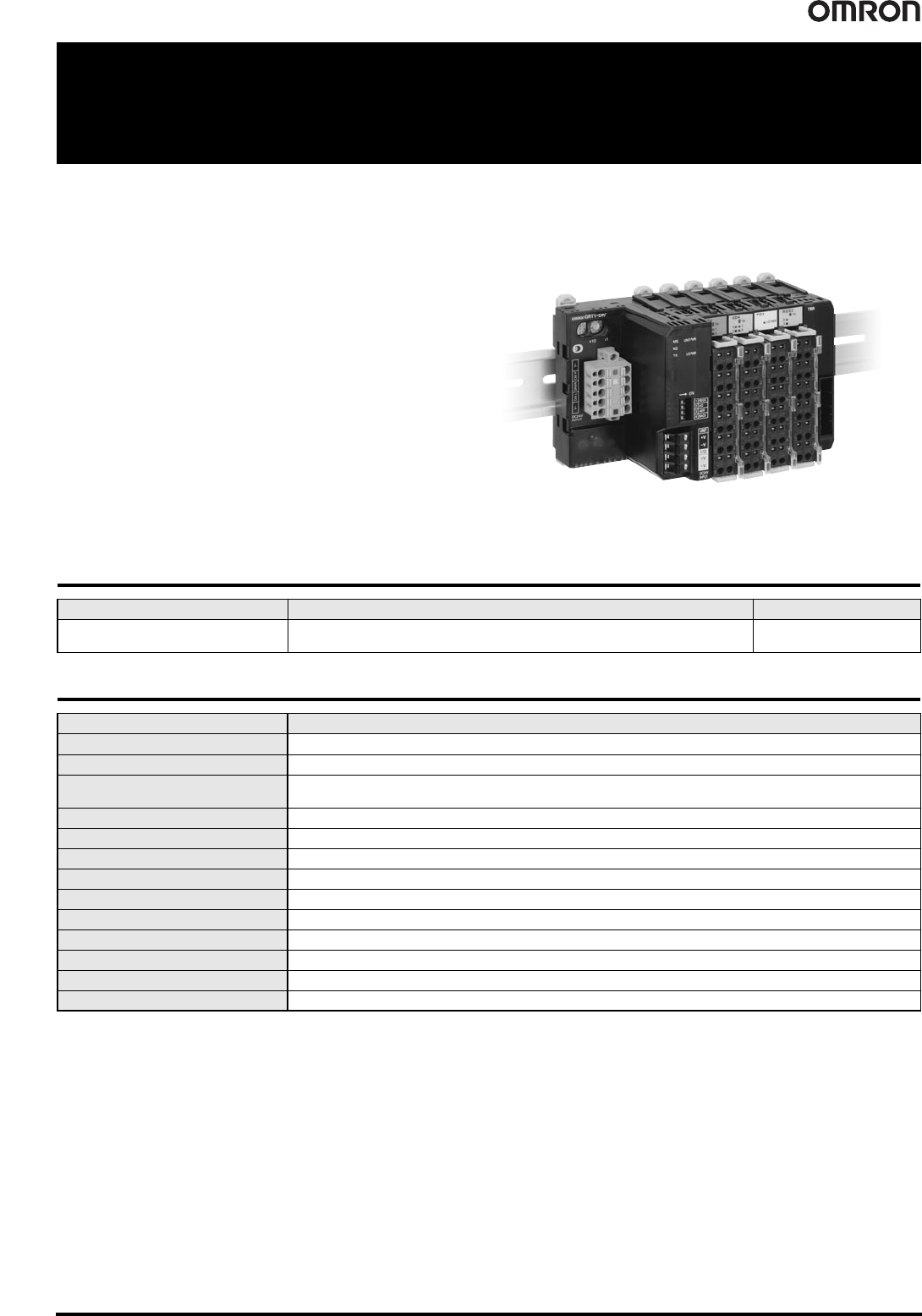

68 DeviceNet Communications Unit GRT1-DRT
DeviceNet Communications Unit
GRT1-DRT
DeviceNet-compliant Interface Unit with up to 1,024 I/O Points at
One Node
• Connect up to 64 SmartSlice I/O Units.
• Consolidate a large capacity of I/O points into one Slave (up to
1,024 I/O points).
• Save space by configuring different I/O types using one Slave Unit.
• Easily get the system started simply by setting the node
addresses.
• Replace SmartSlice I/O Units online while maintaining
communications. This helps minimize equipment downtime.
• Smart functions for monitoring equipment operating status. This
helps improve preventive maintenance and the utilization rate.
• Registering SmartSlice I/O for planned future expansion
decreases design work when changes are made. (Supported for
unit version 2.0 or higher.)
Ordering Information
General Specifications
* For power supply input to the Slice I/O Units.
Name Specifications Model
DeviceNet Communications Unit
Up to 64 Slice I/O Units can be connected.
(1,024 I/O points max.)
GRT1-DRT
Item Model GRT1-DRT
Network power supply voltage 11 to 25 V DC (Supplied from the communications connector)
Unit power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
I/O power supply voltage
20.4 to 26.4 VDC *
(24 V +10%/-15%)
Noise immunity Conforms to IEC 61000-4-4, 2 kV (power line)
Vibration resistance 10 to 60 Hz, 0.7-mm double amplitude 60 to 150 Hz: 50 m/s
2
Shock resistance 150 m/s
2
Dielectric strength 500 V AC between isolated circuits
Insulation resistance 20 MΩ min. between isolated circuits
Ambient operating temperature -10°C to 55°C (with no icing or condensation)
Ambient operating humidity 25% to 85%
Ambient operating atmosphere No corrosive gases
Ambient storage temperature -25°C to 65°C (with no icing or condensation)
Mounting method DIN 35 mm-track mounting

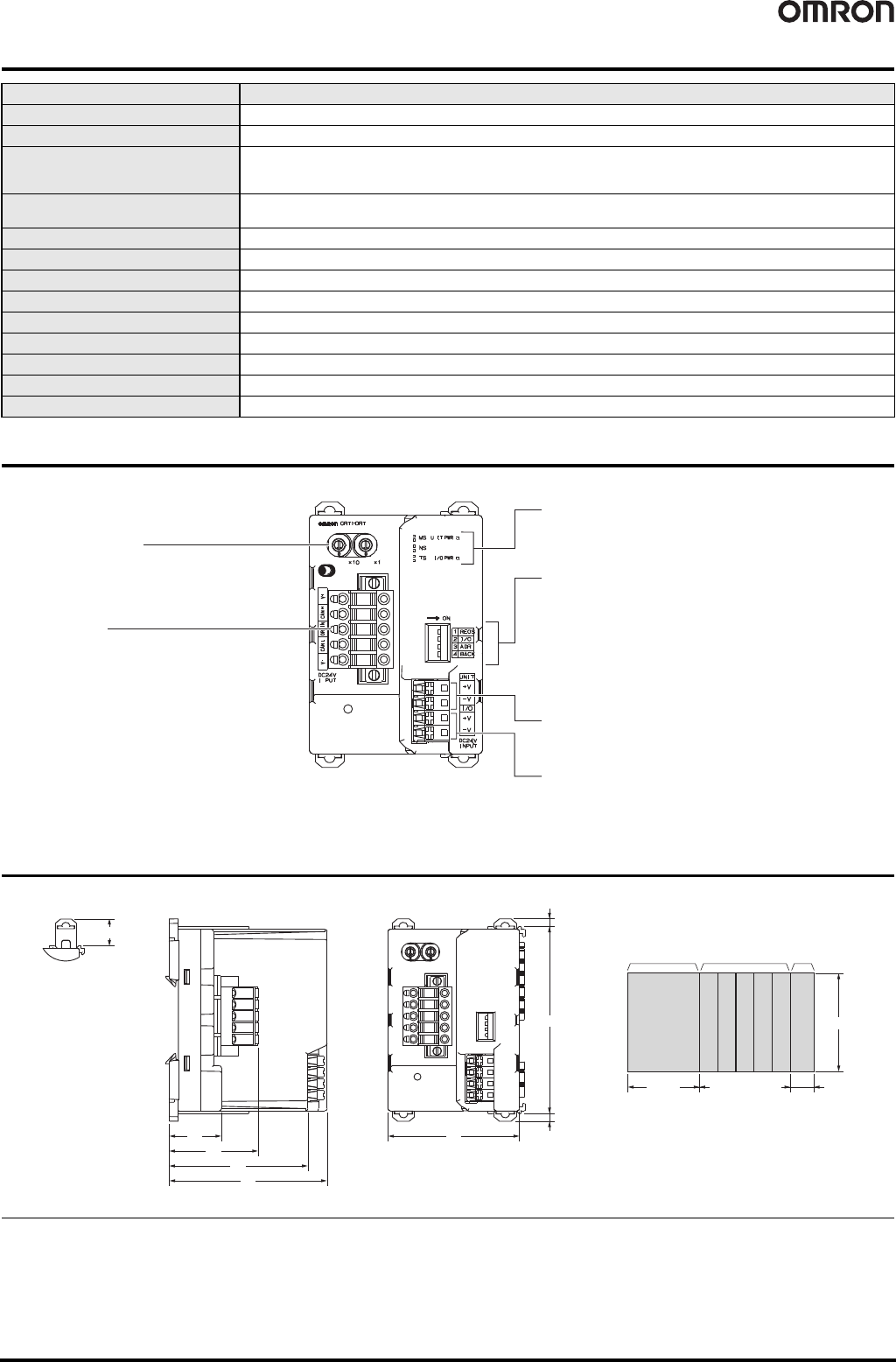

DeviceNet Communications Unit GRT1-DRT 69
DeviceNet Communications Unit Specifications
Nomenclature and Functions
GRT1-DRT
Dimensions (Unit: mm)
Item Model GRT1-DRT
I/O points 1,024 max. (128 bytes), including inputs and outputs
Connectable Slice I/O Units 64 max.
Communications with Slice I/O Units
64 Units max. in a horizontal connection configuration (for an extension of approx. 2 m max.)
Power consumption is limited to 80 W per block, and the extension must be done using Turnback Cables
(two 1-m cables max., for a distance of 2 m max.)
Slice I/O Unit data capacity
(1) 0, 2, or 4 bits
(2) 0 to 16 words (in word increments)
Status flags One word is allocated (Communications Unit Status Flags)
Parameter back-up and restore functions 2 KB of data can be backed up and restored per Unit
Message communications function Supported
Automatic baud rate detection Supported
Connector 1 DeviceNet open connector with screws Connectable with multi-drop connector
Terminals 2 terminals for I/O power supply, 2 terminals for Unit power supply
Power supply per 1 block 80 W max. (Unit power supply)
I/O power supply consumption current 4 A max.
Weight 137 g
DIP Switch
Used to set the I/O allocation method, and to read and
write configuration data from and to Slice I/O Units
connected to the Communications Unit.
SW1 (REGS): Create/Enable registered table
SW2 (I/O): Enable/Disable I/O allocation mode *
SW3 (ADR): Automatic restore
SW4 (BACK): Backup trigger
Indicators
Indicate the condition of the DeviceNet Communications
Unit and DeviceNet network, and the communications
condition with the Slice I/O Units.
I/O Power Supply Terminals
Supply power to external inputs and outputs connected
to the Slice I/O Units.
Unit Power Supply Terminals
Supply power to the internal circuits of the Unit, and
to the internal circuits of connected Slice I/O Units.
Rotary Switches
Used to set the node address for the
DeviceNet Slave. (Set in decimal.)
Node addresses from 0 to 63 can be set.
DeviceNet
Communications Connector
Connects to the communications cable
for a DeviceNet network.
* Unit version 2.0 or later.
24
12
40
62
70
58
3
3
84
Slice I/O Units
80 mm
58 mm
19.5 mm
15 mm × n Units
n = 64 max.
(with current
consumption limit)
SmartSlice DeviceNet
Communications Unit
End Unit
Overall System
GRT1-DRT

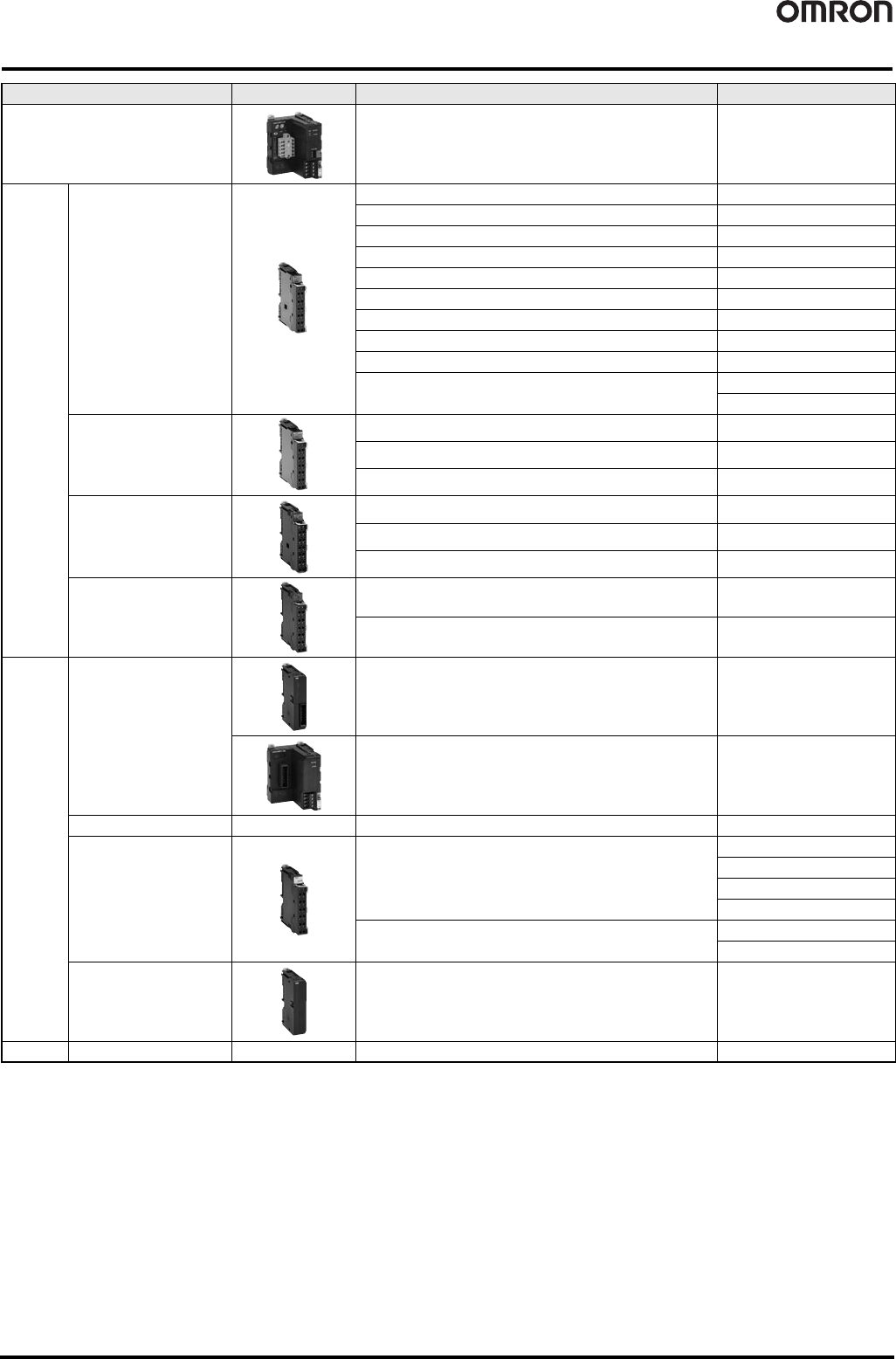

70 Ordering Information
Ordering Information
*1. The End Unit is sold separately. (End Units are not included with Communications Units.)
*2. Use the GCN2-100 as a set with the GRT1-TBR and GRT1-TBL.
Name Appearance Specifications Model
DeviceNet Communications Unit Up to 64 SmartSlice I/O Units can be connected (1,024 I/O points). GRT1-DRT
SmartSlice
I/O Units
Digital I/O Units
4 inputs, NPN GRT1-ID4
4 inputs, PNP GRT1-ID4-1
4 outputs, NPN GRT1-OD4
4 outputs, PNP GRT1-OD4-1
8 inputs, NPN GRT1-ID8
8 inputs, PNP GRT1-ID8-1
8 outputs, NPN GRT1-OD8
8 outputs, PNP GRT1-OD8-1
2 relay outputs GRT1-ROS2
4 AC inputs
GRT1-IA4-1
GRT1-IA4-2
Analog I/O Units
2 inputs (current or voltage) GRT1-AD2
2 outputs (current) GRT1-DA2C
2 outputs (voltage) GRT1-DA2V
Temperature Input Unit
(resistance thermometer)
2 temperature inputs (Pt100 resistance thermometer) GRT1-TS2P
2 temperature inputs (Pt1000 resistance thermometer) GRT1-TS2PK
2 thermocouple inputs GRT1-TS2T
Counter Units
1 counter input, 1 external output, NPN GRT1-CT1
1 counter input, 1 external output, PNP GRT1-CT1-1
System
Units
Turnback Units
For right-side turnback
(Used to divide a SmartSlice I/O Terminal into blocks)
GRT1-TBR
For left-side turnback
(Used to divide a SmartSlice I/O Terminal into blocks)
GRT1-TBL
Turnback Cable -- Length: 1 m GCN2-100
I/O Power Feed Unit
Used if the total current consumption of the I/O Power Supply exceeds
4 A or to use a separate I/O power supply.
GRT1-PD2
GRT1-PD2G
GRT1-PD8
GRT1-PD8-1
Used to add V and G terminals for the I/O power supply.
GRT1-PC8
GRT1-PC8-1
End Unit *1 Required at the end of SmartSlice I/O Terminals. GRT1-END
Option
Terminal blocks -- Terminal blocks (5 blocks) GRT1-BT1-5
