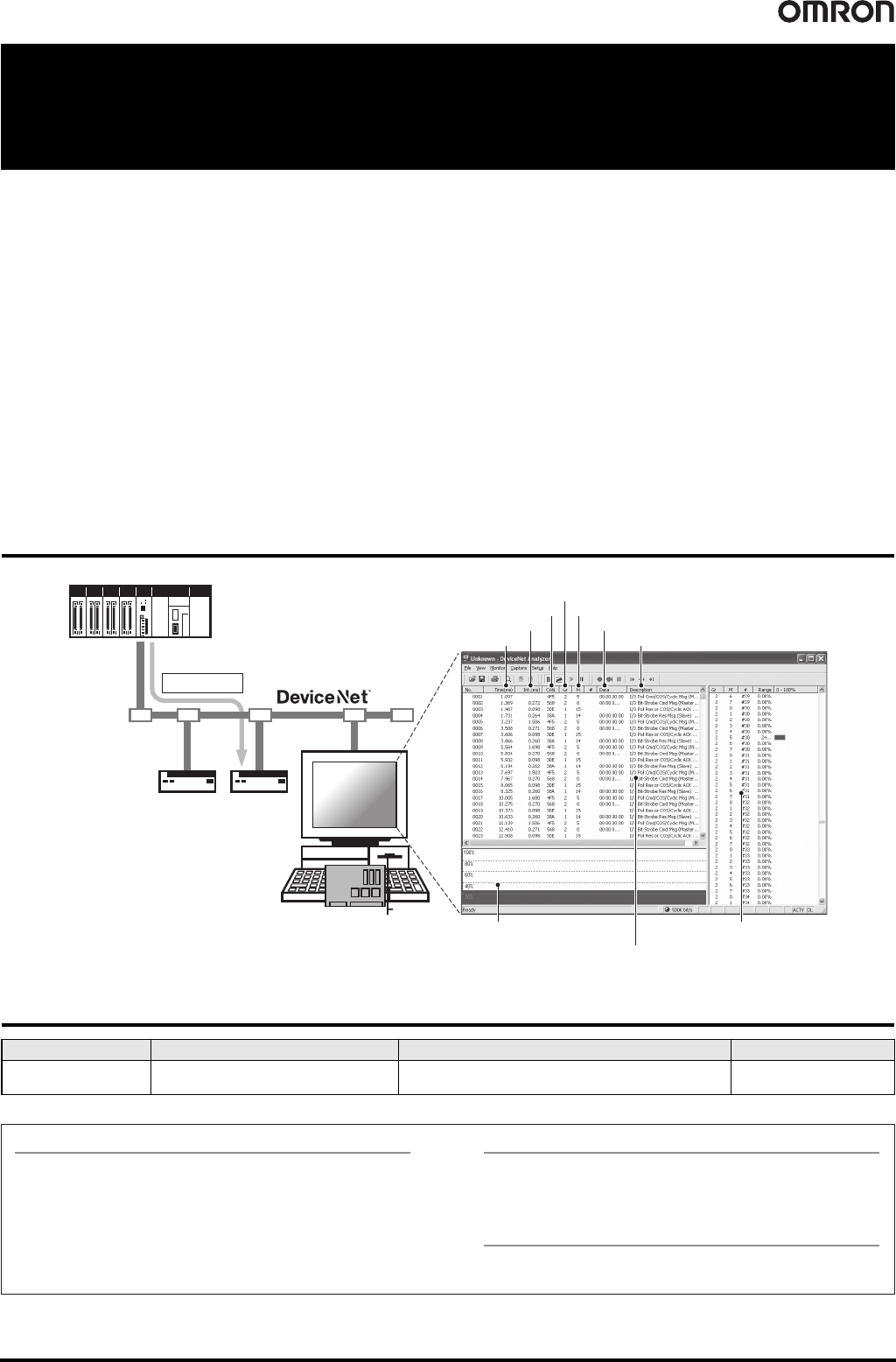

130 DeviceNet Analyzer WS02-ALDC1
DeviceNet Analyzer
WS02-ALDC1
Perform Diagnosis and Analysis for Networks by Directly
Connecting to an OMRON DeviceNet PCI Board.
Helps Improve Efficiency of Device Development and System
Startup.
• Capture messages frames flowing on DeviceNet.
• Translate and display the captured message frames to easily perform diagnosis and analysis.
• Functionality is provided in the capture filter to display only messages that match the specified conditions.
• Set the trigger conditions for starting and stopping capture.
• Combine multiple conditions (e.g., AND, OR, THEN) for the trigger conditions.
• Display the traffic (load percentage) in a trend graph for each time interval (100 ms) to determine changes in the communications cycle
time and to help determine system distribution.
• Display the percentage of a specified message frame relative to all message frames.
System Configuration
Ordering Information
Name Applicable OS Description Model
DeviceNet Analyzer Windows 2000 (Service Pack2 or higher)/XP
This software captures the required messages that flow on
DeviceNet to diagnose and analyze the network.
WS02-ALDC1-E
Master
Slave
Slave
PCI Board
DeviceNet
Analyzer
0011 1111 0011 0011
Message frame
CAN ID
Time between frames
Receive time
Network Traffic Pane
Displays network traffic trends.
Capture Pane
Displays captured message frames.
Message Group
Send data
Translated DeviceNet messages
Message Frame Traffic Pane
Displays traffic in CAN ID segments.
Message ID
Translation, capture buffer size settings, capture filter, capture
trigger, capture export, frame time measurement, network
traffic monitor, message frame traffic monitor
Basic Functions
Processor recommended by Microsoft.
CPU
System Requirements
OMRON DeviceNet Board
Special PCI Board: 3G8F7-DRM21
Compatible Hardware
Specifications
NetInspector capture files (*.alz)
Contents: Capture data files (saved or loaded), CSV-format of
text (.txt) files, capture data export files
Created files
Windows 2000 (ServicePack2 or higher)/XP
OS
Final order entry date: The end of March, 2020

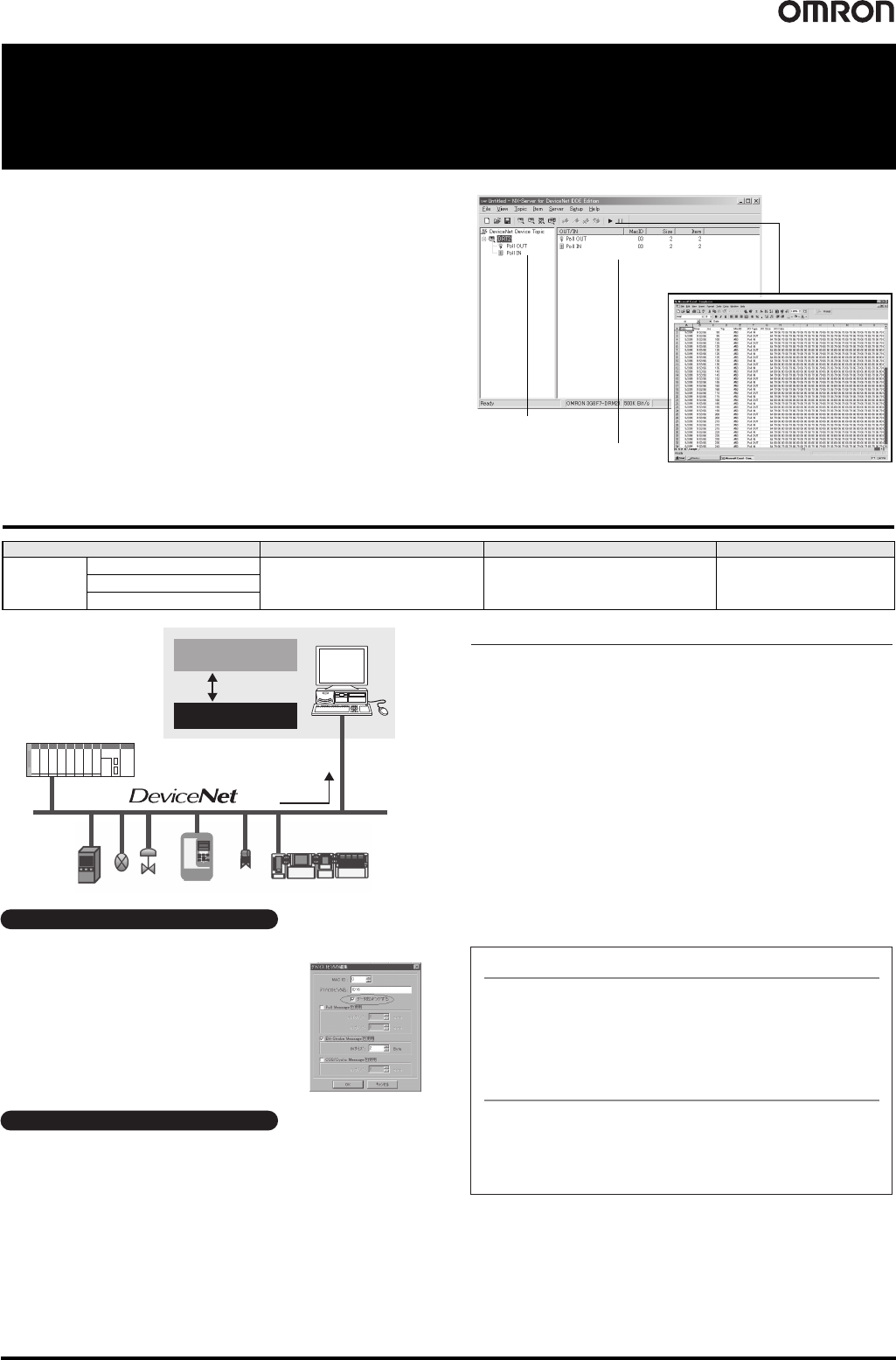

NX-Server WS02-NX@C1 131
NX-Server
WS02-NX@C1
Easily Perform Monitoring and
Logging for Various Types of I/O
Data on DeviceNet.
• Monitor I/O data flowing on DeviceNet.
• Log data of specified devices using advanced triggering.
• The NX-Server is equipped with a unique frame analysis engine, and
so a node is not allocated to it.
• Collect data without increasing network traffic.
• The product lineup includes a development kit for developing a DDE
server and applications as well as software for operating existing user
applications.
Ordering Information
Name Applicable OS Description Model
NX-Server
For DeviceNet DDE Edition
Windows 2000 (Service Pack2 or higher)/XP
This software monitors and logs I/O data on
DeviceNet lines.
WS02-NXDC1-E
For DeviceNet SDK Edition
For DeviceNet RT Edition
(Logging Example)
Device List Display Area
Topic and Item Data Display List Area
Logging can be performed by directly obtaining from the line the commands
communicated between the specified Slaves and
Master.
The logging data can be saved in an CSV-format file
and analyzed in Excel.
● Set triggers to start logging or other processes
simply by selecting device topics.
● You can set whether to perform logging for each
device and also set the trigger conditions.
Using the NX-Server, you can display in realtime the data of nodes
specified in application software on a DDE interface, such as Excel.
● Display the data of all Slaves participating in a DeviceNet network.
● One optional function provided by the NX-Server lets you open a specific
file (in this case, a set Excel file) at the same time that the NX-Server
starts.
● Also, the NX-Server can be incorporated into monitoring software, such
as Labview, in addition Excel.
Application Software
(e.g., Excel or Labview)
DeviceNet Master
DDE
Interface
I/O data
DeviceNet PCI Board
DeviceNet ISA Board
DeviceNet PC Card
NX-Server
DeviceNet Slave
Logging
Monitor
Product Introduction
● The NX-Server for DeviceNet DDE Edition is a dynamic data exchange (DDE)
server that provides software to collect I/O data and perform host monitoring of
the collected I/O data.
● The NX-Server for DeviceNet SDK Edition is a development kit for developing
applications that use core modules of NetXServer for DeviceNet.
● The NX-Server for DeviceNet RT Edition is platform software to operate user
applications developed using the SDK Edition.
● The 3G8F7-DRM21 PCI Board or 3G8E2-DRM21-V1 PC Card can be used for
the hardware.
● Topic names and item names for data can be flexibly set for individual devices to
monitor or log.
● Server name of DDE interface for user-disclosed interface: NETXDNET.
● The size and format (bit, byte, or word) of data can be specified.
● Whether to log data for each device and setting the trigger conditions can be
performed for each device.
● Logging data can be checked in standard CSV format.
● The NX-Server is equipped with a unique frame analysis engine, and so a MAC
ID is not allocated.
● Data can be collected without increasing network traffic.
NetXServer Functions
OMRON DeviceNet Board or Card
Special PCI Board: 3G8F7-DRM21
Special PC Card: 3G8E2-DRM21-V1 *
Compatible Hardware
Pentium 166 MHz or better
CPU
System Requirements for NX-Server for DeviceNet DDE Edition
* The hardware is included with the Configurator.
The applicable OS depends on the hardware. Check the requirements before
operation.
Windows 2000 (ServicePack2 or higher)/XP
OS
NetXServer settings files (*.nxd)
Logging data: CSV-format files (*.csv)
Created Files
Final order entry date: The end of March, 2020
132 Device Inspector WS02-DIPC1
Device Inspector
WS02-DIPC1
Software for Monitoring the Status of
Devices on DeviceNet and Detecting
Errors.
• Easily access the status of devices and present error details.
• View all CAN errors held by devices.
• Monitor device participation and withdrawal.
• Display error detection data with a time stamp and save the data to a file.
• Use a graph display of the network power supply voltage to monitor changes.
Ordering Information
Device Inspector Functions
Name Applicable OS Description Model
Device Inspector
Windows 2000
(ServicePack2 or higher)/XP
One-license version
Media: CD
Software for monitoring the status of devices on a
network and detecting errors.
WS02-DIPC1-E
Site license WS02-DIPC1-ELXX
Function Description
Network diagnosis
Reads the status of network devices and monitors
errors.
Device monitor Enables monitoring the status of devices.
Maintenance
Enables displaying maintenance information for
DeviceNet.
CAN error monitor Monitors device CAN error data for DeviceNet.
Network power supply voltage
monitor
Monitors device network power supply voltage for
DeviceNet.
Message timeout monitor
Records the number of message timeouts for
devices.
Error history
Leaves a record of error occurrence and recovery
in a log.
Error History Window
System Requirements
Processor recommended by Microsoft.
Windows 2000 (ServicePack2 or higher)/XP
50 MB min.
256 MB min.
One CD-ROM drive
SVGA or higher display
CPU
OS
Available hard disk space
Memory
Disk device
Display
RS-232C port
USB port
Ethernet port
DeviceNet Interface Card
(3G8F7-DRM21 or
3G8E2-DRM21-V1 *)
Online connection using serial port
Online connection using USB port
Online connection using Ethernet
Online connection using DeviceNet
Communications Port
* The hardware is included with the Configurator.
The applicable OS depends on the hardware. Check the requirements before
operation.
Final order entry date: The end of March, 2020
