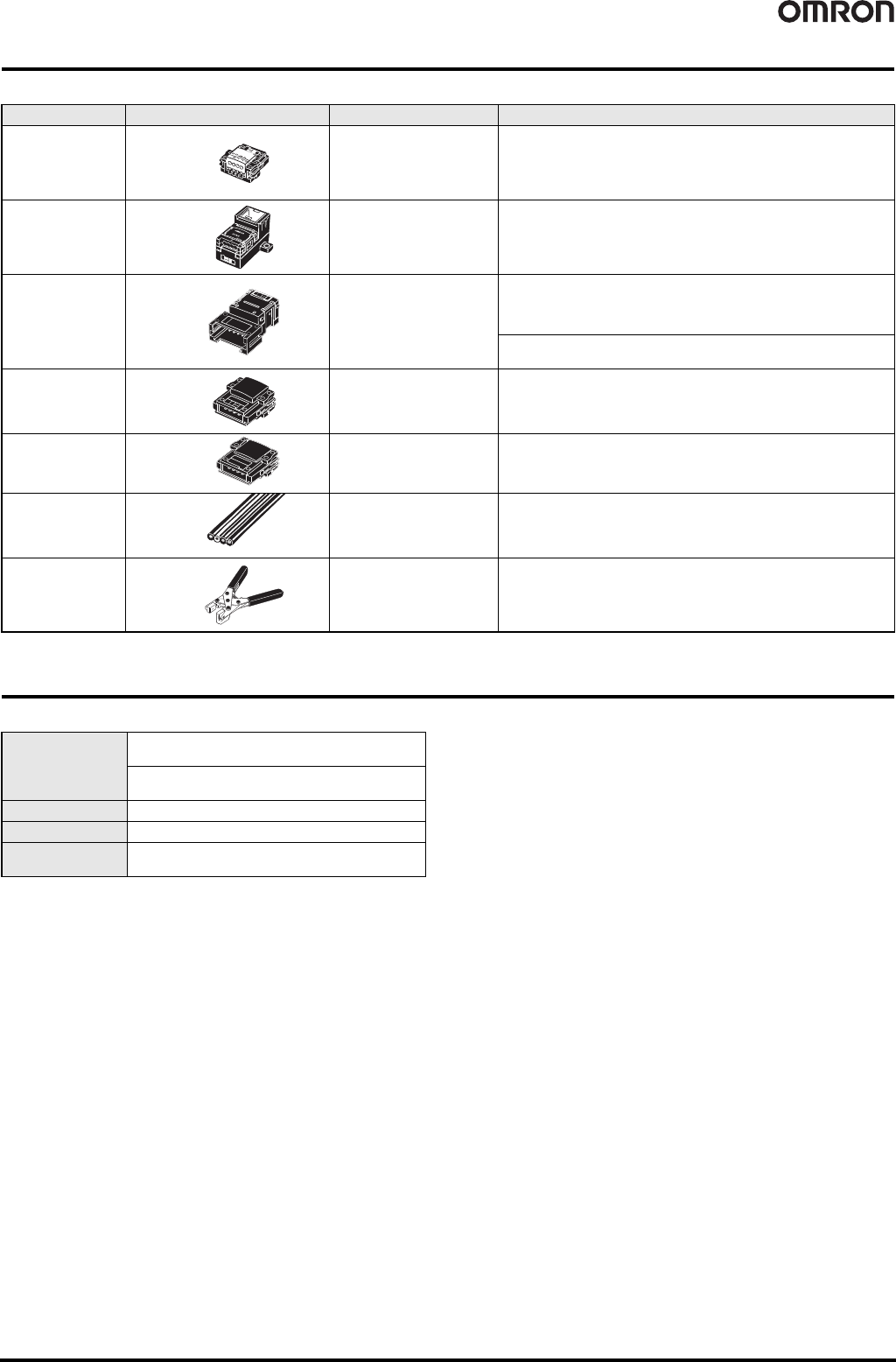

136 Peripheral Devices
● Peripheral Devices for Flat Cables
Specifications
● General-purpose Models (T-branch Taps)
Product Appearance Model Specifications
Conversion Connector
for Standard Thin
Cable and Flat Cable
DCN4-BR4D
Used as a set with a DCN4-TR4 when Thin Cable is branched on a branch
line.
Power Supply
Terminal Block with
Terminating
Resistance for Flat
Cable
DCN4-TP4D
Can be used to supply communications power from terminals when Flat
Cable is used.
Flat Connector Socket DCN4-TR4
Used as a set with a DCN4-BR4 Flat Connector Plug in the following
applications.
• Extending the trunk line
• T-branching the trunk line into branch lines
Used alone in the following applications.
• Connecting a DCN4-TM4 Terminating Resistor to the trunk line
Flat Connector Plug DCN4-BR4
Used as a set with a DCN4-TR4 Flat Connector Socket in the following
applications.
• Extending the trunk line
• T-branching the trunk line into branch lines
Terminating Resistor DCN4-TM4
Connector terminating resistor for flat cable. Attached to the DCN4-TR4 Flat
Connector Socket at the end of the trunk line.
Flat Cable DCA4-4F10
Four-core flat cable (UL 2555)
Length: 100 m
Conductor diameters: 0.75 mm
2
x 2, 0.5 mm
2
x 2
Simple Manual Crimp
Tool
DWT-A01
This is the crimping tool for the following connectors:
• DCN4-TR4(-1) Flat Connector Socket
• DCN4-BR4 Flat Connector Plug
• DCN4-BR4D Conversion Connector for Standard Thin Cable and Flat
Cable
Rated current
Between main lines: 8 A (power supply line) and 2 A
(signal line)
Between main and branch lines: 3 A (power supply line)
and 1 A (signal line)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 500 VAC for 1 min, leakage current: 1 mA max.
Ambient operating
temperature
0°C to 55°C

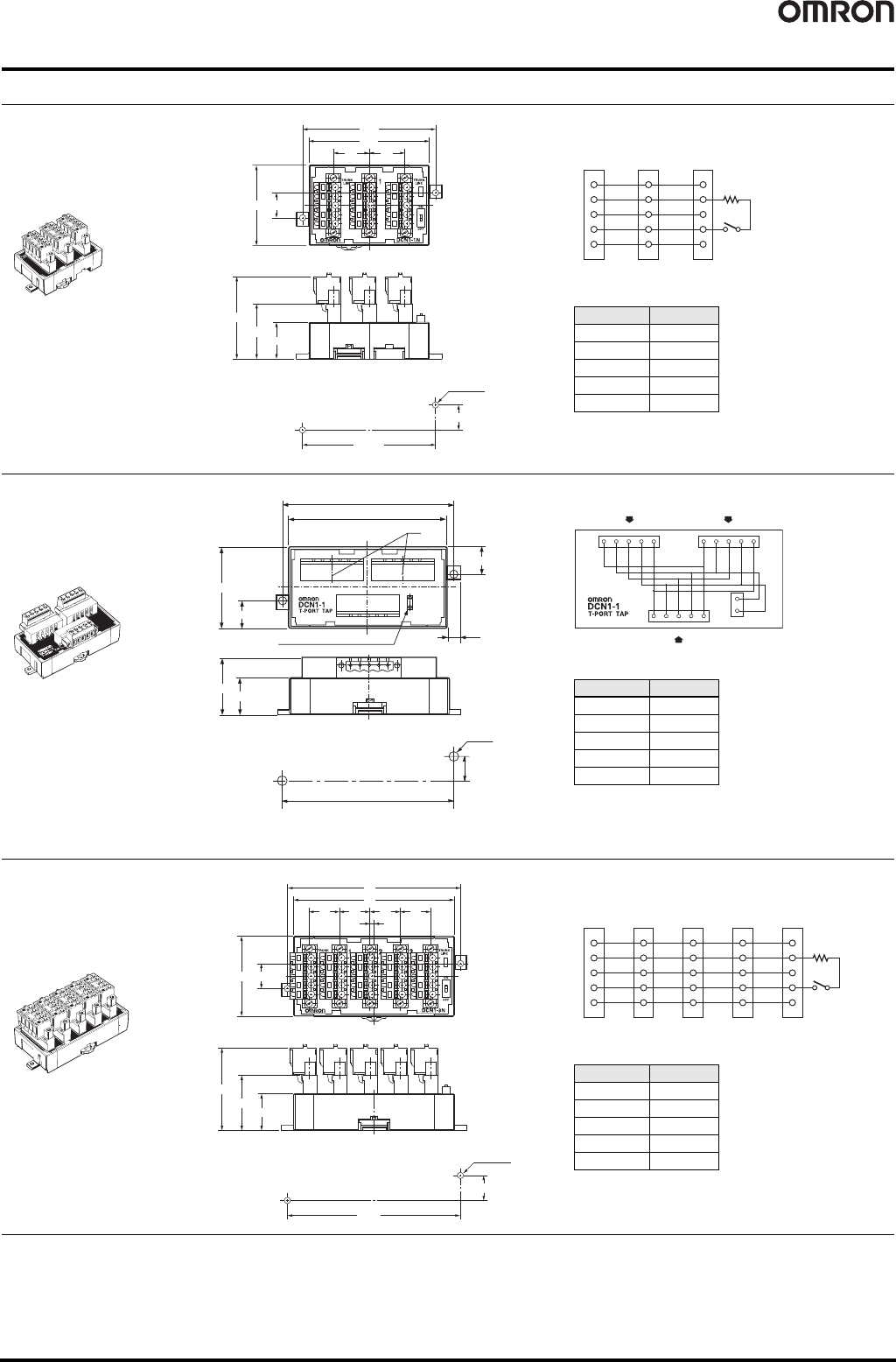

Peripheral Devices 137
Dimensions (Unit: mm)
● General-purpose Models
74.5
67.5
20 20
45
46
30.9
20.5
14.15
±0.1
14
74.5
±0.1
Tw o,
3.5±0.1 dia.
or M3
5
TRUNK
LINE
1
TRUNK
LINE
Terminator
connection
4
3
2
1
5
4
3
2
1
5
4
3
2
1
Internal CircuitT-branch Tap for 1 branch line
DCN1-1NC
(With Three Branching
Connectors)
Mounting Dimensions
Terminal No. Name
1
V-
2CAN L
3 DRAIN
4CAN H
5
V+
20.5
31.27
97
±0.3
14
±0.3
Tw o,
3.5 dia.
or M3
97
90
Note
15.5
7
Socket for terminator connection
45
15.5
54321
54321
54321
4
2
CN4
CN3
CN1 CN2
Branch line
Main line Main line
Note: When connecting a branch line to the main line, connect the main line to the connector
marked with an asterisk because the resistance between the asterisks is minimal.
Internal CircuitT-branch Tap for 1 branch line
DCN1-1C
(With Three Branching
Connectors)
Terminal No. Name
1
V-
2CAN L
3 DRAIN
4CAN H
5
V+
Mounting Dimensions
17 17 17
97
90
2.3
17
45 14
14
±0.1
97
±0.1
46
30.9
20.5
Tw o,
3.5±0.1 dia.
or M3
5
TRUNK
LINE
321
TRUNK
LINE
Terminator
connection
4
3
2
1
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
Internal CircuitT-branch Tap for 3 branch lines
DCN1-3NC
(With Five Branching
Connectors)
Mounting Dimensions
Terminal No. Name
1
V-
2CAN L
3 DRAIN
4CAN H
5
V+

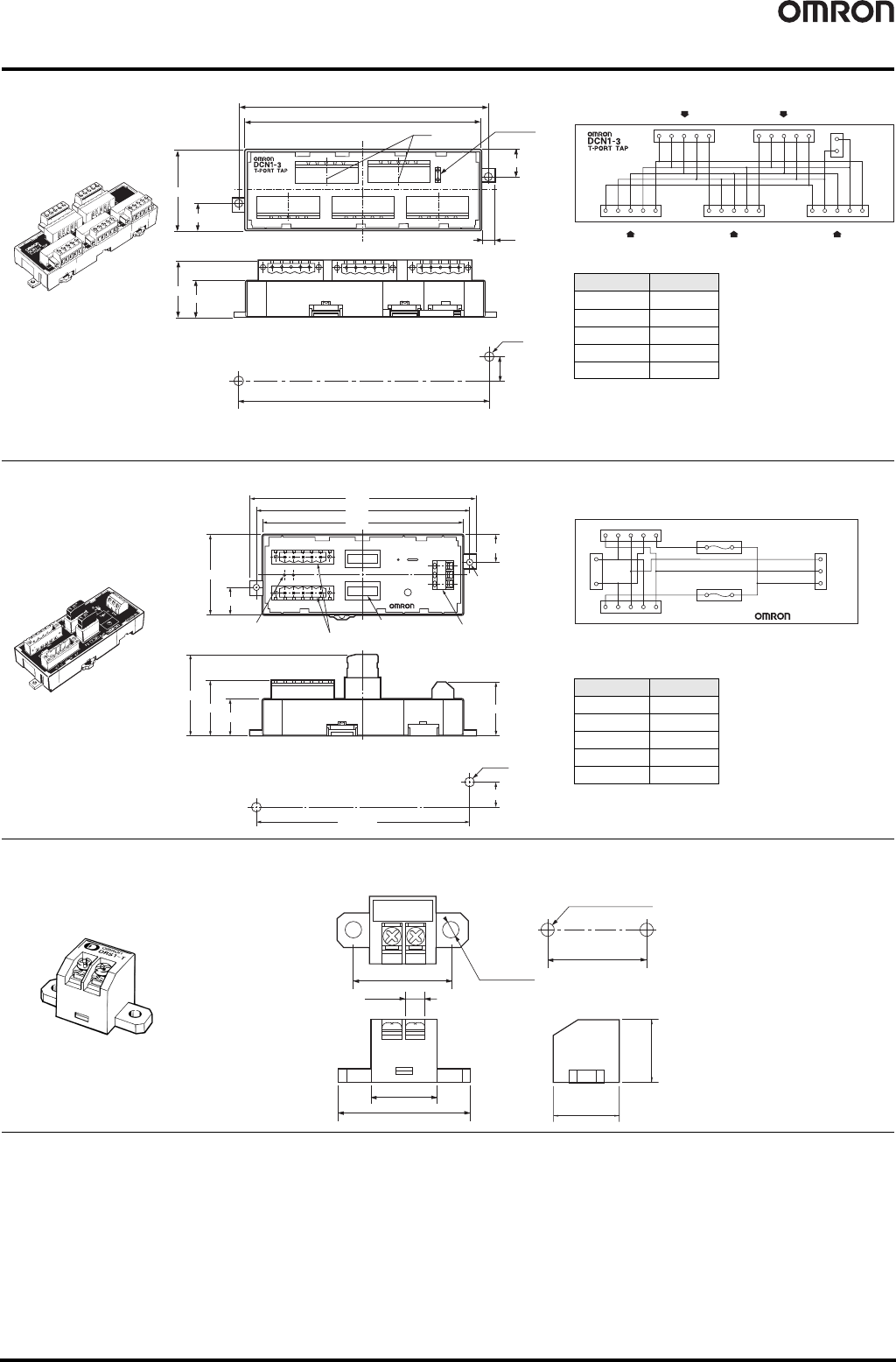

138 Peripheral Devices
54321 54321
4
2
CN6
CN4
Branch line
CN3
Branch line
CN5
Branch line
CN1
Main line
CN2
Main line
54321 5432154321
31.27
20.5
142
±0.3
14
±0.3
Tw o,
3.5 dia.
or M3
15.5
Socket for
terminator
142
135
Note
15.5
45
7
Note: When connecting a branch line to the main line, connect the main line to the connector
marked with an asterisk because the resistance between the asterisked portion is minimal.
Internal CircuitT-branch Tap for 3 branch lines
DCN1-3C
(With Five Branching
Connectors)
Terminal No. Name
1
V-
2CAN L
3 DRAIN
4CAN H
5
V+
Mounting Dimensions
CN2
CN3
F2
F1
CN1
V−'L'S'
SV−V+
H'V+'
V+HSL
CN4
V−
Tw o,
3.5 dia.
or M3
126.5
119.5
15.5
15.5
119.5
±0.3
14
±0.3
Two, 3.5 dia.
29.9
20.5
30.9
45.3
45
112.5
Socket for terminator
connection
Connectors on Cable side
Fuse
Terminal block on
power supply side
Internal CircuitPower Supply Tap
DCN1-1P
(With Two Branching
Connectors)
Terminal No. Name
V- V-
LCAN L
S DRAIN
HCAN H
V+ V+
Mounting Dimensions
30
±0.2
Two, 4.2 dia. or M4
21 max.
20 max.
41 max.
20
±0.15
30
±0.2
Two, 4.4 dia.
6
+0.1
−0
DRS1-T
(Terminal-block Terminator)
Mounting Dimensions
