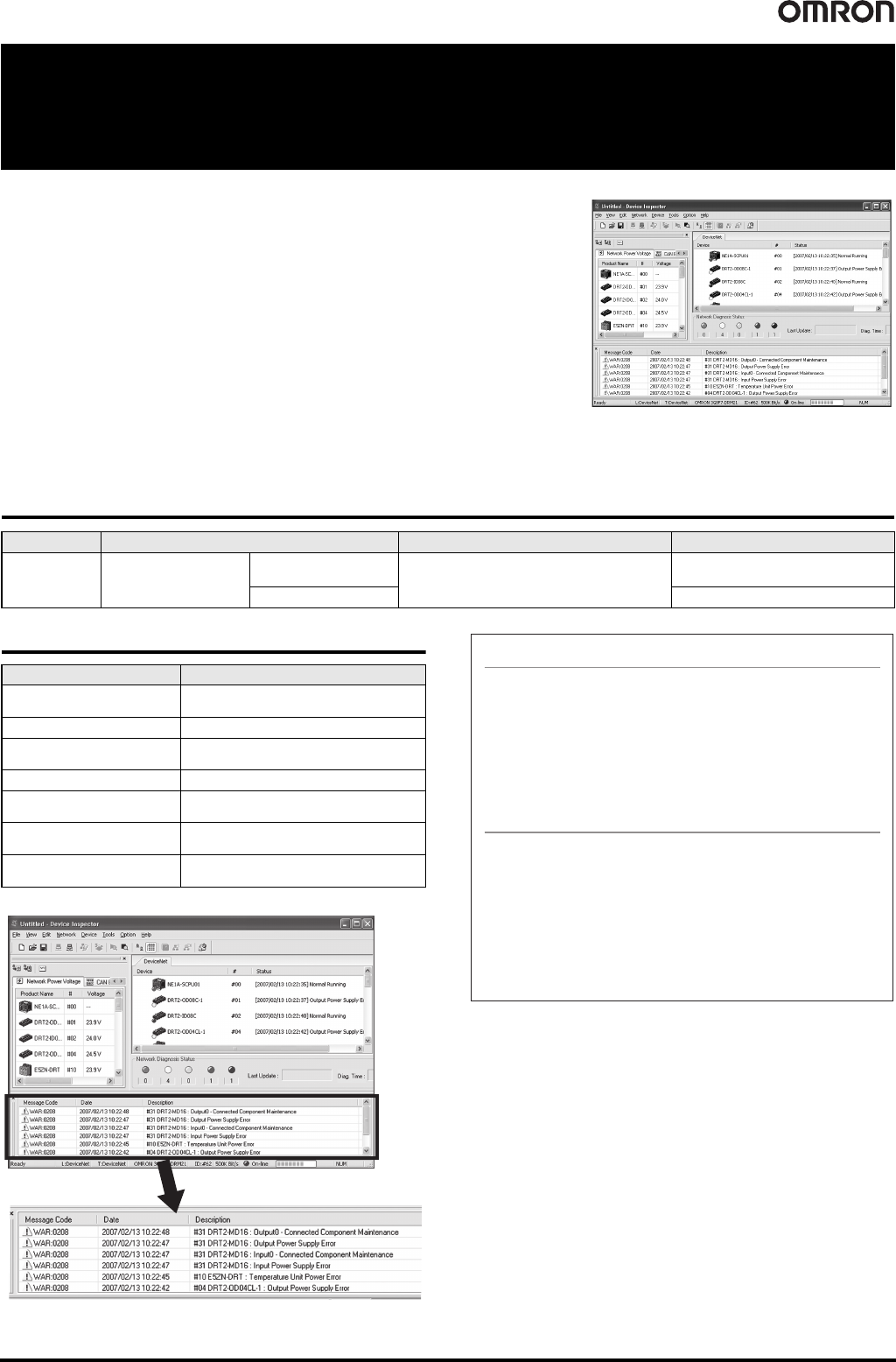

132 Device Inspector WS02-DIPC1
Device Inspector
WS02-DIPC1
Software for Monitoring the Status of
Devices on DeviceNet and Detecting
Errors.
• Easily access the status of devices and present error details.
• View all CAN errors held by devices.
• Monitor device participation and withdrawal.
• Display error detection data with a time stamp and save the data to a file.
• Use a graph display of the network power supply voltage to monitor changes.
Ordering Information
Device Inspector Functions
Name Applicable OS Description Model
Device Inspector
Windows 2000
(ServicePack2 or higher)/XP
One-license version
Media: CD
Software for monitoring the status of devices on a
network and detecting errors.
WS02-DIPC1-E
Site license WS02-DIPC1-ELXX
Function Description
Network diagnosis
Reads the status of network devices and monitors
errors.
Device monitor Enables monitoring the status of devices.
Maintenance
Enables displaying maintenance information for
DeviceNet.
CAN error monitor Monitors device CAN error data for DeviceNet.
Network power supply voltage
monitor
Monitors device network power supply voltage for
DeviceNet.
Message timeout monitor
Records the number of message timeouts for
devices.
Error history
Leaves a record of error occurrence and recovery
in a log.
Error History Window
System Requirements
Processor recommended by Microsoft.
Windows 2000 (ServicePack2 or higher)/XP
50 MB min.
256 MB min.
One CD-ROM drive
SVGA or higher display
CPU
OS
Available hard disk space
Memory
Disk device
Display
RS-232C port
USB port
Ethernet port
DeviceNet Interface Card
(3G8F7-DRM21 or
3G8E2-DRM21-V1 *)
Online connection using serial port
Online connection using USB port
Online connection using Ethernet
Online connection using DeviceNet
Communications Port
* The hardware is included with the Configurator.
The applicable OS depends on the hardware. Check the requirements before
operation.
Final order entry date: The end of March, 2020
133
Peripheral Devices
General-purpose Peripheral Devices......... 134
● General-purpose Models
● Peripheral Devices for Flat Cables
■ I/O Connectors for Connector Terminals
● MIL Connectors
■ I/O Connectors for MULTIPLE I/O TERMINALs
■ I/O Connector for Programmable Slaves
Peripheral Devices for
Environment-resistive Slaves..................... 144
● Environment-resistive Connection Products
(for Thin Cable, M12 Micro Connectors)
●
Environment-resistive Models (for Thin Wires and M12 Micro Connectors)
● Environment-resistive Models for Thick Wires with 7/8-16UN Mini
Connectors
● Assembly Connector Plugs for M12 Microconnectors
● Cables with Connector (Socket/Plug) on Both Ends
(M12 Microconnectors for Power Supply and I/O)
● Cables with connector plug on One End (M12 Microconnectors for I/O)
●
Plugs and Sockets on Y-shaped Joints (M12 Microconnectors for I/O)
●
Connector Cover for M12 Microconnectors
● Power Supply Connectors (7/8-16UN Miniconnectors)
Peripheral Devices for DeviceNet Communications
I/O Peripheral Devices
Peripheral Devices for DeviceNet Communications
I/O Peripheral Devices
Power Supply Peripheral Devices

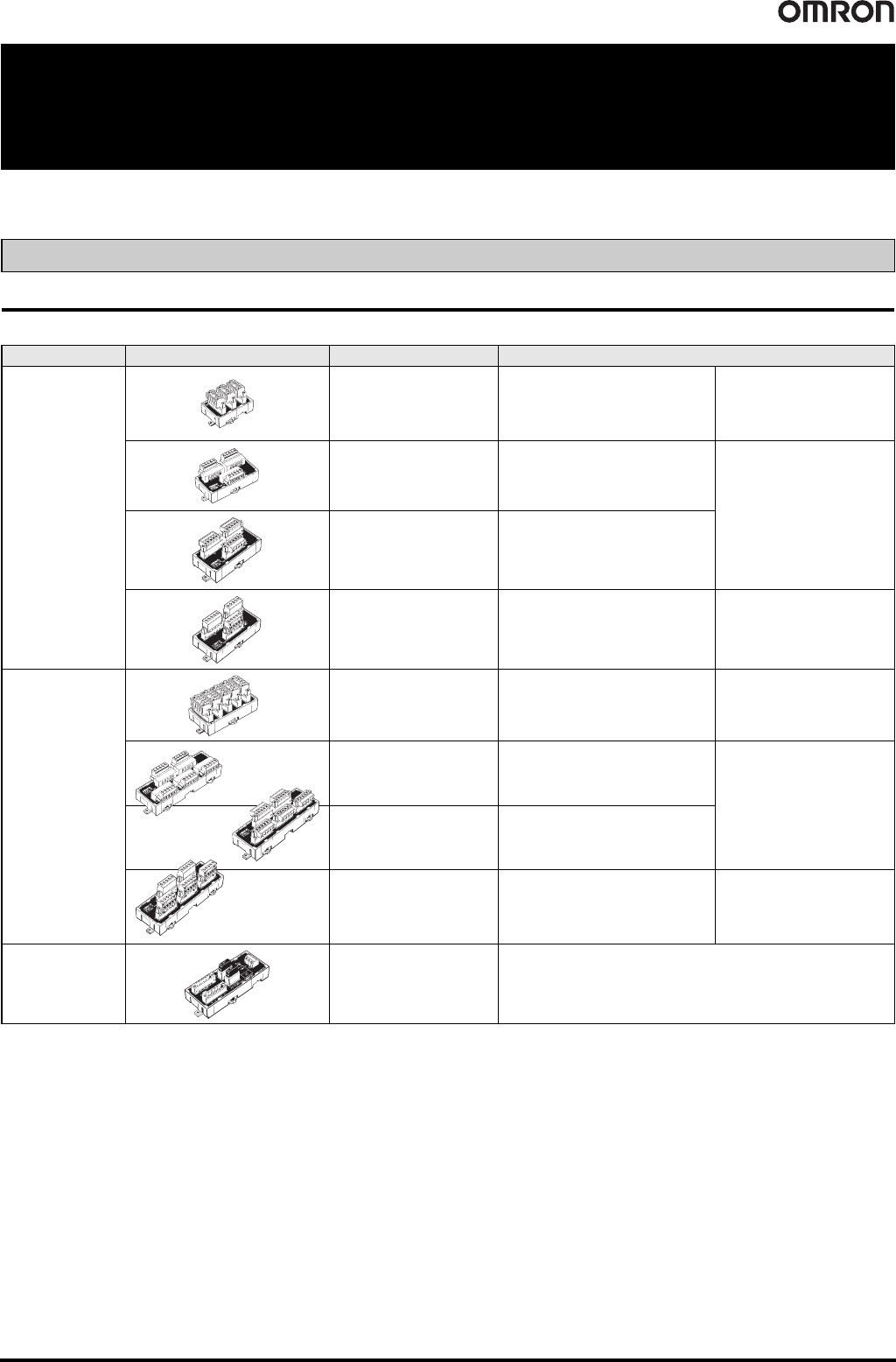

134 Peripheral Devices
Peripheral Devices
General-purpose Peripheral Devices
Ordering Information
● General-purpose Models
Peripheral Devices for DeviceNet Communications
Product Appearance Model Specifications
T-branch Tap for
1 branch line
DCN1-1NC
Cable wiring direction: Toward top
Cable lock direction: From top
Connector screw direction: From top
Provided with 3 parallel
connectors with clamps
(XW4G-05C1-H1-D), standard
terminating resistor
DCN1-1C
Cable wiring direction: Toward side
Cable screw direction: From top
Connector screw direction: From side
Provided with 3 parallel
connectors with screws
(XW4B-05C1-H1-D), standard
terminating resistor
DCN1-2C
Cable wiring direction: Toward top
Cable screw direction: From side
Connector screw direction: From top
DCN1-2R
Cable wiring direction: Toward side
Cable screw direction: From top
Connector screw direction: From top
Provided with 3 orthogonal
connectors with screws
(XW4B-05C1-V1R-D), standard
terminating resistor
T-branch Tap for
3 branch lines
DCN1-3NC
Cable wiring direction: Toward top
Cable lock direction: From top
Connector screw direction: From top
Provided with 5 parallel clamp
connectors with screws
(XW4G-05C1-H1-D), standard
terminating resistor
DCN1-3C
Cable wiring direction: Toward side
Cable screw direction: From top
Connector screw direction: From side
Provided with 5 parallel
connectors with screws
(XW4B-05C1-H1-D), standard
terminating resistor
DCN1-4C
Cable wiring direction: Toward top
Cable screw direction: From side
Connector screw direction: From top
DCN1-4R
Cable wiring direction: Toward side
Cable screw direction: From top
Connector screw direction: From top
Provided with 5 orthogonal clamp
connectors with screws
(XW4B-05C1-V1R-D), standard
terminating resistor
Power Supply Tap DCN1-1P Tap provided with 2 connectors, standard terminating resistor, and fuse
