144 Peripheral Devices Peripheral Devices for Environment-resistive Slaves Ordering Information ● Environment-resistive Conn ection Products (for Thin Cable, M12 Micro Connectors) * Robot cable type connectors with shiel…
Peripheral Devices 143

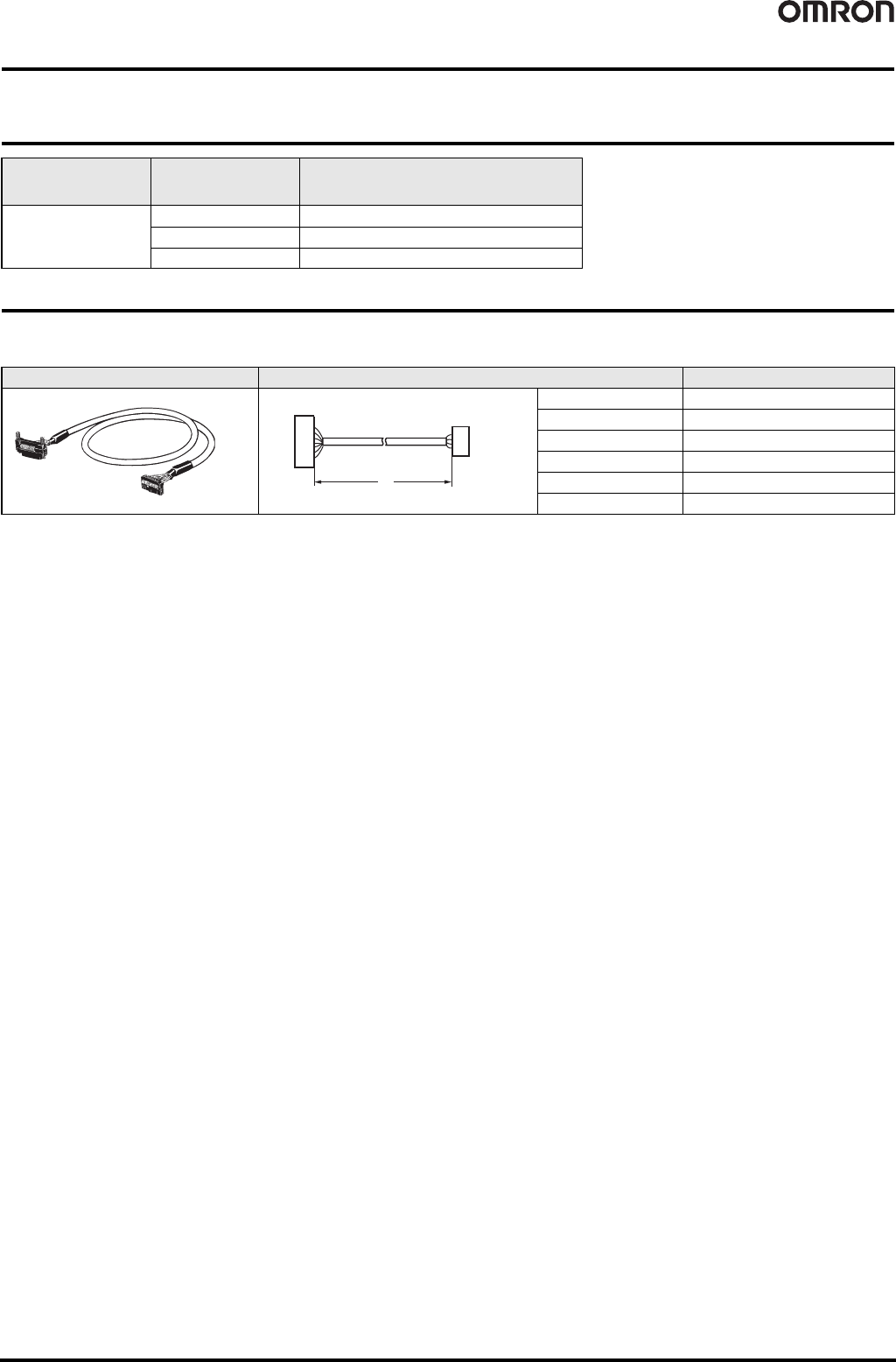

■ I/O Connector for Programmable Slaves
Applicable Connector Terminal Conversion Units
Applicable Cables with Connectors
● Cables with Connectors/XW2Z
For Digital Input/Output (16 Points)
Applicable cable Connected product
Connector Products
(Connector-Terminal Block Conversion Units)
Connecting method
XW2Z-@@@A
XW2R-J20G-T Phillips screw M3
XW2R-E20G-T Slotted screw M3
XW2R-P20G-T Push-in spring
Appearance Cable length (mm) Model
500
XW2Z-050A
1,000
XW2Z-100A
1,500
XW2Z-150A
2,000
XW2Z-200A
3,000
XW2Z-300A
5,000
XW2Z-500A
L
144 Peripheral Devices

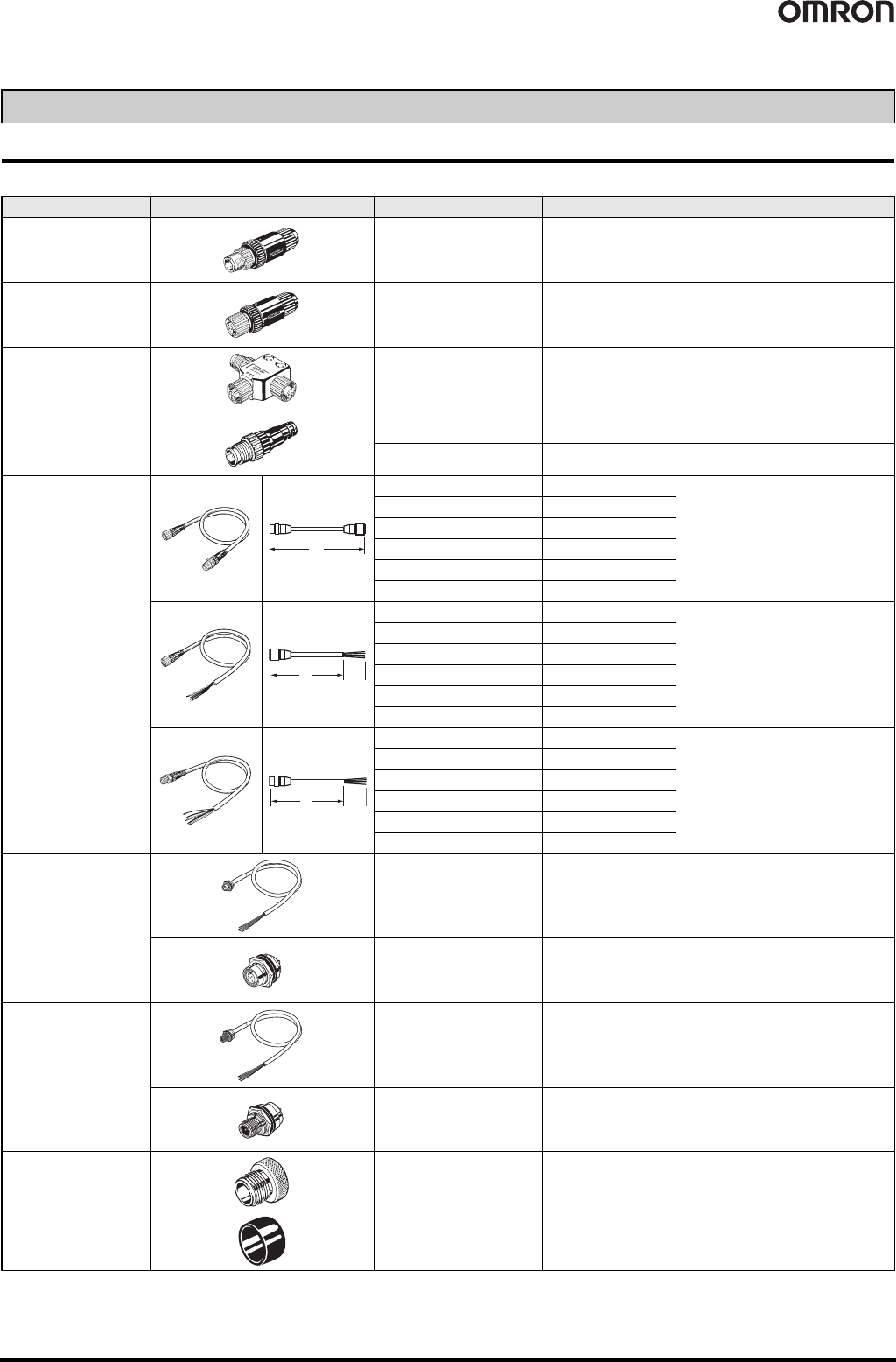

Peripheral Devices for Environment-resistive Slaves
Ordering Information
● Environment-resistive Connection Products (for Thin Cable, M12 Micro Connectors)
* Robot cable type connectors with shielded cables (DCA1-5CN@@@1-R) are also available. Contact your OMRON sales representative for details.
Peripheral Devices for DeviceNet Communications
Product Appearance Model Specifications
Sealed Assembling-type
Connector (male)
XS2G-D5S7 For communications (plug)
Sealed Assembling-type
Connector (female)
XS2C-D5S7 For communications (socket)
Sealed T-branch
Connector
DCN2-1 For 1 branch line
Sealed Connector with
Terminating Resistor
DRS2-1 Plug
DRS2-2 Socket
Cables with Sealed
Connectors *
DCA1-5CNC5W1 Length (L): 0.5 m
Cable with connectors on both ends
DCA1-5CN01W1 Length (L): 1 m
DCA1-5CN02W1 Length (L): 2 m
DCA1-5CN03W1 Length (L): 3 m
DCA1-5CN05W1 Length (L): 5 m
DCA1-5CN10W1 Length (L): 10 m
DCA1-5CNC5F1 Length (L): 0.5 m
Cable with connector on one end (socket)
DCA1-5CN01F1 Length (L): 1 m
DCA1-5CN02F1 Length (L): 2 m
DCA1-5CN03F1 Length (L): 3 m
DCA1-5CN05F1 Length (L): 5 m
DCA1-5CN10F1 Length (L): 10 m
DCA1-5CNC5H1 Length (L): 0.5 m
Cable with connector on one end (plug)
DCA1-5CN01H1 Length (L): 1 m
DCA1-5CN02H1 Length (L): 2 m
DCA1-5CN03H1 Length (L): 3 m
DCA1-5CN05H1 Length (L): 5 m
DCA1-5CN10H1 Length (L): 10 m
Shielded Panel-mounting
Connectors (female)
DCA1-5CNC5P1 Panel-mounting connector (socket) with 0.5-m cable
XS2P-D522-2 Panel-mounting connector socket
Shielded Panel-mounting
Connectors (male)
DCA1-5CNC5M1 Panel-mounting connector (plug) with 0.5-m cable
XS2M-D524-4 Panel-mounting connector (plug) with solder-cup terminals
Waterproof cover (for
socket)
XS2Z-22
Used to cover an unused connector section
Dust cover (for socket) XS2Z-15
L
L 50 mm
L 50 mm
Peripheral Devices 145
● Environment-resistive Models (for Thin Wires and M12 Micro Connectors)
* Robot cable type connectors with shielded cables (DCA1-5CN@@@1-R) are also available. Contact your OMRON sales representative for details.
Product Appearance Model Specifications
Sealed T-branch
Connector
DCN2-1S For 1 branch line
Sealed Assembling type
Connector (female)
DRS2-1S Plug
DRS2-2S Socket
Connectors with Shielded
Cables *
DCA1-5CSC5W1 Length (L): 0.5 m
Cable with connectors on both ends
DCA1-5CS01W1 Length (L): 1 m
DCA1-5CS02W1 Length (L): 2 m
DCA1-5CS03W1 Length (L): 3 m
DCA1-5CS05W1 Length (L): 5 m
DCA1-5CS10W1 Length (L): 10 m
DCA1-5CSC5F1 Length (L): 0.5 m
Cable with connector on one end (socket)
DCA1-5CS01F1 Length (L): 1 m
DCA1-5CS02F1 Length (L): 2 m
DCA1-5CS03F1 Length (L): 3 m
DCA1-5CS05F1 Length (L): 5 m
DCA1-5CS10F1 Length (L): 10 m
DCA1-5CSC5H1 Length (L): 0.5 m
Cable with connector on one end (plug)
DCA1-5CS01H1 Length (L): 1 m
DCA1-5CS02H1 Length (L): 2 m
DCA1-5CS03H1 Length (L): 3 m
DCA1-5CS05H1 Length (L): 5 m
DCA1-5CS10H1 Length (L): 10 m
Shielded Branch Relay Box
DCN2-S4C5H1 4 ports, 0.5-m cable
DCN2-S8C5H1 8 ports, 0.5-m cable
L
L 50 mm
L 50 mm
