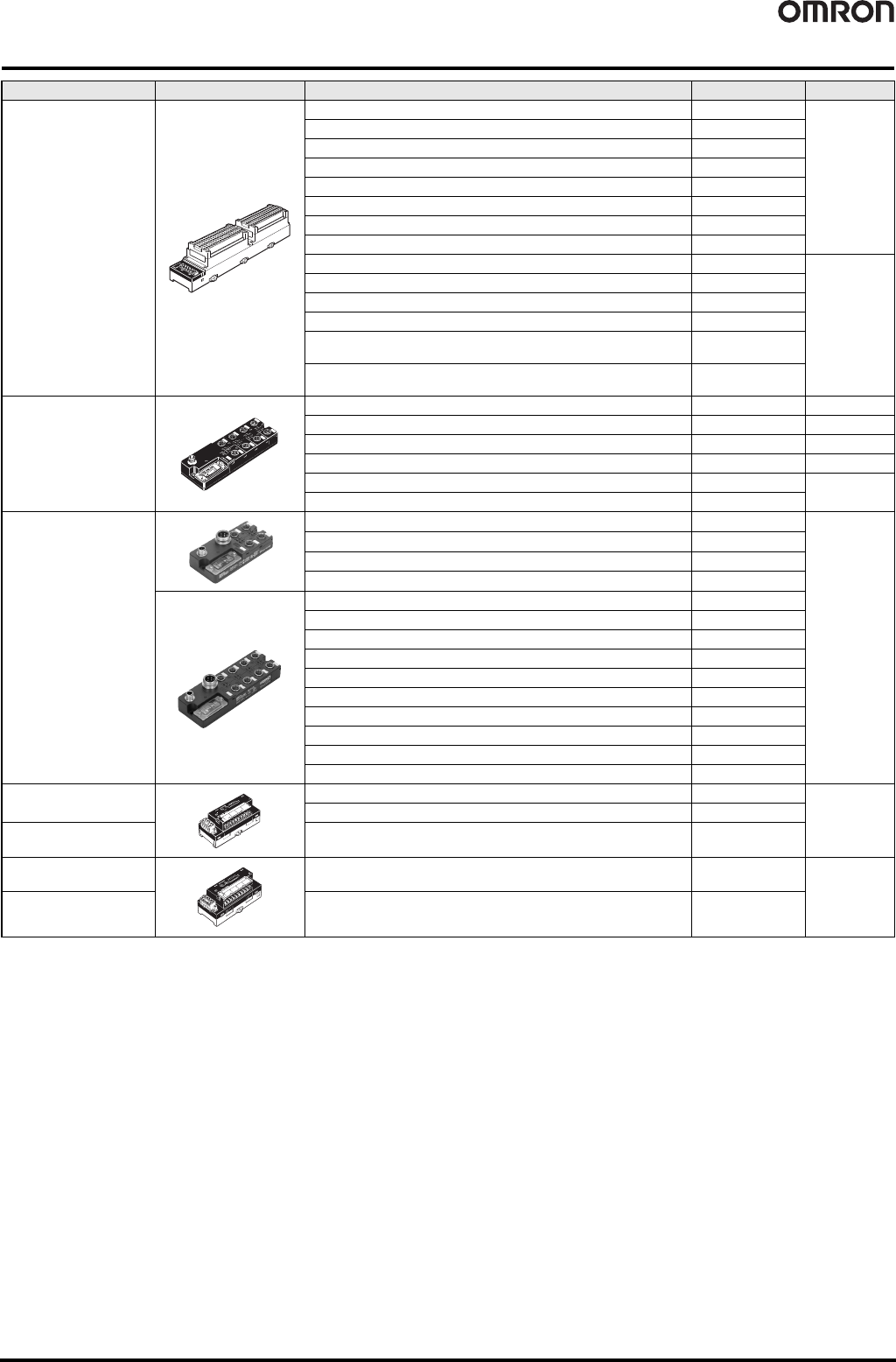

162 List of Models
*1. Product no longer available to order.
Product Appearance Specifications Model Standards
Screw-less Clamp Terminals
with Transistors
16 inputs NPN (+ common) Detection functions
DRT2-ID16SLH
U, UC1, CE
16 inputs PNP (- common) Detection functions
DRT2-ID16SLH-1
16 outputs NPN (- common) Detection functions
DRT2-OD16SLH
16 outputs PNP (+ common) Detection functions
DRT2-OD16SLH-1
16 inputs NPN (+ common) No Detection functions
DRT2-ID16SL
16 inputs PNP (- common) No Detection functions
DRT2-ID16SL-1
16 outputs NPN (- common) No Detection functions
DRT2-OD16SL
16 outputs PNP (+ common) No Detection functions
DRT2-OD16SL-1
32 inputs NPN (+ common) Detection functions
DRT2-ID32SLH
UC1, CE
32 inputs PNP (- common) Detection functions
DRT2-ID32SLH-1
32 outputs NPN (- common) Detection functions
DRT2-OD32SLH
32 outputs PNP (+ common) Detection functions
DRT2-OD32SLH-1
16 inputs/16 outputs NPN (+ common for inputs and - common for outputs)
Detection functions
DRT2-MD32SLH
16 inputs/16 outputs PNP (- common for inputs and + common for outputs)
Detection functions
DRT2-MD32SLH-1
Advanced Environment-
resistive Terminals with
Transistors
8 inputs NPN (+ common) DRT2-ID08C UC, N, CE
8 inputs PNP (- common) DRT2-ID08C-1 UC1, N, CE
8 outputs NPN (- common) DRT2-OD08C UC, N, CE
8 outputs PNP (+ common) DRT2-OD08C-1 UC1, N, CE
16 inputs NPN (+ common) DRT2-HD16C
UC, N, CE
16 inputs PNP (- common) DRT2-HD16C-1
Standard Environment-
resistive Terminals with
Transistors
4 inputs NPN (+ common) DRT2-ID04CL
UC1, CE
4 inputs PNP (- common) DRT2-ID04CL-1
4 outputs NPN (- common) DRT2-OD04CL
4 outputs PNP (+ common) DRT2-OD04CL-1
8 inputs NPN (+ common) DRT2-ID08CL
8 inputs PNP (- common) DRT2-ID08CL-1
8 outputs NPN (- common) DRT2-OD08CL
8 outputs PNP (+ common) DRT2-OD08CL-1
16 inputs NPN (+ common) DRT2-HD16CL
16 inputs PNP (- common) DRT2-HD16CL-1
16 outputs NPN (- common) DRT2-WD16CL
16 outputs PNP (+ common) DRT2-WD16CL-1
8 inputs/8 outputs NPN (+ common for inputs and - common for outputs) DRT2-MD16CL
8 inputs/8 outputs PNP (- common for inputs and + common for outputs) DRT2-MD16CL-1
Analog Input Terminals
4 inputs
(resolution: 6,000)
DRT2-AD04 *1
UC1, CE
4 inputs
(resolution: 30,000)
DRT2-AD04H
Analog Output Terminal 2 outputs DRT2-DA02 *1
Temperature Input Terminals
with Thermocouple Inputs
4 inputs DRT2-TS04T
UC1, CE
Temperature Input Terminals
with Platinum-resistance
Thermometer Inputs
4 inputs DRT2-TS04P

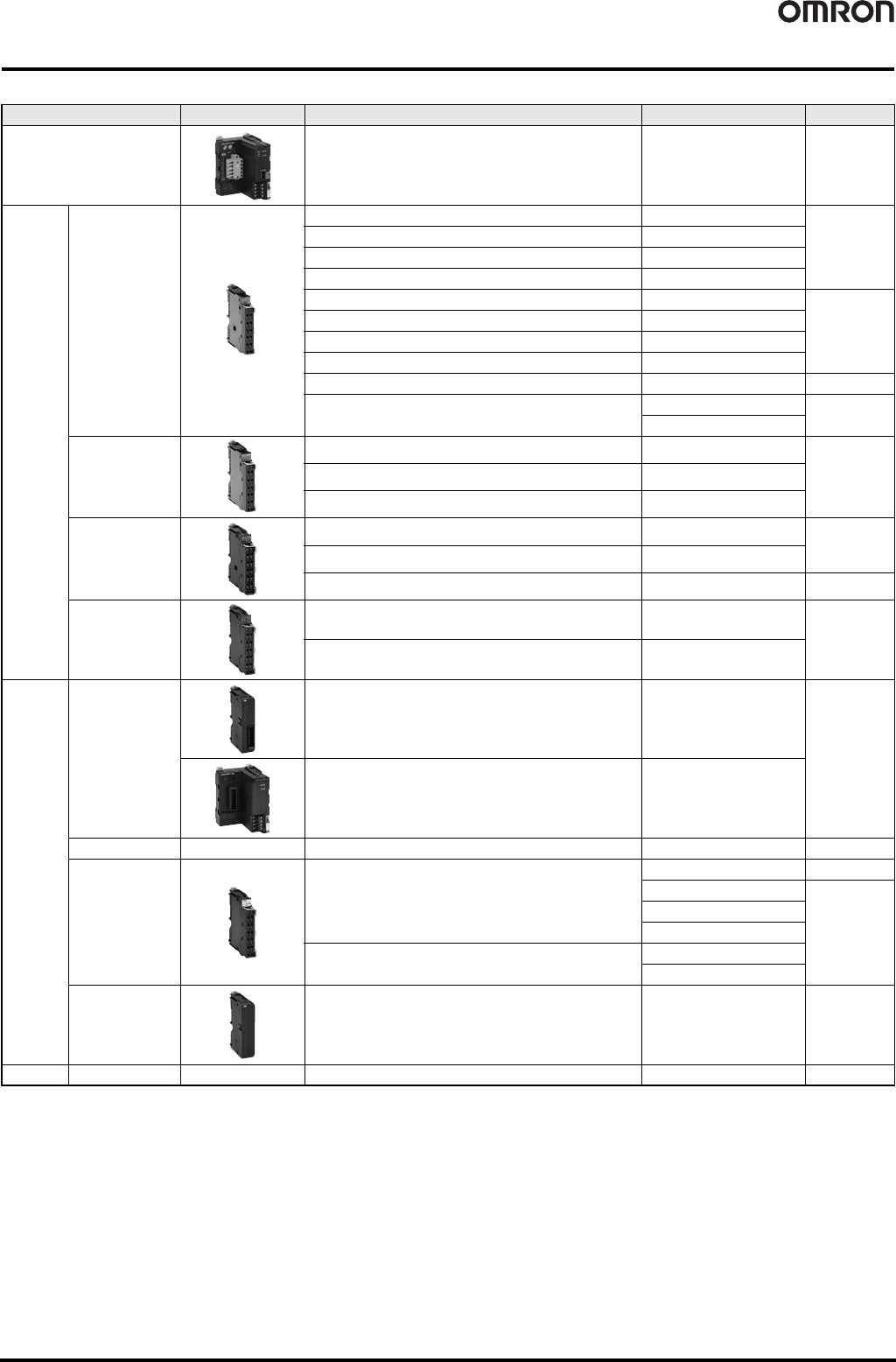

List of Models 163
● SmartSlice GRT1 Series
*1. The End Unit is sold separately. (End Units are not included with Communications Units.)
*2. Use the GCN2-100 as a set with the GRT1-TBR and GRT1-TBL.
Product Appearance Specifications Model Standards
DeviceNet Communications Unit
Up to 64 SmartSlice I/O Units can be connected
(1,024 I/O points).
GRT1-DRT UC1, CE, L
SmartSlice
I/O Units
Digital I/O Units
4 inputs, NPN GRT1-ID4
UC1, CE, L
4 inputs, PNP GRT1-ID4-1
4 outputs, NPN GRT1-OD4
4 outputs, PNP GRT1-OD4-1
8 inputs, NPN GRT1-ID8
UC, CE, L
8 inputs, PNP GRT1-ID8-1
8 outputs, NPN GRT1-OD8
8 outputs, PNP GRT1-OD8-1
2 relay outputs GRT1-ROS2 UC1, CE, L
4 AC inputs
GRT1-IA4-1
UC1, CE, L
GRT1-IA4-2
Analog I/O Units
2 inputs (current/voltage) GRT1-AD2
UC1, CE, L2 outputs (current) GRT1-DA2C
2 outputs (voltage) GRT1-DA2V
Temperature input
(resistance
thermometer)
2 temperature inputs (PT100 resistance thermometer) GRT1-TS2P
UC1, CE, L
2 temperature inputs (PT1000 resistance thermometer) GRT1-TS2PK
2 thermocouple inputs GRT1-TS2T UC, CE, L
Counter Units
1 counter input, 1 external output, NPN GRT1-CT1
UC, CE, L
1 counter input, 1 external output, PNP GRT1-CT1-1
System
Units
Turnback Units
Right Turnback
(Used to divide a SmartSlice I/O Terminal into blocks.)
GRT1-TBR
UC1, CE, L
Left Turnback
(Used to divide a SmartSlice I/O Terminal into blocks.)
GRT1-TBL
Turnback Cable -- Length: 1 m GCN2-100 UC1 *2, CE, L
I/O Power Supply
Units
Used if the total current consumption of the I/O power supply
exceeds 4 A or to provide an I/O power supply on a separate
system.
GRT1-PD2 UC1, CE, L
GRT1-PD2G
UC, CE, L
GRT1-PD8
GRT1-PD8-1
Used to add the V and G terminals for the I/O power supply.
GRT1-PC8
GRT1-PC8-1
End Unit *1 Required at the end of SmartSlice I/O Terminals. GRT1-END UC1, CE, L
Options
Terminal Block -- Terminal block (5 blocks) GRT1-BT1-5 --
164 List of Models

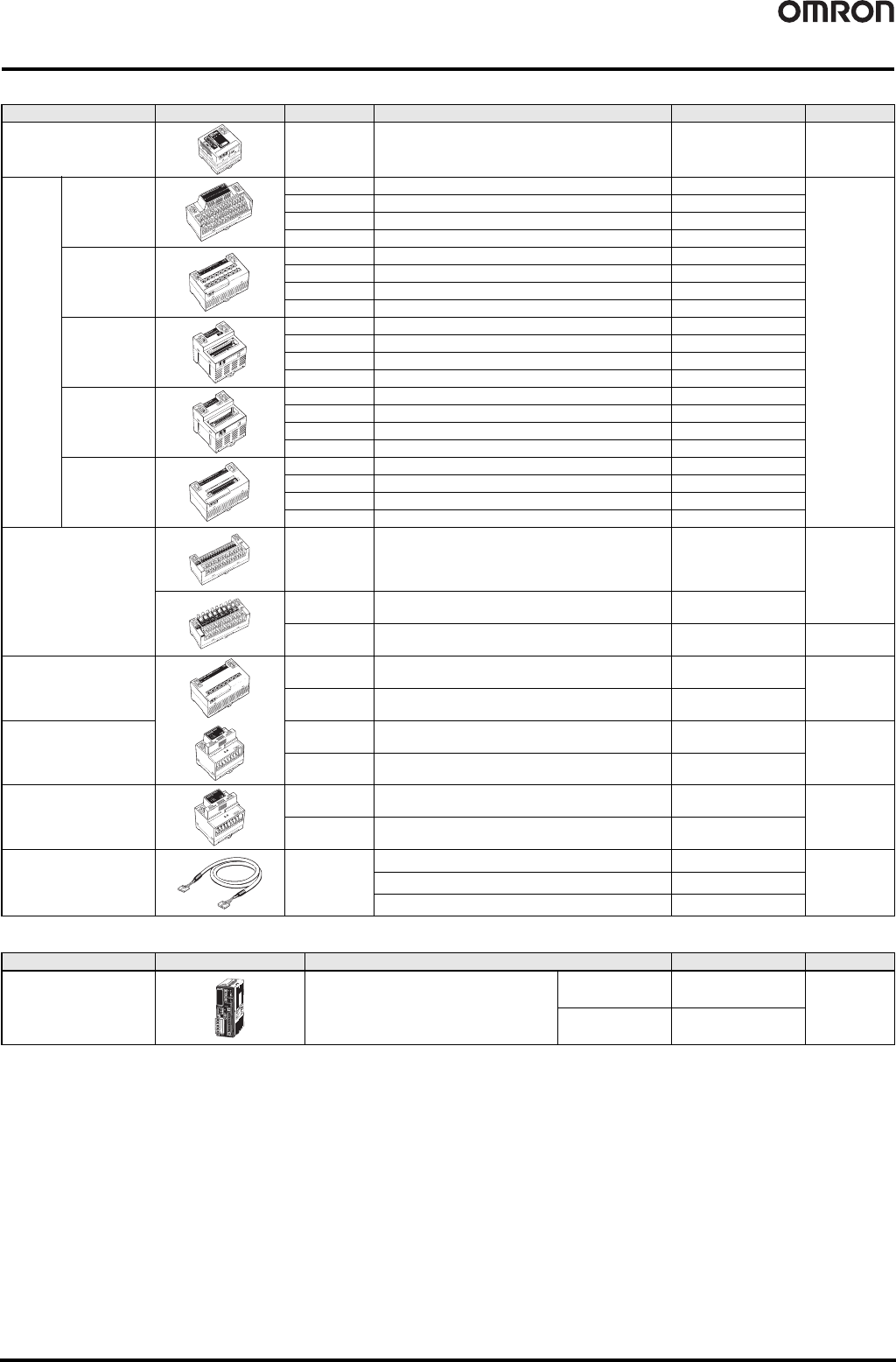

● MULTIPLE I/O TERMINALS
● Intelligent Slaves (PLC Units)
Product Appearance I/O points Specifications Model Standards
Communications Unit
-- Slave I/O points 1,024 max. (inputs and outputs) DRT1-COM U, C, CE
Digital
I/O Units
Terminal block
models
16 inputs NPN (+ common) GT1-ID16
U, C, CE
16 inputs PNP (- common) GT1-ID16-1
16 outputs NPN (- common) GT1-OD16
16 outputs PNP (+ common) GT1-OD16-1
Molex connector
models
16 inputs NPN (+ common) GT1-ID16MX
16 inputs PNP (- common) GT1-ID16MX-1
16 outputs NPN (- common) GT1-OD16MX
16 outputs PNP (+ common) GT1-OD16MX-1
Fujitsu
connector
models
16 inputs NPN (+ common) GT1-ID16ML
16 inputs PNP (- common) GT1-ID16ML-1
16 outputs NPN (- common) GT1-OD16ML
16 outputs PNP (+ common) GT1-OD16ML-1
D-sub, 25-pin
connector
models
16 inputs NPN (+ common) GT1-ID16DS
16 inputs PNP (- common) GT1-ID16DS-1
16 outputs NPN (- common) GT1-OD16DS
16 outputs PNP (+ common) GT1-OD16DS-1
Fujitsu
high-density
connector
models
32 inputs NPN (+ common) GT1-ID32ML
32 inputs PNP (- common) GT1-ID32ML-1
32 outputs NPN (- common) GT1-OD32ML
32 outputs PNP (+ common) GT1-OD32ML-1
Relay Output Unit
16 outputs
Relay Output Unit with 16 points, 2 A,
SPST-NO terminal block
GT1-ROS16
U, C, CE
8 outputs
Relay Output Unit with 8 points, 5 A,
SPST-NO terminal block
GT1-ROP08
8 outputs
SSR Output Unit with 8 points, 1.5 A,
SPSTNO terminal block
GT1-FOP08 --
Analog Input Units
8 inputs Molex connector GT1-AD08MX
U, C, CE
4 inputs Terminal block GT1-AD04
Analog Output Units
4 outputs Molex connector GT1-DA04MX
U, C, CE
4 outputs Terminal block GT1-DA04
Temperature Input Units
4 inputs Thermocouple input GT1-TS04T
U, C, CE
4 inputs Platinum-resistance thermometer input GT1-TS04P
I/O Unit Connecting Cable
--
1 m GCN1-100
--30 cm GCN1-030
60 cm GCN1-060
Product Appearance Specifications Model Standards
Programmable Slaves
Slave equipped with CPM2C CPU Unit functions
1,024 points max. for Remote I/O Links
Includes CompoBus/s Master.
4 transistor outputs
(sinking)
CPM2C-S100C-DRT
U, C, CE
4 transistor CPM2C-S110C-DRT
