Ordering Information
Masters.......................................................................................................... 160
Slaves............................................................................................................ 161
● Smart Slaves DRT2 Series.................................................................... 161
● SmartSlice GRT1-series........................................................................ 163
● MULTIPLE I/O TERMINALS .................................................................. 164
● Intelligent Slaves (PLC Units) ................................................................ 164
● Intelligent Slaves.................................................................................... 165
CIP Safety on DeviceNet System .................................................................. 167
Configurator................................................................................................... 167
Software......................................................................................................... 168
Peripheral Devices......................................................................................... 169
● Models for Standard Cables .................................................................. 169
● Models for Flat Cables........................................................................... 170
● Environment-resistive Models for Thin Wires with
M12 Microconnectors ............................................................................ 171
● Environment-resistive Models for Thick Wires with
7/8-16UN Miniconnectors ...................................................................... 172
● Environment-resistive Models for Thin Wires with
M12 Smart Click Microconnectors..........................................................173
● Cables with Connectors Compatible with
MULTIPLE I/O TERMINAL Connectors ................................................. 173
Ordering Information
● International Standards
• The standards indicated in the "Standard" column are
those current for UL, CSA, cULus, cUL, NK, and Lloyd
standards and EC Directives as of the end of March
2009. (U: The standards are abbreviated as follows: U:
UL, U1: UL Class I Division 2 Products for Hazardous
Locations, C: CSA, UC: cULus, UC1: cULus Class I
division 2 Products for Hazardous Locations, CU: cUL,
N: NK, L: Lloyd, CE: EC Directives, and KC: KC
Registration.
• Ask your OMRON representative for the conditions under
which the standards were met.
● EC Directives
The EC Directives applicable to PLCs include the EMC
Directives and the Low Voltage Directive. OMRON complies
with these directives as described below
● EMC Directives
Applicable Standards EMI: EN61000-6-4
EMS: EN61131-2 and
EN61000-6-2 (See note.)
manufacturing installations. OMRON PLCs conform to
the related EMC standards so that the devices and
machines into which they are built can more easily
conform to EMC standards. The actual PLCs have been
checked for conformity to EMC standards. Whether these
standards are satisfied for the actual system, however,
must be checked by the customer.
EMC-related performance will vary depending on the
configuration, wiring, and other conditions of the
equipment or control panel in which the PLC is installed.
The customer must, therefore, perform final checks to
confirm that the overall machine or device conforms to
EMC standards.
Note: The applicable EMS standard depends on the
product
● Low Voltage Directive
Applicable Standard: EN61131-2
Devices that operate at voltages from 50 to 1,000 VAC or
75 to 150 VDC must satisfy the appropriate safety
requirements. With PLCs, this applies to Power Supply
Units and I/O Units that operate in these voltage ranges.
These Units have been designed to conform to
EN61131-2, which is the applicable standard for PLCs.
160 List of Models

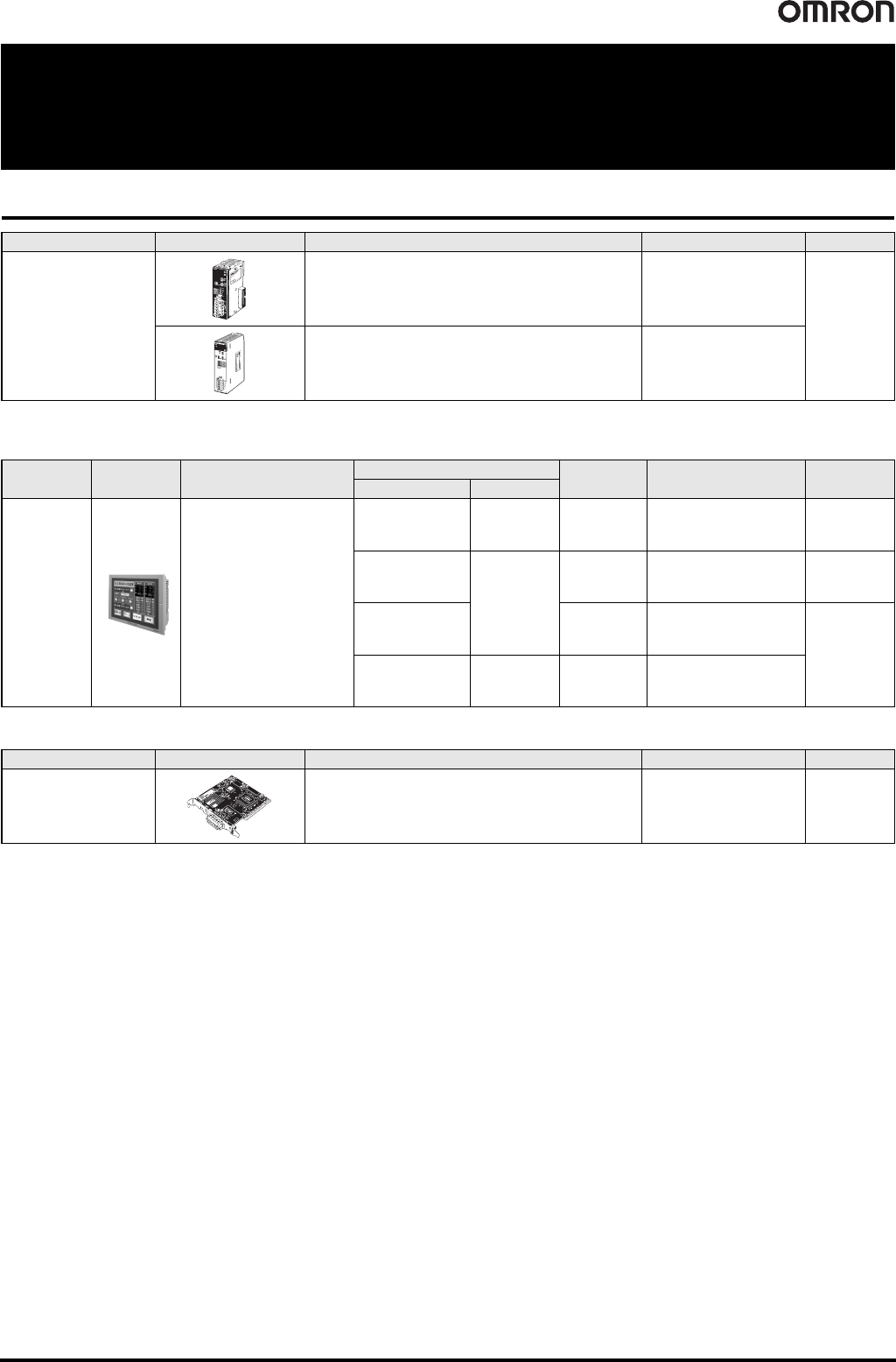

List of Models
Masters
Note: Refer to the CJ1 Catalog (Cat. No. P052) for details on the CJ1.
Refer to the CS1 Catalog (Cat. No. P047) for details on the CS1.
* (B) in the model number indicates that the color of the Controller frame is black.
Note: For information on the CJ1, refer to the CJ1 PLC Catalog (Cat. No. P052) and CJ2 PLC Catalog (Cat. No. P059).
Refer to the CS1 Catalog (Cat. No. P047) for details on the CS1.
Refer to the C200HX/HG/HE Catalog (Cat. No. P036) for details on the C200HX/HG/HE.
Product Appearance Specifications Model Standards
DeviceNet Unit
Model for CJ Series.
Equipped with Master and Slave functionality.
Control for up to 32,000 points per Master.
CJ1W-DRM21
UC1, N, L, CE
Model for CS Series.
Equipped with Master and Slave functionality.
Control for up to 32,000 points per Master.
CS1W-DRM21-V1
Product Appearance Controller specifications
Display specifications
Ethernet port Model * Standards
Display device Resolution
NSJ-series
Programmable
Controller
I/O capacity: 1280 points
Program capacity: 60K steps
Data memory capacity:
128K words
(DM: 32K words,
EM: 32K words x 3 banks)
5.7-inch
color High-luminance
TFT LCD
320 x 240
(QVGA)
10/100Base-T NSJ5-TQ11(B)-G5D
UC1, CE, UL
Type4
8.4-inch
color TFT LCD
640 x 480
(VGA)
10/100Base-T NSJ8-TV01(B)-G5D UC1, CE
10.4-inch
color TFT LCD
10/100Base-T NSJ10-TV01(B)-G5D
UC1, CE, UL
Type4
12.1-inch
color TFT LCD
800 x 600
(SVGA)
10/100Base-T NSJ12-TS01(B)-G5D
Product Appearance Specifications Model Standards
DeviceNet Board
PCI Board
I/O allocation space: 25,200 bytes
Equipped with Master and Slave functionality
3G8F7-DRM21
3G8F7-DRM21-E1
U, C, CE, KC
List of Models 161

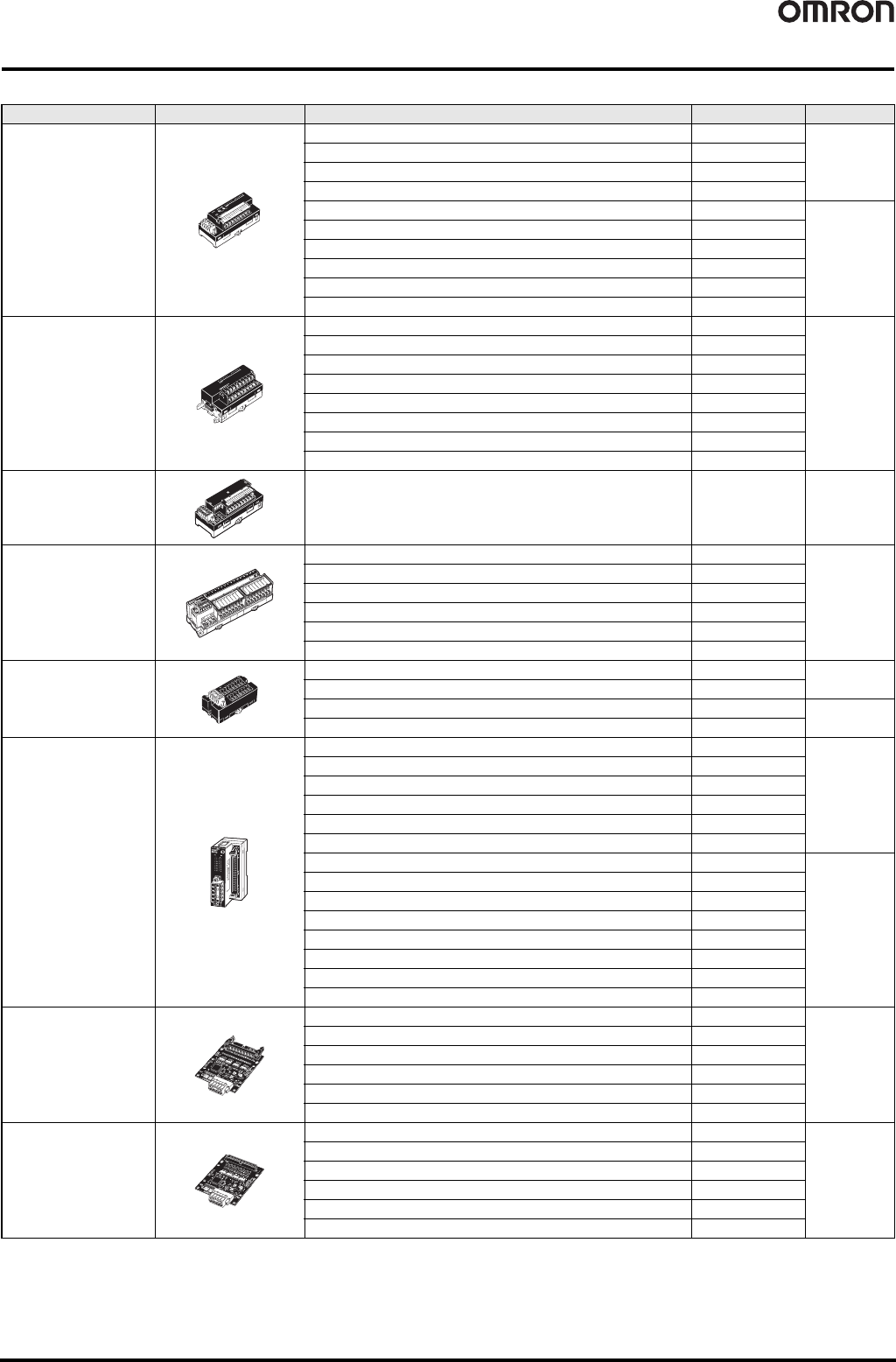

Slaves
● Smart Slaves DRT2 Series
Product Appearance Specifications Model Standards
Remote I/O Terminals with
Transistors
16 inputs NPN (+ common) DRT2-ID16
UC1, N, CE
16 inputs PNP (- common) DRT2-ID16-1
16 outputs NPN (- common) DRT2-OD16
16 outputs PNP (+ common) DRT2-OD16-1
8 inputs NPN (+ common) DRT2-ID08
UC1, CE
8 inputs PNP (- common) DRT2-ID08-1
8 outputs NPN (- common) DRT2-OD08
8 outputs PNP (+ common) DRT2-OD08-1
8 inputs/8 outputs NPN (+ common for inputs and - common for outputs) DRT2-MD16
8 inputs/8 outputs PNP (- common for inputs and + common for outputs) DRT2-MD16-1
Remote I/O Terminal
Expansion Units with
Transistors
8 inputs NPN (+ common) XWT-ID08
UC, UC1, N,
CE
8 inputs PNP (- common) XWT-ID08-1
8 outputs NPN (- common) XWT-OD08
8 outputs PNP (+ common) XWT-OD08-1
16 inputs NPN (+ common) XWT-ID16
16 inputs PNP (- common) XWT-ID16-1
16 outputs NPN (- common) XWT-OD16
16 outputs PNP (+ common) XWT-OD16-1
Remote I/O Terminal with
Relays
16 outputs DRT2-ROS16 UC1, N, CE
Remote I/O Terminals with
3-tier
Terminal Blocks and
Transistors
16 inputs NPN (+ common) DRT2-ID16TA
UC1, CE
16 inputs PNP (- common) DRT2-ID16TA-1
16 outputs NPN (- common) DRT2-OD16TA
16 outputs PNP (+ common) DRT2-OD16TA-1
8 inputs/8 outputs NPN (+ common for inputs and - common for outputs) DRT2-MD16TA
8 inputs/8 outputs PNP (- common for inputs and + common for outputs) DRT2-MD16TA-1
e-CON Connector Terminals
16 inputs NPN (+ common) DRT2-ID16S
UC1, CE
16 inputs PNP (- common) DRT2-ID16S-1
8 inputs/8 outputs NPN (+ common for inputs and - common for outputs) DRT2-MD16S
CE
8 inputs/8 outputs PNP (- common for inputs and + common for outputs) DRT2-MD16S-1
MIL Connector Terminals
(MIL Connector Terminals
with Transistors)
32 inputs NPN (+ common) DRT2-ID32ML
UC1, N, CE
32 inputs PNP (- common) DRT2-ID32ML-1
32 outputs NPN (- common) DRT2-OD32ML
32 outputs PNP (+ common) DRT2-OD32ML-1
16 inputs/16 outputs NPN (+ common for inputs and - common for outputs) DRT2-MD32ML
16 inputs/16 outputs PNP (- common for inputs and + common for outputs) DRT2-MD32ML-1
16 inputs NPN (+ common) DRT2-ID16ML
UC1, CE
16 inputs PNP (- common) DRT2-ID16ML-1
16 outputs NPN (- common) DRT2-OD16ML
16 outputs PNP (+ common) DRT2-OD16ML-1
16 inputs NPN (+ common)
DRT2-ID16MLX
16 in
puts PNP (- common) DRT2-ID16MLX-1
16 outputs NPN (- common) DRT2-OD16MLX
16 outputs PNP (+ common) DRT2-OD16MLX-1
Board Terminals with MIL
Connectors
(Parallel Mounting)
32 inputs NPN (+ common) DRT2-ID32B
UC1, CE
32 inputs PNP (- common) DRT2-ID32B-1
32 outputs NPN (- common) DRT2-OD32B
32 outputs PNP (+ common) DRT2-OD32B-1
16 inputs/16 outputs NPN (+ common for inputs and - common for outputs) DRT2-MD32B
16 inputs/16 outpu
ts PNP (- common for inputs and + common for outputs) DRT2-MD32B-1
Board Terminals with MIL
Connector
(Perpendicular Mounting)
32 inputs NPN (+ common) DRT2-ID32BV
UC1, CE
32 inputs PNP (- common) DRT2-ID32BV-1
32 outputs NPN (- common) DRT2-OD32BV
32 outputs PNP (+ common) DRT2-OD32BV-1
16 inputs/16 outputs NPN (+ common for inputs and - common for outputs) DRT2-MD32BV
16 inputs/16 outputs PNP (- common for inputs and + common for outputs) DRT2-MD32BV-1
