26 Remote I/O Terminal with Relay O utputs DRT2-ROS16 Remote I/O Terminal with Relay Ou tputs DRT2-ROS16 A Smart Slave with Relay Outputs and One-step Relay Replacement for Remote Maintenance. • Capable of handl ing larg…

100%1 / 199
Expansion Units XWT-ID08(-1)/OD08(-1)/ID16(-1)/OD16(-1) 25
XWT-OD16 (NPN)
XWT-OD16-1 (PNP)
Dimensions (Unit: mm)
V1357
G0246
9
8
11
10
13
12
15
14
Solenoid valve etc. Solenoid valve etc.
I/O power
supply
10 11 12 13 14 15
32
1 4 5 6
16 17 18
7 89
24 VDC
V
10
1
11
3
12
5
13
7
14
9
15
G
1
0
2
2
3
4
4
6
5
8
6
24 V DC
11
16
13
17
15
18
10
7
12
8
14
9
I/O power
supply
Solenoid valve etc. Solenoid valve etc.
2345601 7
29.8
49.616.8
3.1
50
6613
43.8
● 8-point Model
XWT-ID08
XWT-ID08-1
XWT-OD08
XWT-OD08-1
2345601 7 101112131489 15
43.8
29.8
49.6
3.1
50
9413
16.8
● 16-point Model
XWT-ID16
XWT-ID16-1
XWT-OD16
XWT-OD16-1
26 Remote I/O Terminal with Relay Outputs DRT2-ROS16
Remote I/O Terminal with Relay Outputs
DRT2-ROS16
A Smart Slave with Relay Outputs and
One-step Relay Replacement for
Remote Maintenance.
• Capable of handling large-capacity output devices (3 A max.)
• Easy relay replacement.
• I/O expansion possible to transistor I/O devices with terminal blocks (XWT
Series).
Smart Slave Functions
* Applicable only when an Expansion Unit (XWT Series) is used.
Ordering Information
General Specifications Output Specifications per Relay
*1. Order replacement relays using the following model number.
The maximum number of ON contacts per common is four, and 3 A (10 A per
common) will flow at an ambient temperature of 45°C max.
Specifications I/O connections Rated internal circuit power supply voltage I/O power supply voltage Model
Relay output 16 points M3 terminal block Supplied from the communications connector
Supplied from
communications connector
DRT2-ROS16
Operation time monitor * Contact operation counter Unit conduction time monitor
Total ON time monitor Unit comments Connected device comments
Network power supply voltage monitor
Communications speed auto-detection Last maintenance dateNo need to wire Unit power supply
Removable terminal blockCommunications error log function
Communications power
supply voltage
11 to 25 VDC (Supplied from communications
connector)
Communications power
supply current
consumption
215 mA max. (24 VDC), 395 mA max. (11 VDC)
Noise immunity Conforms to IEC61000-4-4, 2 kV (power line)
Vibration resistance
10 to 55 Hz, 0.7-mm double amplitude, 80 min each
in the X, Y, and Z directions
Shock resistance 100 m/s
2
Dielectric strength 500 VAC (between isolated circuits)
Insulation resistance 20 MΩ min.
Ambient operating
temperature
-10°C to 55°C
Ambient operating
humidity
25% to 85% (with no condensation)
Ambient atmosphere No corrosive gases
Ambient storage
temperature
-25°C to 65°C
Mounting method 35-mm DIN rail mounting
Screw tightening torque
M2 (communications connector screws): 0.2 to
0.3 N
·m
M3 (screw terminals): 0.5 N
·m
M3 (mounting screws): 0.5 N
·m
Weight 260 g max.
Mounted relays
DRTA-NY5W-K *1
Rated load
Resistive load:
2 A at 250 VAC, 8 A per common
2 A at 30 VDC, 8 A per common
Rated current
3A *2
Max. contact voltage
250 VAC, 125 VDC
Max. contact current
3A
Max. switching capacity
750 VA AC, 90 VDC
Min. applicable load
(reference value)
1 mA at 5 VDC
Model
DRTA-NY5W-K
Remote I/O Terminal with Relay Outputs DRT2-ROS16 27

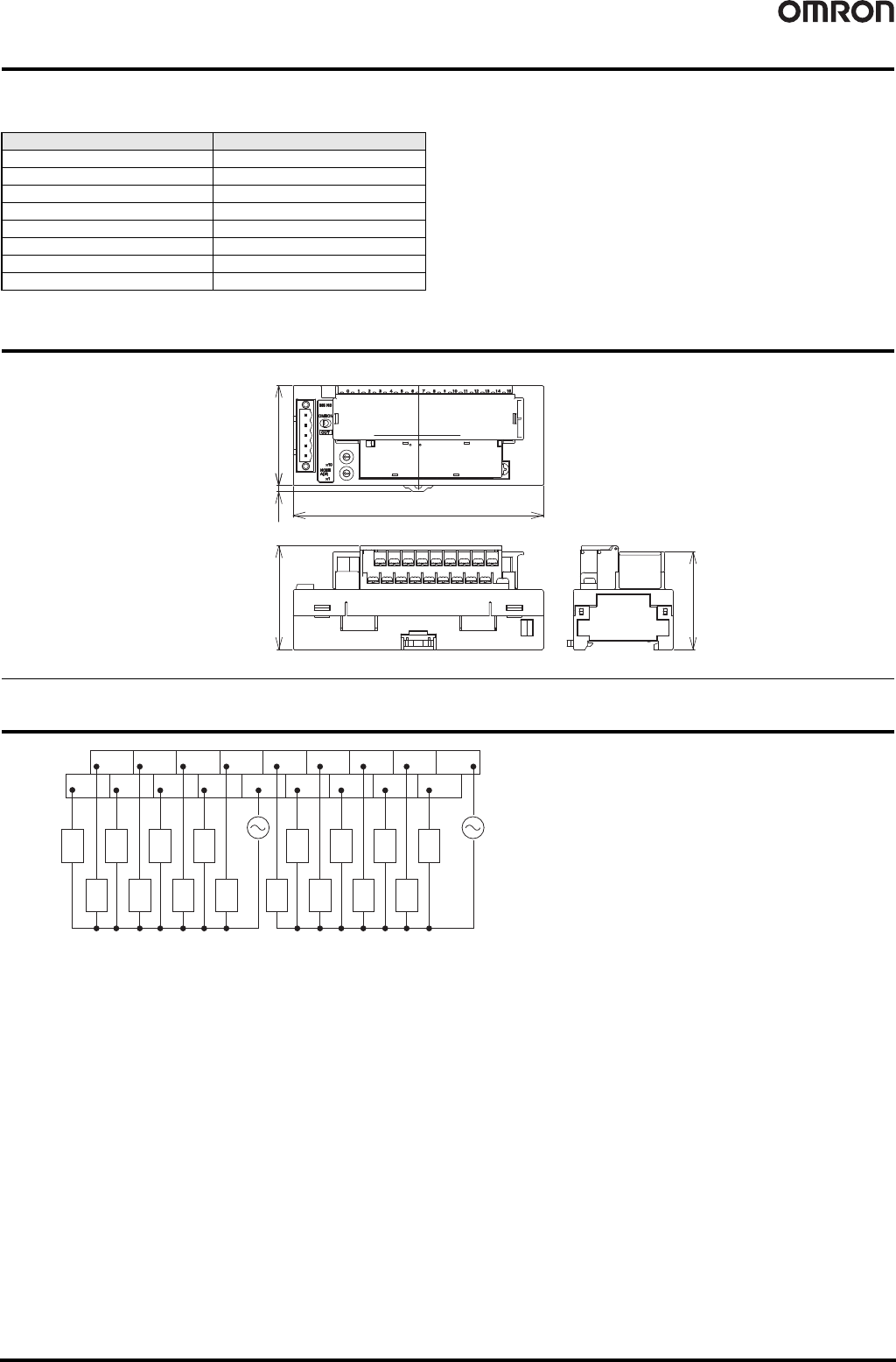

Expansion Units
One Expansion Unit can be added to each DRT2-ID16(-1)/-OD16(-1) or DRT2-ROS16 I/O Slave.
The following Expansion Units are available to enable flexible expansion with combinations for the required number of points.
Dimensions (Unit: mm)
Wiring Diagrams
Model Number of I/O points
XWT-ID08 8-point inputs (NPN)
XWT-ID08-1 8-point inputs (PNP)
XWT-OD08 8-point outputs (NPN)
XWT-OD08-1 8-point outputs (PNP)
XWT-ID16 16-point inputs (NPN)
XWT-ID16-1 16-point inputs (PNP)
XWT-OD16 16-point outputs (NPN)
XWT-OD16-1 16-point outputs (PNP)
503.1
125
51.8
48.8
DRT2-ROS16
load load load load load loadloadload
OUT
1
OUT
0
OUT
2
OUT
4
OUT
6
COM0 OUT
9
OUT
11
OUT
13
OUT
15
OUT
3
OUT
5
OUT
7
OUT
8
OUT
10
OUT
12
OUT
14
COM1
load load load load load load loadload
AC
(or DC)
power
supply
AC
(or DC)
power
supply
