Peripheral Devices 143 ■ I/O Connector f or Programmable Sla ves Applicable Connector T erminal Con version Units Applicable Cab les with Connectors ● Cables with Connectors/XW2Z For Digital Input/Output (16 P oints) App…

142 Peripheral Devices

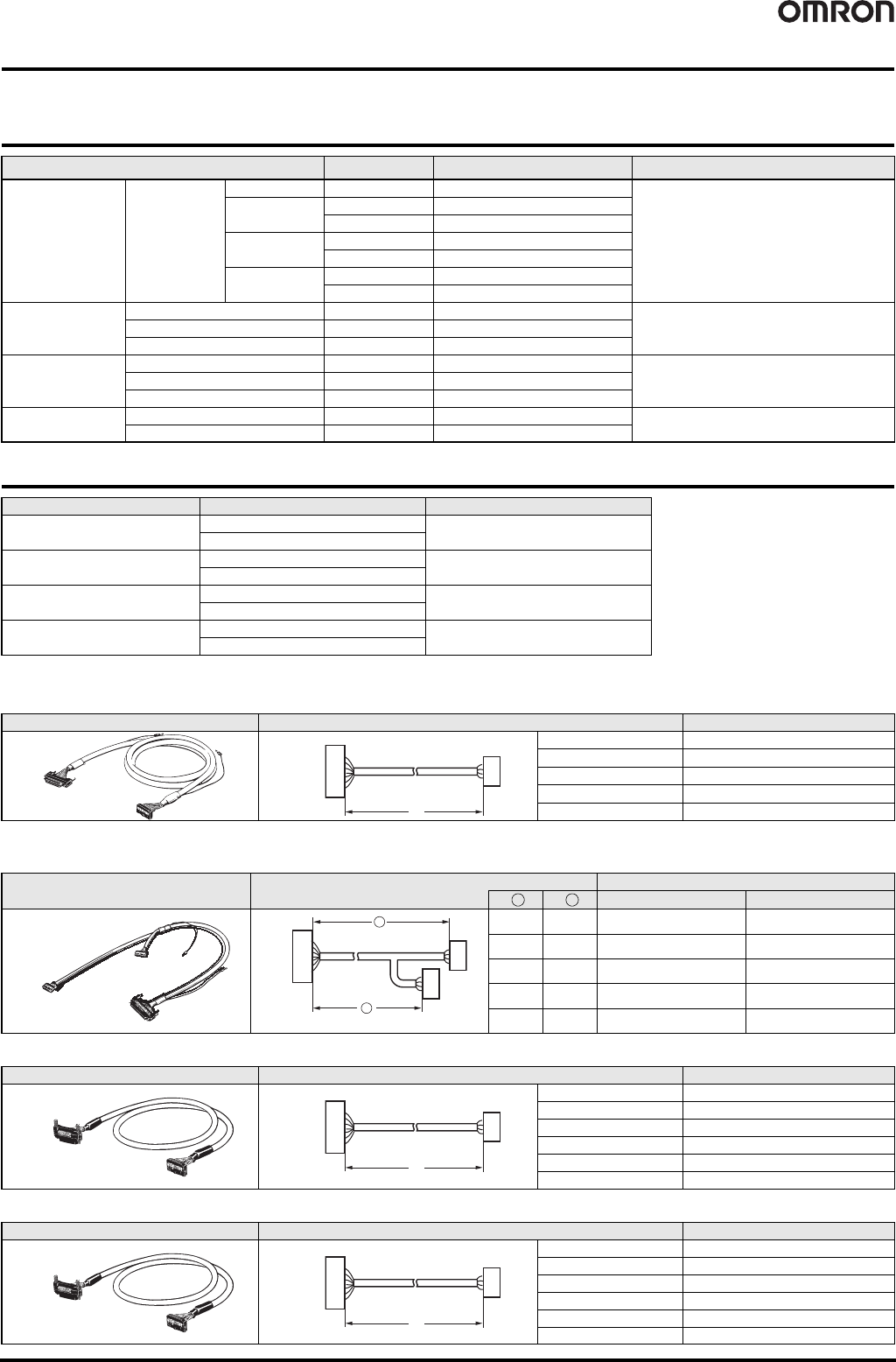

■ I/O Connectors for MULTIPLE I/O TERMINALs

Applicable Connectors

Applicable Cables with Connectors (Fujitsu Connectors)

● Cables with Connectors (1-to1 Connection)/XW2Z-R@C

For Digital Input/Output (16 Points)

● Cables with Connectors (1-to-2 Connection)/XW2Z-RO@C-@, XW2Z-RI@C-@

For Digital Input/Output (32 Points)

For Digital Input/Output (16 Points)

For Digital Input/Output (32 Points)

Type Model Remark Connectable model

Molex connector

Crimped

terminals

Housing 50-57-9403

Digital I/O Units

GT1-ID16MX(-1)/GT1-OD16MX(-1)

Analog I/O Units

GT1-AD08MX/GT1-DA04MX

Chain terminal

16-02-0069 Corresponding to 24 to 30 AWG

16-02-0086 Corresponding to 22 to 24 AWG

Loose terminal

16-02-0096 Corresponding to 24 to 30 AWG

16-02-0102 Corresponding to 22 to 24 AWG

Press-fit tool

57036-5000 Corresponding to 22 to 26 AWG

57037-5000 Corresponding to 24to 30 AWG

Fujitsu connector

(16 points)

Soldered terminals FCN361J024-AU

Pressure-welded terminals FCN367J024-AU/F

Crimped terminals FCN363J024-AU

Fujitsu connector

(32 points)

Soldered terminals FCN361J040-AU

Digital I/O Units

GT1-ID32ML(-1)/GT1-OD32ML(-1)

Pressure-welded terminals FCN367J040-AU/F

Crimped terminals FCN363J040-AU

OMRON

D-sub connector

Pulg XM3A-2521

Digital I/O Units

GT1-ID16DS(-1)/GT1-OD16DS(-1)

Hood XM2S-2513 #4-40UNC inch screws

I/O classification Model Connectable model

Digital input, 16 points

XW2Z-@@@A

Digital I/O Units

GT1-ID16ML(-1)

XW2Z-R@C

Digital output, 16 points

XW2Z-@@@A

Digital I/O Units

GT1-OD16ML(-1)

XW2Z-R@C

Digital input, 32 points

XW2Z-@@@B

Digital I/O Units

GT1-ID32ML(-1)

XW2Z-RI@C@

Digital output, 32 points

XW2Z-@@@B

Digital I/O Units

GT1-OD32ML(-1)

XW2Z-RO@C@

Appearance Cable length (mm) Model

1,000

XW2Z-R100C

1,500

XW2Z-R150C

2,000

XW2Z-R200C

3,000

XW2Z-R300C

5,000

XW2Z-R500C

Appearance

Cable length (mm) Model

Input Output

1,000 750

XW2Z-RI100C-75 XW2Z-RO100C-75

1,500 1,250

XW2Z-RI150C-125 XW2Z-RO150C-125

2,000 1,750

XW2Z-RI200C-175 XW2Z-RO200C-175

3,000 2,750

XW2Z-RI300C-275 XW2Z-RO300C-275

5,000 4,750

XW2Z-RI500C-475 XW2Z-RO500C-475

Appearance Cable length (mm) Model

500

XW2Z-050A

1,000

XW2Z-100A

1,500

XW2Z-150A

2,000

XW2Z-200A

3,000

XW2Z-300A

5,000

XW2Z-500A

Appearance Cable length (mm) Model

500

XW2Z-050B

1,000

XW2Z-100B

1,500

XW2Z-150B

2,000

XW2Z-200B

3,000

XW2Z-300B

5,000

XW2Z-500B

Length without any bending

Peripheral Devices 143

■ I/O Connector for Programmable Slaves

Applicable Connector Terminal Conversion Units

Applicable Cables with Connectors

● Cables with Connectors/XW2Z

For Digital Input/Output (16 Points)

Applicable cable Connected product

Connector Products

(Connector-Terminal Block Conversion Units)

Connecting method

XW2Z-@@@A

XW2R-J20G-T Phillips screw M3

XW2R-E20G-T Slotted screw M3

XW2R-P20G-T Push-in spring

Appearance Cable length (mm) Model

500

XW2Z-050A

1,000

XW2Z-100A

1,500

XW2Z-150A

2,000

XW2Z-200A

3,000

XW2Z-300A

5,000

XW2Z-500A

144 Peripheral Devices

Peripheral Devices for Environment-resistive Slaves

Ordering Information

● Environment-resistive Connection Products (for Thin Cable, M12 Micro Connectors)

* Robot cable type connectors with shielded cables (DCA1-5CN@@@1-R) are also available. Contact your OMRON sales representative for details.

Peripheral Devices for DeviceNet Communications

Product Appearance Model Specifications

Sealed Assembling-type

Connector (male)

XS2G-D5S7 For communications (plug)

Sealed Assembling-type

Connector (female)

XS2C-D5S7 For communications (socket)

Sealed T-branch

Connector

DCN2-1 For 1 branch line

Sealed Connector with

Terminating Resistor

DRS2-1 Plug

DRS2-2 Socket

Cables with Sealed

Connectors *

DCA1-5CNC5W1 Length (L): 0.5 m

Cable with connectors on both ends

DCA1-5CN01W1 Length (L): 1 m

DCA1-5CN02W1 Length (L): 2 m

DCA1-5CN03W1 Length (L): 3 m

DCA1-5CN05W1 Length (L): 5 m

DCA1-5CN10W1 Length (L): 10 m

DCA1-5CNC5F1 Length (L): 0.5 m

Cable with connector on one end (socket)

DCA1-5CN01F1 Length (L): 1 m

DCA1-5CN02F1 Length (L): 2 m

DCA1-5CN03F1 Length (L): 3 m

DCA1-5CN05F1 Length (L): 5 m

DCA1-5CN10F1 Length (L): 10 m

DCA1-5CNC5H1 Length (L): 0.5 m

Cable with connector on one end (plug)

DCA1-5CN01H1 Length (L): 1 m

DCA1-5CN02H1 Length (L): 2 m

DCA1-5CN03H1 Length (L): 3 m

DCA1-5CN05H1 Length (L): 5 m

DCA1-5CN10H1 Length (L): 10 m

Shielded Panel-mounting

Connectors (female)

DCA1-5CNC5P1 Panel-mounting connector (socket) with 0.5-m cable

XS2P-D522-2 Panel-mounting connector socket

Shielded Panel-mounting

Connectors (male)

DCA1-5CNC5M1 Panel-mounting connector (plug) with 0.5-m cable

XS2M-D524-4 Panel-mounting connector (plug) with solder-cup terminals

Waterproof cover (for

socket)

XS2Z-22

Used to cover an unused connector section

Dust cover (for socket) XS2Z-15

L 50 mm
