2 CJ-series DeviceNet Unit CJ1W-DRM21 CJ-series DeviceNet Unit CJ1W-DRM21 A DeviceNet Unit for the NJ/CJ Series • Allows control of up to 32,000 poi nts (2,000 words) per master, and ensures a high degree of simultaneity…
1
Master Unit
CJ-series DeviceNet Unit................................................................................... 2
CJ1W-DRM21
CS-series DeviceNet Unit.................................................................................. 3
CS1W-DRM21-V1
Programmable Controllers NSJ Series.............................................................. 4
NSJ@-T@@1(B)-G5D
DeviceNet Board (PCI Board)............................................................................ 7
3G8F7-DRM21-E

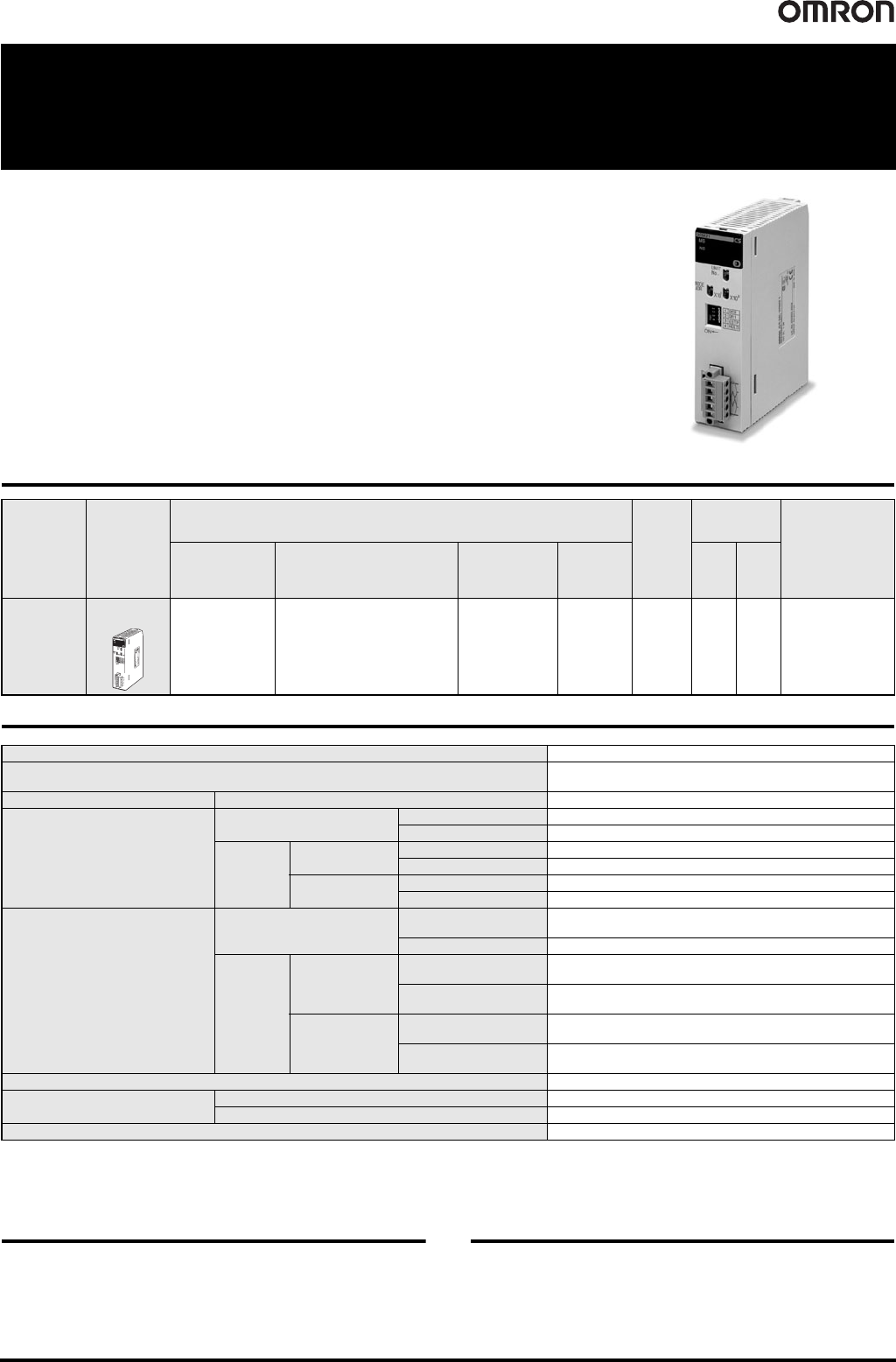

2 CJ-series DeviceNet Unit CJ1W-DRM21
CJ-series DeviceNet Unit
CJ1W-DRM21
A DeviceNet Unit for the NJ/CJ Series
• Allows control of up to 32,000 points (2,000 words) per master, and ensures a high degree of
simultaneity between data.
• Can be used as both a master and a slave at the same time.
• Equipped with settings and monitor functions aimed at improving both design and startup efficiency.
Achieve maximum performance by using in combination with a Configurator.
• Files of master and slave settings can be uploaded and downloaded using memory cards, allowing
effective debugging and easier setup.
Ordering Information
Master/Slave Specifications
*1. Refer to the DeviceNet Operation Manual (W267) for the communications power supply specifications.
*2. The Device Unit uses a node, and so connection is possible to 63 slaves only.
*3. When the DeviceNet is used as a slave, “input” and “output” respectively refer to input from the slave to the master and output from the master to the slave.
*4. The maximum message length includes the command code when using the CMND instruction. (SendCmd instruction with NJ-series controller)
Note: When using with the Machine Automation Controller NJ Series, note the following points:
• Simple backup function cannot be used.
• DeviceNet configurator cannot be used. Use CX-Integrator.
General Specifications
The specifications conform to the CJ Series. Refer to the CJ Series
Catalog (P052) for details on CJ-series specifications.
CJ2 Series Catalog (P059) for details on CJ2-series specifications.
Dimensions
31 x 90 x 65 mm (W x H x D)
Unit
classification
Product name Specifications Communications
No. of unit
numbers
allocated
Current consumption (A)
Model
5 V 24V
CJ1 CPU
Bus Unit
DeviceNet
Unit
Equipped with Master and
Slave functionality. Controls for
up to 32,000 points per Master.
• Remote I/O Communications Master (fixed
allocations or user-set allocations)
• Remote I/O Communications Slave (fixed
allocations or user-set allocations)
• Message communications
10.29 -CJ1W-DRM21
Communications power supply voltage 11 to 25 VDC *1
Current consumption
Communications: 18 mA max.
Internal circuit: 290 mA max.
Max. number of connectable slaves Remote I/O, explicit message service 63 *2
Max. number of I/O points
Fixed allocations
When used as a master 2,048 points
When used as a slave 32 points
User-set
allocations
Using allocated
DM Area words
When used as a master 16,000 points
When used as a slave 3,200 points
Using
Configurator
When used as a master 32,000 points
When used as a slave 4,800 points
Number of allocated words
Fixed allocations
When used as a master
64 input and 64 output words
Software switch/status area: 25 words
When used as a slave 1 input word, 1 output word *3
User-set
allocations
Using allocated
DM Area words
When used as a master
500 input and 500 output words
Software switch/status area: 25 words
When used as a slave
100 input and 100 output words *3
Software switch/status area: 25 words
Using
Configurator
When used as a master
500 input words x 2 blocks, 500 output words x 2 blocks
Software switch/Status area: 25 words
When used as a slave
100 input words x 1 blocks, 100 output words x 2 blocks *3
Software switch/Status area: 25 words
Message communications Max. message length 542 bytes *4
Max. number of Units mountable to
PLC
Fixed allocations 3
User-set allocations 16
Weight 118 g
CS-series DeviceNet Unit CS1W-DRM21-V1 3
CS-series DeviceNet Unit
CS1W-DRM21-V1
A DeviceNet Unit for the CS Series
• Allows control of up to 32,000 points (2,000 words) per master, and ensures a high degree of
simultaneity between data.
• Can be used as both a master and a slave at the same time.
• Equipped with settings and monitor functions aimed at improving both design and startup efficiency.
Achieve maximum performance by using in combination with a Configurator.
• Files of master and slave settings can be uploaded and downloaded using memory cards, allowing
effective debugging and easier setup.
Ordering Information
Master/Slave Specifications
*1. Refer to the DeviceNet Operation Manual (W267) for the communications power supply specifications.
*2. The Device Unit uses a node, and so connection is possible to 63 slaves only.
*3. When the DeviceNet is used as a slave, “input” and “output” respectively refer to input from the slave to the master and output from the master to the slave.
*4. The maximum message length includes the command code when using the CMND instruction.
General Specifications
The specifications conform to the CS Series. Refer to the CS Series
Catalog (P047) for details on CS-series specifications.
Dimensions
34.5 X 130 X 111.2 mm (W X H X D)
Unit
classification
Product
name
Specifications
No. of unit
numbers
allocated
Current
consumption
(A)
Model
Communications
Cable
Communications
Redundant
communications
Max. No. of
Units
mounted to 1
CPU Unit
5V 26V
CS1 CPU Bus
Unit
DeviceNet
Unit
DeviceNet Cable
• Remote I/O Communications
Master (fixed allocations or
user-set allocation)
• Remote I/O Communications
Slave (fixed allocation or user-
set allocation)
• Message communications
Not supported. 16 1 0.29 - CS1W-DRM21-V1
Communications power supply voltage 11 to 25 VDC *1
Current consumption
Communications: 30 mA max.
Internal circuit: 290 mA max.
Max. number of connectable slaves Remote I/O, explicit message service 63 *2
Maximum I/O points
Fixed allocations
When used as a master 2,048 points
When used as a slave 32 points
User-set
allocations
Using allocated
DM Area words
When used as a master 16,000 points
When used as a slave 3,200 points
Using
Configurator
When used as a master 32,000 points
When used as a slave 4,800 points
Number of allocated words
Fixed allocations
When used as a master
64 input and 64 output words
Software switch/status area: 25 words
When used as a slave input word, 1 output word *3
User-set
allocations
Using allocated
DM Area words
When used as a master
500 input and 500 output words
Software switch/status area: 25 words
When used as a slave
100 input and 100 output words *3
Software switch/status area: 25 words
Using
Configurator
When used as a master
500 input words x 2 blocks, 500 output words x 2 blocks
Software switch/Status area: 25 words
When used as a slave
100 input words x 1 blocks, 100 output words x 2 blocks
Software switch/Status area: 25 words
Max. message length 542 bytes *4
Max. number of Units mountable to
PLC
Fixed allocations 3
User-set allocations 16
Weight 169 g
