114 Safety Network Controller NE0A-SCPU01

Functions

The following function blocks are available for designing safety circuits with the NE0A-SCPU01.

These function blocks can be selected and assembled using the interactive wizard format to efficiently design safety applications.

Note: There is a possibility that safety cannot be maintained when an OR part or an AND/OR part is selected for input logic, or an OR/AND part is selected for output logic. Sufficiently

confirm safety prior to use.

Classification of function block

for safety circuit designs

Application

Function blocks for safety input

devices and setting input filter

times

The following six parts can be selected for use as safety input devices.

For Category 3 or 4 compliance, the filter monitoring time between signals can also be adjusted with redundant wiring for the necessary

safety devices.

Emergency Stop Switches

Safety Door Switches

Limit Switches

Safety Light Curtains

Enabling Switches

Mode Selectors

Logic function blocks for input

conditions

Select a Safety Light Curtain as the safety input device, and select a muting function when required.

No setting Uses the ON/OFF status from the safety input device exactly as it is.

OR operation

• For switching maintenance areas with a Mode Selector.

• For applications such as a Safety Light Curtain muting function.

AND/OR operations

AND operation

OR/AND operations

Function blocks for resets Selects manual or auto reset.

Logic function blocks for output

conditions

For applications such as stopping all outputs for multiple safety devices.

No setting Uses the ON/OFF status of the safety signal exactly as it is.

AND operation

Selects the interlock conditions for the safety signal.

OR/AND operations

Function blocks for setting the

welded contact check

Used to check the safety condition of an output device.

No setting No checking of the output device (used for Category 2 or lower).

EDM

Used to check for contact welding in a Relay or Contactor.

Also used to change the setting for monitoring time.

Function blocks for safety output

devices and setting output delay

times

For setting an auxiliary output (to output an error condition) and for setting the output delay.

Safety Network Controller NE0A-SCPU01 115

Internal Circuit Diagrams

NE0A-SCPU01

Terminal No. Terminal name Description

-- V0

Power supply terminal for internal circuit (24 VDC)

-- G0

1V1

Power supply terminal for external input device and test output (24 VDC)

11 G1

24 V2

Power supply terminal for external output device (24 VDC)

34 G2

2 to 10 IN0 to IN8

Safety input terminal

Terminals IN10 and IN11 are used only for connecting a reset switch or EDM feedback.

21 to 23 IN9 to IN11

12 to 20

31 to 33

T0 to T1

Test output terminal

Connected to IN0 to IN11 safety inputs.

T0 and T1 output test pulses with different patterns.

The T0 terminals are internally connected and the T1 terminals are internally connected.

25 to 30 OUT0 to OUT5 Safety output terminals

35 to 40 G2

Common terminal

Terminals 34 to 40 are internally connected.

24 VDC

IN0

IN8

IN9

IN10

IN11

OUT0

OUT5

24 VDC

D+

D-

V+

CAN H

Shield

CAN L

V-

DeviceNet

Physical Layer

DC-DC Converter

(Non-insulated)

Internal Circuit

USB

DC-DC Converter

(Non-insulated)

Safety Input Circuit

Test Output Circuit

Safety Output Circuit

116 Safety Network Controller NE0A-SCPU01

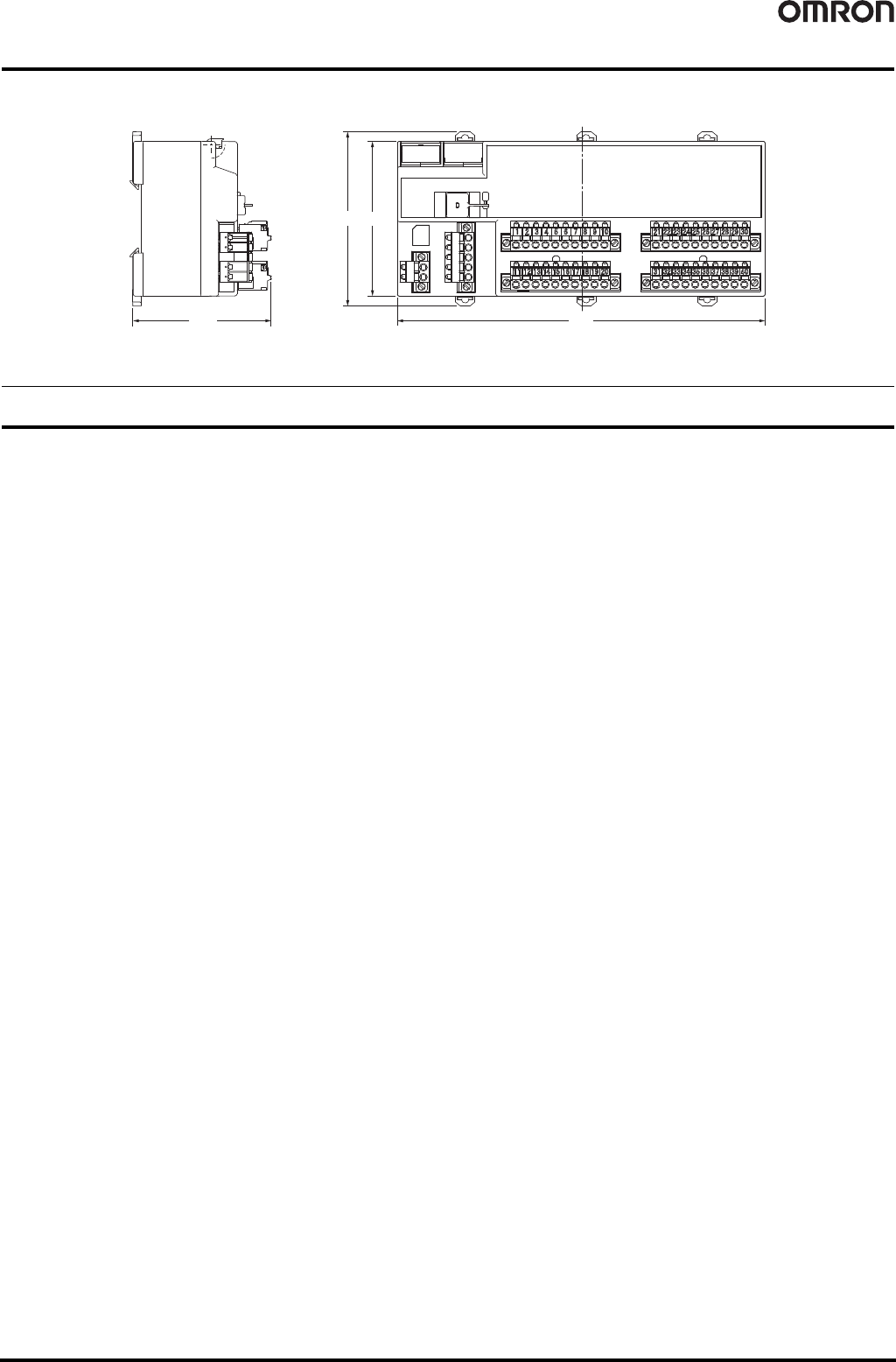

Dimensions (Unit: mm)

Safety Precautions

● Be sure to read the following operation manual for precautions and other details required for correct use of the Safety

Network Controller. CIP Safety on DeviceNet Safety Network Controller NE0A Series Operation Manual (Cat. No. Z916)

19071.4

(90)

NE0A-SCPU01
