168 List of Models

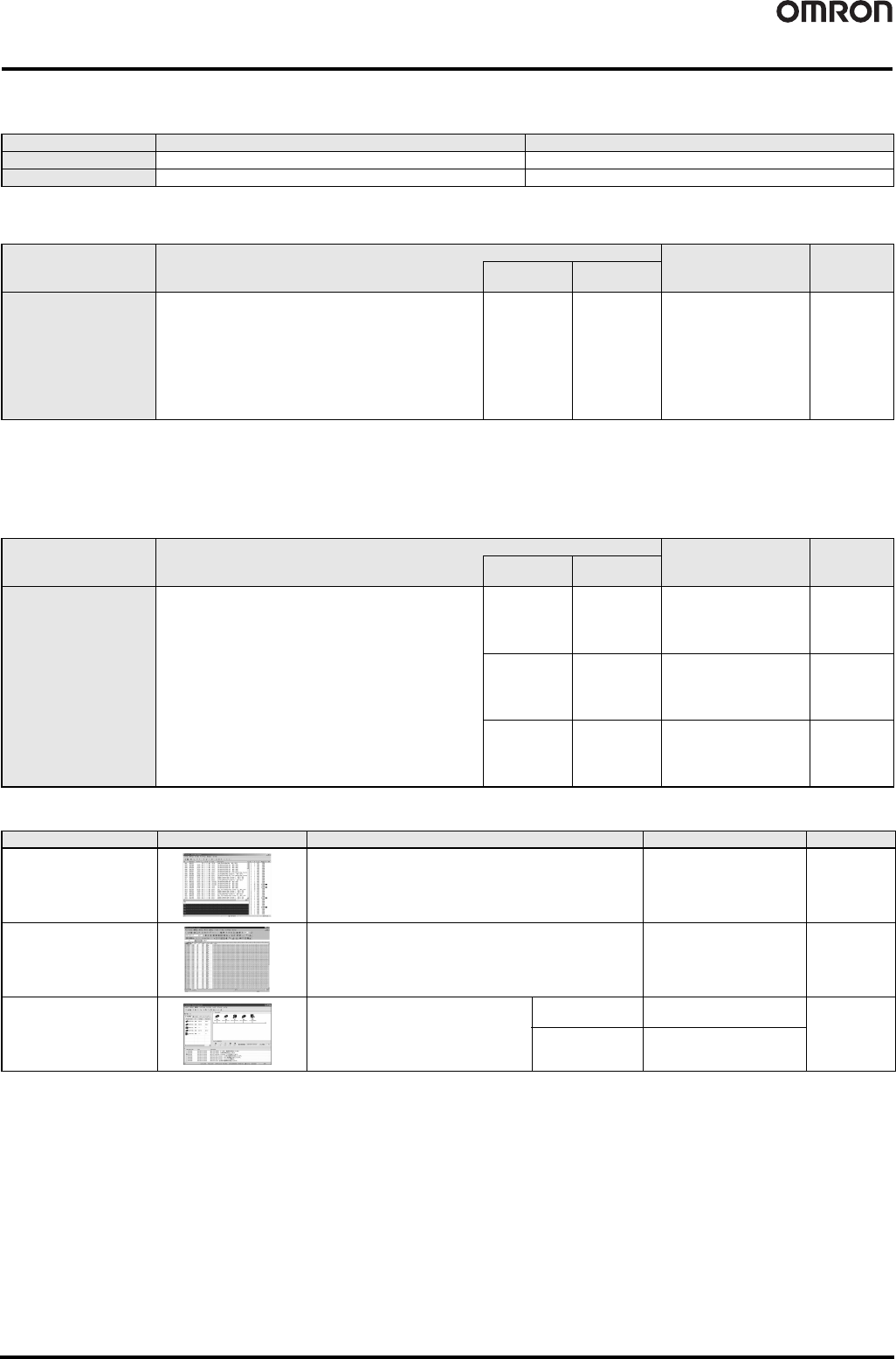

Software

How to Select Required Support Software for Your Controller

The required Support Software depends on the Controller to connect. Please check the following table when purchasing the Support Software.

FA Integrated Tool Package CX-One

*1. Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.

*2. The CX-One is also available on CD (CXONE-AL@@C-V4).

Automation Software Sysmac Studio

Please purchase a DVD and required number of licenses the first time you purchase the Sysmac Studio. DVDs and licenses are available

individually. Each model of licenses does not include any DVD.

*1. Model "SYSMAC-SE200D-64" runs on Windows 10 (64 bit).

*2. Multi licenses are available for the Sysmac Studio (3, 10, 30, or 50 licenses).

*1. Final order entry date: The end of March, 2020

Item Omron PLC System Omron Machine Automation Controller System

Controller CS, CJ, CP, and other series NJ-series

Software FA Integrated Tool Package CX-One Automation Software Sysmac Studio

Product name Specifications Model Standards

Number of

licenses

Media

FA Integrated Tool

Package CX-One

Ver.4.@

The CX-One is a comprehensive software package that

integrates Support Software for OMRON PLCs and

components.

CX-One runs on the following OS.

OS: Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-

bit version) / Windows 8.1 (32-bit/64-bit version) /

Windows 10 (32-bit/64-bit version)

CX-One Version 4.@ includes CX-Integrator Ver.3.@.

For details, refer to the CX-One catalog (Cat. No. R134)

1 license *1 DVD *2 CXONE-AL01D-V4 --

Product name Specifications Model Standards

Number of

licenses

Media

Sysmac Studio

Standard Edition

Ver.1.@@

The Sysmac Studio is the software that provides an integrated

environment for setting, programming, debugging and

maintenance of machine automation controllers including the

NJ/NX-serie CPU Units, NY-series Industrial PC, EtherCAT

Slave, and the HMI.

Sysmac Studio runs on the following OS.

OS: Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-

bit version) / Windows 8.1 (32-bit/64-bit version) /

Windows 10 (32-bit/64-bit version) *1

The Sysmac Studio Standard Edition DVD includes Support

Software to set up EtherNet/IP Units, DeviceNet slaves, Serial

Communications Units, and Support Software for creating

screens on HMIs (CX-Designer).

Refer to your OMRON website for details.

(Media only)

Sysmac Studio

(32-bit) DVD

SYSMAC-SE200D --

(Media only)

Sysmac Studio

(64-bit) DVD

SYSMAC-SE200D-64 --

1 license *2--SYSMAC-SE201L --

Product Appearance Specifications Model Standards

DeviceNet Analyzer *1

Software

OS: Windows 2000 (Service Pack2 or higher)/XP

WS02-ALDC1-E --

NX-Server *1

DDE Edition

OS: Windows 2000 (Service Pack2 or higher)/XP

WS02-NXDC1-E --

Device Inspector *1

Software

OS: Windows 2000 (ServicePack2 or

higher)/XP

One-license version

Media: DVD

WS02-DIPC1-E

Site license WS02-DIPC1-ELXX

List of Models 169

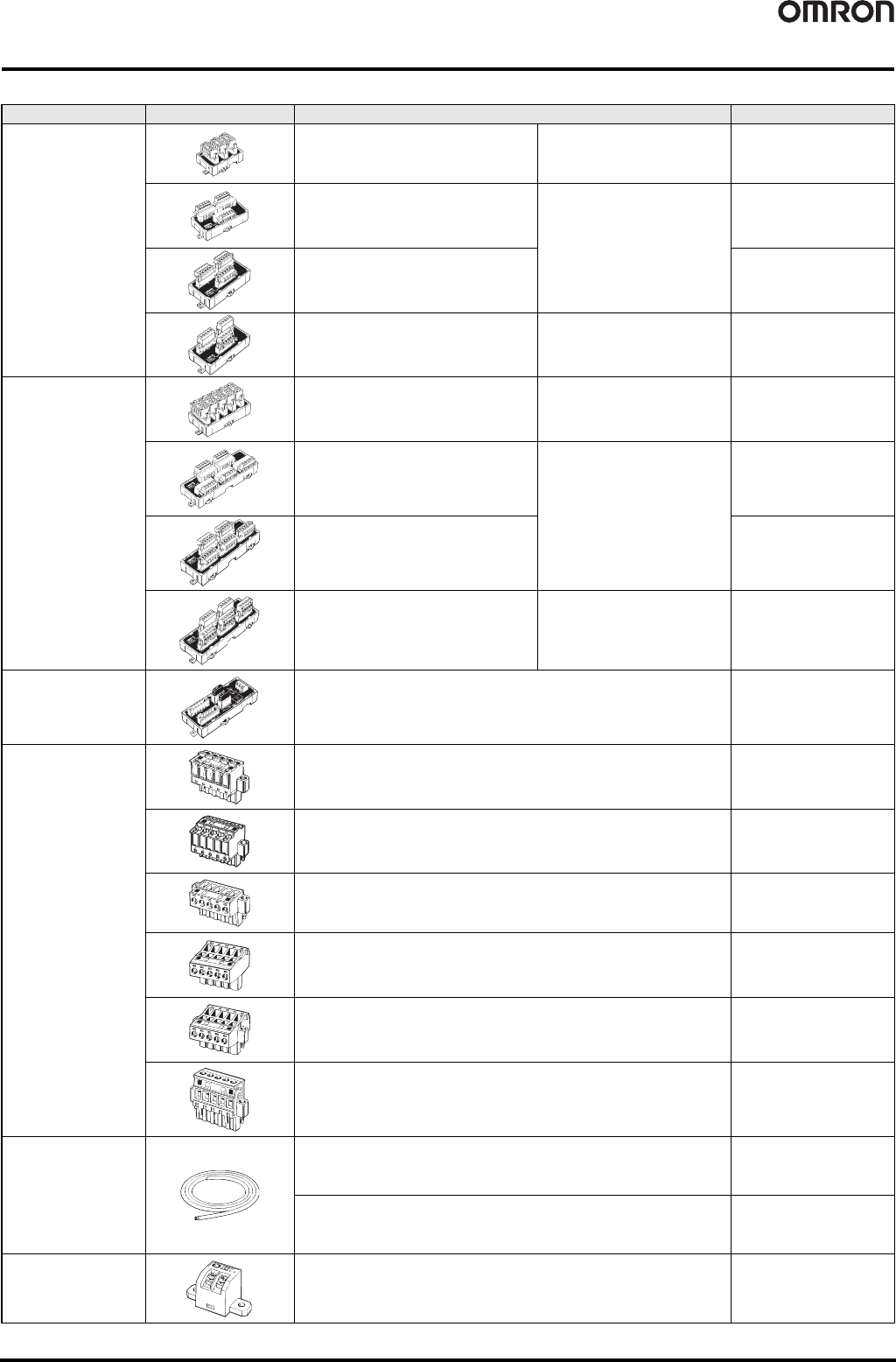

Peripheral Devices

● Models for Standard Cables

Product Appearance Specifications Model

T-branch Tap for

1 branch line

Cable wiring direction: Toward top

Cable lock direction: From top

Connector screw direction: From top

Provided with 3 parallel clamp

connectors with screws

(XW4G-05C1-H1-D), standard

terminating resistor

DCN1-1NC

Cable wiring direction: Toward side

Cable screw direction: From top

Connector screw direction: From side

3 parallel connectors with screws

(XW4B-05C1-H1-D), standard

terminating resistor

DCN1-1C

Cable wiring direction: Toward top

Cable screw direction: From side

Connector screw direction: From top

DCN1-2C

Cable wiring direction: From side

Cable screw direction: From top

Connector screw direction: From top

3 vertical-type connectors with

screws (XW4B-05C1-V1R-D),

standard terminating resistor

DCN1-2R

T-branch Tap for

3 branch lines

Cable wiring direction: Toward top

Cable lock direction: From top

Connector screw direction: From top

Provided with 5 parallel clamp

connectors with screws

(XW4G-05C1-H1-D), standard

terminating resistor

DCN1-3NC

Cable wiring direction: Toward side

Cable screw direction: From top

Connector screw direction: From side

5 parallel connectors with screws

(XW4B-05C1-H1-D), standard

terminating resistor

DCN1-3C

Cable wiring direction: Toward top

Cable screw direction: From side

Connector screw direction: From top

DCN1-4C

Cable wiring direction: Toward side

Cable screw direction: From top

Connector screw direction: From top

5 vertical-type connectors with

screws (XW4B-05C1-V1R-D),

standard terminating resistor

DCN1-4R

Power Supply Tap 2 connectors, standard terminating resistor, fuse DCN1-1P

Connector

Parallel clamp connector with screws

(Connector insertion and wiring performed in the same direction)

XW4G-05C1-H1-D

Parallel multi-branching clamp connector with screws

(Connector insertion and wiring performed in same direction)

XW4G-05C4-TF-D

Parallel connector with screws

(Connector insertion and wiring performed in the same direction)

XW4B-05C1-H1-D

Parallel connector with screws

(Connector insertion and wiring performed in the same direction)

XW4B-05C4-T-D

Parallel, multi-branching connector with screws

(Connector insertion and wiring performed in the same direction)

XW4B-05C4-TF-D

Orthogonal connector with screws

(Connector insertion and wiring performed at a right angle)

XW4B-05C1-V1R-D

Special Cables

Thin cable

Length: 100 m

DCA1-5C10-B: Cable color: Blue

DCA1-5C10: Cable color: Grey

DCA1-5C10(-B)

Thick cable

Length: 100 m

DCA2-5C10-B: Cable color: Blue

DCA2-5C10: Cable color: Grey

DCA2-5C10(-B)

Terminal-block Terminator Resistance of 121 Ω DRS1-T

170 List of Models

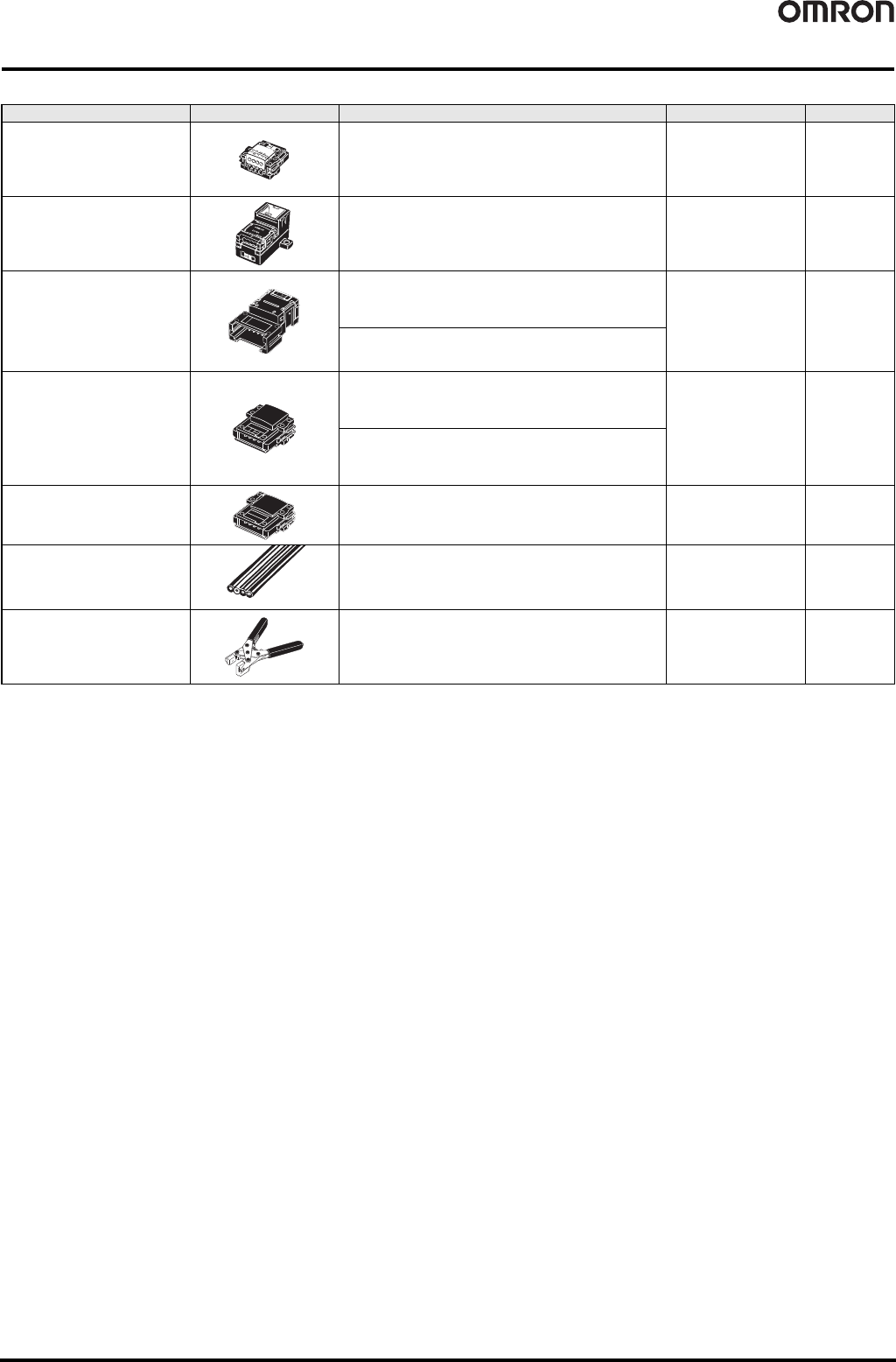

● Models for Flat Cables

* Delivered in units of ten. Order in a multiple of ten.

Product Appearance Specifications Model Standards

Conversion Connector for Standard

Thin Cable and Flat Cable

Used as a set with the DCN4-TR4 when Thin Cable is

branched on a branch line.

DCN4-BR4D UC pending

Power Supply Terminal Block with

Terminating Resistor for Flat Cable

Can be used to supply communications power from terminals

when flat cable is used.

DCN4-TP4D UC pending

Flat Connector Socket

Used as a set with a DCN4-BR4 Flat Connector Plug in the

following applications.

• Extending the trunk line

• T-branching the trunk line into branch lines

DCN4-TR4 UC pending

Used alone in the following applications.

• Connecting a DCN4-TM4 Terminating Resistor to the trunk

line

Flat Connector Plug

Used as a set with a DCN4-TR4 Flat Connector Socket in the

following applications.

• Extending the trunk line

• T-branching the trunk line into branch lines

DCN4-BR4 UC

Used alone in the following applications.

• Connecting the communications cable to the Unit

• Connecting the communications cable to a DCN4-MD4

Multi-drop Connector

Terminating Resistor

Connector terminating resistor for flat cable.

Attached to the DCN4-TR4 Flat Connector Socket at the ends

of the trunk line.

DCN4-TM4 UC

Flat Cable

Four-core flat cable (UL 2555)

Length: 100 m

Conductor diameters: 0.75 mm

x 2, 0.5 mm

x 2

DCA4-4F10 UC

Special Crimping Tool

This is the crimping tool for the following connectors:

• DCN4-TR4(-1) Flat Connector Socket

• DCN4-BR4 Flat Connector Plug

• DCN4-BR4D Conversion Connector for Standard Thin Cable

and Flat Cable

DWT-A01 --
