168 List of Models Software How to Select Required Supp or t Software for Y our Controller The required Suppor t Software depends on the Controller to connec t. Please check the follo wing table when purchasing the Suppo…
List of Models 167
CIP Safety on DeviceNet System
Note: Spring terminal blocks are mounted on the Unit as a standard feature. Separate terminals are available as required, such as for replacement.
For details, refer to the CIP Safety on DeviceNet System Catalog (Cat. No. Z907).
* To make setting for the DST1-XD0808SL-1, use Network Configurator version 2.0 or higher.
Configurator
*1. To use the software on Windows Vista or Windows 7, download the version upgrade program from the following OMRON website and apply it: www.fa.omron.co.jp/
*2. Final order entry date: The end of March, 2020

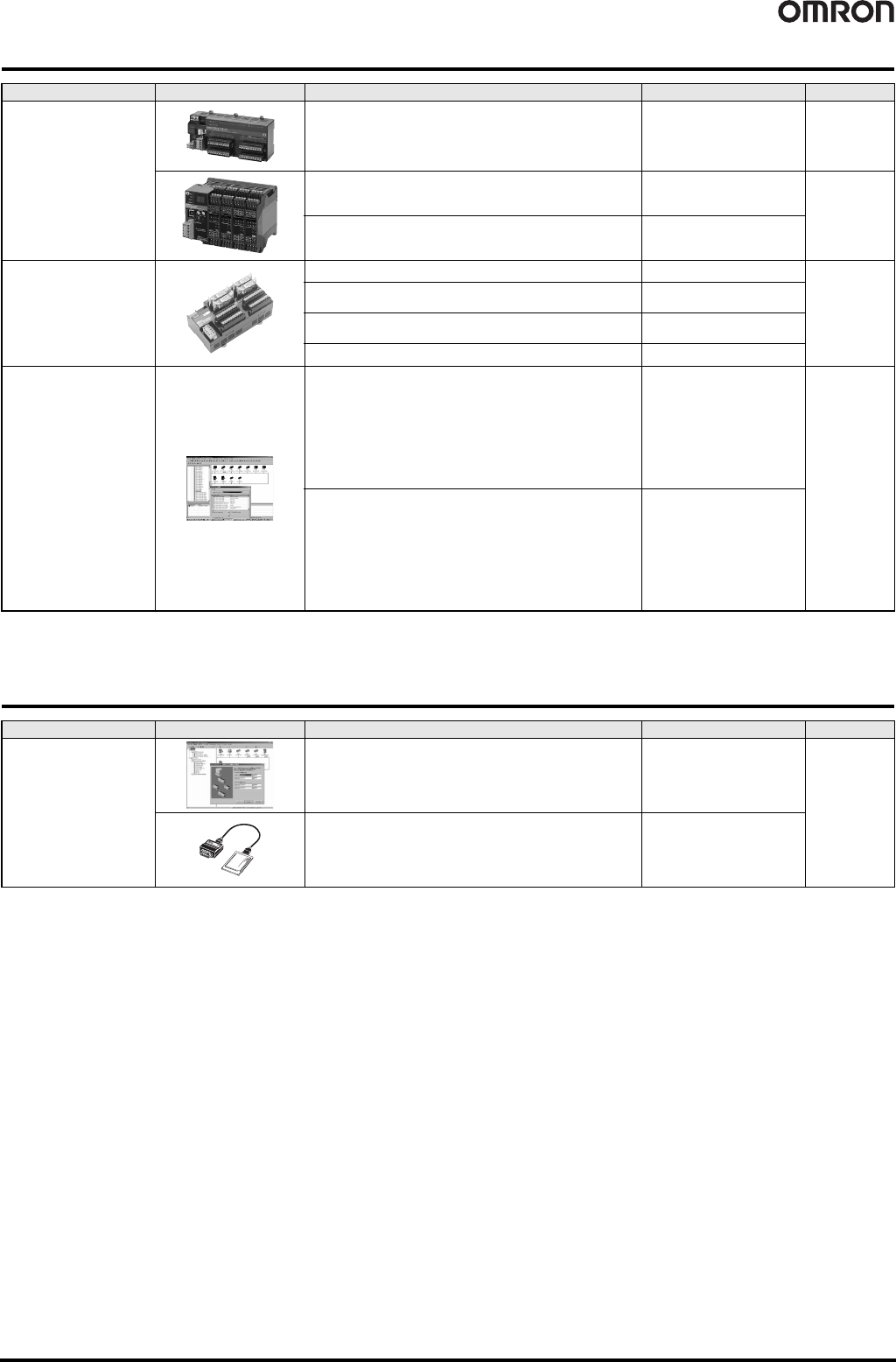

Product Appearance Specifications Model Standards
Safety Network Controllers
Safety inputs: 12, Test outputs: 12, Safety outputs: 6
Unit version: 1.0
NE0A-SCPU01 CE, UC
Safety inputs: 16, Test outputs: 4, Safety outputs: 8
Unit version: 2.0
NE1A-SCPU01-V1
CE, UC
Safety inputs: 40, Test outputs: 8, Safety outputs: 8
Unit version: 2.0
NE1A-SCPU02
Safety I/O Terminals
Safety inputs: 12, Test outputs: 4 DST1-ID12SL-1
CE, UC
Safety inputs: 8, Safety outputs (semiconductor): 8,
Test outputs: 4
DST1-MD16SL-1
Safety inputs: 8, Safety outputs (semiconductor): 8,
Test outputs: 4
DST1-XD0808SL-1 *
Safety inputs: 4, Safety outputs (relay): 4, Test outputs: 4 DST1-MRD08SL-1
Network Configurator
Components: Installation Disk (CD-ROM: 1 license)
Computer: IBM PC/AT or compatible
Applicable OS:
Windows XP Service Pack 3 (32-bit edition)
Windows Vista Service Pack 2 (32-bit edition, 64-bit edition)
Windows 7 (32-bit edition, 64-bit edition)
Windows 8 (32-bit edition, 64-bit edition)
Windows 8.1 (32-bit edition, 64-bit edition)
Windows 10 (32-bit edition, 64-bit edition)
WS02-CFSC1-E
--
Components: Upgrade Disk (CD-ROM: 1 license)
Computer: IBM PC/AT or compatible
Applicable OS:
Windows XP Service Pack 3 (32-bit edition)
Windows Vista Service Pack 2 (32-bit edition, 64-bit edition)
Windows 7 (32-bit edition, 64-bit edition)
Windows 8 (32-bit edition, 64-bit edition)
Windows 8.1 (32-bit edition, 64-bit edition)
Windows 10 (32-bit edition, 64-bit edition)
WS02-CFSC1-E-UP
Product Appearance Specifications Model Standards
DeviceNet Configurator
DeviceNet Configurator Software
OS: Windows 2000 (Service Pack2 or higher)/XP/Vista/7 (32bit)
*1
WS02-CFDC1-E
--
PC Card
OS: Windows 2000 (Service Pack2 or higher)/XP
3G8E2-DRM21-EV1
*2
168 List of Models
Software
How to Select Required Support Software for Your Controller
The required Support Software depends on the Controller to connect. Please check the following table when purchasing the Support Software.
FA Integrated Tool Package CX-One
*1. Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.
*2. The CX-One is also available on CD (CXONE-AL@@C-V4).
Automation Software Sysmac Studio
Please purchase a DVD and required number of licenses the first time you purchase the Sysmac Studio. DVDs and licenses are available
individually. Each model of licenses does not include any DVD.
*1. Model "SYSMAC-SE200D-64" runs on Windows 10 (64 bit).
*2. Multi licenses are available for the Sysmac Studio (3, 10, 30, or 50 licenses).
*1. Final order entry date: The end of March, 2020
Item Omron PLC System Omron Machine Automation Controller System
Controller CS, CJ, CP, and other series NJ-series
Software FA Integrated Tool Package CX-One Automation Software Sysmac Studio
Product name Specifications Model Standards
Number of
licenses
Media
FA Integrated Tool
Package CX-One
Ver.4.@
The CX-One is a comprehensive software package that
integrates Support Software for OMRON PLCs and
components.
CX-One runs on the following OS.
OS: Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-
bit version) / Windows 8.1 (32-bit/64-bit version) /
Windows 10 (32-bit/64-bit version)
CX-One Version 4.@ includes CX-Integrator Ver.3.@.
For details, refer to the CX-One catalog (Cat. No. R134)
1 license *1 DVD *2 CXONE-AL01D-V4 --
Product name Specifications Model Standards
Number of
licenses
Media
Sysmac Studio
Standard Edition
Ver.1.@@
The Sysmac Studio is the software that provides an integrated
environment for setting, programming, debugging and
maintenance of machine automation controllers including the
NJ/NX-serie CPU Units, NY-series Industrial PC, EtherCAT
Slave, and the HMI.
Sysmac Studio runs on the following OS.
OS: Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-
bit version) / Windows 8.1 (32-bit/64-bit version) /
Windows 10 (32-bit/64-bit version) *1
The Sysmac Studio Standard Edition DVD includes Support
Software to set up EtherNet/IP Units, DeviceNet slaves, Serial
Communications Units, and Support Software for creating
screens on HMIs (CX-Designer).
Refer to your OMRON website for details.
--
(Media only)
Sysmac Studio
(32-bit) DVD
SYSMAC-SE200D --
--
(Media only)
Sysmac Studio
(64-bit) DVD
SYSMAC-SE200D-64 --
1 license *2--SYSMAC-SE201L --
Product Appearance Specifications Model Standards
DeviceNet Analyzer *1
Software
OS: Windows 2000 (Service Pack2 or higher)/XP
WS02-ALDC1-E --
NX-Server *1
DDE Edition
OS: Windows 2000 (Service Pack2 or higher)/XP
WS02-NXDC1-E --
Device Inspector *1
Software
OS: Windows 2000 (ServicePack2 or
higher)/XP
One-license version
Media: DVD
WS02-DIPC1-E
--
Site license WS02-DIPC1-ELXX
List of Models 169
Peripheral Devices
● Models for Standard Cables
Product Appearance Specifications Model
T-branch Tap for
1 branch line
Cable wiring direction: Toward top
Cable lock direction: From top
Connector screw direction: From top
Provided with 3 parallel clamp
connectors with screws
(XW4G-05C1-H1-D), standard
terminating resistor
DCN1-1NC
Cable wiring direction: Toward side
Cable screw direction: From top
Connector screw direction: From side
3 parallel connectors with screws
(XW4B-05C1-H1-D), standard
terminating resistor
DCN1-1C
Cable wiring direction: Toward top
Cable screw direction: From side
Connector screw direction: From top
DCN1-2C
Cable wiring direction: From side
Cable screw direction: From top
Connector screw direction: From top
3 vertical-type connectors with
screws (XW4B-05C1-V1R-D),
standard terminating resistor
DCN1-2R
T-branch Tap for
3 branch lines
Cable wiring direction: Toward top
Cable lock direction: From top
Connector screw direction: From top
Provided with 5 parallel clamp
connectors with screws
(XW4G-05C1-H1-D), standard
terminating resistor
DCN1-3NC
Cable wiring direction: Toward side
Cable screw direction: From top
Connector screw direction: From side
5 parallel connectors with screws
(XW4B-05C1-H1-D), standard
terminating resistor
DCN1-3C
Cable wiring direction: Toward top
Cable screw direction: From side
Connector screw direction: From top
DCN1-4C
Cable wiring direction: Toward side
Cable screw direction: From top
Connector screw direction: From top
5 vertical-type connectors with
screws (XW4B-05C1-V1R-D),
standard terminating resistor
DCN1-4R
Power Supply Tap 2 connectors, standard terminating resistor, fuse DCN1-1P
Connector
Parallel clamp connector with screws
(Connector insertion and wiring performed in the same direction)
XW4G-05C1-H1-D
Parallel multi-branching clamp connector with screws
(Connector insertion and wiring performed in same direction)
XW4G-05C4-TF-D
Parallel connector with screws
(Connector insertion and wiring performed in the same direction)
XW4B-05C1-H1-D
Parallel connector with screws
(Connector insertion and wiring performed in the same direction)
XW4B-05C4-T-D
Parallel, multi-branching connector with screws
(Connector insertion and wiring performed in the same direction)
XW4B-05C4-TF-D
Orthogonal connector with screws
(Connector insertion and wiring performed at a right angle)
XW4B-05C1-V1R-D
Special Cables
Thin cable
Length: 100 m
DCA1-5C10-B: Cable color: Blue
DCA1-5C10: Cable color: Grey
DCA1-5C10(-B)
Thick cable
Length: 100 m
DCA2-5C10-B: Cable color: Blue
DCA2-5C10: Cable color: Grey
DCA2-5C10(-B)
Terminal-block Terminator Resistance of 121 Ω DRS1-T
