18 Transistor Remote I/O Terminals DRT2-@D08(-1)/@D16(-1)
Transistor Remote I/O Terminals
DRT2-
@
D08(-1)/@D16(-1)
Allows I/O Expansion with
Transistor Terminals
• Wide variety of data, such as maintenance system data, can be collected
without affecting the productivity of the control system.
• Valuable information can be collected and managed through the
network, including information on the communications power supply
voltage levels, Unit wear and tear, and equipment operating information.
• Expansion via Expansion I/O Units
• With no communications baud rate settings required and detachable
terminal blocks, maintenance is easier.
Smart Slave Functions
*1. The operation time monitor cannot be used with the DRT2-@D08(-1).
*2. Expansion Units cannot be added with the DRT2-@D08(-1)or DRT2-MD16(-1).
Ordering Information
Expansion Units
One Expansion Unit can be added to each DRT2-ID16(-1)/-OD16(-1) or DRT2-ROS16 I/O Slave.
The following Expansion Units are available to enable flexible expansion with combinations for the required number of points.
Specifications I/O connections
Rated internal circuit
power supply voltage
Rated I/O power
supply voltage
Model
Inputs
NPN (+ common)
16 points
M3
Screw terminals
Supplied from the
communications
connector
24 VDC
DRT2-ID16
PNP (- common) DRT2-ID16-1
Outputs
NPN (- common) DRT2-OD16
PNP (+ common) DRT2-OD16-1
I/O
NPN (input: + common, output: - common)
Input: 8 points/
Output: 8 points
DRT2-MD16
PNP (input: - common, output: + common) DRT2-MD16-1
Inputs
NPN (+ common)
8 points
DRT2-ID08
PNP (- common) DRT2-ID08-1
Outputs
NPN (- common)
8 points
DRT2-OD08
PNP (+ common) DRT2-OD08-1
Model Number of I/O points
XWT-ID08 8-point inputs (NPN)
XWT-ID08-1 8-point inputs (PNP)
XWT-OD08 8-point outputs (NPN)
XWT-OD08-1 8-point outputs (PNP)
XWT-ID16 16-point inputs (NPN)
XWT-ID16-1 16-point inputs (PNP)
XWT-OD16 16-point outputs (NPN)
XWT-OD16-1 16-point outputs (PNP)
Power-ON inrush current protection (input or I/O only)
Operation time monitor (input and output only) *1
Contact operation counter Unit conduction time monitor
Total ON time monitor Unit comments Connected device comments
Network power supply voltage monitor I/O power supply monitor function Communications error log monitor
Input filter (input or I/O only)
Removable terminal block Communications speed auto-detection No need to wire Unit power supply
Expansion via Expansion I/O Units *2 Last maintenance date
Transistor Remote I/O Terminals DRT2-@D08(-1)/@D16(-1) 19
General Specifications
Input Specifications
● 8-point Inputs Terminals with Transistors
● 16-point Inputs Terminals with Transistors
● 8-point Inputs/8-point Outputs Terminals with
Transistors
Output Specifications
● 8-point Outputs Terminals with Transistors
● 16-point Outputs Terminals with Transistors
● 8-point Inputs/8-point Outputs Terminals with
Transistors
Communications power supply voltage 11 to 25 VDC
Unit power supply voltage Not required (Supplied from the communications connector.)
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
Communications power supply current
consumption
DRT2-ID08(-1) : 40 mA max. (24 VDC), 70 mA max. (11 VDC)
DRT2-OD08 : 40 mA max. (24 VDC), 60 mA max. (11 VDC)
DRT2-OD08-1 : 35 mA max. (24 VDC), 55 mA max. (11 VDC)
DRT2-ID16(-1) : 40 mA max. (24 VDC), 65 mA max. (11 VDC)
DRT2-OD16(-1) : 35 mA max. (24 VDC), 60 mA max. (11 VDC)
DRT2-MD16(-1) : 40 mA max. (24 VDC), 65 mA max. (11 VDC)
Dielectric strength 500 VAC (between isolated circuits)
Noise immunity Conforms to IEC61000-4-4, 2 kV (power line)
Vibration resistance
10 to 60 Hz, 0.7-mm double amplitude, 60 to 150 Hz, 50 m/s
2
for
80 min each in the X, Y, and Z directions
Shock resistance 150m/s
2
, 6 directions, 3 times each
Mounting method DIN 35 mm-track mounting
Screw tightening torque M3 (power, I/O terminal): 0.5 N·m
Ambient operating temperature –10°C to 55°C
Ambient operating humidity 25 to 85% (with no condensation)
Ambient storage temperature -25°C to 65°C
Weight
DRT2-ID08(-1)/OD08(-1) : 135 g max.
DRT2-MD16(-1) : 145 g max.
DRT2-ID16(-1)/OD16(-1) : 140 g max.
Item Model DRT2-ID08 DRT2-ID08-1
Internal I/O common NPN PNP
Number of I/O points 8 inputs
ON voltage
15 VDC min.
(between each input
terminal and V)
15 VDC min.
(between each input
terminal and G)
OFF voltage
5 VDC max.
(between each input
terminal and V)
5 VDC min.
(between each input
terminal and G)
OFF current 1.0 mA max.
Input current
6.0 mA max. per point at 24 VDC
3.0 mA max. per point at 17 VDC
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of points per common 8 per common
Item Model DRT2-ID16 DRT2-ID16-1
Internal I/O common NPN PNP
Number of I/O points 16 inputs
ON voltage
15 VDC min.
(between each input
terminal and V)
15 VDC min.
(between each input
terminal and G)
OFF voltage
5 VDC max.
(between each input
terminal and V)
5 VDC min.
(between each input
terminal and G)
OFF current 1.0 mA max.
Input current
6.0 mA max. per point at 24 VDC
3.0 mA max. per point at 17 VDC
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of points per common 16 per common
Item Model DRT2-MD16 DRT2-MD16-1
Internal I/O common NPN PNP
Number of I/O points 8 inputs
ON voltage
15 VDC min.
(between each input
terminal and V)
15 VDC min.
(between each input
terminal and G)
OFF voltage
5 VDC max.
(between each input
terminal and V)
5 VDC min.
(between each input
terminal and G)
OFF current 1.0 mA max.
Input current
6.0 mA max. per point at 24 VDC
3.0 mA max. per point at 17 VDC
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of points per common 8 per common
Item Model DRT2-OD08 DRT2-OD08-1
Internal I/O common NPN PNP
Number of I/O points 8 outputs
Rated output current 0.5 A per point, 4 A per common
Residual voltage
1.2 V max.
(0.5 A DC between
each output terminal
and G)
1.2 V max.
(0.5 A DC between
each output terminal
and V)
Leakage current 0.1 ms max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of points per common 8 per common
Item Model DRT2-OD16 DRT2-OD16-1
Internal I/O common NPN PNP
Number of I/O points 16 outputs
Rated output current 0.5 A per point, 4 A per common
Residual voltage
1.2 V max.
(0.5 A DC between
each output terminal
and G)
1.2 V max.
(0.5 A DC between
each output terminal
and V)
Leakage current 0.1 ms max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of points per common 16 per common
Item Model DRT2-MD16 DRT2-MD16-1
Internal I/O common NPN PNP
Number of I/O points 8 outputs
Rated output current 0.5 A per point, 4 A per common
Residual voltage
1.2 V max.
(0.5 A DC between
each output terminal
and G)
1.2 V max.
(0.5 A DC between
each output terminal
and V)
Leakage current 0.1 ms max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of points per common 8 per common
20 Transistor Remote I/O Terminals DRT2-@D08(-1)/@D16(-1)

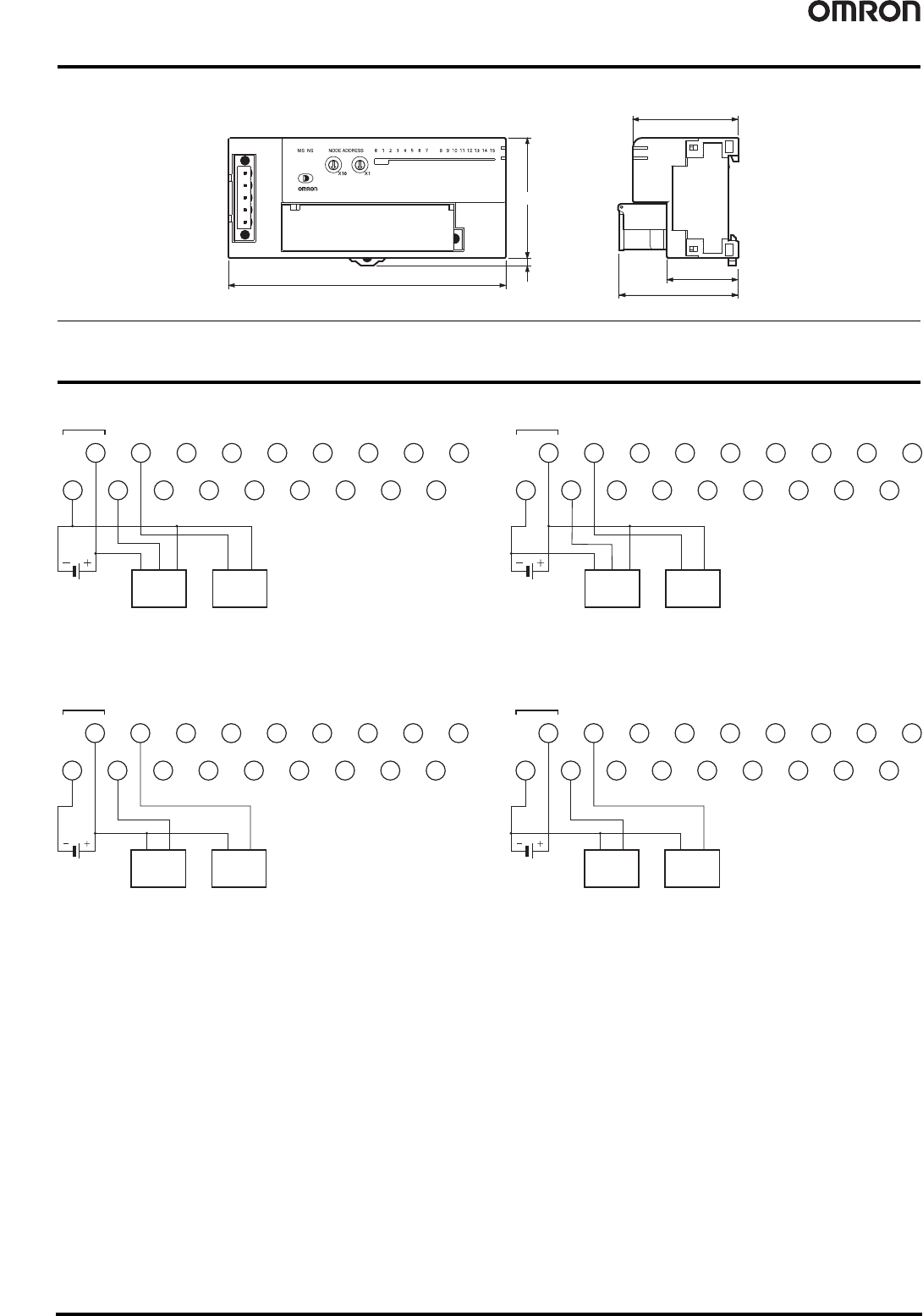

Dimensions (Unit: mm)
Wiring Diagrams
DRT2-ID08 (NPN) DRT2-ID08-1 (PNP)
DRT2-OD08 (NPN) DRT2-OD08-1 (PNP)
49.6
29.8
43.8
50
3.1
115
DRT2-ID16(-1)
DRT2-OD16(-1)
DRT2-ID08(-1)
DRT2-OD08(-1)
DRT2-MD16(-1)
NC
NC
NC
NC
NC
NC
NC
NC
V
10
1
11
3
12
5
13
7
14 15
G
02
3
4
4
6
56
24 VDC
16 17 18
789
12
Two-wire sensor
(Limit switch, etc.)
Three-wire sensor
with NPN output
(e.g., photoelectric
sensor or proximity sensor)
I/O power
supply
Brown
(red)
Black
(white)
Blue
(black)
Brown
(white)
Blue
(black)
NC
NC
NC
NC
NC
NC
NC
NC
V
10
1
11
3
12
5
13
7
14 15
G
02
3
4
4
6
56
24 VDC
16 17 18
789
12
Two-wire sensor
(Limit switch, etc.)
Three-wire sensor
with PNP output
(e.g., photoelectric
sensor or proximity sensor)
I/O power
supply
Brown
(red)
Black
(white)
Blue
(black)
Brown
(white)
Blue
(black)
I/O power
supply
NC
NC
NC
NC
NC
NC
NC
NC
V
10
1
11
3
12
5
13
7
14 15
G
02
3
4
4
6
56
24 VDC
16 17 18
789
12
Solenoid
valve, etc.
Solenoid
valve, etc.
NC
NC
NC
NC
NC
NC
NC
NC
V
10
1
11
3
12
5
13
7
14 15
G
02
3
4
4
6
56
24 VDC
16 17 18
789
12
I/O power
supply
Solenoid
valve, etc.
Solenoid
valve, etc.
