72 MULTIPLE I/O TERMINAL Series MULTIPLE I/O TERMINAL Series A MUL TIPLE I/O TERMINAL with a fle xible combination of nu merous versatile I/O Units ha ndles digital I/O , analog I/O , counter inpu ts, or relay outputs an…
71
MULTIPLE I/O TERMINAL Series
MULTIPLE I/O TERMINAL Series
........................................................................ 72
■ MULTIPLE I/O TERMINAL Configuration Example
Communications Unit....................................................................................... 73
DRT1-COM
Digital I/O Units................................................................................................ 74
GT1-@D16(-1)/@D16MX(-1)/@D16ML(-1)/@D32ML(-1)/@D16DS(-1)
Relay Output Units........................................................................................... 81
GT1-ROS16/ROP08/FOP08
Analog I/O Units............................................................................................... 83
GT1-AD/DA
Temperature Input Units.................................................................................. 85
GT1-TS04
@
72 MULTIPLE I/O TERMINAL Series
MULTIPLE I/O TERMINAL Series
A MULTIPLE I/O TERMINAL with a flexible combination of numerous versatile I/O Units handles digital I/O, analog I/O,
counter inputs, or relay outputs and boosts on-site productivity higher than ever. Using a MULTIPLE I/O TERMINAL, one
Slave (Communications Unit) can connect to a maximum of eight I/O Units to achieve control of a maximum of 1,024 I/O
points. (see Note below.)
* By using the DeviceNet Configurator (sold separately), control can be performed for up to 32,000 points for CJ1W-DRM21 and CS1W-DRM21-V1 DeviceNet Units, and 4,800
points for C200HX/HG/HE Master Units.
Note: The number of I/O points under control may be restricted by the application. Refer to the DeviceNet MULTIPLE I/O TERMINAL Operation Manual (W348) for details.
MULTIPLE I/O TERMINAL Configuration Example
Master Unit
(CS/CJ Series C200HX/HG/HE (-ZE),
C200HS Series *)
Terminal Extension Cable
Approx. 3 m (1 m between Units)
T-branch Tap
Digital I/O Units with
Terminal Blocks
Analog I/O Units
with Connectors
Analog I/O Units
with Terminal Blocks
Digital I/O Units
with Connectors
Communi-
cations Unit
DRT1-COM
GT1-ID/OD16(-1)
GT1-ROS16/
ROP08/FOP08
GT1-AD08MX
GT1-DA04MX
GT1-ID/OD16MX(-1)
GT1-AD04
GT1-DA04
Digital I/O Units
with Connectors
GT1-ID/OD16ML(-1)
GT1-ID/OD16DS(-1)
GT1-ID/OD32ML(-1)
Extension cable
can be used so the
mounting positions
of individual Units
can be flexible.
Maintenance of
parameter settings
can be performed
easily using the
Configurator.
The circuit
section is
detachable, so
wiring can be
maintained just
as it is.
GT1-DA04
Units can be
combined for flexible
numbers of I/O points
Also, in addition to input
and output, analog
and digital can be
combined.
The connector
method makes it
easy to remove and
install I/O devices
such as sensors.
Up to eight Units
can be connected
to a single
Communications
Unit (Slave).
Relay Output Units
GT1-TS04T
GT1-TS04P
Temperature
Input Units
GT1-TS04T
IN
Configurator
Ver. 2.@

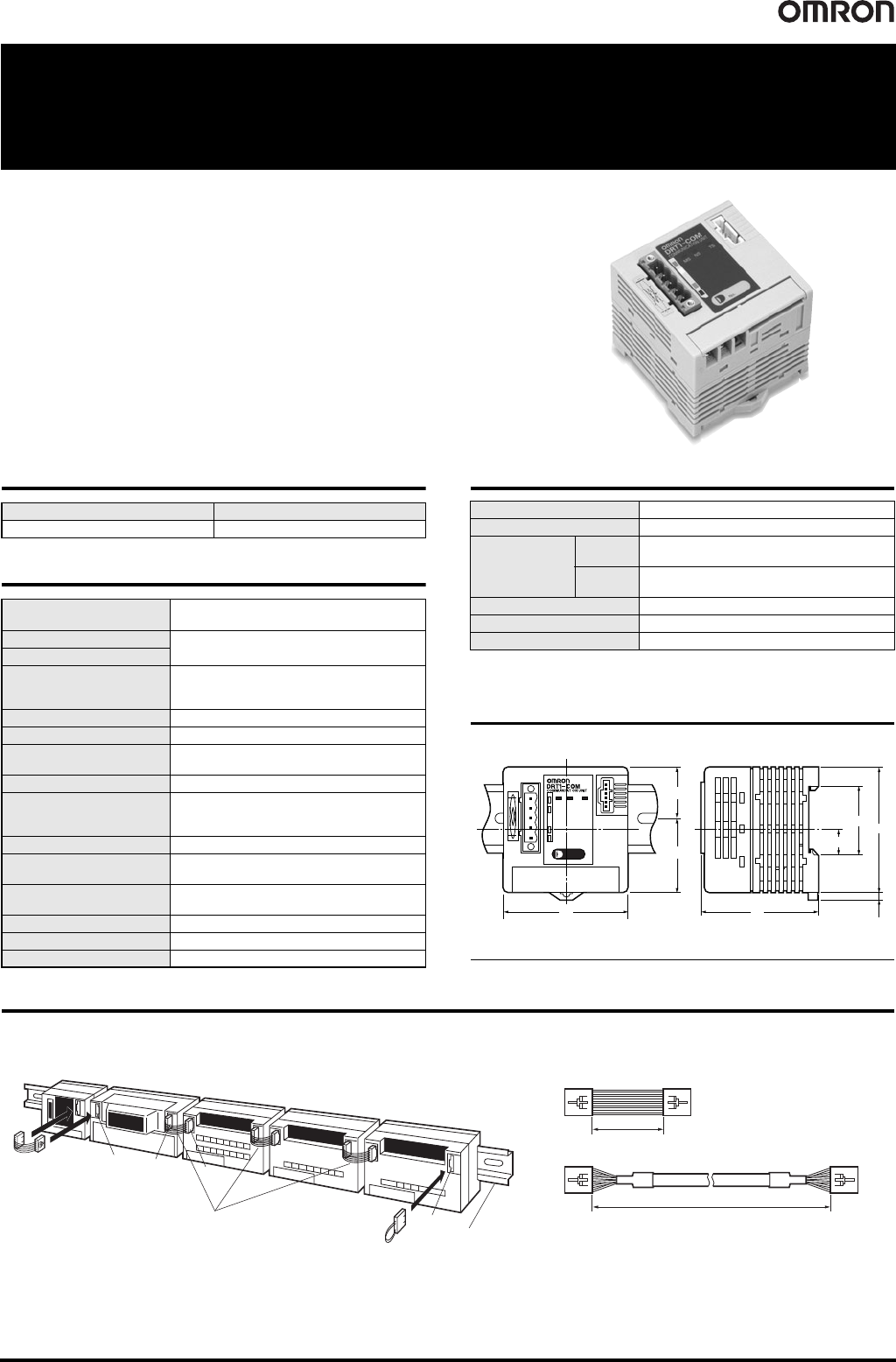

Communications Unit DRT1-COM 73
Communications Unit
DRT1-COM
Connects to a Total Maximum of Eight
Digital I/O, Analog I/O, and Relay Output
Units Compatible with MULTIPLE I/O
TERMINAL.
• Allows flexible combinations of I/O points.
• Covering a total cable length of 3 m.
• DIN track mounting.
Ordering Information
General Specifications
Specifications
* One cable is provided with each I/O Unit.
Note: The total current consumption for I/O Unit interfaces must not exceed 0.4 A.
Dimensions (Unit: mm)
DRT1-COM
Mounting and Connecting Units
● Mounting to DIN Track and Connecting I/O Unit Connecting Cable
Power supply voltage Model
24 VDC DRT1-COM
Communications power
supply voltage
11 to 25 VDC (supplied from the communications
connector)
Internal power supply voltage
20.4 to 26.4 VDC
(24 VDC +10%/-15%)
I/O power supply voltage
Current consumption
Communications: 30 mA max.
Internal circuit: 0.6 A at 24 VDC
(with max. I/O load)
Dielectric strength 500 VAC
Noise immunity Conforms to IEC61000-4-4, 2 kV (Power line)
Vibration resistance
10 to 150 Hz, 1.0-mm double amplitude or
70 m/s
2
Shock resistance 200 m/s
2
Mounting strength
No damage when 100 N pull load was applied in
all directions (10 N min. in the DIN track
direction)
Terminal strength No damage when 100 N pull load was applied
Screw tightening torque
0.3 to 0.5 N
·m
Phoenix connector: 0.25 to 0.3 N
·m
Ambient operating
temperature
-10°C to 55°C (with no icing or condensation)
Ambient operating humidity 25% to 85%
Ambient storage temperature -25°C to 65°C (with no icing or condensation)
Accessories End connector (one)
Connectable Units 8
Unit I/O points 1,024 max. (including inputs and outputs)
Communications
distance
Total
extension
3 m max.
Between
Units
1 m max. (40 mm max. with the standard cable
provided with the Unit) *
Dielectric strength 500 VAC for 1 min.
Mounting method DIN 35 mm-track mounting
Unit output power supply 0.4 A max. (see Note.)
65
4
12.6
27.6
37.4
64
65
35
Note: The Unit is shown with the end connector mounted in the above diagram.
Communications
Unit
DRT1-COM
Digital I/O Unit
GT1-ID16
I/O Unit Connecting Cable
Standard cable: 40 mm
GCN1-100: 1 m
(One cable is included with
each I/O Unit.)
Same I/O Unit Connecting Cable
as at left
End connector
(One is provided with the
Communications Unit.)
DIN Track
Digital I/O Unit
GT1-OD16MX
Analog Input Unit
GT1-AD08MX
Analog Output Unit
GT1-DA04MX
(1)
(1)
(2)
(2)
Note: The connecting cable for the I/O Unit is shown below.
Accessory Cable
GCN1-100 (Sold Separately)
40 mm
1 m
