Peripheral Devices 155

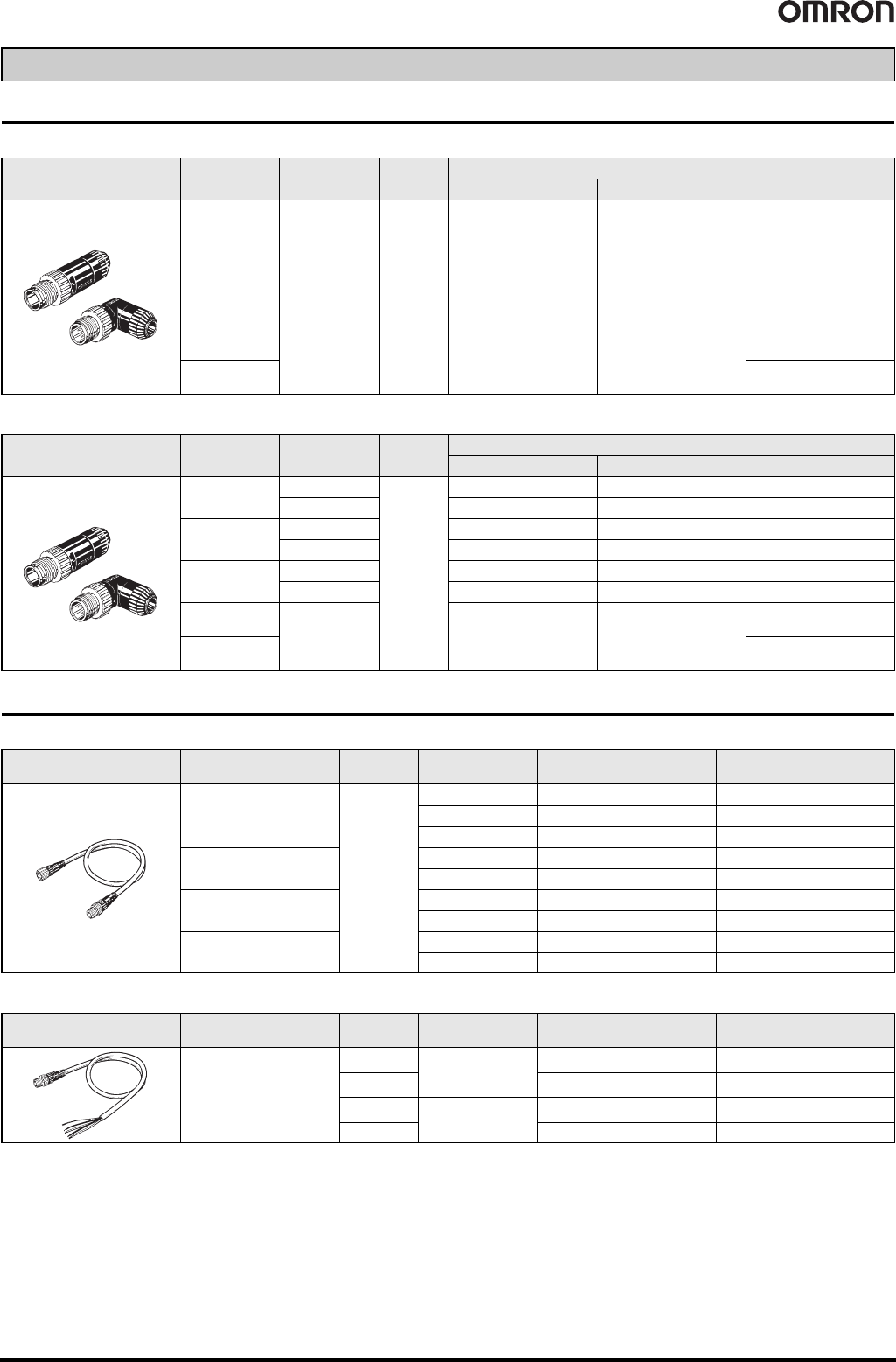

Applicable Connectors
● Assembly Connector Plugs for M12 Microconnectors
● Smart click Assembly Connector Plugs for M12 Microconnectors
Applicable Cables with Connectors
● Cables with Connector (Socket/Plug) on Both Ends (M12 Microconnectors for Power Supply and I/O)
● Cables with connector plug on One End (M12 Microconnectors for I/O)
I/O Peripheral Devices
Appearance
Applicable cable
diameter (mm)
Cable direction
Number of
poles
Connection method
Crimping Soldering Screws
For 6 dia.
(5 to 6 dia.)
Straight
4
XS2G-D4C1 XS2G-D421 XS2G-D4S1
L-shaped -- XS2G-D422 XS2G-D4S2
For 4 dia.
(4 to 5 dia.)
Straight XS2G-D4C3 XS2G-D423 XS2G-D4S3
L-shaped -- XS2G-D424 XS2G-D4S4
For 3 dia.
(3 to 4 dia.)
Straight XS2G-D4C5 XS2G-D425 XS2G-D4S5
L-shaped -- XS2G-D426 XS2G-D4S6
For 7 dia.
(6 to 7 dia.)
Straight -- --
XS2G-D4S9
For 8 dia.
(7 to 8 dia.)
XS2G-D4S7
Appearance
Applicable cable
diameter (mm)
Cable direction
Number of
poles
Connection method
Crimping Soldering Screws
For 6 dia.
(5 to 6 dia.)
Straight
4
XS5G-D4C1 XS5G-D421 XS5G-D4S1
L-shaped -- XS5G-D422 XS5G-D4S2
For 4 dia.
(4 to 5 dia.)
Straight XS5G-D4C3 XS5G-D423 XS5G-D4S3
L-shaped -- XS5G-D424 XS5G-D4S4
For 3 dia.
(3 to 4 dia.)
Straight XS5G-D4C5 XS5G-D425 XS5G-D4S5
L-shaped -- XS5G-D426 XS5G-D4S6
For 7 dia.
(6 to 7 dia.)
Straight -- --
XS5G-D4S9
For 8 dia.
(7 to 8 dia.)
XS5G-D4S7
Appearance Cable direction
Number of
core wires
Cable length (m) Screw-type Connectors Smart click Connectors
Straight/Straight
4
1
XS2W-D421-C81-F XS5W-D421-C81-F
2
XS2W-D421-D81-F XS5W-D421-D81-F
5
XS2W-D421-G81-F XS5W-D421-G81-F
L-shaped/L-shaped
2
XS2W-D422-D81-F XS5W-D422-D81-F
5
XS2W-D422-G81-F XS5W-D422-G81-F
Straight/L-shaped
2
XS2W-D423-D81-F XS5W-D423-D81-F
5
XS2W-D423-G81-F XS5W-D423-G81-F
L-shaped/Straight
2
XS2W-D424-D81-F XS5W-D424-D81-F
5
XS2W-D424-G81-F XS5W-D424-G81-F
Appearance Cable direction
Number of
core wires
Cable length (m) Screw-type Connectors Smart click Connectors
Straight
3
0.3
XS2H-D421-AC0-F XS5H-D421-AC0-F
4 XS2H-D421-A80-F XS5H-D421-A80-F
3
1
XS2H-D421-CC0-F XS5H-D421-CC0-F
4 XS2H-D421-C80-F XS5H-D421-C80-F
156 Peripheral Devices

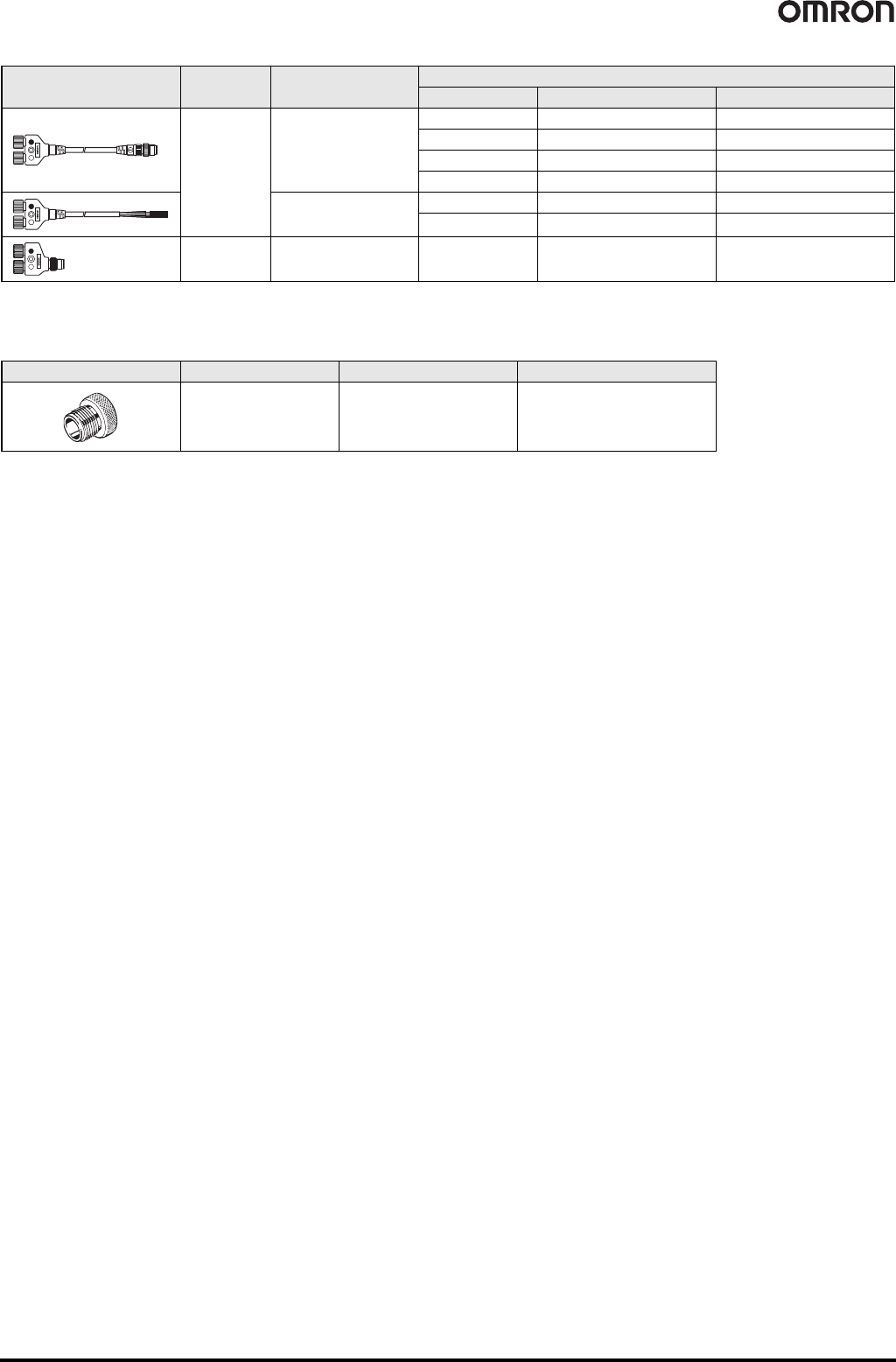

● Plugs and Sockets on Y-shaped Joints (M12 Microconnectors for I/O)
Note 1: Use is supported only for Environment-resistive Terminals (DRT2-@D16C(L)(-1)).
Note 2: Connecting two XS2G assembly connectors (screw-type) side by side to the Y-branch connectors (CN1 and CN2) of a Y-shaped joint is not possible. Use crimped terminals
or soldered terminals.
● Connector Cover for M12 Microconnectors
Appearance Cable Connector
DC models
Cable length (m) Screw-type Connectors Smart click Connectors
With cable
Connectors on both ends
0.5
XS2R-D426-B11-F XS5R-D426-B11-F
1
XS2R-D426-C11-F XS5R-D426-C11-F
2
XS2R-D426-D11-F XS5R-D426-D11-F
3
XS2R-D426-E11-F XS5R-D426-E11-F
Connector on one end
2
XS2R-D426-D10-F XS5R-D426-D10-F
5
XS2R-D426-G10-F XS5R-D426-G10-F
Without cable Connectors on both ends -- XS2R-D426-1 XS5R-D426-1
Appearance Product Model Application
Waterproof cover (socket) XS2Z-22 For covering unused I/O connectors
