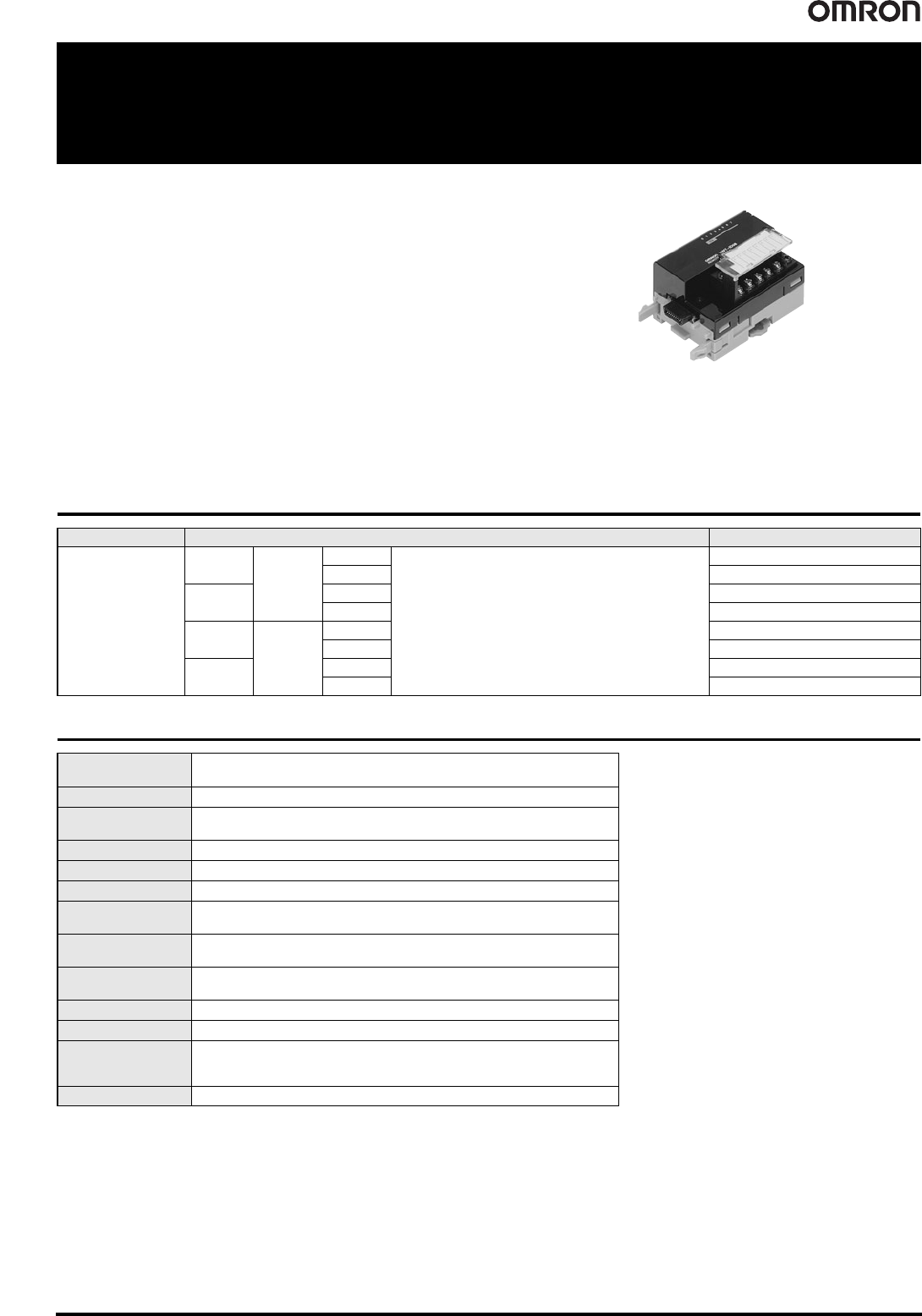

22 Expansion Units XWT-ID08(-1)/OD08(-1)/ID16(-1)/OD16(-1)
Expansion Units
XWT-ID08(-1)/OD08(-1)/ID16(-1)/OD16(-1)
Expansion I/O Units make expansion
easy!
One Expansion Unit can be added to each Digital I/O Slave Unit.
This makes a variety of I/O combinations possible, such as 16
inputs + 8 outputs, extending the range of possible system
configurations.
• Flexible expansion with many different combinations.
• Detachable I/O terminal block enables faster startup time and improved
maintainability.
• Collect various preventive maintenance data required to improve productivity, as
information on equipment deterioration due to aging and equipment operating time data.
Ordering Information
General Specifications
Name Specifications Model
Expansion Units
Inputs
8 points
NPN
One Expansion Unit can be mounted per
DRT2-ID16(-1)/-OD16(-1) or DRT2-ROS16
Remote I/O Terminal.
XWT-ID08
PNP
XWT-ID08-1
Outputs
NPN
XWT-OD08
PNP
XWT-OD08-1
Inputs
16 points
NPN
XWT-ID16
PNP
XWT-ID16-1
Outputs
NPN
XWT-OD16
PNP
XWT-OD16-1
I/O power supply
voltage
20.4 to 26.4 VDC (24 VDC -15%/+10%)
Noise immunity Conforms to IEC 61000-4-4 2 kV (power line).
Vibration resistance
10 to 60 Hz with double-amplitude of 0.7 mm, 60 to 150 Hz and 50 m/s
2
in X, Y, and Z
directions for 80 min each
Shock resistance 150 m/s
2
(3 times each in 6 directions on 3 axes)
Dielectric strength 500 VAC (between isolated circuits)
Insulation resistance 20 M min. (between isolated circuits)
Ambient operating
temperature
-10°C to 55°C
Ambient operating
humidity
25% to 85% (with no condensation)
Ambient operating
atmosphere
No corrosive gases
Storage temperature -25°C to 65°C
Storage humidity 25% to 85% (with no condensation)
Tightening torque for
the terminal block
screws
M3 terminal screws: 0.5 N
·m
M3 mounting screws: 0.5 N
·m
Mounting method Mounted on 35-mm DIN Track

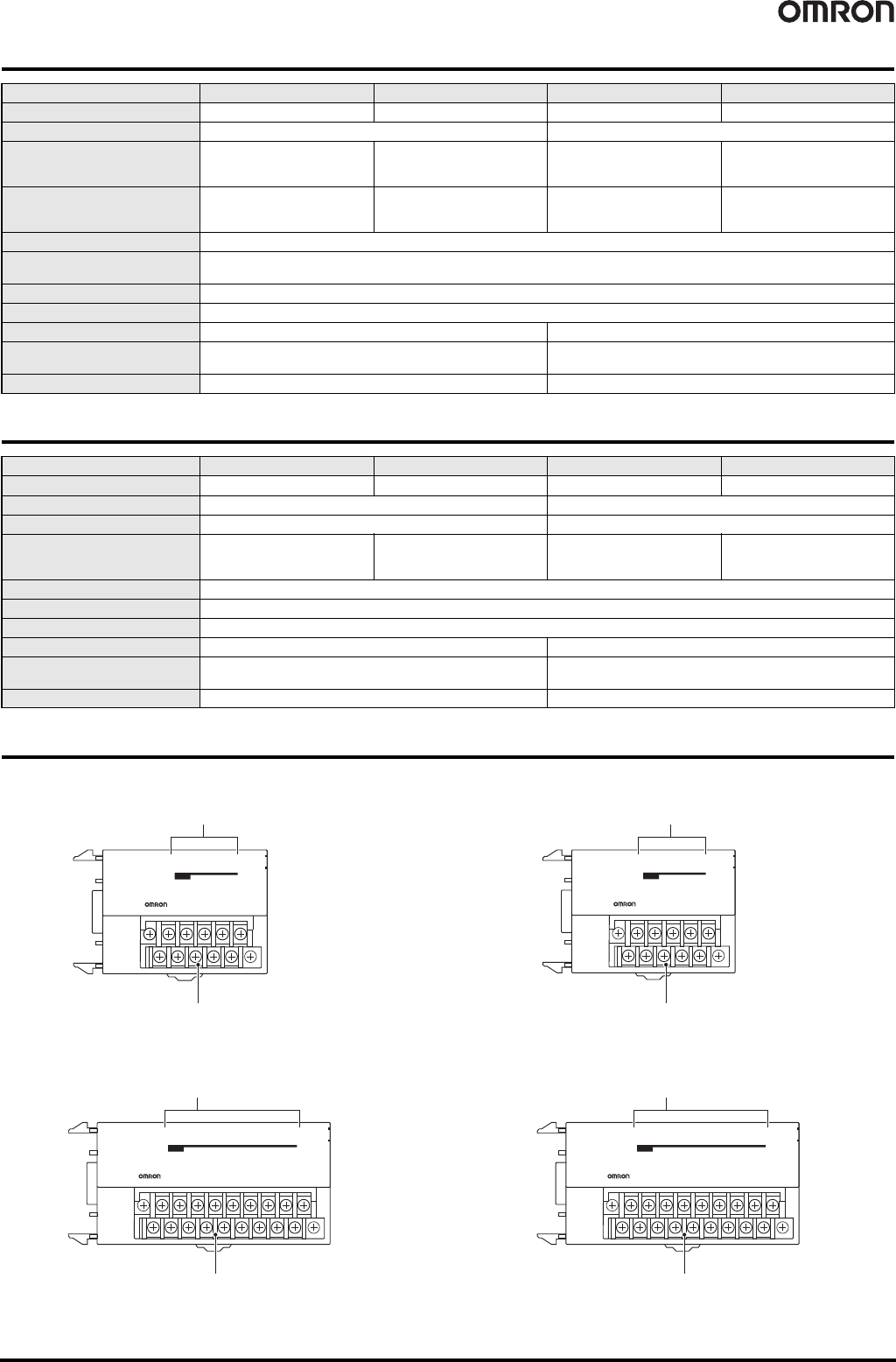

Expansion Units XWT-ID08(-1)/OD08(-1)/ID16(-1)/OD16(-1) 23
Input Specifications
Output Specifications
Nomenclature and Functions
XWT-ID08/XWT-ID08-1 XWT-OD08/XWT-OD08-1
XWT-ID16/XWT-ID16-1 XWT-OD16/XWT-OD16-1
Item Model XWT-ID08 XWT-ID08-1 XWT-ID16 XWT-ID16-1
Internal I/O common NPN PNP NPN PNP
I/O points 8 inputs 16 inputs
ON voltage
15 VDC min.
(between each input terminal
and the V terminal)
15 VDC min.
(between each input terminal
and the G terminal)
15 VDC min.
(between each input terminal
and the V terminal)
15 VDC min.
(between each input terminal
and the G terminal)
OFF voltage
5 VDC max.
(between each input terminal
and the V terminal)
5 VDC max.
(between each input terminal
and the G terminal)
5 VDC max.
(between each input terminal
and the V terminal)
5 VDC max.
(between each input terminal
and the G terminal)
OFF current 1.0 mA max.
Input current
At 24 VDC: 6.0 mA max./input
At 17 VDC: 3.0 mA max./input
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per common 8 per common 16 per common
Communications power supply
current consumption
5 mA max. (24 VDC), 5 mA max. (11 VDC) 10 mA max. (24 VDC), 15 mA max. (11 VDC)
Weight 80 g max. 120 g max.
Item Model XWT-OD08 XWT-OD08-1 XWT-OD16 XWT-OD16-1
Internal I/O common NPN PNP NPN PNP
I/O points 8 outputs 16 outputs
Rated output current 0.5 A/output, 2.0 A/common 0.5 A/output, 4.0 A/common
Residual voltage
1.2 V max.
(0.5 A DC, between each output
terminal and the G terminal)
1.2 V max.
(0.5 A DC, between each output
terminal and the V terminal)
1.2 V max.
(0.5 A DC, between each output
terminal and the G terminal)
1.2 V max.
(0.5 A DC, between each output
terminal and the V terminal)
Leakage current 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per common 8 per common 16 per common
Communications power supply
current consumption
5 mA max. (24 VDC), 5 mA max. (11 VDC) 10 mA max. (24 VDC), 15 mA max. (11 VDC)
Weight 80 g max. 120 g max.
XWT-ID08
REMOTE TERMINAL
IN
01234567
Operation indicators
Indicates input status of each terminal.
Removable terminal block
01234567
XWT-OD08
REMOTE TERMINAL
OUT
Operation indicators
Indicates output status of each terminal.
Removable terminal block
0123456789
151413121110
XWT-ID16
REMOTE TERMINAL
IN
Operation indicators
Indicates input status of each terminal.
Removable terminal block
0123456789
151413121110
XWT-OD16
REMOTE TERMINAL
OUT
Operation indicators
Indicates output status of each terminal.
Removable terminal block
24 Expansion Units XWT-ID08(-1)/OD08(-1)/ID16(-1)/OD16(-1)

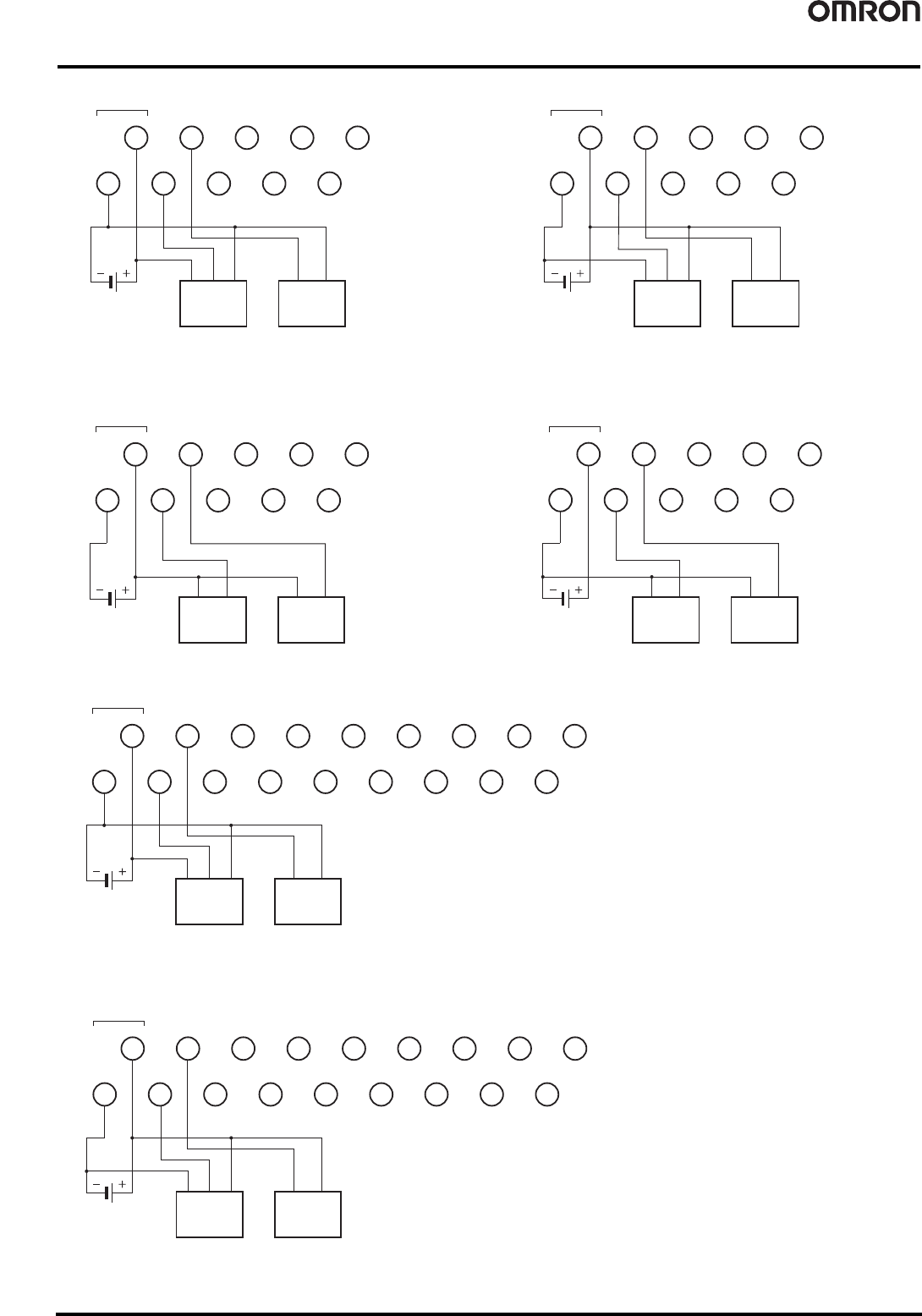

Wiring Diagrams
XWT-ID08 (NPN) XWT-ID08-1 (PNP)
XWT-OD08 (NPN) XWT-OD08-1 (PNP)
XWT-ID16 (NPN)
XWT-ID16-1 (PNP)
6 7 8 9 10
321 4 5
24 VDC
I/O
power supply
Two-wire sensor
(Limit switch, etc.)
Three-wire sensor with
NPN output
(e.g., photoelectric sensor
or proximity sensor)
Brown
(red)
Black
(white)
Blue
(black)
Brown
(white)
Blue
(black)
V1357
G0246
V1357
G0246
1 2 3 4 5
24 VDC
Two-wire sensor
(Limit switch, etc.)
Three-wire sensor with
PNP output
(e.g., photoelectric sensor
or proximity sensor)
6 7 8 9 10
Brown
(red)
Black
(white)
Brown
(white)
Blue
(black)
Blue
(black)
I/O
power supply
6 7 8 9 10
321 4 5
24 VDC
Solenoid valve etc. Solenoid valve etc.
I/O
power supply
V1357
G0246
6 7 8 9 10
321 4 5
24 VDC
Solenoid valve etc. Solenoid valve etc.
I/O
power supply
V1357
G0246
10 11 12 13 14 15
321 4 5 6
16 17 18
7 8 9
24 VDC
Two-wire sensor
(Limit switch, etc.)
Three-wire sensor with
NPN output
(e.g., photoelectric sensor
or proximity sensor)
Brown
(red)
Black
(white)
Blue
(black)
Brown
(white)
Blue
(black)
I/O power
supply
V1357
G0246
9
8
11
10
13
12
15
14
V1357
G0246
9
8
11
10
13
12
15
14
Two-wire sensor
(Limit switch, etc.)
Three-wire sensor
with PNP output
(e.g., photoelectric sensor
or proximity sensor)
10 11 12 13 14 15
321 4 5 6
16 17 18
7 8 9
24 VDC
Brown
(red)
Black
(white)
Brown
(white)
Blue
(black)
Blue
(black)
I/O power
supply
