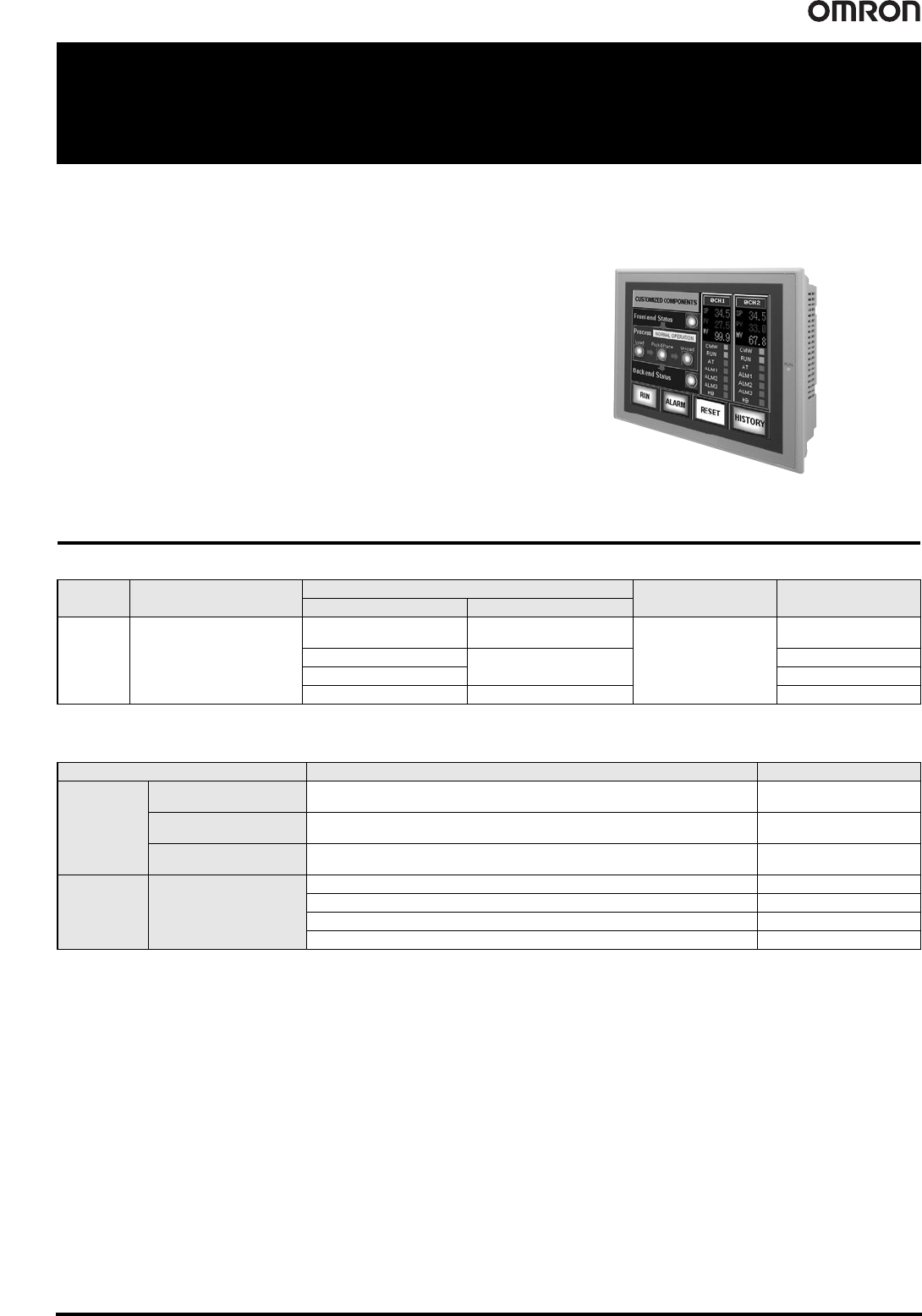

Programmable Controllers NSJ Series

NSJ

-T@@1(B)-G5D

The NSJ-series Controller Completely Integrates

a PT and Controller into One Package

• A PT, Controller CPU Unit, and DeviceNet Master Unit are completely

integrated.

• Super space-saving design.

• Easily transfer screens and ladder programming using a commercially

available USB cable.

• No cable connections or complicated communications settings required.

Start operation simply by turning ON the power supply.

• Equipped with troubleshooter for the Controller and DeviceNet Master as a

standard feature.

Ordering Information

■ Controllers

* (B) in the model number indicates that the color of the Controller frame is black.

■ Accessories and Expansion Units

Name Controller Section

Display Section

Ethernet port Model *

Display device Resolution

NSJ Series

No. of I/O points: 1,280

Program capacity: 60K steps

Data memory capacity:

128K words (DM: 32K words,

EM: 32K words x 3 banks)

5.7-inch color High-luminance

TFT LCD

320 X 240 (QVGA)

10/100Base-T

NSJ5-TQ11(B)-G5D

8.4-inch color TFT LCD

640 X 480 (VGA)

NSJ8-TV01(B)-G5D

10.4-inch color TFT LCD NSJ10-TV01(B)-G5D

12.1-inch color TFT LCD 800 X 600 (SVGA) NSJ12-TS01(B)-G5D

Name Specifications Model

Expansion

Units

NSJ Controller Link Unit

For increasing the number of Controller Link ports

Same as the CJ1W-CLK21-V1 Controller Link Unit for the CJ Series.

NSJW-CLK21-V1

NSJ Ethernet Unit

For increasing the number of Ethernet ports

Same as the CJ1W-ETN21 Ethernet Unit for the CJ Series.

NSJW-ETN21

NSJ I/O Control Unit

For adding CJ-series Expansion Racks.

Same as the CJ1W-IC101 I/O Control Unit for the CJ Series.

NSJW-IC101

Options

Memory Cards

(for both Controller Section

and Display Section)

Flash memory: 128 MB HMC-EF183

Flash memory: 256 MB HMC-EF283

Flash memory: 512 MB HMC-EF583

Memory Card Adapter HMC-AP001

Programmable Controllers NSJ Series NSJ@-@@@@(B)-G5D/M3D 5

■ Support Software

* Multi licenses are available for the CX-One (3, 10, 30, or 50 licenses).

Specifications

* Japanese, English, Chinese (traditional and simplified), Spanish, Italian, German, and French.

Product name

Specifications

Model Standards

Number of

licenses

Media

CX-One FA Integrated Tool

Package Ver. 4.@

The CX-One is a package that integrates the Support Software for

OMRON PLCs and components. CX-One runs on the following OS.

Windows 7 (32-bit/64-bit version) /

Windows 8 (32-bit/64-bit version) / Windows 8.1 (32-bit/64-bit version) /

Windows 10 (32-bit/64-bit version)

CX-One Ver.4.@ includes CX-Designer Ver.3.@

For details, refer to the CX-One catalog (Cat. No. R134).

1 licence *

DVD

CXONE-AL01D-V4 ---

Model

Built-in ports Display Section

USB port

(Slave: For

Support

Software)

RS-232C port

DeviceNet

port

Ethernet port

USB port

(Host: For

printer)

Display color Field of view Language

Standard

screen data

capacity

NSJ5-TQ11-G5D

1 port

3 ports

• Display Section:

Serial ports A, B

• Controller Section:

Serial port

1 port 10/100Base-T

None

256 colors

(BMP/JPEG,

32,768 colors

for images)

Right/left: ±70°,

To p : 7 0 °,

Bottom: 50°

Eight

languages

60 MB

NSJ5-TQ11B-G5D

NSJ8-TV01-G5D

1 port

Right/left: ±65°,

To p : 5 0 °,

Bottom: 60°

NSJ8-TV01B-G5D

NSJ10-TV01-G5D Right/left: ±60°,

To p : 3 5 °,

Bottom: 65°

NSJ10-TV01B-G5D

NSJ12-TS01-G5D Right/left: ±60°,

To p : 4 5 °,

Bottom: 75°

NSJ12-TS01B-G5D

6 Programmable Controllers NSJ Series NSJ@-@@@@(B)-G5D/M3D

Dimensions (Unit: mm)

With NSJW-CLK21-V1 Mounted

140 241

323

264

315

15.5

(min.)

(max.)

7.5

73.3

(NSJ10, 12 max. dimension)

227

89.3

(With Expansion Unit mounted)

1.1

(90.4)

249

No Expansion Unit

43.6

32.2

69.1

NSJ12-TS01(B)-G5D

NSJ10-TV01(B)-G5D

No Expansion UnitWith NSJW-CLK21-V1 Mounted

177

180

15.5

232

(min.)

(max.)

45.7

8.4

64.5

55.6

165 188

73.3

(NSJ8 max. dimension)

7.5

89.3

(With Expansion Unit mounted)

1.1

(90.4)

NSJ8-TV01(B)-G5D

142

15.5

145

195

206.3

153.3

(min.)

(max.)

53.8

(NSJ5 max. dimension)

130.5

1.1

(96.1)

(With Expansion Unit mounted)

6.5

81.5 77

23.7

44.55

25.4

No Expansion UnitWith NSJW-CLK21-V1 Mounted

NSJ5-TQ11(B)-G5D
