102 DeviceNet-compliant Digital Controllers E5AR-DRT/E5ER-DRT
● E5ER
Note: Do not use the output from an Inverter for the power supply.
*1. When ordering, specify the power supply. Different models are used for 100 to 240 VAC and 24 VDC/AC.
*2. Multi-input. Switch between temperature and analog input using the input type switch.
Basic insulation is provided between the power supply and input terminals and between the power supply and output terminals.
DeviceNet Communications Specifications
Item *1 Power supply voltage 100 to 240 VAC, 50/60 Hz 24 VAC, 50/60 Hz or 24 VDC
Allowed voltage variance range 85% to 110% of power supply voltage
Power consumption 17 VA max. (under maximum load) 11 VA/7 W max. (under maximum load)
Sensor input *2
Thermocouples: K, J, T, E, L, U, N, R, S, B, W
Platinum resistance temperature input sensors: Pt100
Current inputs: 4 to 20 mA DC, 0 to 20 mA DC (including remote SP input)
Voltage inputs: 1 to 5 VDC, 0 to 5 VDC, 0 to 10 VDC (including remote SP input)
(Input impedance: 150 using current input, approx. 1 M using voltage input)
Control
output
Voltage (pulse) output 12 V DC, 40 mA max., with short-circuit protection circuit
Current output
0 to 20 mA DC/4 to 20 mA DC, 500 load max. (including transfer output)
(Resolution: Approx. 54,000 at 0 to 20 mA DC, approx. 43,000 at 4 to 20 mA DC)
Relay output
Position proportional control type (open, closed)
NO-SPST 250 VAC 1 A (including inrush current)
Auxiliary output
Transistor outputs, Maximum load voltage: 30 VDC, maximum load current: 50 mA
Residual voltage: 1.5 V max., leakage current: 0.4 mA max.
Potentiometer input 100 to 2.5 k
Event
input
Contact Input ON: 1 k max., OFF: 100 k max.
Non-contact Input ON: Residual voltage 1.5 V max., OFF: Leakage current 0.1 mA max.
Short-circuit current: Approx. 4 mA
Remote SP input See Sensor inputs.
Transfer output See Control outputs.
Control method Control method Advanced PID or ON/OFF
Setting method Digital setting by front panel keys, setting by communications
Indication method
7-segment digital display and LED indicators
Character heights: PV 9.5 mm, SV 7.2 mm, MV 7.2 mm
Other functions Varies by model
Ambient operating temperature -10°C to 55°C (no condensation or icing), 3 year warranty: -10°C to 50°C (no condensation or icing)
Ambient operating humidity 25% to 85%
Storage temperature -25°C to 65°C (no condensation or icing)
Communications protocol Conforms to DeviceNet
Communi-
cations
functions
Remote I/O
communi-
cations
• Master-Slave connection (polling, bit-strobe,
COS, cyclic)
• Conforms to DeviceNet communications
standards.
I/O
allocations
• Allocate any I/O data using the Configurator.
• Allocate any data, such parameters specific to the
DeviceNet and the Digital Indicator variable area.
• Input area: 2 blocks, 100 words max.
• Output area: 1 block, 100 words max.
(The first word in the area is always allocated for
the Output Execution Enabled Flags.)
Message
Communi-
cations
function
• Explicit message communications
• CompoWay/F communications commands can be
sent (commands are sent as explicit messages).
Connection form
Combination of multi-drop method and T-branch
connections (for trunk and drop lines)
Baud rate
DeviceNet: 500, 250, or 125 kbps (automatic
follow-up)
Communications media
Special 5-wire cable (2 signal lines, 2 power supply
lines, 1 shield line)
Communications
distance
The values in parentheses are for Thin Cable.
Power supply
voltage
DeviceNet power supply: 24 VDC (internal circuit)
Allowable power
supply voltage
range
DeviceNet power supply: 11 to 25 VDC
Current
consumption
50 mA max. (24 VDC)
Maximum number
of nodes
64 (DeviceNet Configurator is counted as one node when
connected)
Maximum number
of slaves
63
Error control
checks
CRC errors
DeviceNet power
supply
Supplied from DeviceNet communications connector
Baud rate
Network length
(max.)
Branch line
length
Total branch
line length
500 kbps
100 m max.
(100 m max.)
6 m max. 39 m max.
250 kbps
250 m max.
(100 m max.)
6 m max. 78 m max.
125 kbps
500 m max.
(100 m max.)
6 m max. 156 m max.
DeviceNet-compliant Digital Controllers E5AR-DRT/E5ER-DRT 103
Dimensions (Unit: mm)
■ Digital Controllers
E5AR
E5ER
120 min.
92
+0.8
0
92
+0.8
0
110 min.
111
Crimp terminal size: M3
Mounting Bracket (Accessory)
95
Terminal Cover (Sold separately: E53-COV14)
96
96
2
(121.5)
11.5
99
91
91
• Mounting panel thickness: 1 to 8 mm
• Do not mount Controllers side-to-side. Maintain the installation
interval.
• Do not allow the rated ambient temperature to be exceeded
when mounting more than one Controller.
Panel Cutout Dimensions
Terminal Cover
(Sold separately: E53-COV15)
120 min.
45
+0.6
0
92
+0.8
0
Terminal Cover (Sold separately: E53-COV15)
60 min.
96
48
111
95
2
(121.5)
11.5
99
91
44
Mounting Bracket (Accessory)
• Mounting panel thickness: 1 to 8 mm
• Do not mount Controllers side-to-side. Maintain the installation
interval.
• Do not allow the rated ambient temperature to be exceeded
when mounting more than one Controller.
Panel Cutout Dimensions

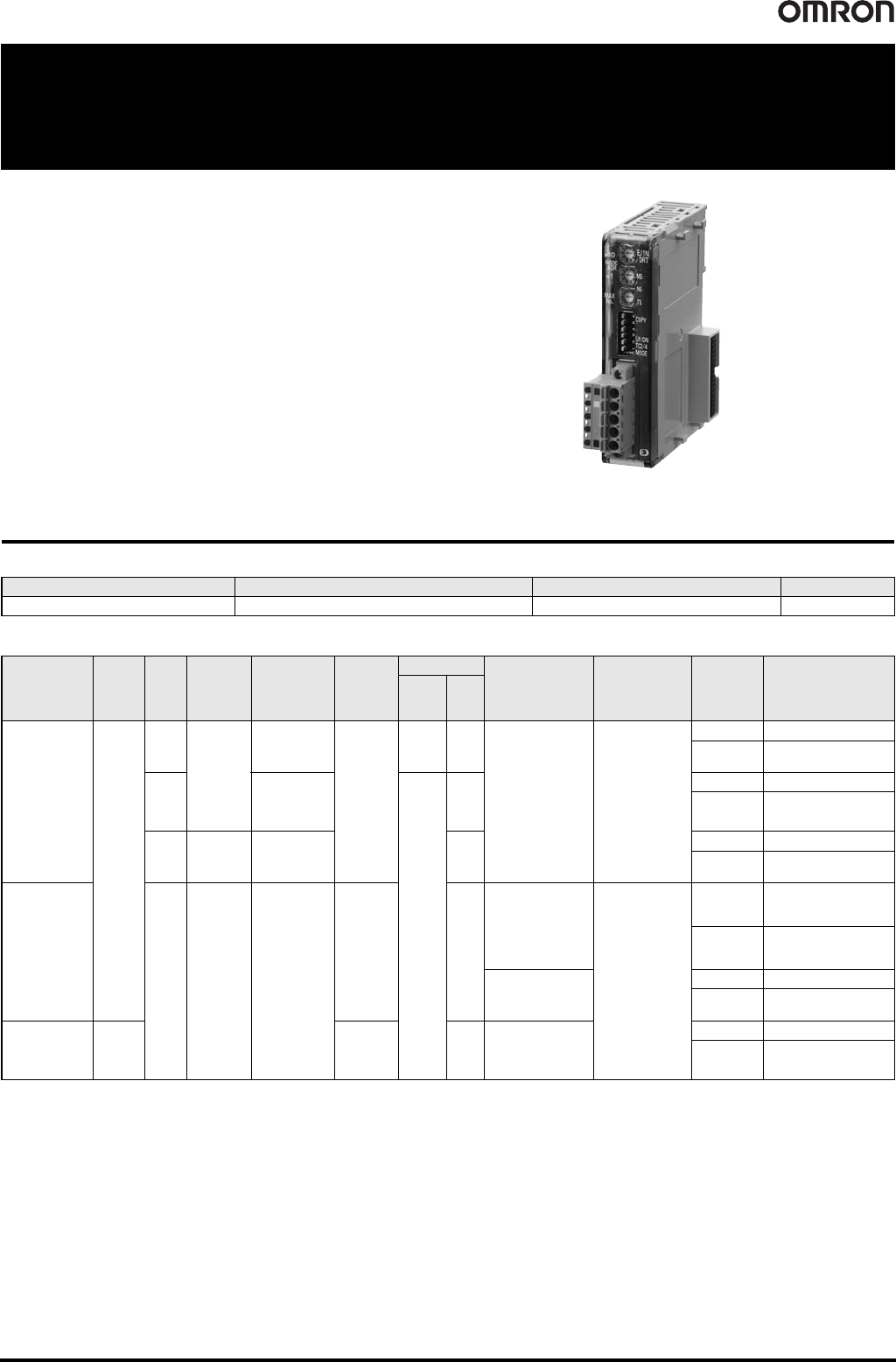

104 DeviceNet Communications Unit for Modular Temperature Controller EJ1-DRT
DeviceNet Communications Unit for Modular Temperature Controller
EJ1-DRT
Easily Perform Temperature Control
for Multiple Channels.
• Up to 16 Temperature Controllers can be connected to a single DeviceNet
Communications Unit.
• Sharing target values and present values using remote I/O communications
without special programming reduces development work for communications.
• Flexibly allocate I/O memory using either fixed allocation addresses for simple
allocations or user-set allocations from the Configurator.
• The EJ1 parameters can be backed up for easy resetting of parameters when the
EJ1 is replaced.
• Explicit messages be sent from the PLC to easily read or write any parameter.
Ordering Information
● DeviceNet Communications Unit
● Modular Temperature Controller
*1. An End Unit is always required for connection to a Basic Unit or an HFU. An HFU cannot operate without a Basic Unit. External communications cannot be performed when
using a Basic Unit only.
*2. For heating/cooling control applications, control outputs 3 and 4 on the 2-point models are used for the cooling or heating control outputs.
On the 4-point models, heating/cooling control is performed for the two input points.
*3. When using the heater burnout alarm, purchase a Current Transformer (E54-CT1 or E54-CT3) separately.
Name Specifications Model Safety standards
HFU (DeviceNet communications) *1 External input power supply voltage: 24 VDC EJ1N-HFUB-DRT UC, CE
Unit Name
Power
supply
voltage
No. of
control
points
Control
outputs
1 and 2
Control
outputs
3 and 4
Auxiliary
output
Functions
Communications
functions
Input type Terminal Model
Heater
burnout
alarm
Event
inputs
Basic Unit
(temperature
control)
*1
24 VDC
supplied
from the
End Unit
2
Voltage
output:
2 points (for
SSR drive)
*
2
Transistor
output: 2 points
(sinking)
None
2 *32
G3ZA connection
port: RS-485
From End Unit:
Port A or port B:
RS-485
Thermocouple,
platinum
resistance
thermometer,
analog voltage,
and analog
current selectable
for each channel.
M3 terminal EJ1N-TC2A-QNHB
Screw-less
clamp
EJ1N-TC2B-QNHB
4
Voltage output:
2 points
(for SSR drive)
*
2
None
None
M3 terminal EJ1N-TC4A-QQ
Screw-less
clamp
EJ1N-TC4B-QQ
2
Current
output:
2 points
Transistor
output: 2 points
(sinking)
2
M3 terminal EJ1N-TC2A-CNB
Screw-less
clamp
EJ1N-TC2B-CNB
HFU with
Programless
Communications
*1
None None None
Transistor
output:
4 points
(sinking)
4
Port C: RS-485 or
RS-232C
selectable.
From End Unit: Port
A: RS-485
No input
M3 terminal EJ1N-HFUA-NFLK
Screw-less
clamp
EJ1N-HFUB-NFLK
Port C: RS-422
From End Unit:
Port A: RS-485
M3 terminal EJ1N-HFUA-NFL2
Screw-less
clamp
EJ1N-HFUB-NFL2
End Unit
*1
24 VDC
Transistor
output:
2 points
(sinking)
None
Port A or B:
RS-485
Connector: Port A
M3 terminal EJ1C-EDUA-NFLK
Detachable
connector
EJ1C-EDUC-NFLK
