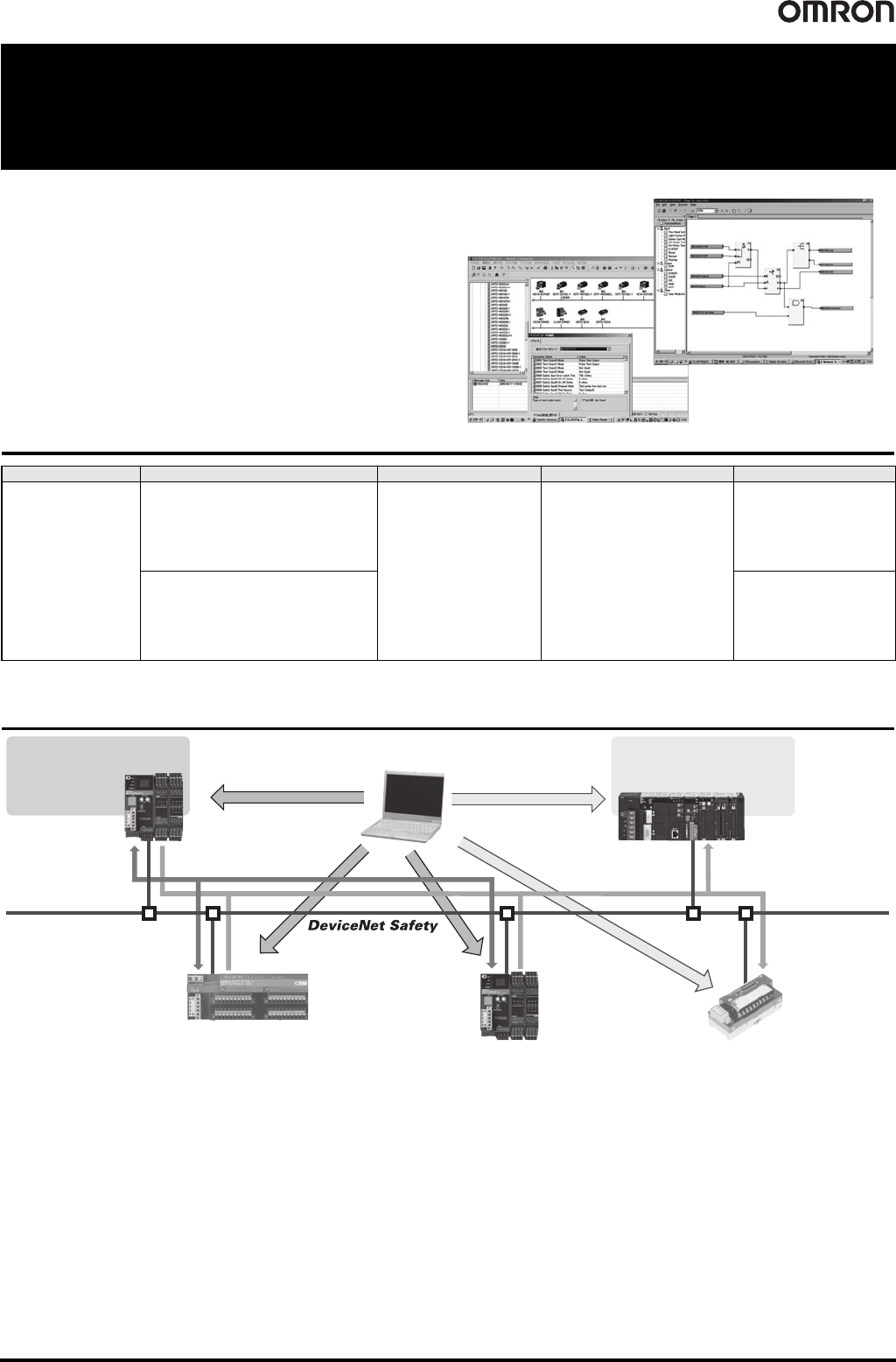

Network Configurator WS02-CFSC1-E 125
Network Configurator
WS02-CFSC1-E
Programming Software for
Creating Safety Circuits.
• Performs settings for the Safety Network Controllers and Safety
I/O Terminals.
• Provides safety circuit programming functions.
• Provides monitoring functions for safety circuits.
• Includes DeviceNet Configurator functions.
Ordering Information
Note: Consult your OMRON representative for the license not listed above.
* The applicable OS depends on the version. Refer to general specifications for details.
System Configuration
Name Components Applicable computer Applicable OS * Model
Network Configurator
Installation disc (CD-ROM: 1 license)
IBM PC/AT or compatible
Windows XP Service Pack 3
(32-bit edition)
Windows Vista Service Pack 2
(32-bit edition, 64-bit edition)
Windows 7
(32-bit edition, 64-bit edition)
Windows 8
(32-bit edition, 64-bit edition)
Windows 8.1
(32-bit edition, 64-bit edition)
Windows 10
(32-bit edition, 64-bit edition)
WS02-CFSC1-EV3
Upgrade disc (CD-ROM: 1 license) WS02-CFSC1-EV3-UP
Standard PLC and Master
Safety I/O Terminal
Safety Network Controller
Standard Slave
Safety Network
Controller
Network Configurator
Safety Configuration Standard configuration
Safety communications
Standard
communications
Standard Slave functionSafety Master function
Standard Slave functionSafety Slave function
Standard Slave function
Safety Slave function
Safety Control Using the Safety
Network Controller
• Safety I/O
communications
Standard PLC control and monitoring
• Standard I/O communications
• Explicit message communications
126 Network Configurator WS02-CFSC1-E
General Specifications
Note 1: PC cannot be put into a standby state with the NE1A series connected via USB cable.
2: DeviceNet interface card does not conform to 64-bit operating system.
3: One or more USB port is required on a communications port of the maintenance tool.
4: Windows is a registered trademark of Microsoft.
*1. Final order entry date: The end of March, 2020
Safety Precautions
●
Be sure to read the following operation manual for precautions and other details required for correct use of the Safety Network
Controller.
CIP Safety on DeviceNet Safety Network Configurator Operation Manual
(Cat. No. Z905)
Unit Versions and Network Configurator Versions
Network Configurator version 2.0@ or higher must be used when using a NE1A-SCPU01-V1 or NE1A-SCPU02 Safety Logic Controller with unit version 2.0.
The following table shows the relationship between unit versions and Network Configurator versions.
❍ : Applicable, ✕: Not applicable
*1. It can be used as unit version 1.0.
Note 1: Users who use Network Configurator version 1.5@ or earlier can upgrade to version 1.6@ at no charge.
2: When using Network Configurator version 1.6@, there are no operational differences in the NE1A-SCPU01-V1 and NE1A-SCPU02 Safety Logic Controllers that derive
from the unit version.
Item Overview
OS
Japanese or English version
■ Ver. 2.2@ or earlier
Windows 2000 Professional (Service Pack 4 or later)
Windows XP (Service Pack 2 or later, except for 64-bit version)
Windows Vista (Service Pack 1 or later, except for 64-bit version)
■ Ver. 3.30 or later
Windows XP (Service Pack 3 or later, except for 64-bit version)
Windows Vista (Service Pack 2 or later)
Windows 7
■ Ver. 3.4 or later
Windows XP Service Pack 3 (32-bit edition)
Windows Vista Service Pack 2 (32-bit edition, 64-bit edition)
Windows 7 (32-bit edition, 64-bit edition)
Windows 8 (32-bit edition, 64-bit edition)
Windows 8.1 (32-bit edition, 64-bit edition)
Windows 10 (32-bit edition, 64-bit edition)
Note: Administrator rights are required for installation.
Main unit Personal computer with processor recommended by Microsoft
Memory Memory capacity recommended by Microsoft
Hard disk drive At least 200 MB of hard disk space
Monitor SVGA (800 x 600 resolution) or higher with 256 colors minimum
Disk device CD-ROM drive
Mouse Windows-supported mouse or other pointing devices
Communications port (Note)
One of the following communications port is required:
• USB port: When using a USB port (USB 1.1) of NE1A-SCPU series or NE0A series to connect online
• Ethernet port: When using Ethernet to connect online
• DeviceNet interface card (3G8F7-DRM21 or 3G8E2-DRM21-V1 *1): When using DeviceNet to connect online
Model
Network Configurator
Ver. 1.3@ Ver. 1.5@ Ver. 1.6@ Ver. 2.0@/2.1@ Ver.2.2@ Ver.3.3@
NE1A-SCPU01
Pre-Ver. 1.0
❍❍❍❍❍❍
NE1A-SCPU01-V1
Unit version 1.0
✕ ✕❍❍❍❍
NE1A-SCPU02
Unit version 1.0
✕ ✕❍❍❍❍
NE1A-SCPU01-V1
Unit version 2.0
✕✕ ❍ (*1) ❍❍❍
NE1A-SCPU02
Unit version 2.0
✕✕ ❍ (*1) ❍❍❍
