Equipment drift may occur as a function of time and
environment; check with equipment manufacturer for proper
calibration frequency.
4.2 EBW, RIE, and SET2DIL Apparatus
EBW, RIE, and
SET2DIL utilize a TDR measurement system which
be
composed of a step generator, high-speed sampling oscillo-
scope, and all the necessary accessories for connecting the
TDR unit to the test specimen depicted in Figure 4-3. IPC-
2141 provides a short discussion of the TDR system architec-
ture, system considerations, and the TDR measurement
process.
4.3 SPP Apparatus
SPP utilizes a TDR measurement sys-
tem with the addition of one more sampling output head and
impulse forming networks placed between the TDR Sample
head and on probe. This type of setup comprises a TDT sys-
tem as shown in Figure 4-4.
Three general probing solutions may be used. These include:
microprobes, SMA connectors, and handheld probes. Each of
these methods embodies a test structure(s) in near proximity
and on the same printed board layer.
4.4 Measurement System Requirements
4.4.1 System Calibration
Follow the TDR instrument
manufacturer’s recommendation for the frequency of factory
calibration. TDR system ‘‘field’’ checks are to be performed at
regular intervals to ensure proper operation of the test sys-
tembetween the less regular factory calibrations. Field checks
are required for the following reasons:
a) TDR instrument specifications vary with temperature.
b) TDR instrument specifications vary with time (drift).
c) TDR instrument specifications vary due to minor ESD dam-
age.
d) TDR instrument factory calibration may not include auxiliary
components (e.g., cables, probes, etc.).
TDR system field checks should also be performed after a
change of any system component (such as, cable, probes,
etc.). Ensure that the TDR instrument has been operating for
at least 30 minutes prior to any field check or test measure-
ment procedure. Use proper ESD control methods to avoid
damage to the TDR instrument in all field check and test
IPC-25512-4-3
IPC-25512-4-4
Number
2.5.5.12
Subject
Test Methods to Determine the Amount of Signal Loss on
Printed Boards
Date
07/12
Revision
A
IPC-TM-650
Note:
Figure
4-4
SPP
TDT/IFF
Measurement
Components
Page
9
of
24
EBW requirements agreed upon between customer and ven-
dor.
4.4.5.2 RIE Risetime
The rise time (10%-90%) for RIE
be 250 ps or as agreed upon between vendor and cus-
tomer with an open tip of the probe as illustrated in Figure 4-5.
4.4.5.3 SPP Risetime
The rise time (10%-90%) for SPP
be 11 to 35 ps or less at the open tip of the probe or
cable connector as illustrated in Figure 4-5. SPP has an addi-
tional requirement of an impulse forming network to be
located between the TDR head and the test probe.
4.4.5.4 SET2DIL Risetime
The rise time (10-90%) for
SET2DIL
be <35 ps at the open tip of the probe or cable
connector as illustrated in Figure 4-5.
4.4.6 TDR Impedance
The impedance of the TDR unit
should be 50 Ω with an impedance uncertainty less than or
equal to ± 0.5 Ω.
4.4.7 TDR System Calibration
Follow the TDR instrument
manufacturer’s recommendation for the frequency of factory
calibration. Since RIE is related to the ratio of loss, field cali-
bration reverts to insuring proper results from calibration stan-
dards.
4.4.8 SPP Impulse Forming Network Requirement
The
pulse width at the output of the IFN observed at the probe tip
be a minimum of 20 ps. The recommendation is to have
a 20 ps to 60 ps pulse width detected in TDT through the
measurement set-up on typical line lengths used in the test
coupon.
4.4.9 Printed Board Connectors
The TDR cable connec-
tion
utilize a ‘‘SMA,’’ 3.50 mm, or 2.92 mm connectors
at their measurement ports. It is recommended that cable
connections be tightened with a torque wrench to follow
specifications, unless otherwise specified by the manufacturer
of the connector or cable.
Three general probing solutions may be utilized to perform the
SPP extraction: microprobe pads, SMA connectors, and
handheld probes. Surface-mounted SMAs, as shown in Fig-
ure 4-6, are recommended for SPP. They may be either
bolted or slip-fitted into the alignment holes as explained ear-
lier. The bolt-down specification for a Molex SMA style con-
nector, part number 73251-1850, is shown in Figure 4-6.
4.4.10 TDR Cabling
All test cables meet the follow-
ing minimum specifications:
a) Coaxial with a 50 ±1 Ω characteristic impedance
b) 2.92 mm, 3.50 mm, or SMA connectors
c) Max cable insertion loss ≤2.50 dB at 65 GHz, 50 GHz,
40 GHz, or 26.5 GHz, respectively
d) Probing insertion loss ≤0.33 dB at 65 GHz, 50 GHz,
40 GHz, or 26.5 GHz, respectively

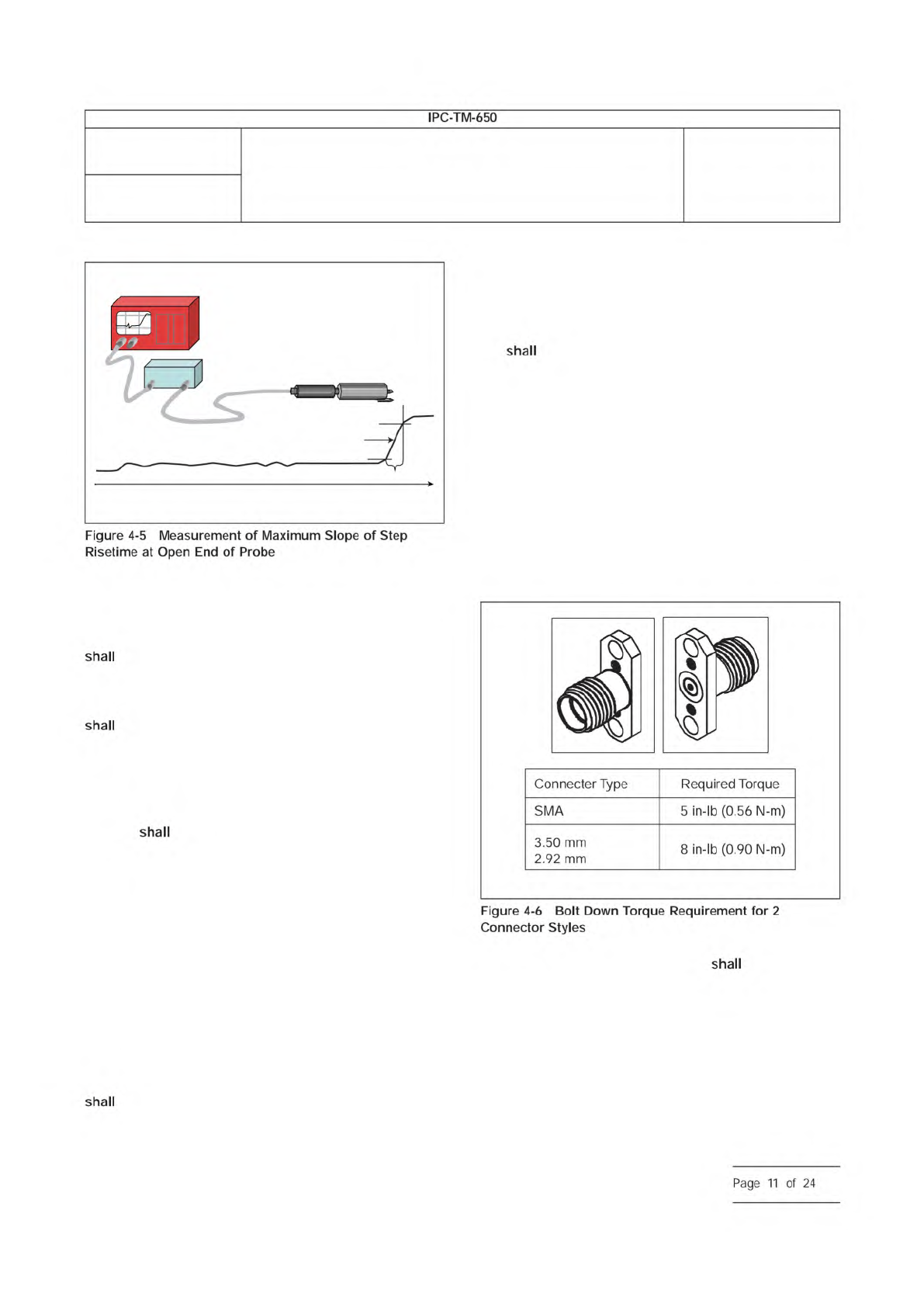

IPC-25512-4-5
TDR Instrument
probe
SIU
Maximum
risetime
Rise time
Time
IPC-25512-4-6
Number
2.5.5.12
Subject
Test Methods to Determine the Amount of Signal Loss on
Printed Boards
Date
07/12
Revision
A
IPC-TM-650
—
Figure
4-5
Measurement
of
Maximum
Slope
of
Step
Risetime
at
Open
End
of
Probe
shall
shall
shall
shall
Connecter
Type
Required
Torque
SMA
5
in-lb
(0.56
N-m)
3.50
mm
2.92
mm
8
in-lb
(0.90
N-m)
Figure
4-6
Bolt
Down
Torque
Requirement
for
2
Connector
Styles
shall
Page
11
of
24
4.4.11 TDR ESD Protection
TDR equipment pro-
vide ESD protection commensurate with the test environment.
It is recommended that samples be grounded to remove any
residual static to protect against static discharge with in the
test environments.
Static can be built up on samples prior to test and can dam-
age the sampling heads in the TDR/TDT equipment. There-
fore, it is recommended that ESD protection be used. Such
protection must be supplied internally to the TDR system.
Samples should be grounded to remove any residual static
and/or passed through some type of deionization device prior
to testing. This can be done by shorting each line to ground
with a simple connection between one end of the lines and
the instrument ground. Keeping the relative humidity in the
test area between 45% and 55% may minimize the buildup of
static. Operators are always required to have a grounding
strap around one wrist having a 1 MΩ resistor in series with it.
Special waxing can be used on the lab floor to prevent body
charge build-up. Always use a grounded, conductive table
mat. Always wear a heel strap. Always ground the center con-
ductor of a test cable before making a connection to static-
sensitive equipment.
4.5 SPP Test Apparatus
4.5.1 Other SPP Equipment Requirements
An LCR
meter is required that can measure capacitance at 1 MHz.
4.5.2 SPP Software
The following software is required for
implementation of the SPP technique:
a) Gamma-Z software for signal processing or equivalent
b) 2D field solver such as CZ2D, which can be downloaded
from: www.alphaworks.ibm.com/tech/gammazandcz2d,
or equivalent
4.6 FD Test Apparatus
The measurement equipment
needed includes a VNA, cabling, a probing solution, and a
calibration structure and calibration coefficients that are
acquired from the probe or connector manufacturer. The
probing solution should match the test sample chosen from
the above described samples. High performance connectors
and cables are recommended in performing VNA measure-
ments. Optionally, a TDT system may be used in place of a
VNA to acquire frequency domain attenuation and loss data.
5 Procedures
5.1 EBW Measurements Procedure
5.1.1 Measurement Process
This procedure will measure
the maximum slope of the rise time of the combined measure-
ment system and DUT and determine a loss factor. Recom-
mended resolution is 4000 points with a horizontal scale of
200 ps/div.
Probe the interconnect (see Figure 5-1) and measure
the maximum slope of the step response in Megavolts/second
(e.g., 430 Megavolts/second). The maximum slope may be
directly acquired from TDR equipment with that capability.
Report the Loss Factor at the test system bandwidth
(as measured within 4.4.5.1) (e.g., 430 Megavolts/second @
14.5 GHz).
5.2 RIE Measurement Procedures
Figure 5-2 summa-
rizes the RIE measurement procedure.
The RIE method utilizes a comparison between a reference
loss (line) measurement and a test conductor (line) measure-
ment. The reference measurement may be a calibration stan-
dard or short length of conductor in the neighborhood and on
the same layer as the conductor to be measured.
5.2.1 TDR – Open or Unterminated Line Requirement
The RIE method requires a measurement of lines where one
end is a probe launch and the other end is left unterminated
or open. The probe injects a fast step at the launch point in
much the same manner specified in IPC-TM-650, Method
2.5.5.7. The injected step causes a wave to propagate down
the line; most of the wave is reflected by the open end of the
line and travels back to the source where it is measured as the
superposition of the incident wave and all the reflections.
