IPC-TM-650
TEST
METHODS
MANUAL
1
Scope
This
method
is
used
to
determine
warp
and
fill
thread
count
in
materials
containing
combustible
fibers.
2
Applicable
Documents
None
3
Test
Specimen
The
specimen
may
be
of
any
convenient
size
greater
than
51
mm
x
51
mm.
4
Equipment
4.1
Glass
pick,
ruler,
pointer
or
other
suitable
form
of
count¬
ing
device
4.2
Microscope
5
Procedure
5.1
Yarn
Warp
Place
the
sample
as
flat
as
possible,
with¬
out
tension
on
a
smooth
horizontal
surface.
The
actual
num¬
ber
of
warp
yarns
shall
be
counted
in
25
mm
of
cloth
width.
5.2
Yarn
Filling
The
number
of
yams
per
25
mm
in
the
fill¬
ing
direction
shall
be
determined
as
in
5.1
.
5.3
Evaluation
of
Test
When
the
warp
direction
is
known,
report
the
number
of
yarns
per
25
mm
as
“Ax
B,“
where
A
and
B
are
the
number
of
warp
and
fill
yarns
per
25
mm
respectively.
When
the
warp
direction
is
not
known,
report
the
number
of
yarns
per
25
mm
as
where
A
is
the
number
of
yarns
per
25
mm
in
either
direction
and
B
is
the
number
of
yarns
in
the
perpendicular
direction.

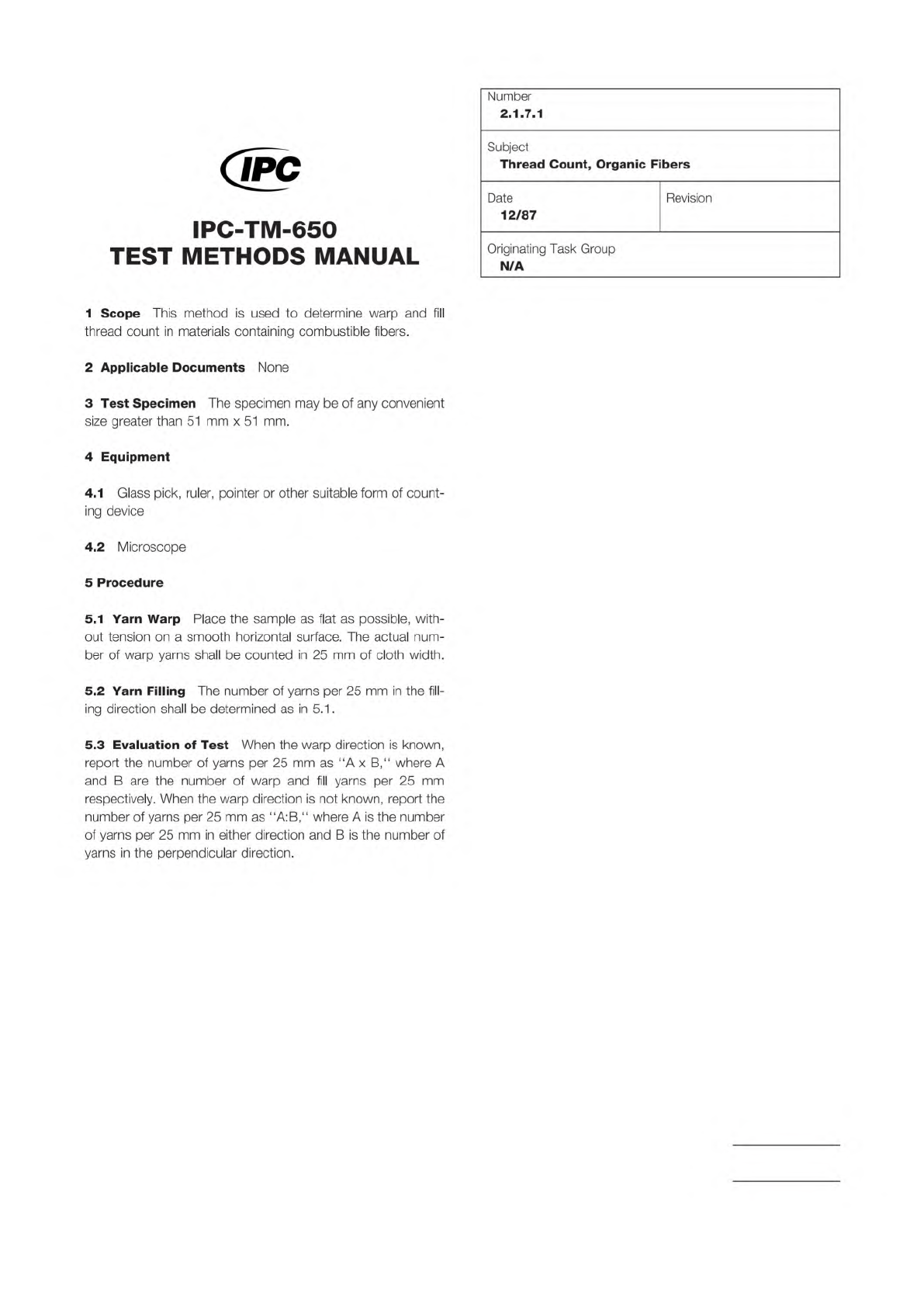

Number
2.1.7.1
Subject
Thread
Count,
Organic
Fibers
Date
Revision
12/87
Originating
Task
Group
N/A
The Institute for Interconnecting and Packaging Electronic Circuits
2215 Sanders Road • Northbrook, IL 60062-6135
Material in this Test Methods Manual was voluntarily established by Technical Committees of the IPC. This material is advisory only
and its use or adaptation is entirely voluntary. IPC disclaims all liability of any kind as to the use, application, or adaptation of this
material. Users are also wholly responsible for protecting themselves against all claims or liabilities for patent infringement.
Equipment referenced is for the convenience of the user and does not imply endorsement by the IPC.
Page 1 of 1
IPC-TM-650
TEST
METHODS
MANUAL
1
.0
Scope
1.1
This
method
describes
the
procedure
required
to
exam¬
ine
materials
and/or
finished
product
for
workmanship,
which
is
the
general
quality
of
the
goods
other
than
as
specified
by
the
applicable
standard.
2
.0
Applicable
Documents
3
.0
Test
Specimens
3.1
Any
piece
of
a
lot
is
subject
to
examination.
Generally,
those
specimens
prepared
for
inspection
and/or
testing
for
specific
properties
may
be
used
to
determine
workmanship.
4
.0
Apparatus
or
Material
4.1
Referee
optical
device
-
10X
magnification.
5
.0
Procedure
Number

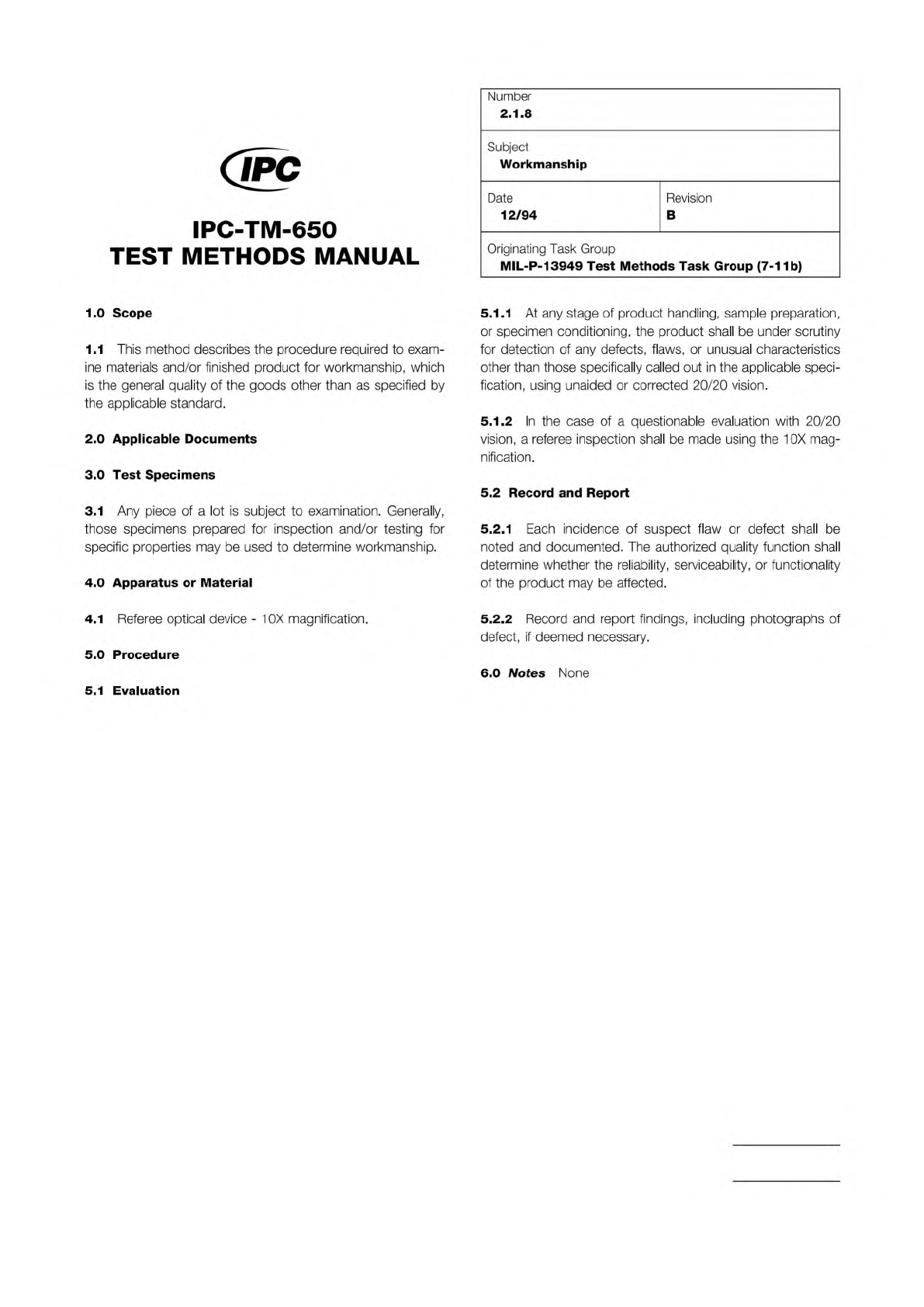

2.1.8
Subject
Workmanship
Date
Revision
12/94
B
Originating
Task
Group
MIL-P-13949
Test
Methods
Task
Group
(7-1
1b)
5.1.1
At
any
stage
of
product
handling,
sample
preparation,
or
specimen
conditioning,
the
product
shall
be
under
scrutiny
for
detection
of
any
defects,
flaws,
or
unusual
characteristics
other
than
those
specifically
called
out
in
the
applicable
speci¬
fication,
using
unaided
or
corrected
20/20
vision.
5.1.2
In
the
case
of
a
questionable
evaluation
with
20/20
vision,
a
referee
inspection
shall
be
made
using
the
10X
mag¬
nification.
5.2
Record
and
Report
5.2.1
Each
incidence
of
suspect
flaw
or
defect
shall
be
noted
and
documented.
The
authorized
quality
function
shall
determine
whether
the
reliability,
serviceability,
or
functionality
of
the
product
may
be
affected.
5.2.2
Record
and
report
findings,
including
photographs
of
defect,
if
deemed
necessary.
5.1
Evaluation
6.0
Notes
None
The Institute for Interconnecting and Packaging Electronic Circuits
2215 Sanders Road • Northbrook, IL 60062-6135
Material in this Test Methods Manual was voluntarily established by Technical Committees of the IPC. This material is advisory only
and its use or adaptation is entirely voluntary. IPC disclaims all liability of any kind as to the use, application, or adaptation of this
material. Users are also wholly responsible for protecting themselves against all claims or liabilities for patent infringement.
Equipment referenced is for the convenience of the user and does not imply endorsement by the IPC.
Page 1 of 1
IPC-TM-650
TEST
METHODS
MANUAL
1
.0
Scope
To
visually
locate,
and
by
feel,
evaluate
surface
scratches
during
visual
inspection.
If
more
exacting
data
is
required
for
referee
evaluations
of
microsectioning
per
IPC-TM-650,
Method
2.1
.1
shall
be
used.
2
.0
Applicable
Documents
None.
3
.0
Test
Specimen
Any
qualified
submitted
sheet(s)
or
cut
to
size
panel(s)
or
periodic
quality
conformance
specimens.
4
.0
Apparatus
Dunlop
Tortex
guitar
pick
1
.00
mm
thick¬
ness
or
equivalent.
5
.0
Procedures
5.1
Test
Number
2.1.9
Subject
Surface
Scratch
Examination
Metal-Clad
Foil
Date
Revision
5/86
Originating
Task
Group
N/A
5.1.1
Locate
scratches
visually
using
normal
or
corrected
20/20
vision.
5.1.2
Scratches
which
stop
the
pick
when
light
pressure
is
applied
are
unacceptable.
Scratches
which
can
be
felt
by
the
pick
but
do
not
stop
it
are
acceptable.
5.1.3
The
referee
test
shall
be
by
microsection
per
IPC-TM-
650,
Method
2.1.1.
5.2
Evaluation
5.2.1
Evaluate
in
the
“working
area”
of
the
sheet
or
panel.
Working
area
excludes
a
1
in.
border
on
all
four
edges.
Compare
results
with
inspection
represented
in
the
appropri¬
ate
specification.
