103/178
IM-SMT-VSNDIC-0002-000
Items to be set
Set
value
Explanation
Lead Width: 2N (mm)
Note *4
Sets the diameter of the balls of
Group 2 in the N direction.
Lead Pitch: 2N (mm)
Sets the ball pitch of Group 2 in
the N direction.
Find Pos X: 2N (mm)
Note *5
Sets the reference position X
for the ball of Group 2 in the N
direction.
Find Pos Y: 2N (mm)
Note *5
Sets the reference position Y
for the ball of Group 2 in the N
direction.
Lead Group S
Sets the number of the Lead
Group (0-2) in the S direction.
Common
Ruler Offset S 0
Lead Number: 1S
Sets the number of balls of
Group 1 in the S direction.
Reflect LL.: 1S (mm) 0.0
Lead Width: 1S (mm)
Note *4
Sets the diameter of the balls of
Group 1 in the S direction.
Lead Pitch: 1S (mm)
Sets the ball pitch of Group 1 in
the S direction.
Find Pos X: 1S (mm)
Note *5
Sets the reference position X
for the ball of Group 1 in the S
direction.
Group
1
Find Pos Y: 1S(mm)
Note *5
Sets the reference position Y
for the ball of Group 1 in the S
direction.
Lead Number: 2S
Sets the number of balls of
Group 2 in the S direction.
Reflect LL.: 2S(mm) 0.0
Lead Width: 2Smm)
Note *4
Sets the diameter of the balls of
Group 2 in the S direction.
Lead Pitch: 2S (mm)
Sets the ball pitch of Group 2 in
the S direction.
Find Pos X: 2S (mm)
Note *5
Sets the reference position X
for the ball of Group 2 in the S
direction.
S
direction
Group
2
Find Pos Y: 2S(mm)
Note *5
Sets the reference position Y
for the ball of Group 2 in the S
direction.
Lead Group E
Sets the number of the Lead
Group (0-2) in the E direction.
Common
Ruler Offset E 0
Lead Number: 1E
Sets the number of balls of
Group 1 in the E direction.
Reflect LL.: 1E (mm) 0.0
Lead Width: 1E (mm)
Note *4
Sets the diameter of the balls of
Group 1 in the E direction.
Lead Pitch: 1E (mm)
Sets the ball pitch of Group 1 in
the E direction.
E
direction
Group
1
Find Pos X: 1E (mm)
Note *5
Sets the reference position X
for the ball of Group 1 in the E
direction.
104/178
IM-SMT-VSNDIC-0002-000
Items to be set
Set
value
Explanation
Find Pos Y: 1E(mm)
Note *5
Sets the reference position Y
for the ball of Group 1 in the E
direction.
Lead Number: 2E
Sets the number of balls of
Group 2 in the E direction.
Reflect LL.: 2E(mm) 0.0
Lead Width: 2Emm)
Note *4
Sets the diameter of the balls of
Group 2 in the E direction.
Lead Pitch: 2E(mm)
Sets the ball pitch of Group 2 in
the E direction.
Find Pos X: 2E (mm)
Note *5
Sets the reference position X
for the ball of Group 2 in the E
direction.
Group
2
Find Pos Y: 2E(mm)
Note *5
Sets the reference position Y
for the ball of Group 2 in the E
direction.
Lead Group W
Sets the number of the Lead
Group (0-2) in the E direction.
Common
Ruler Offset W 0
Lead Number: 1W
Sets the number of balls of
Group 1 in the W direction.
Reflect LL.: 1W (mm) 0.0
Lead Width: 1W (mm)
Note *4
Sets the diameter of the balls of
Group 1 in the W direction.
Lead Pitch: 1W (mm)
Sets the ball pitch of Group 1 in
the W direction.
Find Pos X: 1W (mm)
Note *5
Sets the reference position X
for the ball of Group 1 in the W
direction.
Group
1
Find Pos Y: 1W(mm)
Note *5
Sets the reference position Y
for the ball of Group 1 in the W
direction.
Lead Number: 2W
Sets the number of balls of
Group 2 in the W direction.
Reflect LL.: 2W(mm) 0.0
Lead Width: 2Wmm)
Note *4
Sets the width of the diameter
of the balls of Group 2 in the W
direction.
Lead Pitch: 2W(mm)
Sets the ball pitch of Group 2 in
the W direction.
Find Pos X: 2W(mm)
Note *5
Sets the reference position X
for the ball of Group 2 in the W
direction.
W
direction
Group
2
Find Pos Y: 2Wmm)
Note *5
Sets the reference position Y
for the ball of Group 2 in the W
direction.
Table 72
Note *1: . This option parameter consists of one byte of data, and each bit has different
meaning (Please refer to “2.12.3-3. Mark 2, Note *3” for the details.)
Note *2: This option parameter consists of one byte of data, and each bit has different
meaning.
105/178
IM-SMT-VSNDIC-0002-000
Trace retry 0: No 1: Yes
Note *4: The ball diameter is set for the LeadWidth.
Note *5: The center of gravity position of the leads targeted for detection is set as the offset
position from the component center.

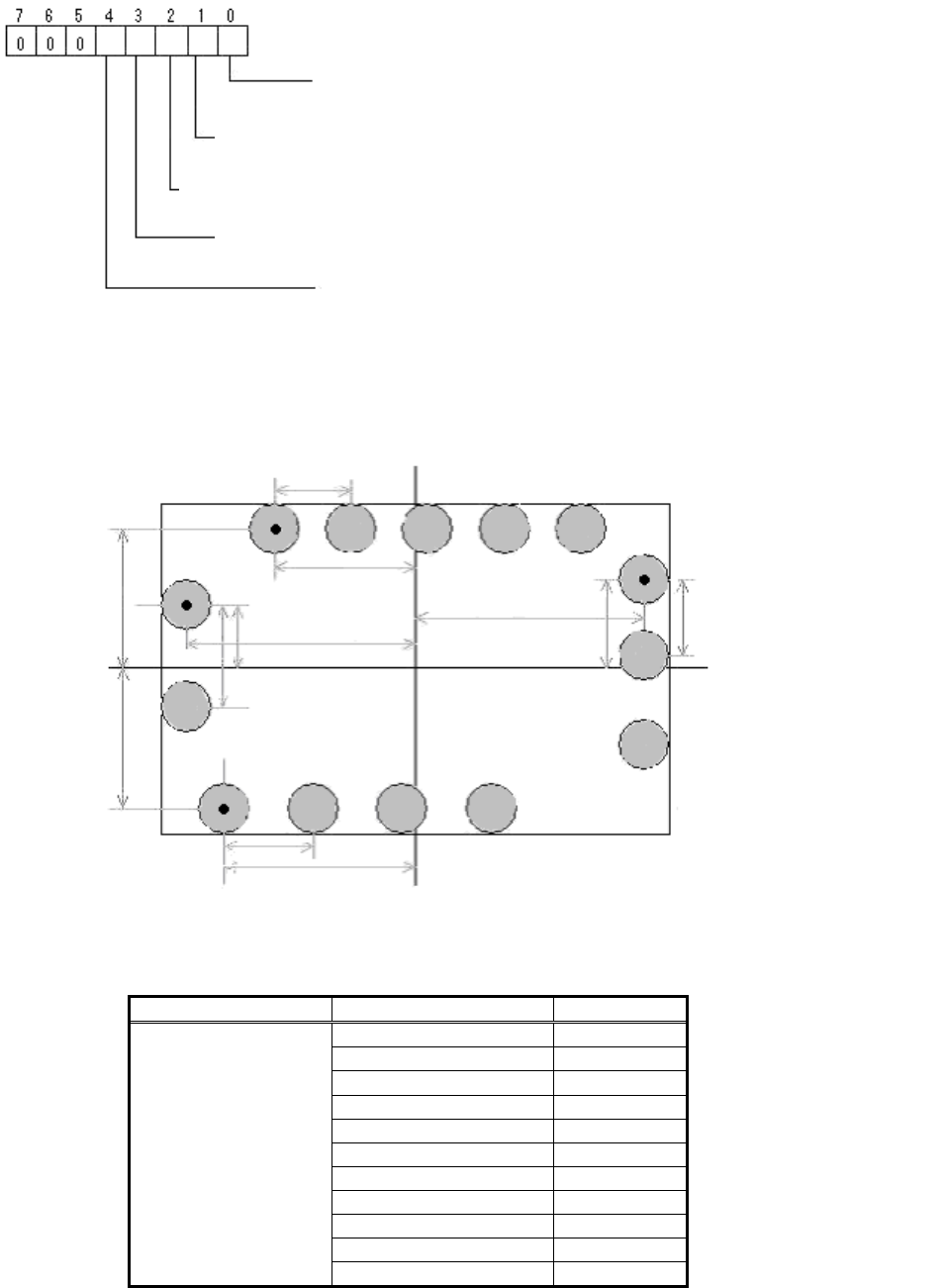

Figure 76
The following is the actual example.
Items to be set Set value
Alignment Group Special
Alignment Type Special
Comp. Threshold 0
Comp. Tolerance 30
Search Area (mm) 2.0
Body Size X (mm) 10.0
Body Size Y (mm) 10.0
Body Size Z (mm) 1.0
Cntr. Offset X (mm) 0.0
Cntr. Offset Y (mm) 0.0
Common
Data
Cntr. Offset R (mm) 0.0
Bit position
Pitch check :(0: Not run 1: Run)
))
Binarization method when threshold value is 0:
(0:
Automatic
binarization
,
1: P
-
tile
b
inarization
)
Lead position check: ( 0: Not run, 1: Run)
*See ”Appendix 4. Lead position check
”
(Checks to see whether the lead is within the range by using the pitch x tolerance.
If a check is performed, the pitch must be
entered even if the Lead Number is 1.)
Method for setting parameter for distance between leads /corners
(
0: New
,
1: Previous
)
Lead Pitch
N1
Find Pos Y N1
Find Pos Y S
1
Find Pos
X S
1
Find Pos Y E1
Find Pos
X
E1
Find Pos
X N
1
Find Pos Y W1
Find Pos X W1
Lead Pitch E1
Lead Pitch W1
Lead Pitch S1
