98/178 IM-SMT-VSNDI C-0002 -000 Items to be set Set value Lead Group N 1 Comm on Ruler Offset N 0 Lead Num ber: 1N 25 Reflect LL.: 1N (m m ) 624.0 Lead W idth: 1N (mm) 0.6 Lead Pitch: 1N ( mm) 1.27 Find Pos X: 1N (mm) -1…
97/178
IM-SMT-VSNDIC-0002-000
Figure 73
(4) Special 4: Recognition of ceramic BGAs (Using the ball position information)
This is used for recognition of the BGAs whose base is made of white ceramic.
The ball position definition information is used.
Option 1: Lower 8 bits of the index number for the ball position information
Option 4: Upper 8 bits of the index number for the ball position information
Option 2: Threshold value for judging whether the balls exist or not
The following is the actual example of recognition.
<< Items to be set for Special BGA>>
Items to be set Set value
Alignment Group Special
Alignment Type Special
Comp. Threshold 0
Comp. Tolerance 30
Search Area (mm) 4.0
Body Size X (mm) 32.0
Body Size Y (mm) 32.0
Body Size Z (mm) 3.0
Cntr. Offset X (mm) 0.0
Cntr. Offset Y (mm) 0.0
Cntr. Offset R (mm) 0.0
Ruler Width 3
Algorithm Special 4
Base Alignment BGA
Vision Option xx
Vision Option 2 0
Vision Option 3 0
Common
Data
Vision Option 4 xx
98/178
IM-SMT-VSNDIC-0002-000
Items to be set
Set
value
Lead Group N 1
Common
Ruler Offset N 0
Lead Number: 1N 25
Reflect LL.: 1N (mm) 624.0
Lead Width: 1N (mm) 0.6
Lead Pitch: 1N (mm) 1.27
Find Pos X: 1N (mm) -15.24
N
Direction
Group
1
Find Pos Y: 1N (mm) 15.24
Lead Group E 1
Common
Ruler Offset E 0
Lead Number: 1E 25
Reflect LL.: 1E (mm) 0
Lead Width: 1E (mm) 0.6
Lead Pitch: 1E (mm) 1.27
Find Pos X: 1E (mm) 15.24
E
Direction
Group
1
Find Pos Y: 1E (mm) -15.24
Table 69
Figure 74
5. Special 5: Not supported
6. Special 6: Not supported
7. Special 7: CGA recognition
Option 1: Lower 8 bits of the index number for the ball position information
Option 4: Upper 8 bits of the index number for the ball position information
Option 2: Binarization correction parameter
Set the
total
number
of balls.
99/178
IM-SMT-VSNDIC-0002-000
Option 3: Recognition flag (Same as Special 2)
8. Special 8: Standard BGA recognition by using the multi-stage threshold value
Option 1: Lower 8 bits of the index number for the ball position information
Option 4: Upper 8 bits of the index number for the ball position information
Option 2: Binarization correction parameter
Option 3: Recognition flag
(9) Special 9: Not supported
(10) Special 10: BGA recognition with direction judgment by using marks.
(* This needs to be custom-ordered.)
Option 1: Lower 8 bits of the index number for the ball position information
Option 4: Upper 8 bits of the index number for the ball position information
Option 2: Binarization correction parameter
Option 3: Recognition Flag (Same as Special 2)
Number of Lead Group S: 1
Number of the leads S1: Check Direction Flag
Lead width S1: Direction Mark Diameter
Reflect LL. S1: Min. Brightness Difference
Find Pos. X S1: Direction Mark Center X
Find Pos. Y S1: Direction Mark Center Y
Note:
Please refer to “Appendix 3. Creating simple data in the special recognition modes” for the
method how to create components data in Special mode

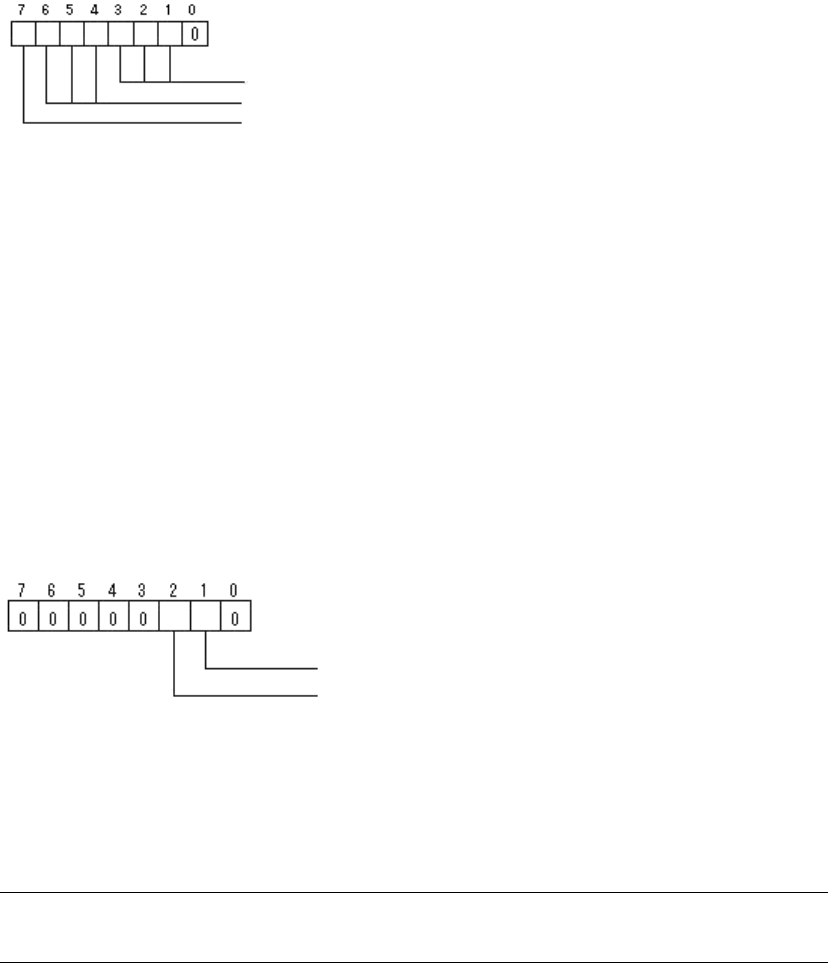

Bit position
Sets up the 8 steps of the Threshold steps.(If
0,16,1:8,2:16,3:24..7:56)
Sets up the detection stage as
+
-
n (If 0, +
-
1, 1:+
-
1,2:+
-
2,3:+
-
3,
…
)
Excessive ball check (0:None, 1:Exist)
Bit position
Check Type:
(0: Black, 1: White)
Check Direction:
(0: 2 direction, 1: 4 direction)
