96/178
IM-SMT-VSNDIC-0002-000
<< Items to be set for Special BGA>>
Items to be set Set value
Alignment Group Special
Alignment Type Special
Comp. Threshold 0
Comp. Tolerance 30
Search Area (mm) 4.0
Body Size X (mm) 55.0
Body Size Y (mm) 15.0
Body Size Z (mm) 7.0
Cntr. Offset X (mm) 0.0
Cntr. Offset Y (mm) 0.0
Cntr. Offset R (mm) 0.0
Ruler Width 3
Algorithm Special 3
Base Alignment BGA
Vision Option 1 0
Vision Option 2 0
Vision Option 3 0
Common
Data
Vision Option 4 0

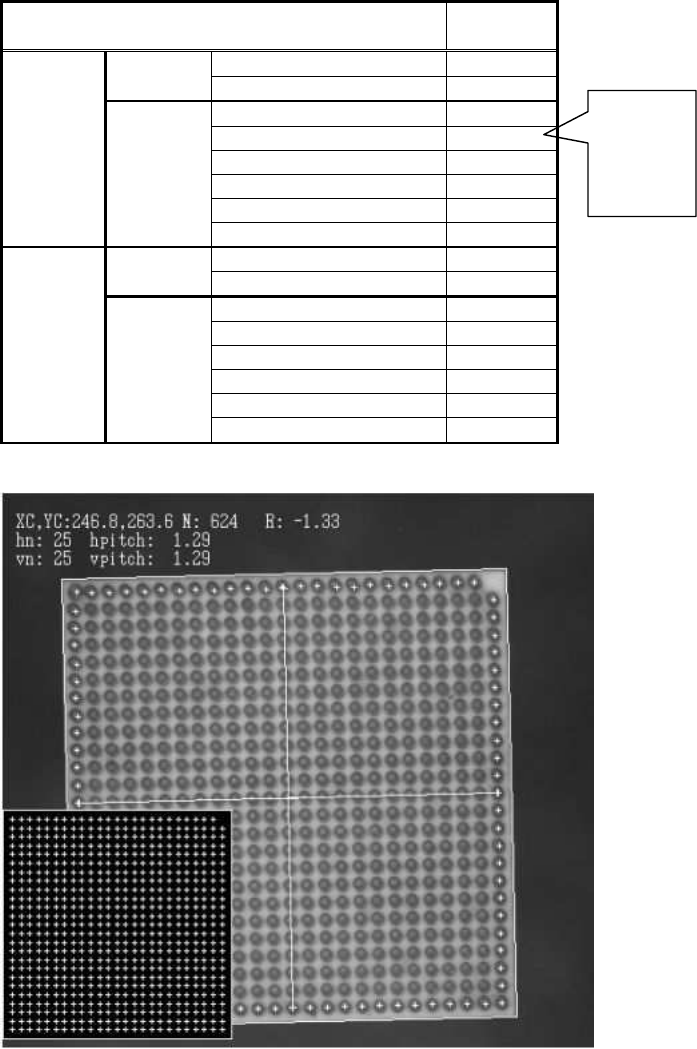

Items to be set
Set
value
Lead Group N 1
Common
Ruler Offset N 0
Lead Number: 1N 40
Reflect LL.: 1N (mm) 400.0
Lead Width: 1N (mm) 0.8
Lead Pitch: 1N (mm) 1.27
Find Pos X: 1N (mm) -24.77
N
Direction
Group
1
Find Pos Y: 1N (mm) 5.72
Lead Group E 1
Common
Ruler Offset E 0
Lead Number: 1E 10
Reflect LL.: 1E (mm) 0
Lead Width: 1E (mm) 0.8
Lead Pitch: 1E (mm) 1.27
Find Pos X: 1E (mm) 24.77
E
Direction
Group
1
Find Pos Y: 1E (mm) 5.72
Table 68
Set the total
number of
balls.
97/178
IM-SMT-VSNDIC-0002-000
Figure 73
(4) Special 4: Recognition of ceramic BGAs (Using the ball position information)
This is used for recognition of the BGAs whose base is made of white ceramic.
The ball position definition information is used.
Option 1: Lower 8 bits of the index number for the ball position information
Option 4: Upper 8 bits of the index number for the ball position information
Option 2: Threshold value for judging whether the balls exist or not
The following is the actual example of recognition.
<< Items to be set for Special BGA>>
Items to be set Set value
Alignment Group Special
Alignment Type Special
Comp. Threshold 0
Comp. Tolerance 30
Search Area (mm) 4.0
Body Size X (mm) 32.0
Body Size Y (mm) 32.0
Body Size Z (mm) 3.0
Cntr. Offset X (mm) 0.0
Cntr. Offset Y (mm) 0.0
Cntr. Offset R (mm) 0.0
Ruler Width 3
Algorithm Special 4
Base Alignment BGA
Vision Option xx
Vision Option 2 0
Vision Option 3 0
Common
Data
Vision Option 4 xx
98/178
IM-SMT-VSNDIC-0002-000
Items to be set
Set
value
Lead Group N 1
Common
Ruler Offset N 0
Lead Number: 1N 25
Reflect LL.: 1N (mm) 624.0
Lead Width: 1N (mm) 0.6
Lead Pitch: 1N (mm) 1.27
Find Pos X: 1N (mm) -15.24
N
Direction
Group
1
Find Pos Y: 1N (mm) 15.24
Lead Group E 1
Common
Ruler Offset E 0
Lead Number: 1E 25
Reflect LL.: 1E (mm) 0
Lead Width: 1E (mm) 0.6
Lead Pitch: 1E (mm) 1.27
Find Pos X: 1E (mm) 15.24
E
Direction
Group
1
Find Pos Y: 1E (mm) -15.24
Table 69
Figure 74
5. Special 5: Not supported
6. Special 6: Not supported
7. Special 7: CGA recognition
Option 1: Lower 8 bits of the index number for the ball position information
Option 4: Upper 8 bits of the index number for the ball position information
Option 2: Binarization correction parameter
Set the
total
number
of balls.
