132/178
IM-SMT-VSNDIC-0002-000
Figure 106
In the actual example shown in Figure 107, the “Cut Outside Noise” function prevents the lead
part and body part from separating each other in order to perform stable recognition.
Figure 107
2.12.3-2. Mark Line
This is used to recognize rectangles consisting of a single part, as shown in Figure 108.
Components are detected from among objects that have been binarized and detected. Either
fixed or automatic threshold values can be used for the binarization. The component center
and inclination are determined by setting the detection line. White objects are normally
recognized, but it is also possible to detect black objects on a white field.
Figure 108
Items to be set Set value
Explanation
Alignment Group Special
Alignment Type Special
Common
Data
Comp. Threshold
Sets the binarization level. (If 0 is
specified, the threshold is set
automatically.)
This part cannot be
seen clearly.
Combined
“Cut Inner
Noise” function
133/178
IM-SMT-VSNDIC-0002-000
Items to be set Set value
Explanation
Comp. Tolerance
Specifies the tolerance of the shape
as a percentage.
Search Area (mm) Sets the range of the detection.
Body Size X (mm) Sets the size of the outer edge.
Body Size Y (mm) Sets the size of the outer edge.
Body Size Z (mm) Sets the size of the outer edge.
Cntr. Offset X (mm)
Sets the offset amount in the X
direction from the center position.
Cntr. Offset Y (mm)
Sets the offset amount in the Y
direction from the center position.
Cntr. Offset R (mm)
Sets the offset amount of the angle of
rotation.
Ruler Width 3 Not used.
Algorithm Special 1
Base Alignment As Mark
Vision Option 1
0
*4
Designates the detection direction
0: Auto, 1: left side/upper side only,
2: right side/lower side only, 3: both
sides
(With Auto detection, the direction in
which the component extends beyond
the search frame is not detected.)
Vision Option 2 0
Vision Option 3 0
Vision Option 4
0
*1
Specifies the priority to perform “Cut
Inner Noise “/”Cut Outer Noise”
function and the object type.
Items to be set
Set
value
Explanation
Lead Group E 0 or 1
When “0” is specified, the
offset of the detection line is
automatically set to 1/4 of the
detection size.
Common
Ruler Offset E --
Lead Number: 1E 0
Reflect LL.: 1E (mm) 0.0
Lead Width: 1E (mm) 0.0
Lead Pitch: 1E (mm) 0.0
Find Pos X: 1E (mm)
*2
When the number of Lead
Groups is 1, this sets the
detection line at the
position that is offset from the
contour of the circumscribed
rectangle by the amount of
this value.
E
Direction
Group 1
Find Pos Y: 1E (mm)
*3
When the number of Lead
Groups is 1, this sets the
detection line to the position
that is offset from the center
line by the amount of this
value.
134/178
IM-SMT-VSNDIC-0002-000
Items to be set
Set
value
Explanation
Lead Group W 0 or 1
When “0” is specified, the
offset of the detection line is
automatically set to 1/4 of the
detection size.
Common
Ruler Offset W --
Lead Number: 1W 0
Reflect LL.: 1W (mm) 0.0
Lead Width: 1W (mm) 0.0
Lead Pitch: 1W (mm) 0.0
Find Pos X: 1W (mm)
*2
When the number of Lead
Groups is 1, this sets the
detection line at the
position that is offset from the
contour of the circumscribed
rectangle by the amount of
this value.
W
Direction
Group 1
Find Pos Y: 1W (mm)
*3
When the number of Lead
Groups is 1, this sets the
detection line to the position
that is offset from the center
line by the amount of this
value.
Table 92
Note:
The parameters other than those shown in
Table 92
are not used, and should be set to 0.
Note:
*1. This option parameter consists of one byte of data, and each bit has different meaning.
(Please refer to P.142, Note*3 for the details.)
*2. Set the Offset 1 in
Figure 109.
*3. Set the Offset 2 in
Figure 109.

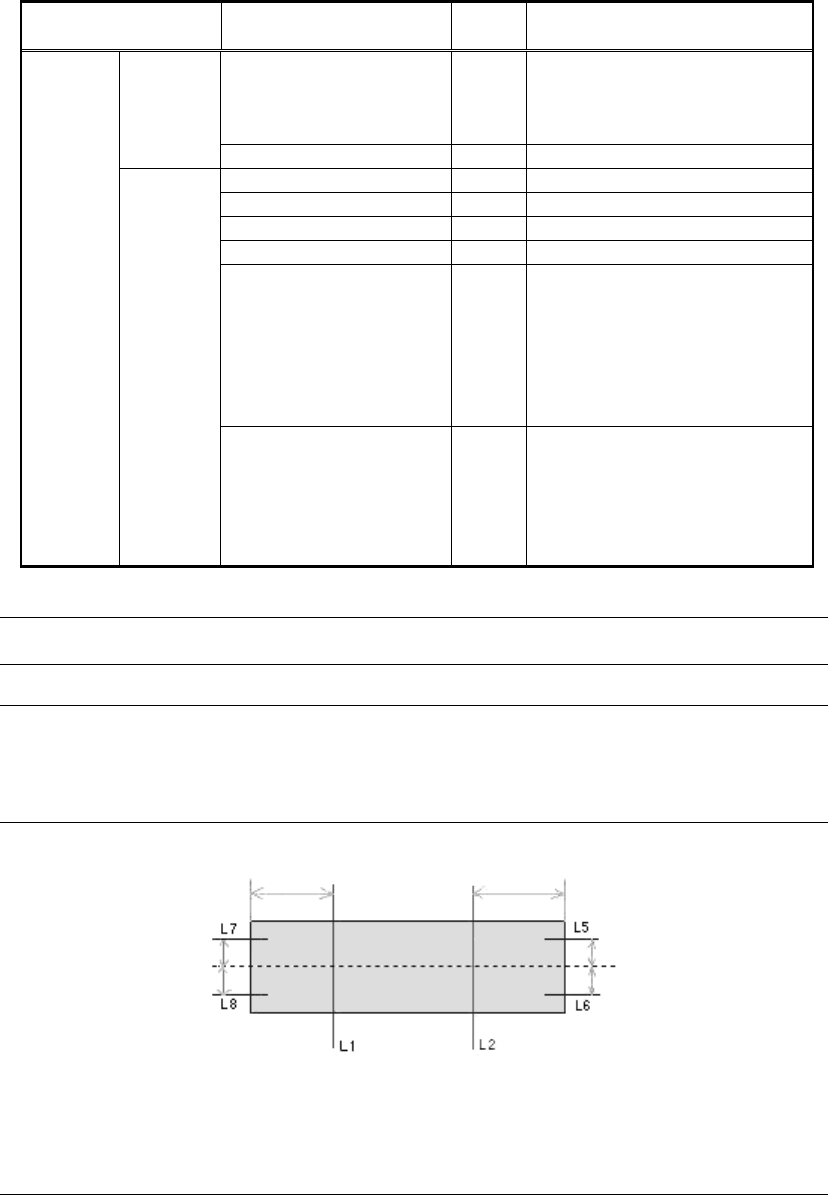

Figure 109
Note:
*4. It is possible to specify execution of the position detection on the detection lines from L5
through L8 by using the value in the field of Vision Option 1. If the value is set to 0,
position detection is normally performed in both the left and right (or upper and lower)
directions, but if the contour extends beyond the search frame for the detection direction
Offset 1
Offset 1
Offset 2
Offset 2
Offset 2
Offset 2
