33/178
IM-SMT-VSNDIC-0002-000
<Component and defined shapes>
When the outer shape of the component glows, and the recognition by Power Transistor
recognition mode is not stable (See
Figure 23
), the Special Quad. mode may offer more stable
recognition as shown in Figure 24. (Please refer to “2.12.4. Special Quad”.)
Figure 23
<Recognition Result (Sp. Quad)>
Figure 24
The Special Quad. mode offers more stable recognition for trimmer capacitors (See
Figure 25
),
as well. (Please refer to “2.12.4. Special Quad”.)
Figure 25
34/178
IM-SMT-VSNDIC-0002-000
The following shows an example in which the Power Transistor recognition mode is used to
recognize a variable resistor.
Items to be set Set value
Alignment Group IC
Alignment Type P-Tr
Comp. Threshold 40
Comp. Tolerance 30
Search Area (mm) 2.0
Body Size X (mm) 5.0
Body Size Y (mm) 4.2
Body Size Z (mm) 4.0
Cntr. Offset X (mm) 0.0
Cntr. Offset Y (mm) 0.0
Cntr. Offset R (mm) 0.0
Ruler Offset N 5
Ruler Offset S 5
Ruler Width 3
Lead Number: N 1
Reflect LL.: N (mm) 0.8
Lead Width: N (mm) 1.1
Lead Pitch: N (mm) 0.0
Lead Number: S 2
Reflect LL.: S (mm) 1.0
Lead Width: S (mm) 0.8
Lead Pitch: S (mm) 2.3
Table 21
<Component and defined shape>
Figure 26
35/178
IM-SMT-VSNDIC-0002-000

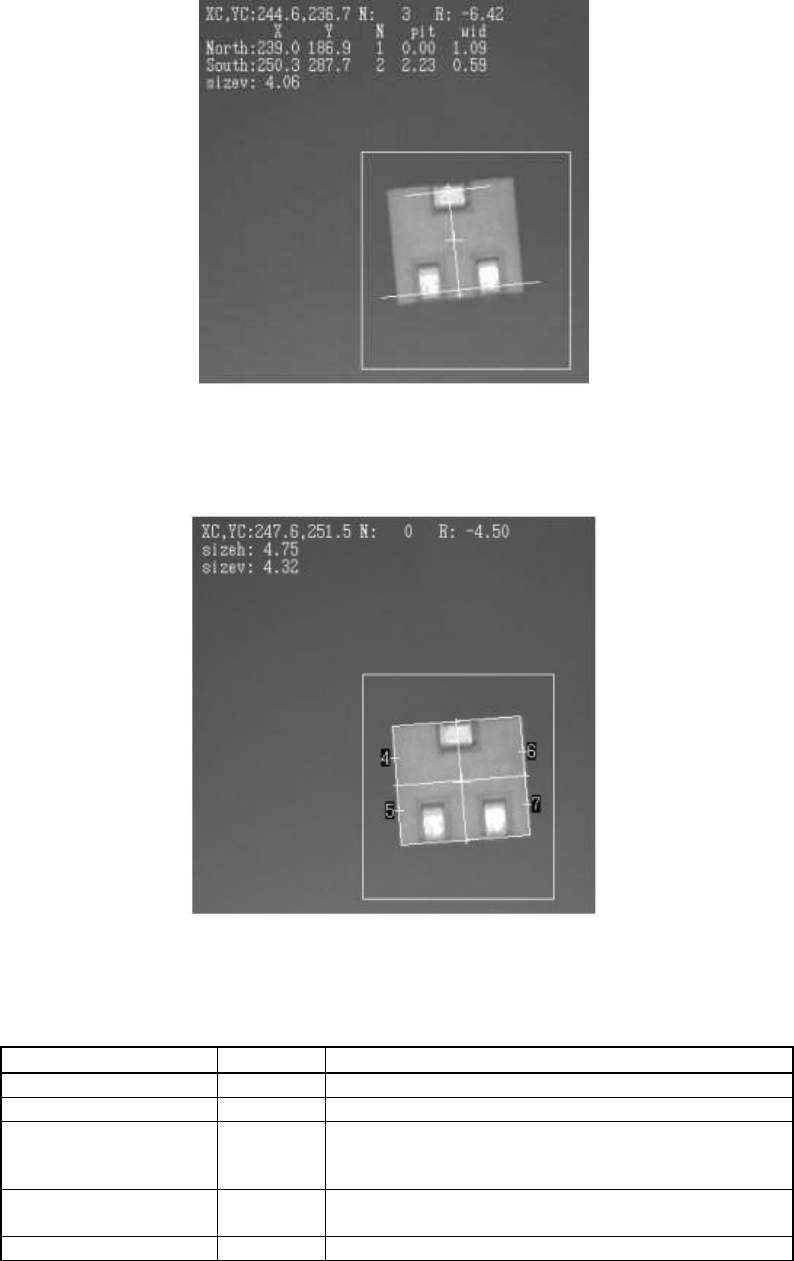

<Recognition Result (P-Tr)>
Figure 27
As with trimmer capacitors, when the outer shape of the component glows, and the
recognition by Power Transistor recognition mode is not stable, the Special Quad. mode may
offer more stable recognition. (Please refer to”2.12.4. Special Quad”.)
Figure 28
2.4. SOPs
<Items to be set for SOPs>
Items to be set Set value
Explanation
Alignment Group IC Sets the component category.
Alignment Type SOP Sets the component type.
Comp. Threshold
Sets the detection level difference for lead
detection.
(See “Appendix 2. Detection level
differences used to detect leads (threshold value)”.)
Comp. Tolerance
Specifies the tolerance of the lead pitch as a
percentage.
Search Area (mm) Sets the range of the detection.
