157/178 IM-SMT-VSNDI C-0002 -000 Figure 127 The following is the exam ple of the recogn ition of S p Quad. A ll the four sides were used for the recognition. Items to be set Set value Alignment Group S pecial Alignment T…

100%1 / 178
156/178
IM-SMT-VSNDIC-0002-000
Items to be set Set value
Alignment Group Special
Alignment Type Sp. Quad
Comp. Threshold 0
Comp. Tolerance 30
Search Area (mm) 15.0
Body Size X (mm) 22.0
Body Size Y (mm) 22.0
Body Size Z (mm) 0.5
Surface Type Reflect
Cut Outer Noise 0
Cut Inner Noise 0
Noise Cut Order --
Lead Number N 1
Lead Number S 1
Lead Number E 0
Lead Number W 0
Table 104
Figure 126
As the component has leads in the N/S direction, the value “1” is set to “Lead Number N/S” in
order to avoid line detection in the N/S direction.
As a result, recognition is carried out only in the right/left (E/W) direction.
The following shows the recognition results of the actual component (trimmer capacitor).
Recognition was performed only in the left/right (W/E) direction for these components.
157/178
IM-SMT-VSNDIC-0002-000
Figure 127
The following is the example of the recognition of Sp Quad. All the four sides were used for
the recognition.
Items to be set Set value
Alignment Group Special
Alignment Type Sp. Quad
Comp. Threshold 0
Comp. Tolerance 30
Search Area (mm) 15.0
Body Size X (mm) 28.0
Body Size Y (mm) 28.0
Body Size Z (mm) 0.5
Surface Type Reflect
Cut Outer Noise 0
Cut Inner Noise 3
Noise Cut Order --
Lead Number N 0
Lead Number S 0
Lead Number E 0
Lead Number W 0
Table 105 Figure 128
158/178
IM-SMT-VSNDIC-0002-000
In the example of recognition shown in Figure 128, the function that cuts noise inside
the component (See “Appendix 1. Noise processing”.) was used to reduce the effects of the
dark portion at the top.
(A numeric value is set for the component inside noise cut function.)
2.12.4-1. Special recognition of special quad
There are a number of special recognition algorithms available in the Sp Quad
Recognition mode.
(1) Normal: No restriction on the range of value.
(Special components, Special shape, Sp Quad, Normal)
(2) Special 1: Not supported (Lead Width, Lead Pitch check exist)
(3) Special 2: Not supported (hole position check)
(4) Special 3: Check Direction --- The direction is judged based on the brightness of the
specified range (circle). (* This needs to be custom ordered.)
Option 1: Recognition flag
Option 2: Min. Brightness Difference (If the value is 0, 50 is set)
If the difference of the average brightness of the detected circle is less than the
value specified here, it is determined to be an error.
The detection circle is set in the Lead Groups specified by the bit 7,5 and 4 in
Option 1 in order to determine the direction.
- Lead Group: 1 (When set to Lead Group 2, specify 2)
- Lead Number: 0
- Reflect LL: 0
- Lead width: Diameter of detection circle (mm)
- Lead pitch: 0
- Find Pos. X: Detection circle center position X
- Find Pos. Y: Detection circle center position Y
Based on the results of each direction, add +90°, +180° or +270° to the tilt of the
component and set the values.

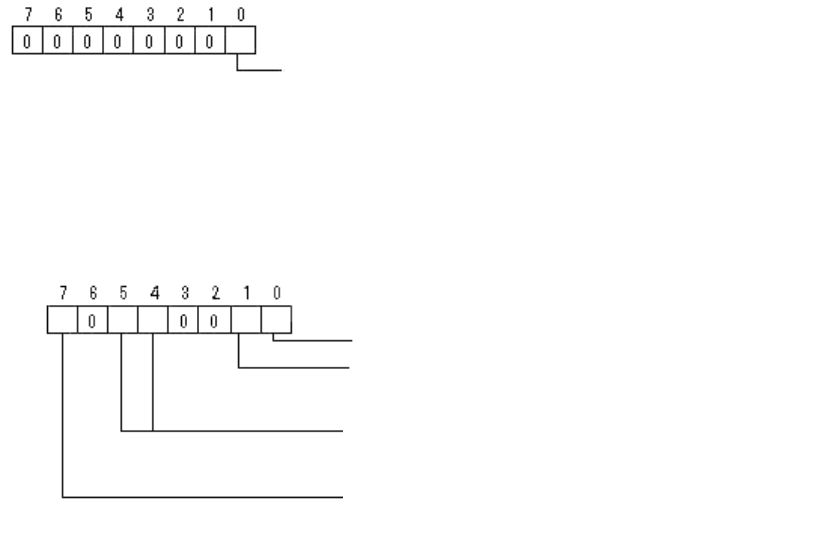

Bit position
Center Detection Algorithm: (0: Center of Gravity, 1: Apex of Rectangle)
Bit position
Check Type: (0: Black, 1: White)
Direction defined in check data:
0:
North, 1:South, 2:We
st, 3: East
0: (0°, 90°), 1: (0°, 90°, 180°, 270°)
Lead group defined in check data:
0: 1
st
Lead Group is used
1: 2
nd
Lead group is used
