11/178 IM-SMT-VSNDI C-0002 -000 Items to be set (Group 1) Set value Items to be set (Group 2) Set value Explanation Lead Num ber: 1E Lead Num ber: 2E Set s the num ber of leads. Reflect LL.: 1E (mm) Reflect LL.: 2E (mm) …
10/178
IM-SMT-VSNDIC-0002-000
Items to be set
Set
value
Explanation
Lead Group N
Sets the number of Lead Group (1 or 2)
Ruler Offset N
Sets the offset amount for the detection line in
the N direction.
Items to be set
(Group 1)
Set
value
Items to be set
(Group 2)
Set
value
Explanation
Lead Number:
1N
Lead Number:
2N
Sets the number of
leads.
Reflect LL.:
1N (mm)
Reflect LL.:
2N (mm)
Sets the lead length of
the upper lead(s) on
the image.
Lead Width:
1N (mm)
Lead Width:
2N (mm)
Sets the width of the
lead for the upper
lead(s).
Lead Pitch:
1N (mm)
Lead Pitch:
2N (mm)
Sets the pitch for the
upper lead(s).
Find Pos X:
1N (mm)
Find Pos X:
2N (mm)
Sets the reference
position for the upper
lead(s).
N
direction
Find Pos Y:
1N (mm)
Find Pos Y:
2N (mm)
Items to be set
Set
value
Explanation
Lead Group S
Sets the number of Lead Group (1 or 2)
Ruler Offset S
Sets the offset amount for the detection line in
the S direction.
Items to be set
(Group 1)
Set
value
Items to be set
(Group 2)
Set
value
Explanation
Lead Number:
1S
Lead Number:
2S
Sets the number of
leads.
Reflect LL.:
1S (mm)
Reflect LL.:
2S (mm)
Sets the lead length of
the lower lead(s) on
the image.
Lead Width:
1S (mm)
Lead Width:
2S (mm)
Sets the width of the
lead for the lower
lead(s).
Lead Pitch:
1S (mm)
Lead Pitch:
2S (mm)
Sets the pitch for the
lower lead(s).
Find Pos X:
1S (mm)
Find Pos X:
2S (mm)
Sets the reference
position for the lower
lead(s).
S
direction
Find Pos Y:
1S (mm)
Find Pos Y:
2S (mm)
Items to be set
Set
value
Explanation
Lead Group E
Sets the number of Lead Group (1 or 2)
E
direction
Ruler Offset E
Sets the offset amount for the detection line in
the E direction.
11/178
IM-SMT-VSNDIC-0002-000
Items to be set
(Group 1)
Set
value
Items to be set
(Group 2)
Set
value
Explanation
Lead Number:
1E
Lead Number:
2E
Sets the number of
leads.
Reflect LL.:
1E (mm)
Reflect LL.:
2E (mm)
Sets the lead length of
the lead(s) on the right
on the image.
Lead Width:
1E (mm)
Lead Width:
2E (mm)
Sets the width of the
lead for the lead(s) on
the right.
Lead Pitch:
1E (mm)
Lead Pitch:
2E (mm)
Sets the pitch for the
lead(s) on the right.
Find Pos X:
1E (mm)
Find Pos X :
2E (mm)
Sets the reference
position for the lead(s)
on the right.
Find Pos Y:
1E (mm)
Find Pos Y:
2E (mm)
Items to be set
Set
value
Explanation
Lead Group W
Sets the number of Lead Group (1 or 2)
Ruler Offset W
Sets the offset amount for the detection line in
the W direction.
Items to be set
(Group 1)
Set
value
Items to be set
(Group 2)
Set
value
Explanation
Lead Number:
1W
Lead Number:
2W
Sets the number of
leads.
Reflect LL.:
1W (mm)
Reflect LL.:
2W (mm)
Sets the lead length for
the lead(s) on the left
on the image.
Lead Width:
1W (mm)
Lead Width:
2W (mm)
Sets the width of the
lead for the lead(s) on
the left.
Lead Pitch:
1W (mm)
Lead Pitch:
2W (mm)
Sets the pitch for the
lead(s) on the left.
Find Pos X:
1W (mm)
Find Pos X :
2W (mm)
Sets the reference
position for the lead(s)
on the left.
W
direction
Find Pos Y:
1W (mm)
Find Pos Y:
2W (mm)
Table 2
Caution:
In Table 2, the reference lead positions are expressed as the Find Pos.
12/178
IM-SMT-VSNDIC-0002-000
1.2 The basics of the component data definitions
This section describes how to create component data in details. The component definition for
the component that has two Lead Groups (See
Figure 7
) is taken as an example here.

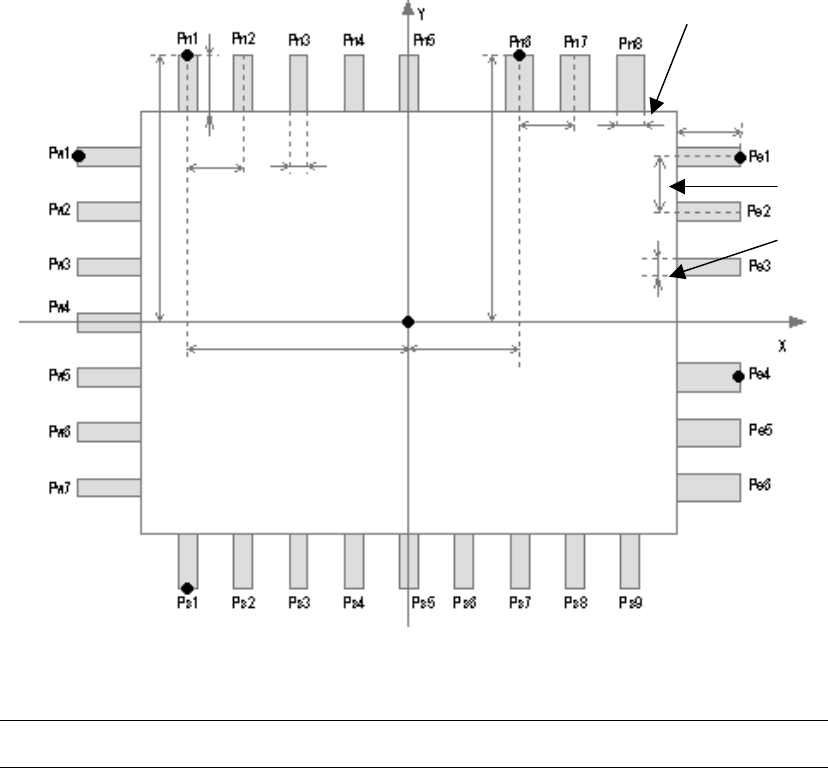

Figure 7
Note:
In
Figure 7
, the reference lead positions are displayed as the Find Pos.
In the N direction, the five leads on the left side and the three leads on the right side have
different Lead width. In a case like this, as the component cannot be defined by a single Lead
Group, it is defined by the two Lead Groups.
The tip position of the Pn1 lead is set as the reference for the first Lead Group, and from Pn1
to Pn5 leads are defines as follows:
Reference lead position X N1 : - 5.08mm
Reference lead position Y N1 : 6.00mm
ReflectLL N1 : 1.00mm
Lead width N1 : 0.40mm
Lead pitch N1 : 1.27mm
Lead Number N1 : 5
The tip position of the Pn6 lead is set as the reference for the second Lead Group, and from
Pn6 to Pn8 are defined as follows:
Length N1
N
E
W
S
Length E1
Pitch N2
Width N2
Pitch N1
Width N1
Find Pos X N1 Find Pos X N2
Find Pos Y N2
Pitch E1
Width E1
The center of the component
Find Pos Y N1
