52/178
IM-SMT-VSNDIC-0002-000
Items to be set Set value
Explanation
Cntr. Offset R (mm)
Sets the offset amount of the angle of
rotation.
Ruler Width
Algorithm Special n
Selects the recognition algorithm when
using a special algorithm.
Base Alignment QFP
Selects the basic component type when
using a special algorithm.
Vision Option 1 (0) Sets option parameter 1.
Vision Option 2 (0) Sets option parameter 2.
Vision Option 3 (0) Sets option parameter 3.
Vision Option 4 0 Sets option parameter 4.
Items to be set
Set
value
Explanation
Lead Group N 1
Specifies the number for the
Lead Group in the N direction.
(1)
Common
Ruler Offset N
Sets the offset amount of the
detection line in the N
direction.
Lead Number: 1N
Sets the number of lead in the
N direction.
Reflect LL.: 1N (mm)
Sets the lead length on the
image in the N direction.
Lead Width: 1N (mm)
Sets the width of the lead in
the N direction.
Lead Pitch: 1N (mm)
Sets the pitch in the N
direction.
Find Pos X: 1N (mm)
Sets the reference position X
in the N direction.
N
Direction
Group 1
Find Pos Y: 1N (mm)
Sets the reference position Y
in the N direction.
Lead Group S 1
Specifies the number for the
Lead Group in the S direction.
(1)
Common
Ruler Offset S
Sets the offset amount of the
detection line in the S
direction.
Lead Number: 1S
Sets the number of lead in the
S direction.
Reflect LL.: 1S (mm)
Sets the lead length on the
image in the S direction.
Lead Width: 1S (mm)
Sets the width of the lead in
the S direction.
Lead Pitch: 1S (mm)
Sets the pitch in the S
direction.
Find Pos X: 1S (mm)
Sets the reference position X
in the S direction.
S
Direction
Group 1
Find Pos Y: 1S (mm)
Sets the reference position Y
in the S direction.
53/178
IM-SMT-VSNDIC-0002-000
Lead Group E 1
Specifies the number for the
Lead Group in the E direction.
(1)
Common
Ruler Offset E
Sets the offset amount of the
detection line in the E
direction.
Lead Number: 1E
Sets the number of lead in the
E direction.
Reflect LL.: 1E (mm)
Sets the lead length on the
image in the E direction.
Lead Width: 1E (mm)
Sets the width of the lead in
the E direction.
Lead Pitch: 1E (mm)
Sets the pitch in the E
direction.
Find Pos X: 1E (mm)
Sets the reference position X
in the E direction.
E
Direction
Group 1
Find Pos Y: 1E (mm)
Sets the reference position Y
in the E direction.
Lead Group W 1
Specifies the number for the
Lead Group in the W
direction. (1)
Common
Ruler Offset W
Sets the offset amount of the
detection line in the W
direction.
Lead Number: 1W
Sets the number of leads in
the W direction.
Reflect LL.: 1W (mm)
Sets the lead length on the
image in the W direction.
Lead Width: 1W (mm)
Sets the width of the lead in
the W direction.
Lead Pitch: 1W (mm)
Sets the pitch in the W
direction.
Find Pos X: 1W (mm)
Sets the reference position X
in the W direction.
W
Direction
Group 1
Find Pos Y: 1W (mm)
Sets the reference position Y
in the W direction.
Table 34
Note:
The parameters other than those shown in
Table 34
are not used, and should be set to 0.
2.7. PLCCs
<Items to be set for PLCCs>
Items to be set Set value
Explanation
Alignment Group IC Sets the component category.
Alignment Type PLCC Sets the component type.
Comp. Threshold
Sets the detection level difference for lead
detection.
(See “Appendix 2. Detection level
differences used to detect leads (threshold value)”.)
Comp. Tolerance
Specifies the tolerance of the lead pitch as a
percentage.
Search Area (mm) Sets the range of the detection.
Body Size X (mm) Sets the size of the outer edge.
54/178
IM-SMT-VSNDIC-0002-000
Items to be set Set value
Explanation
Body Size Y (mm) Sets the size of the outer edge.
Body Size Z (mm) Sets the size of the outer edge.
Ruler Offset Sets the offset amount for the detection line.
Ruler Width
Lead Number N
Sets the number of leads in the cross direction.
Lead Number E
Sets the number of leads in the lengthwise
direction.
Reflect LL. (mm)
Sets the lead length on the image.
Lead Width (mm)
Sets the width of the lead.
Lead Pitch (mm)
Sets the pitch.
Table 35
In the normal mode, the recognition method is the same as QFP recognition.

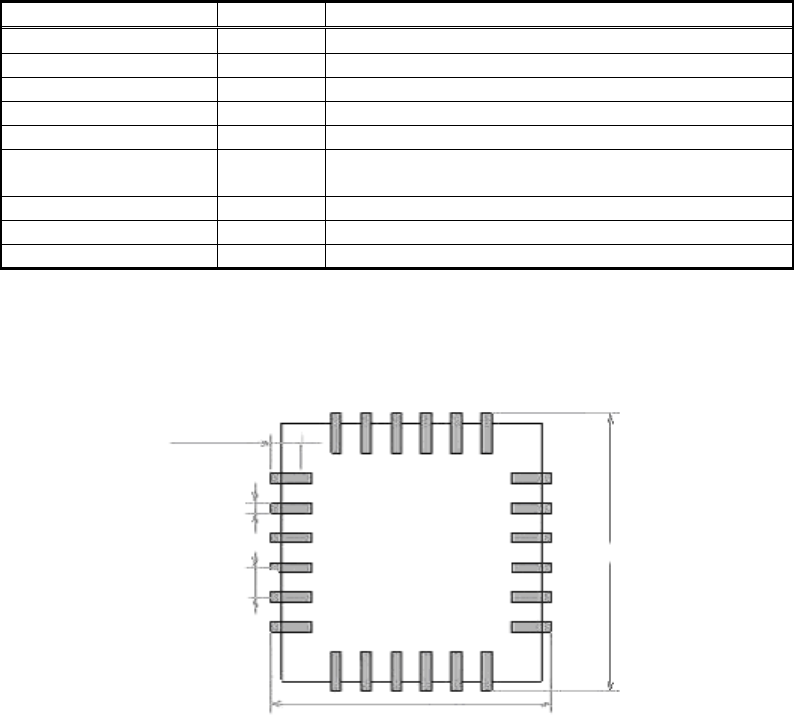

Figure 46
QFPs and PLCCs are similar in terms of shape. However, unlike QFPs, the lead tips of
PLCCs may not be stably recognized (because the shape of the leads are not planar).
Also, in some cases, all of the illumination sources (Main light, Coaxal light and Side light)
need to be turned on in order to light up the leads stably. In this case, “Yes” should be
selected from the “All Lighting On” recognition parameter.
If the recognition is still not stable, Lead root recognition mode should be used.
In this mode, the root of the lead is recognized not the tip.
In order to improve the recognition rate, the positional relations between the leads are
checked and the combination best fits the component definition is extracted when the end
leads are detected
When this recognition mode is selected, either “Inside Recognition” or “Inside +
LeadAutoSearch” should be selected for ”Recognition Way” in the recognition parameters.
In the “LeadAutoSearch” mode, Lead detection is performed by using the lead pitch/ lead
width parameter and extracting the data best fits the definition data when detecting the lead
row.
Lead length
Lead width
Pitch
Body Size Y
Body Size X
