The target object is binarized, then the component is detected from the detected target object.
This mode can be used for recognition of the irregular shaped components.
It is possible to use the fixed threshold and the automatic threshold for binarization.
White objects are normally recognized, but it is also possible to detect black objects on
a white background.
[Recognition check items]
Items Yes / No Notes
Body Size Yes
Lead pitch No
Lead width No
Lead length No
Lead position No
Table 96
<< Mark 4: Items to be set for components consists of four parts >>
(Special components: Special shape, algorithm: Special 2, base Alignment Type: Mark type)
Items to be set Set value
Explanation
Alignment Group Special
Alignment Type Special
Comp. Threshold
Sets the binarization level.
(If 0 is specified, the threshold is set
automatically.)
Comp. Tolerance Specifies the tolerance as a percentage.
Search Area (mm) Sets the range of the detection.
Body Size X (mm) Sets the size of the outer edge.
Body Size Y (mm) Sets the size of the outer edge.
Body Size Z (mm) Sets the size of the outer edge.
Cntr. Offset X (mm)
Sets the offset amount in the X direction
from the center position.
Cntr. Offset Y (mm)
Sets the offset amount in the Y direction
from the center position.
Cntr. Offset R (mm)
Sets the offset amount of the angle of
rotation.
Ruler Width 3 Not used.
Algorithm Special 3
Base Alignment As Mark
Vision Option 1
Vision Option 2
Vision Option 3
Common
Data
Vision Option 4
*1
Specifies the priority to perform “Cut
Inner Noise “/”Cut Outer Noise” function
and the object type.
143/178
IM-SMT-VSNDIC-0002-000
Items to be set
Set
value
Explanation
Lead Group N 2
Common
Ruler Offset N 0
Lead Number: 1N 1
Reflect LL.: 1N (mm)
*2
Sets the length of the lead on
the upper left side.
Lead Width: 1N (mm)
*2
Sets the width of the lead on the
upper left side.
Lead Pitch: 1N (mm) 0.0
Find Pos X: 1N (mm)
*3
Sets the Find Pos X of the lead
on the upper left side.
Group
1
Find Pos Y: 1N (mm)
*3
Sets the Find Pos Y of the lead
on the upper left side.
Lead Number: 2N 1
Reflect LL.: 2N (mm)
*2
Sets the length of the lead on
the upper right side.
Lead Width: 2N (mm)
*2
Sets the width of the lead on the
upper right side.
Lead Pitch: 2N (mm)
Find Pos X: 2N (mm)
*3
Sets the Find Pos X of the lead
on the upper right side.
N
direction
Group
2
Find Pos Y: 2N (mm)
*3
Sets the Find Pos Y of the lead
on the upper right side.
Lead Group S 2
Common
Ruler Offset S 0
Lead Number: 1S 1
Reflect LL.: 1S (mm)
*2
Sets the length of the lead on
the upper left side.
Lead Width: 1S (mm)
*2
Sets the width of the lead on the
upper left side.
Lead Pitch: 1S (mm) 0.0
Find Pos X: 1S (mm)
*3
Sets the Find Pos X of the lead
on the upper left side.
Group
1
Find Pos Y: 1S(mm)
*3
Sets the Find Pos Y of the lead
on the upper left side.
Lead Number: 2S 1
Reflect LL.: 2S (mm)
*2
Sets the length of the lead on
the upper right side.
Lead Width: 2S (mm)
*2
Sets the width of the lead on the
upper right side.
Lead Pitch: 2S (mm) 0.0
Find Pos X: 2S (mm)
*3
Sets the Find Pos X of the lead
on the upper right side.
S
direction
Group
2
Find Pos Y: 2S(mm)
*3
Sets the Find Pos Y of the lead
on the upper right side.
Table 97
Note:
The parameters other than those shown in
Table 97
are not used and the value ” 0” should be
set.
144/178
IM-SMT-VSNDIC-0002-000
Note
1
This option parameter consists of one byte of data, and each bit has different
meaning. (Please refer to “2.12.3-3. Mark 2”, Note 3 for the details.)
Note
*2
: The size (surface area) of the object being detected is set to the “Reflect LL.” and
“Lead Width.” field. The surface area of the lead is obtained from the following
formula:
The lead length x the lead width.
Note
*3
: The inner center position in the Y direction of the detected object lead is set at the
position offset from the component center.

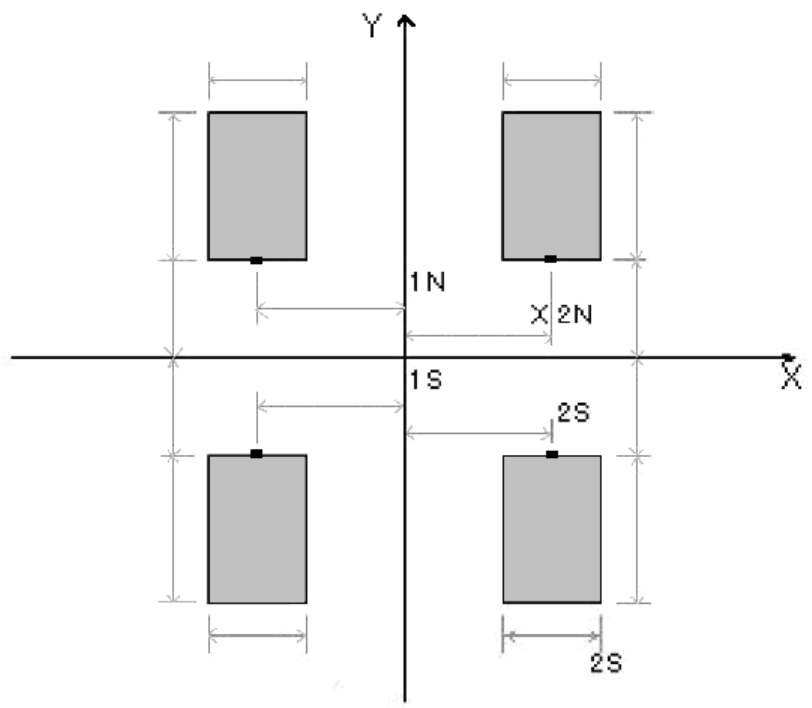

Figure 120
The following is the actual example of the recognition and its component data. Though the
shape of the lead is not rectangular, it is possible to perform recognition of the component.
Find Pos X 2S
Lead Width 1N
Lead Width 2N
Lead Length 1N
Lead Length 2N
Lead
Width 1S
Lead Width 2S
Lead Length 2S
Lead Length
Find Pos Y 2S
Find Pos Y 1S
Find Pos X 1N
Find Pos X 2N
Find Pos Y 2N
Find Pos X 1S
Find Pos Y 1N
