82/178
IM-SMT-VSNDIC-0002-000
<< Recognition of connectors in a zigzag layout that are symmetrical on the upper and
lower sides>>
Items to be set Set value
Alignment Group
Connector
component
Alignment Type Connector NSEW
Comp. Threshold 50
Comp. Tolerance 30
Search Area (mm) 4.0
Body Size X (mm) 4.4
Body Size Y (mm) 32.0
Body Size Z (mm) 4.0
Cntr. Offset X (mm) 0.0
Cntr. Offset Y (mm) 0.0
Cntr. Offset R (mm) 0.0
Ruler Offset N 0
Ruler Offset S 0
Ruler Offset E 3
Ruler Offset W 3
Ruler Width 3
Lead Number E 13
Lead Pitch E (mm) 2.0
Lead Width E (mm) 0.3
Reflect LL. E(mm) 0.7
Lead Number W 14
Lead Pitch W (mm) 2.0
Lead Width W (mm) 0.3
Reflect LL. W (mm) 0.7
Table 54
Figure 62
83/178
IM-SMT-VSNDIC-0002-000

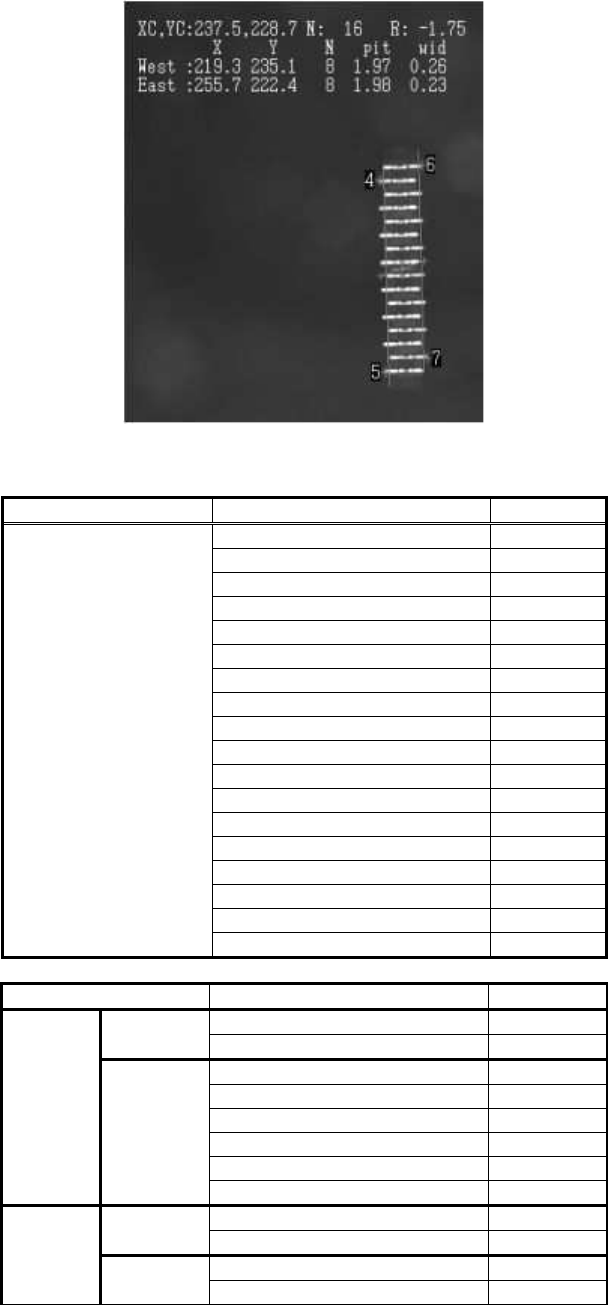

Recognition of connectors in a zigzag layout that are asymmetrical on the upper and lower side
<< Items to be set for Special 1 connectors >>
Items to be set Set value
Alignment Group Special
Alignment Type Special
Comp. Threshold 50
Comp. Tolerance 30
Search Area (mm) 3.0
Body Size X (mm) 3.0
Body Size Y (mm) 13.0
Body Size Z (mm) 3.0
Cntr. Offset X (mm) 0.0
Cntr. Offset Y (mm) 0.0
Cntr. Offset R (mm) 0.0
Ruler Width 3
Algorithm Special 1
Base Alignment Special
Vision Option 1 0
Vision Option 2 0
Vision Option 3 0
Common
Data
Vision Option 4 0
Items to be set Set Value
Lead Group E 1
Common
Ruler Offset E 3
Lead Number: 1E 8
Reflect LL.: 1E (mm) 0.5
Lead Width: 1E (mm) 0.2
Lead Pitch: 1E (mm) 2.0
Find Pos X: 1E (mm) 1.5
E
Direction
Group 1
Find Pos Y: 1E (mm) 7.5
Lead Group W 1
Common
Ruler Offset W 3
Lead Number: 1W 8
Reflect LL.: 1W (mm) 0.5
Lead Width: 1W (mm) 0.2
Lead Pitch: 1W (mm) 2.0
Find Pos X: 1W (mm) -1.5
W
Direction
Group 1
Find Pos Y: 1W (mm) 6.5
Table 55
These are recognized as Special 1 connectors. They are defined by offsetting the Find Pos Y
in the E and W directions by half of the pitch.
84/178
IM-SMT-VSNDIC-0002-000
Figure 63
Items to be set Set value
Alignment Group Special
Alignment Type Special
Comp. Threshold 50
Comp. Tolerance 30
Search Area (mm) 4.0
Body Size X (mm) 3.2
Body Size Y (mm) 28.0
Body Size Z (mm) 3.0
Cntr. Offset X (mm) 0.0
Cntr. Offset Y (mm) 0.0
Cntr. Offset R (mm) 0.0
Ruler Width 3
Algorithm Special 1
Base Alignment Special
Vision Option 0
Vision Option 2 0
Vision Option 3 0
Common
Data
Vision Option 4 0
Items to be set Set value
Lead Group E 1
Common
Ruler Offset E 3
Lead Number: 1E 25
Reflect LL.: 1E (mm) 0.5
Lead Width: 1E (mm) 0.2
Lead Pitch: 1E (mm) 1.0
Find Pos X: 1E (mm) 1.6
E
Direction
Group 1
Find Pos Y: 1E (mm) 12.5
Lead Group W 1
Common
Ruler Offset W 3
Lead Number: 1W 25
W
Direction
Group 1
Reflect LL.: 1W (mm) 0.5
