84/178
IM-SMT-VSNDIC-0002-000
Figure 63
Items to be set Set value
Alignment Group Special
Alignment Type Special
Comp. Threshold 50
Comp. Tolerance 30
Search Area (mm) 4.0
Body Size X (mm) 3.2
Body Size Y (mm) 28.0
Body Size Z (mm) 3.0
Cntr. Offset X (mm) 0.0
Cntr. Offset Y (mm) 0.0
Cntr. Offset R (mm) 0.0
Ruler Width 3
Algorithm Special 1
Base Alignment Special
Vision Option 0
Vision Option 2 0
Vision Option 3 0
Common
Data
Vision Option 4 0
Items to be set Set value
Lead Group E 1
Common
Ruler Offset E 3
Lead Number: 1E 25
Reflect LL.: 1E (mm) 0.5
Lead Width: 1E (mm) 0.2
Lead Pitch: 1E (mm) 1.0
Find Pos X: 1E (mm) 1.6
E
Direction
Group 1
Find Pos Y: 1E (mm) 12.5
Lead Group W 1
Common
Ruler Offset W 3
Lead Number: 1W 25
W
Direction
Group 1
Reflect LL.: 1W (mm) 0.5
85/178
IM-SMT-VSNDIC-0002-000
Items to be set Set value
Lead Width: 1W (mm) 0.2
Lead Pitch: 1W (mm) 1.0
Find Pos X: 1W (mm) -1.6
Find Pos Y: 1W (mm) 12.0
Table 56
Recognition of connectors with fixed leads in a zigzag layout.
Fixed leads are ignored when definitions are made.
Figure 64
When performing recognition on the connectors that have leads both on outside and inside of
the component, only the leads on outside of the component are used for recognition.
Items to be set Set value
Alignment Group Connector
Alignment Type Con-NSEW
Comp. Threshold 50
Comp. Tolerance 30
Search Area (mm) 5.0
Body Size X (mm) 16.0
Body Size Y (mm) 40.0
Body Size Z (mm) 4.0
Cntr. Offset X (mm) 0.0
Cntr. Offset Y (mm) 0.0
Cntr. Offset R (mm) 0.0
Ruler Offset N 0
Ruler Offset S 0
Ruler Offset E 5
Ruler Offset W 5
Ruler Width 3
Lead Number E 60
86/178
IM-SMT-VSNDIC-0002-000
Items to be set Set value
Lead Pitch E (mm) 0.5
Lead Width E (mm) 0.2
Reflect LL. E (mm) 0.5
Lead Number W 60
Lead Pitch W (mm) 0.5
Lead Width W (mm) 0.2
Reflect LL. W (mm) 0.5

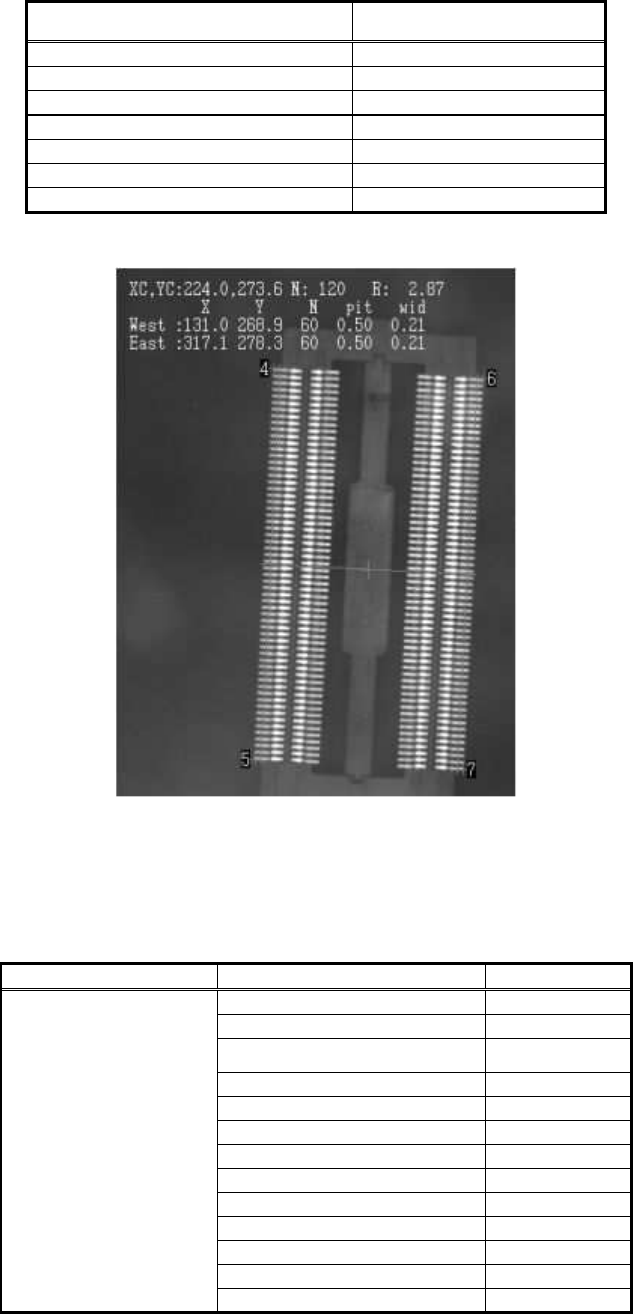

Table 57
Figure 65
The following is the actual example of the setting and recognition results of the components
on which some of the leads on the right and left sides are missing.
<<Items to be set for Special 1 connector>>
Items to be set Set value
Alignment Group Special
Alignment Type Special
Comp. Threshold 50
Comp. Tolerance 30
Search Area (mm) 3.0
Body Size X (mm) 3.0
Body Size Y (mm) 13.0
Body Size Z (mm) 3.0
Cntr. Offset X (mm) 0.0
Cntr. Offset Y (mm) 0.0
Cntr. Offset R (mm) 0.0
Ruler Width 3
Common
Data
Algorithm Special 1
